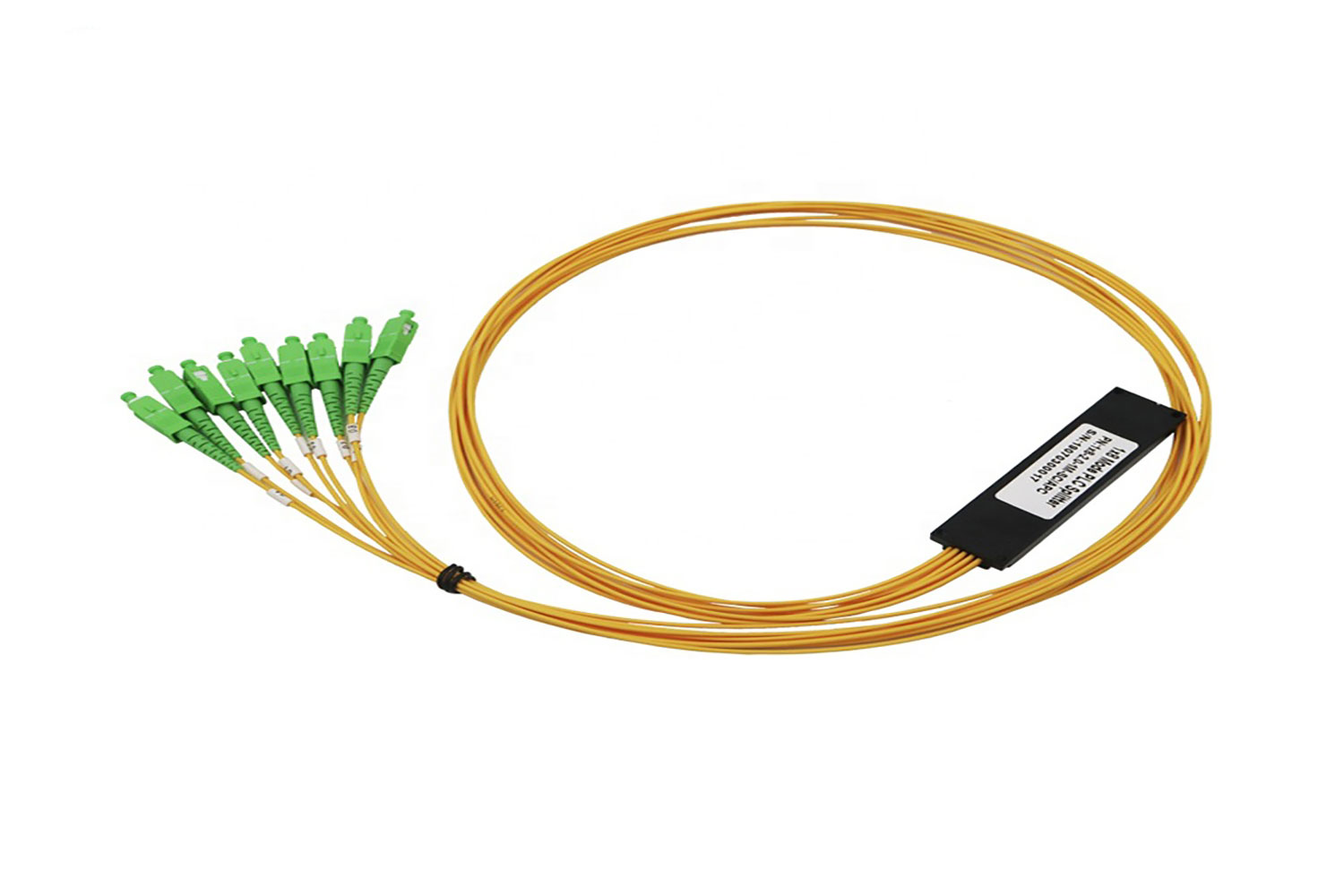

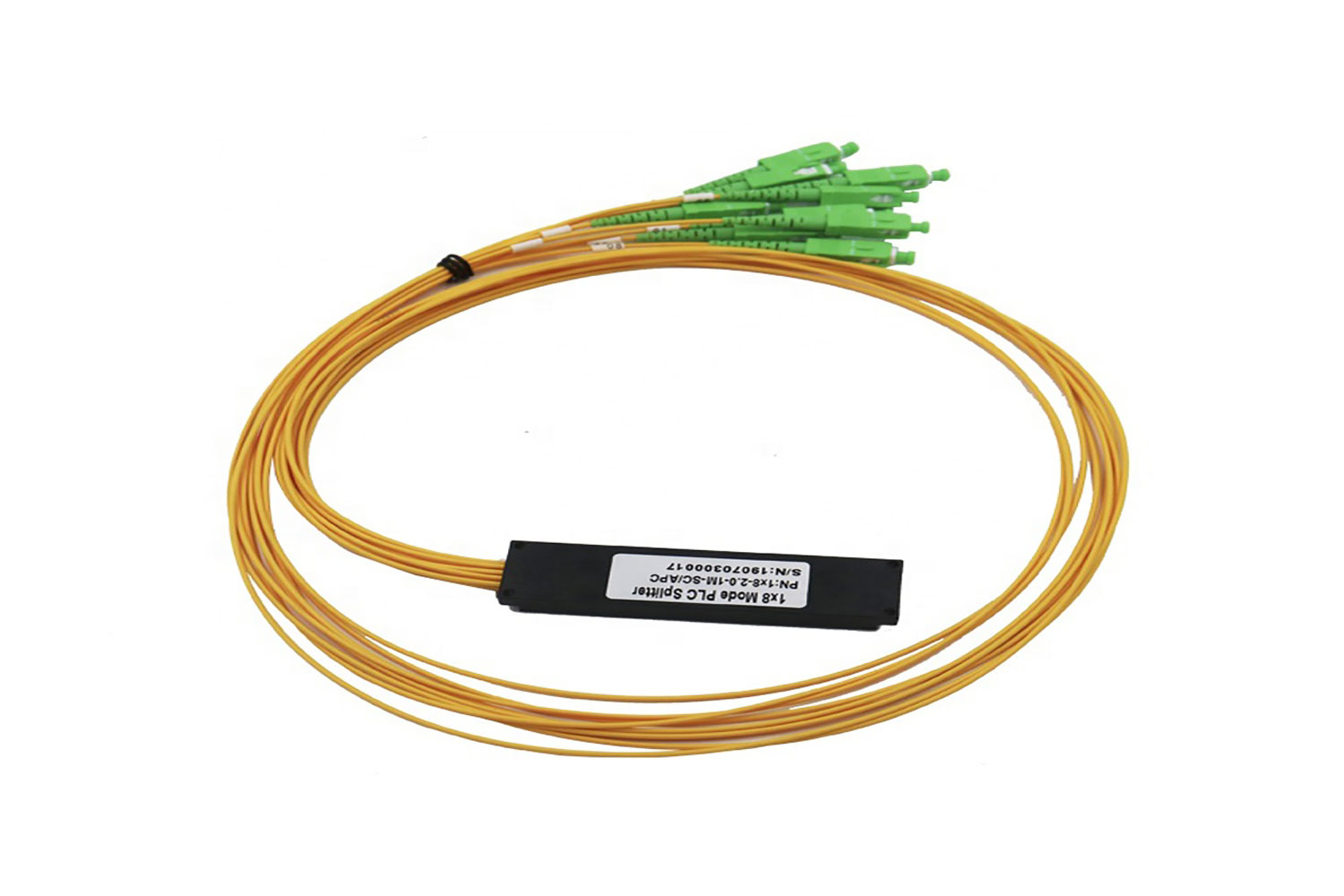

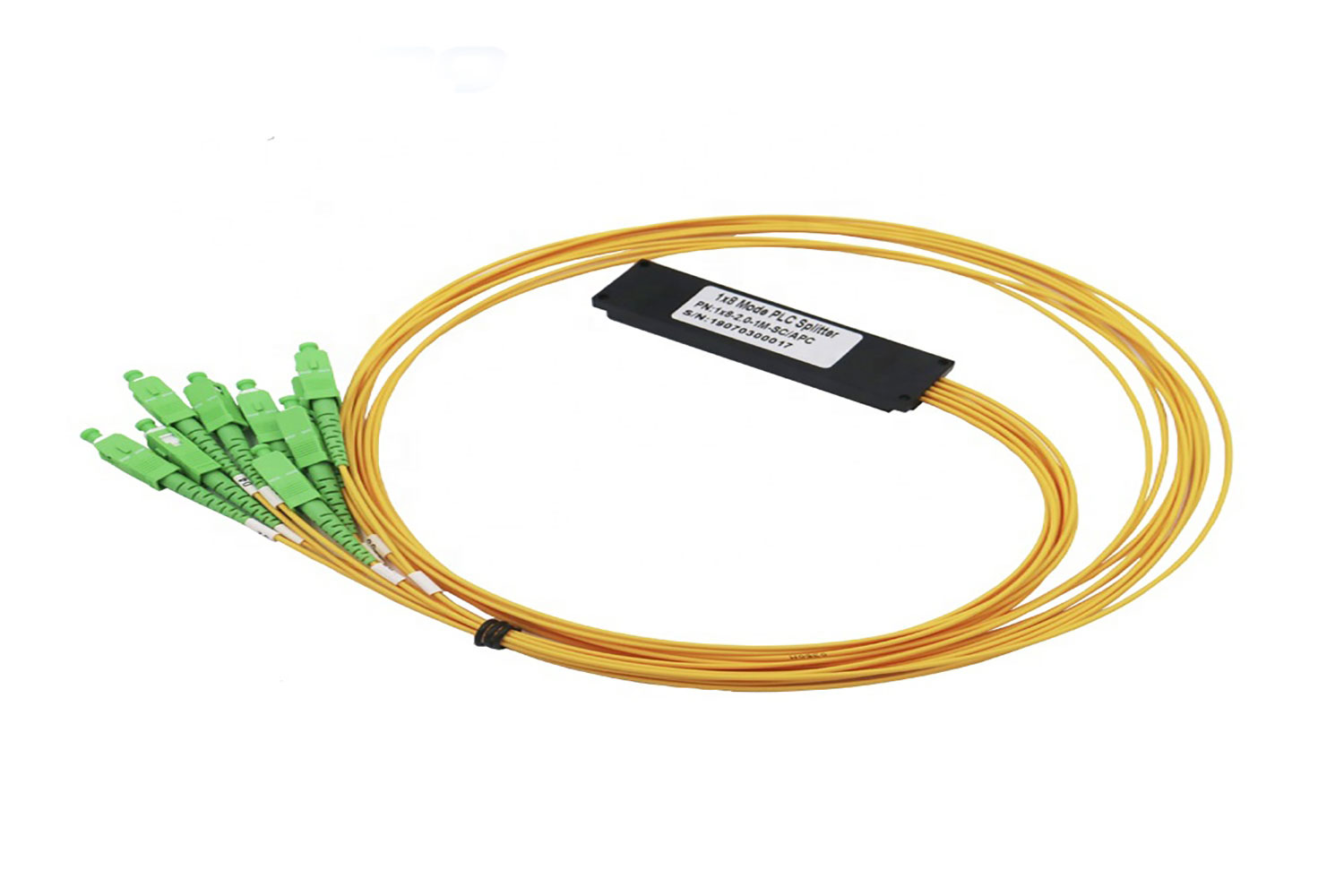

1*8 Mini ABS Type 2.0mm 3.0mm SC APC Fiber Optic PLC Splitters

Product Model

 SP-MAP-1X8-SCA

Product Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Springoptic offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.

Features
  1. Low Insertion loss and Low PDL
  2. Good channel-to-channel uniformity
  3. Wide Operating Wavelength: From 1260nm to 1650nm
  4. Wide Operating Temperature: From -40℃ to 85℃
  5. High Reliability and Stability
  6. Stability Telecordia GR-1221 and GR-1209

Components through TLC-Certified, Conform to YD1117-2001

Specification
Type 1×2 1×4 1×8 1×16 1×32 1×64
Working Bandwidth (nm) 1260-1650
Insertion Loss (dB) Max w/o connectors 3.8 7.1 10.2 13.5 16.8 20.2
Insertion Loss (dB) Max with connectors 4.1 7.4 10.5 13.8 17.1 20.5
Wavelength Dependent
Loss (dB) Max.		 0.2 0.3 0.4 0.6 0.8 1
Return Loss (dB) Min.(APC) 55
Temperature Dependent
Loss(dB) Max		 0.5
Stability in Hot
Environment (dB/°C) Max		 1
Uniformity (dB) Max 0.6 0.6 0.8 1.1 1.5 2
Polarization Dependent
Loss (dB) Max		 0.2 0.2 0.2 0.3 0.3 0.3
Orientation (dB) Min 50
Power (mW) Max 300
Steel Tube Size(mm) 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Optical Fiber SMF-28, G657A1, G657A2 or customized
Input / Output length 1meter standard or customized length
Cable Color White or customized
Cable Diameter 250um or 900um
Connector SC APC, SC UPC or without connector
Operating Temperature (℃) -40 to 85
Storage Temperature (℃) -40 to 85
Standard Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321
Application

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment

Download

8 way SC APC Mini ABS PLC Splitter
