FCUPC LCUPC SM Duplex G652D LSZH 2.0mm 15M Fiber Optic Patch Cord

Product Model

FCUPC-LCUPC SM DX

Product Description

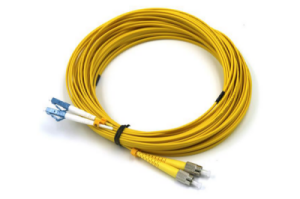

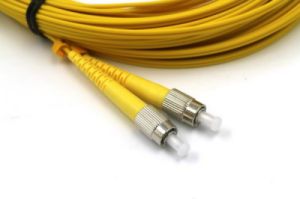

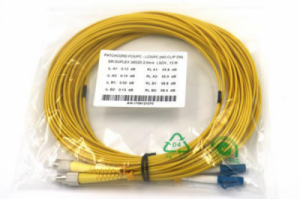

FCUPC-LCUPC SM Duplex G652D LSZH 2.0mm 15M fiber optic patch cord These high speed single-mode 9/125um duplex fiber optic patch cables are terminated with FC/UPC fiber optic connectors on one end and LC/UPC fiber optic connectors on the other end (FC/UPC-LC/UPC). Called Lucent Connectors, Little..

Features
  • High speed, single-mode
  • Duplex fiber
  • Snap-in LC connectors and push-pull SC connectors for easy installation.

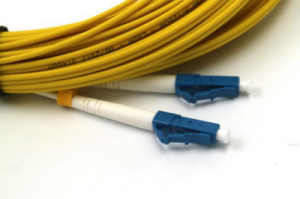

  • Small form factor LC connectors—ideal for high density installations!
  • The LC connector is compatible with SFP modules and XFP transceivers.
  • UPC polish type on one end and APC polish type on the other end to maximize signal transmission.
  • UL Listed in Canada and the US; RoHS Compliant
  • Available in custom lengths and colors—call for more
Specification
Mode Singlemode
Connection Style Duplex
Connectors FC/UPC to LC/UPC
Fiber 9/125um
Polish Type FC=UPC LC=UPC
Typical Insertion Loss ≤ 0.15 dB
Maximum Insertion Loss ≤ 0.30 dB
Maximum Return Loss ≥ 50 dB
Application

*Telecommunication subscriber loop
*Fiber to the home (FTTH)
*LAN/WAN
*CATV
