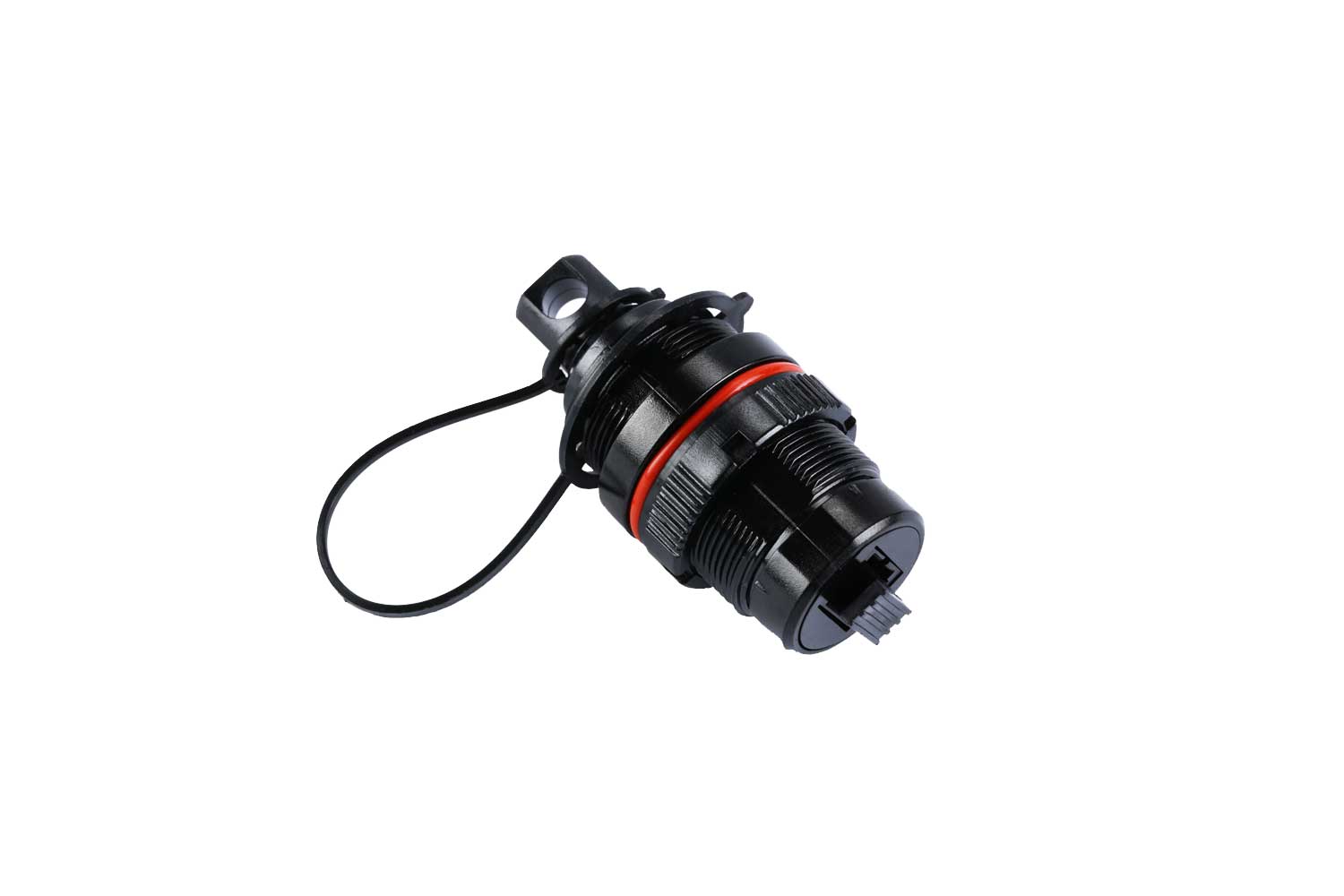

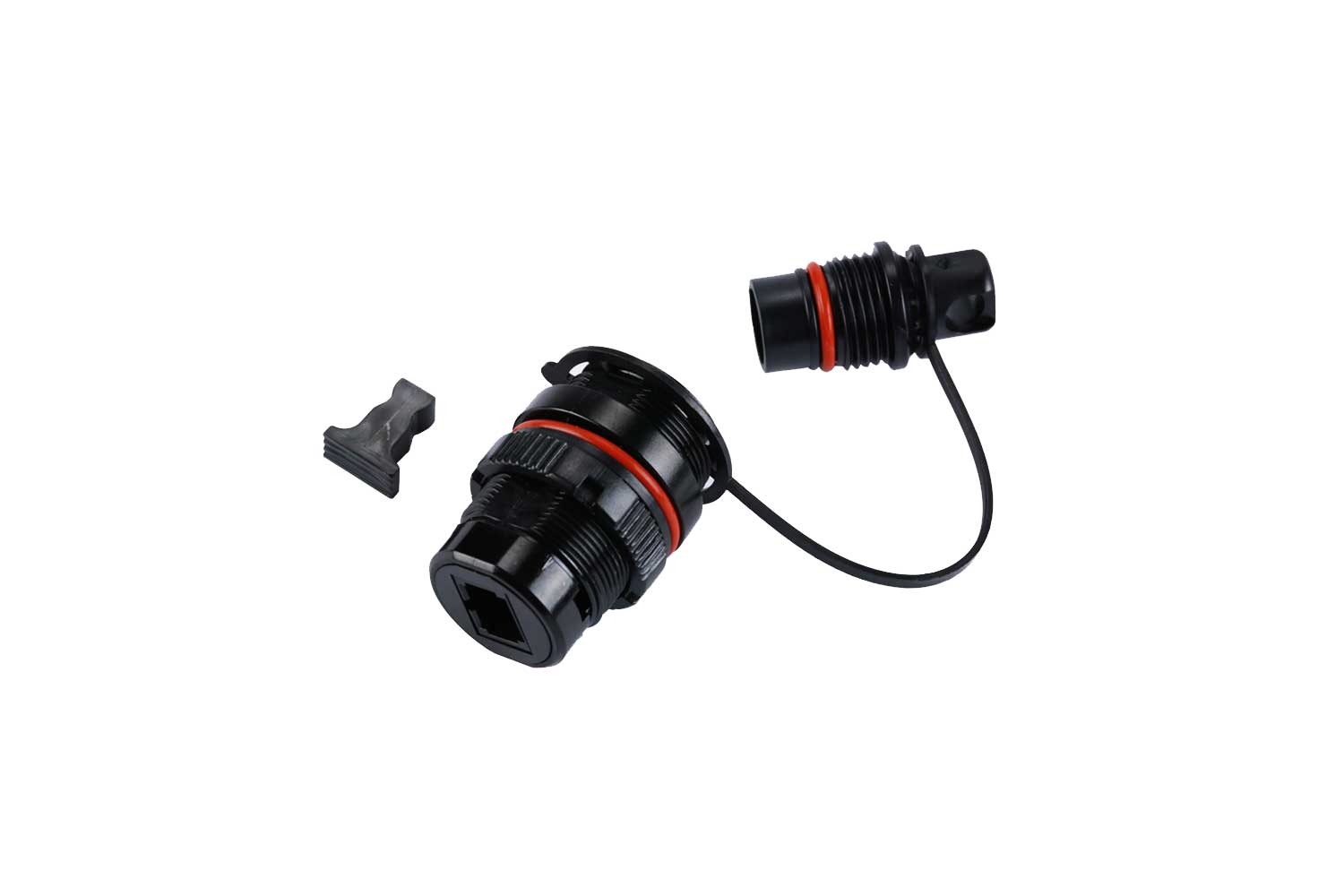

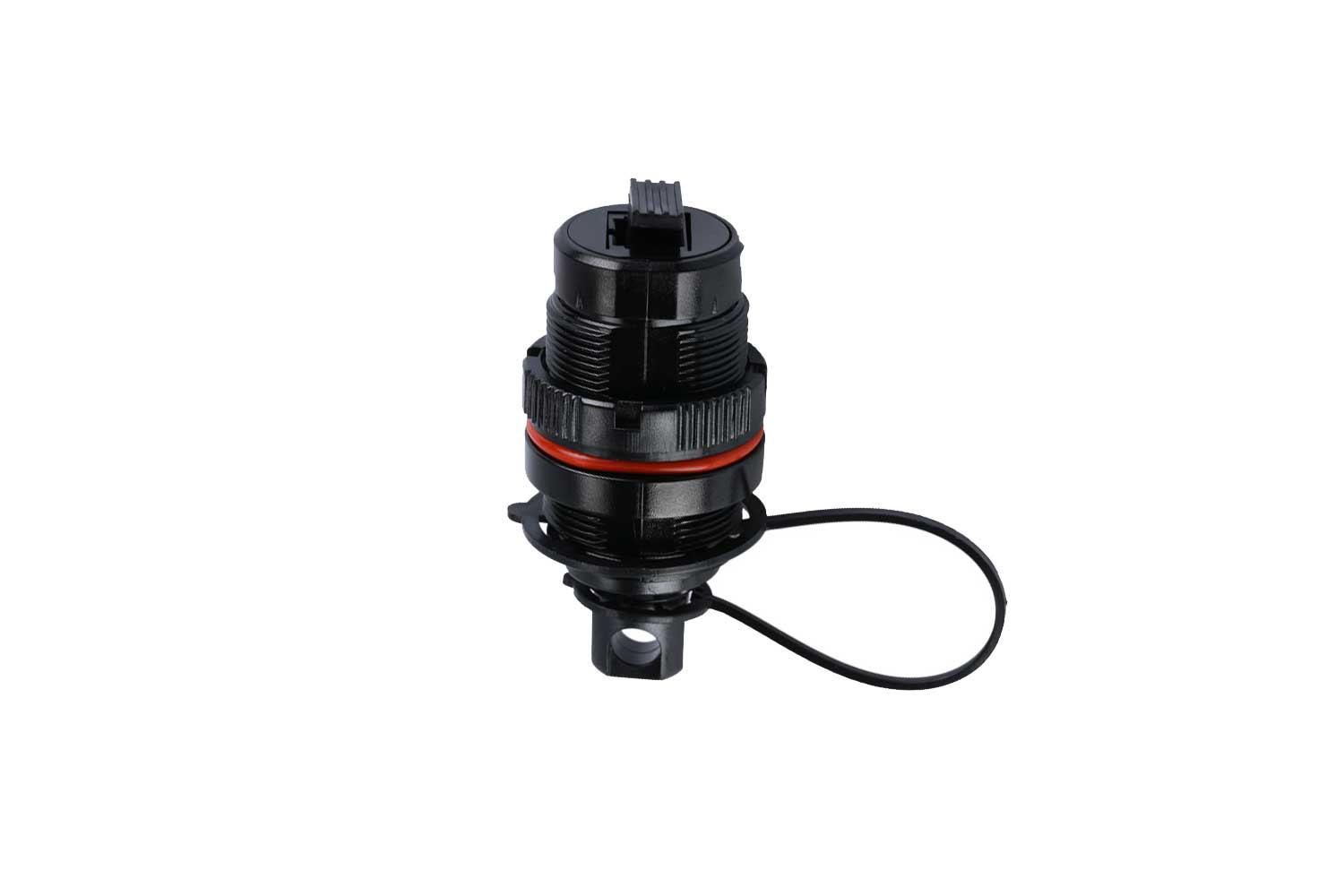

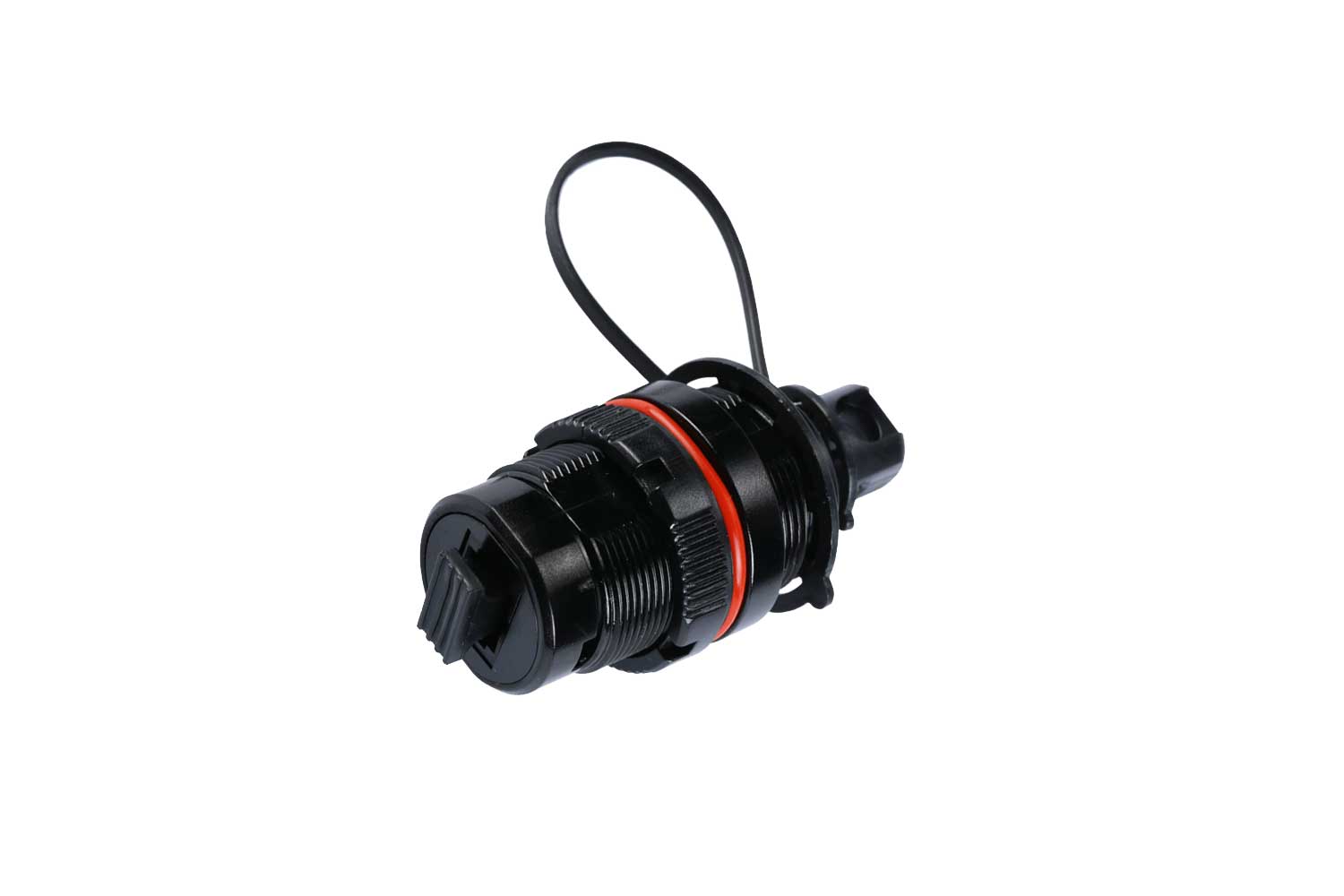

H Connector Adapter SuperTap Hybrid Hardened Adapter

Product Model

 SP-AD-IPHC

Product Description

OptiTap hybrid adapter (H connector adapter) accommodates a variety of pre-connectorized applications including use in terminals, network interface devices and others.

Features

The environmentally hardened adapter features the rugged H connector OptiTap on one side and a SC connector on the other. This innovative design significantly reduces installation and network expansion time and cost, making it an integral part of pre-connectorized solutions.

It provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.

Features:

  1. Proven design provides a hardened adapter for outside plant deployment.
  2. Single fiber Hybrid adapter
  3. OptiTap Connector to SC Connector
  4. Environmentally sealed adapter housing permits external bulkhead flush-mounting style on terminals or closures.
  5. Fully standards compliant products ensures the highest network reliability and durability
Specification
Connector type

SC-SC

Polish Type

APC

Fiber Counts

Simplex

Fiber Mode

Singlemodde

Insert Loss

≤0.2dB
Return Loss

≥50dB

Durability

≤0.1dB

Temperature Stability

≤0.3dB
Flammability Rate

UL94-V0

Working Temperature

-25~70°C

  1. Single-fiber hybrid adapter, IL<0.20 typically.
  2. H connector (Corning OptiTap) connector to SC connector
  3. Environmentally sealed adapter housing permits external bulkhead flush-mounting style on terminals or closures
  4. Adapters designed meet Telcordia GR-3120 requirements.
  5. IP67 protection, salt-mist proof, humidity proof, dust proof.
  6. Utilize traditional field installation techniques for aerial, below ground and duct applications.
  7. Reduce installation time by as much as 50 percent per network access point.
Application
  1. Fiber optic communications in harsh outdoor environments.
  2. Outdoor communication equipment connection.
  3. Waterproof Fiber Equipment.
  4. Remote wireless Base Station.
  5. FTTx ISP Project.
Download

Related Products

product3 1

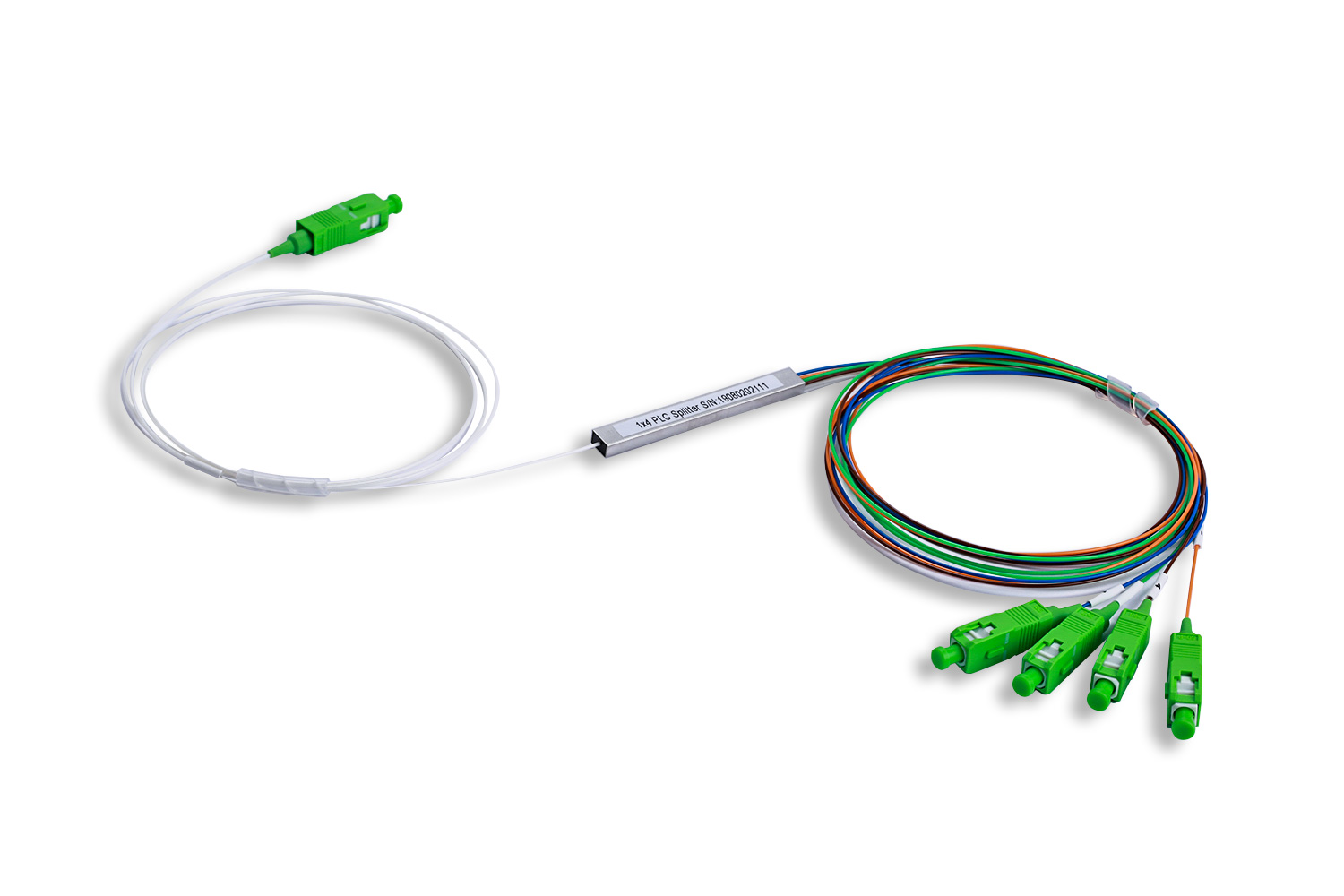

Mini Steel Tube PLC Splitter
