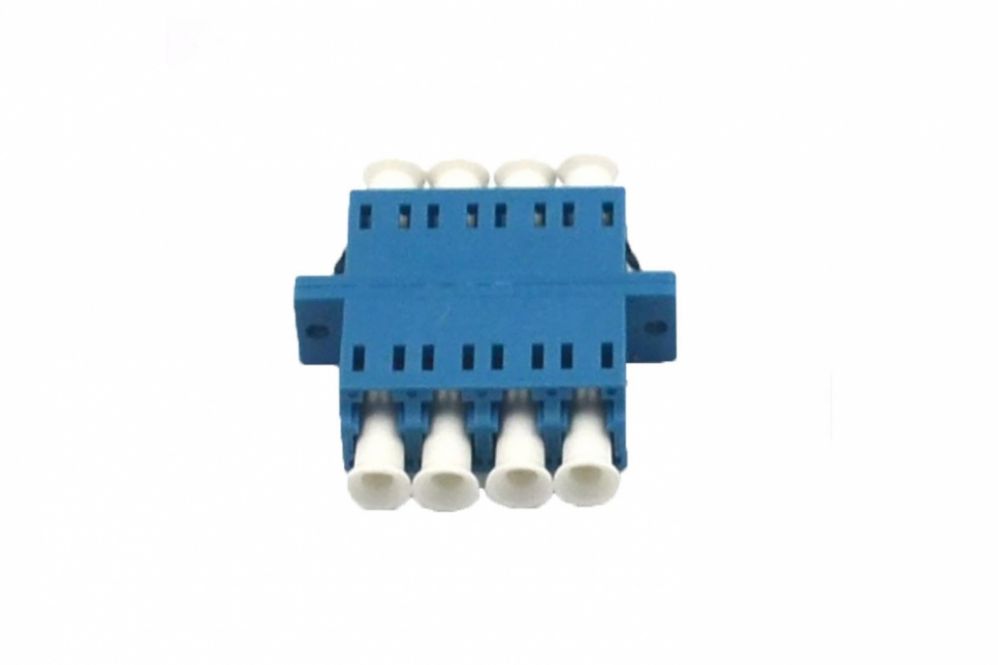

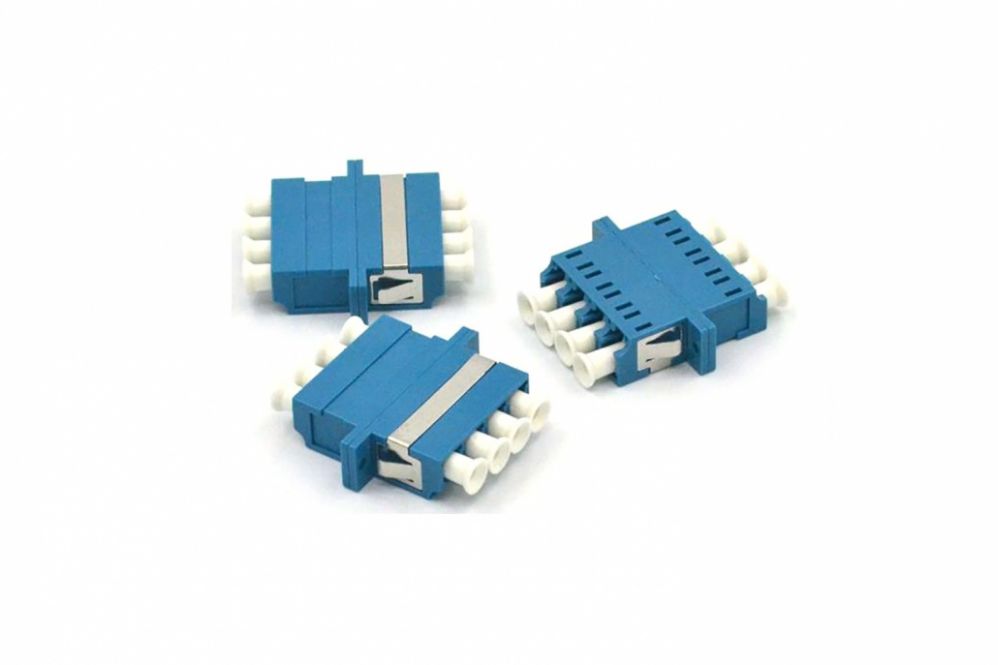

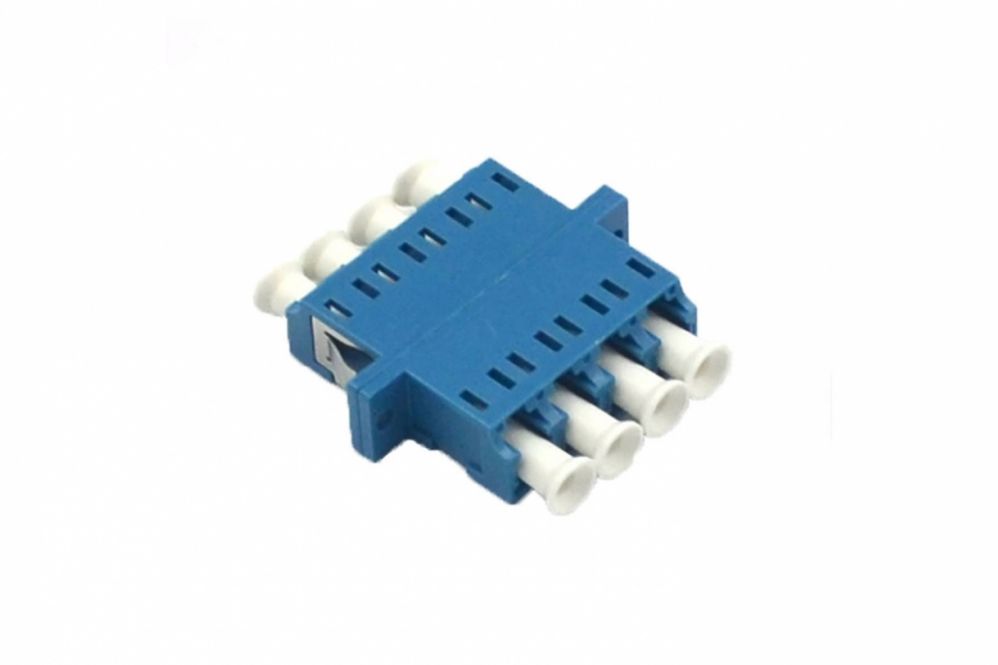

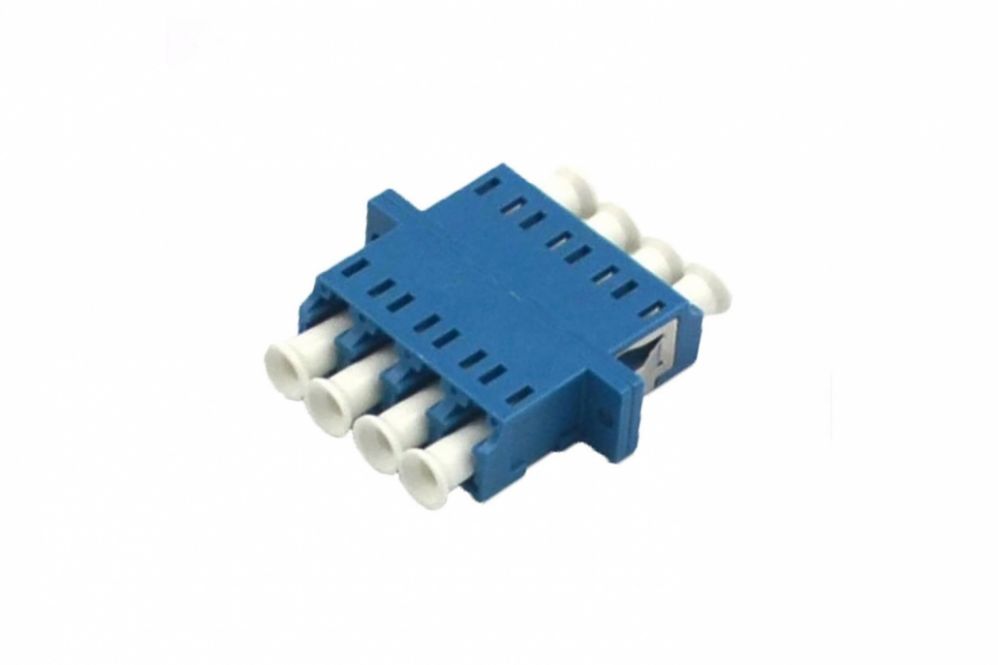

LC APC Quad Adapter (4)
LC APC Quad Adapter (4) LC APC Quad Adapter (3) LC APC Quad Adapter (2) LC APC Quad Adapter (1)

LC/UPC SM Quad Fiber Optical Adapters

Product Model

 SP-LC/UPC-Quad

Product Description

LC Singlemode Quad Fiber Optical Adapter

We can do Simplex, duplex and quad LC Fiber Optical Adapters. And singlemode, multimode, OM3, OM4 all is available.Usually singlemode is blue color ,Multimode is grey color ,APC is green color ,OM3 is aqua color ,OM4 is pink color .And also other colors can be customized

Features
  1. Low insertion and high return loss
  2. High Precision Alignment;
  3. Good Wearability;
  4. Good interchangeability;
  5. Good Temperature characteristic;
  6. Good repeatability.
Specification
Insertion loss ≤0.2db
Plug and unplug force(g/f) 200-600
Durability plug and unplug 1000 times
Operating temperature -45 t +75°C
Application
  • CATV
  • Active device termination
  • Telecommunication networks
  • Metro networks
  • Local Area Networks (LAN)
  • Data processing networks
  • Wide Area Networks (WAN)
  • Test equipment
  • Premise installations
Download

Specification Download
