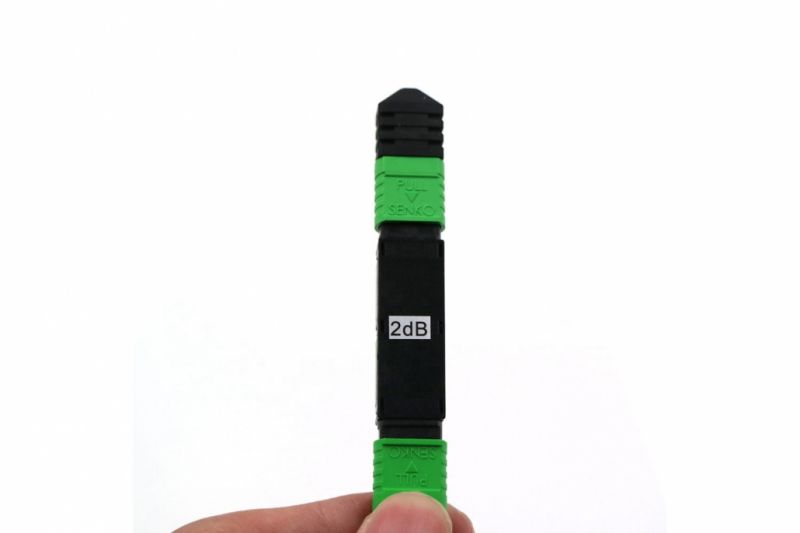

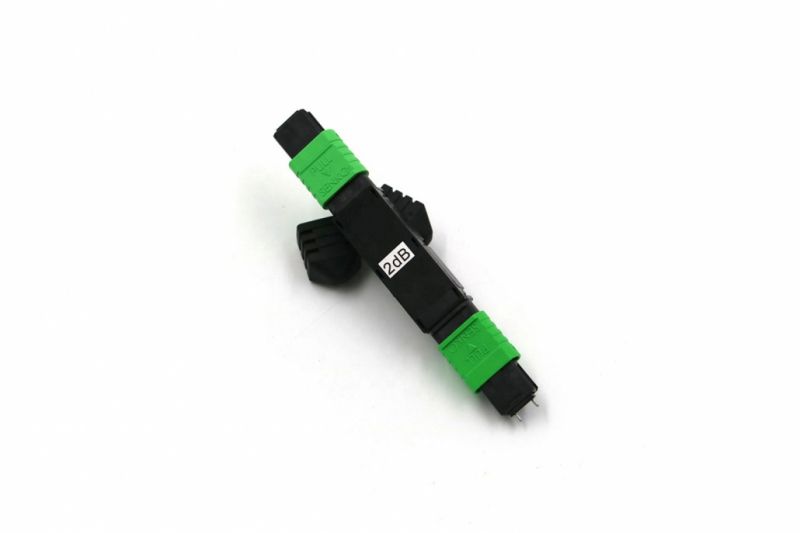

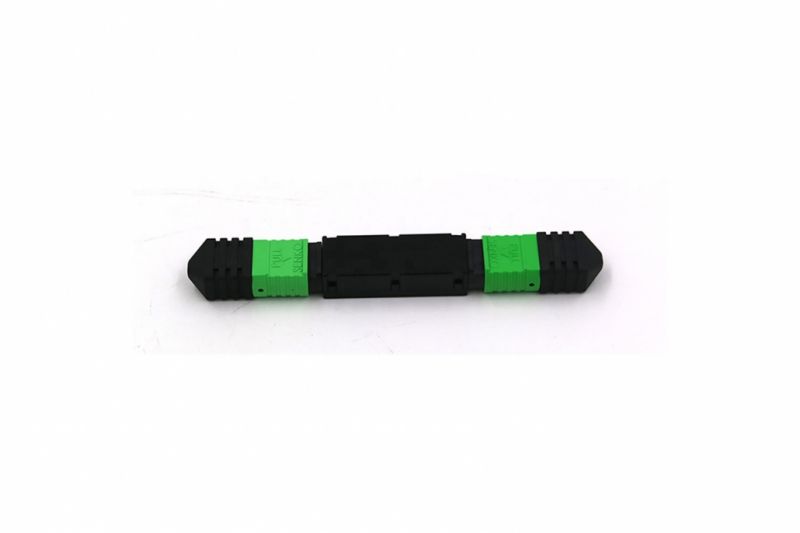

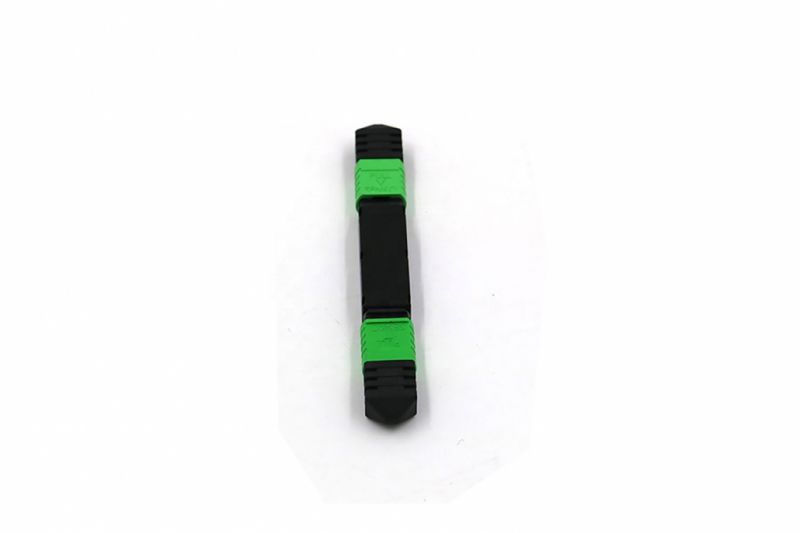

MPO/MTP APC 12core Female to Male Fiber Attenuator

Product Model

 SP-MPO-12C-Attenuator

Product Description

SPRING’s MPO attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network’s composition more concise than those of conservative way which is the connection method of Attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5, and IEC 61754-7 with compliance for RoHS.

Features

Features

High stability and High Durability

Compact Housing Dimension

RoHS Compliant

Specification
Parameter Conditions
Operating Wavelength(nm) 1310/1550
Attenuation(dB) Attenuation range: 1~20

Attenuation precision: ±1(Attenuation range≤10dB),  ±10%(Attenuation range

>10dB)

Return Loss(dB) 60 (8° Polishing, SM)
Operating temperature 0~75°C
Housing Dimension

(L×W×H) (mm)

80.0×11.3×8.1
Application

Data Center Infrastructure

Storage Area Network and Fiber Channel

Various 40G and 100Gbps Protocols
