Outdoor Precon Optic Patch Cable With MINI MPO MTP IP67 Connectors 5.0mm

Product Description

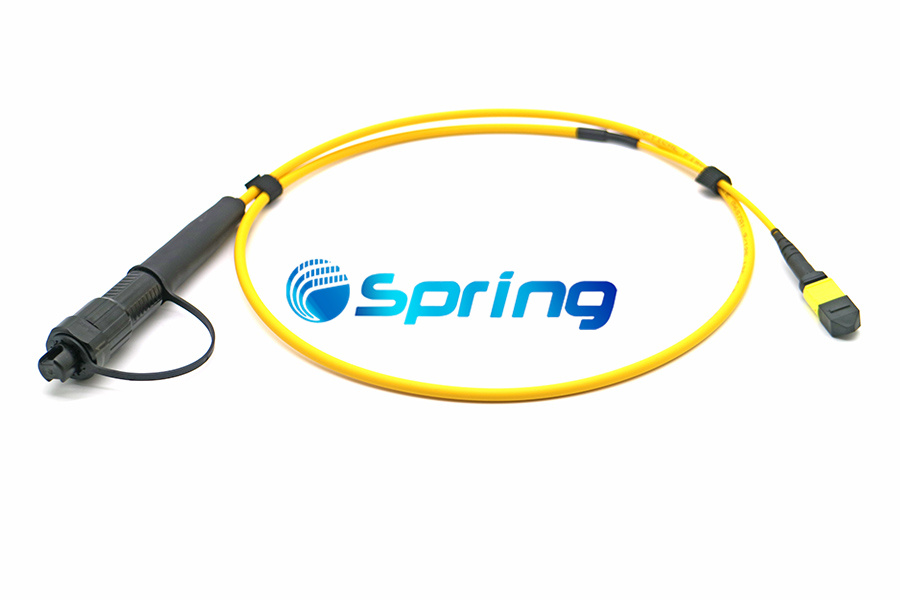

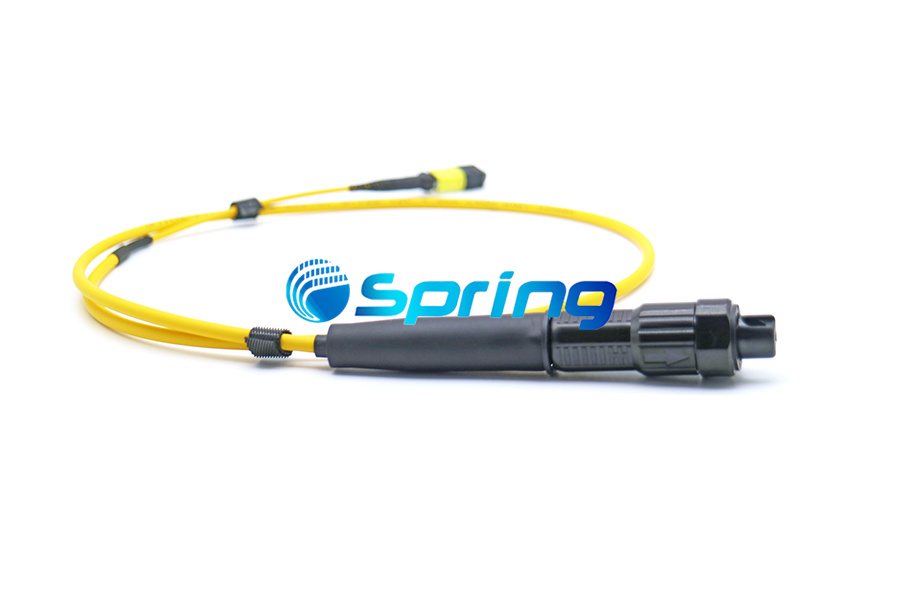

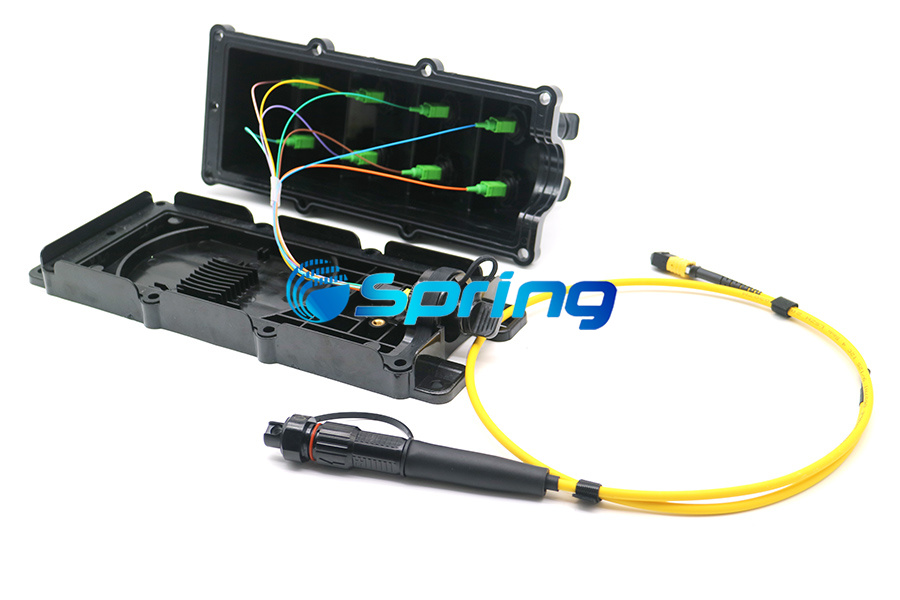

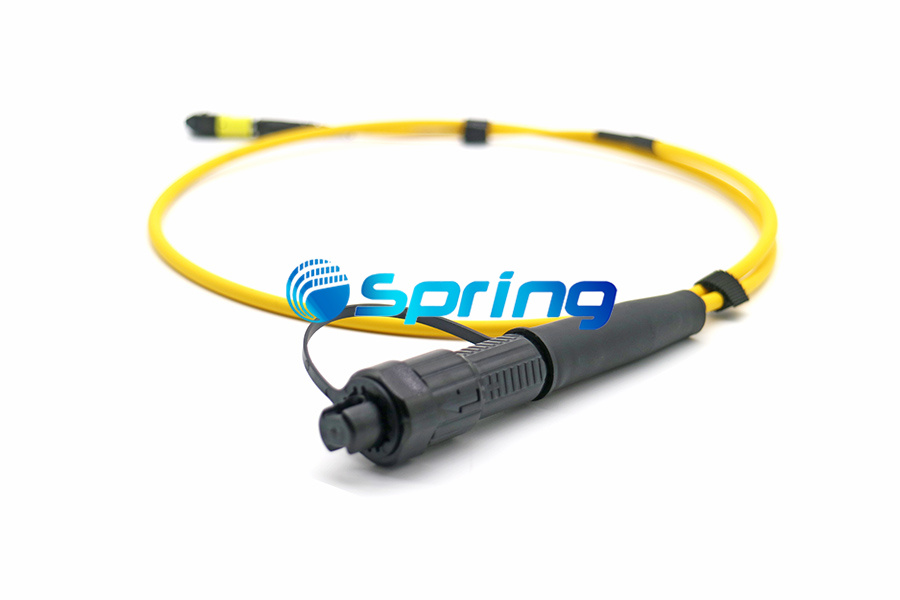

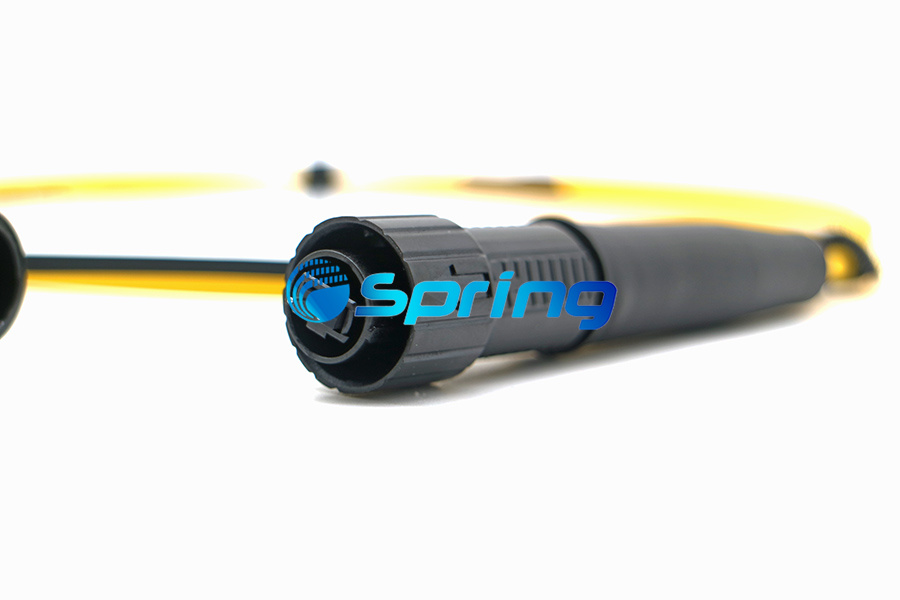

Outdoor Precon Optic Patch Cable with MINI MPO MTP IP67 Connectors.Fastconnect outdoor MPO distribution cable adopts a tip pulling eye design, achieving fast deployment, high network reliability, durability, and easy to pass through the duct. Angent provide multi-type MPO distrubution cables, one end with Fastconnect Multi-fiber(Max 12 fibers) female MPO connector, the other end with bullet head MPO connector or 12f LC connector or 12f SC connector, which can meet different scenario cabling requirements.


Outdoor Precon Optic Patch Cable With MINI MPO MTP IP67 Connectors 5.0mm

  • Fast deployment, plug and play.
  • Lower insertion loss MPO technology.
  • Ferrule protection and orientation design.
  • Easy to install and uninstall.
  • Designed for aerial, direct-buried or duct installation.
  • IP-68 water and dust protection.

Item Parameter
Cable Scope 0.9mm, 2.0mm, 3.0mm round cable and 3.0 x 2.0 mm drop cable
Length 45mm
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ -50dB for UPC, ≤ 55dB for APC
Success Rate >98%
Reusable Times >5 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test IL ≤ 0.3dB

FTTH Application

Fiber optic communications in harsh outdoor environments

Outdoor communication equipment connection

waterproof fiber equipment SC port

Remote wireless base station

FTTx FTTA wiring project
