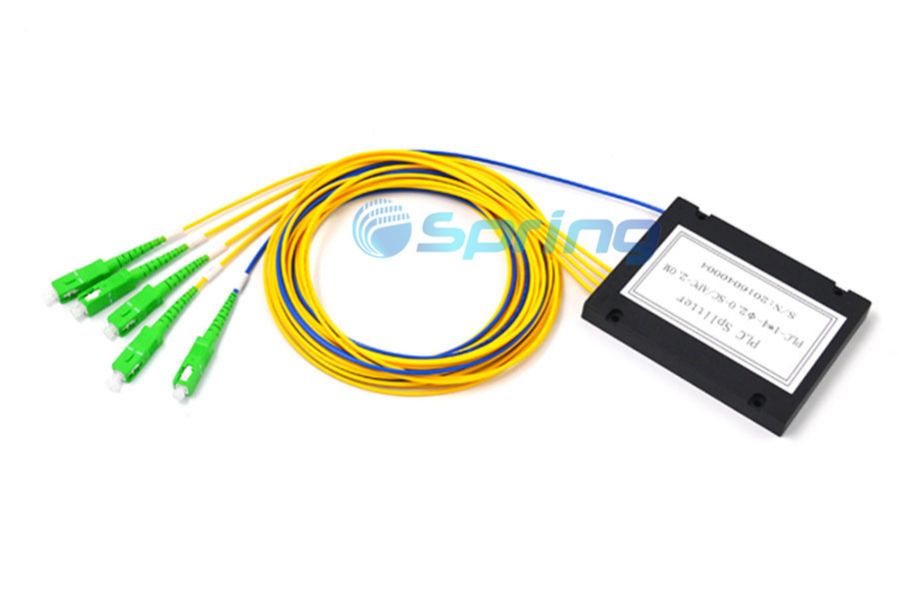

1*4 ABS Box type Fiber PLC Splitter

Product Model

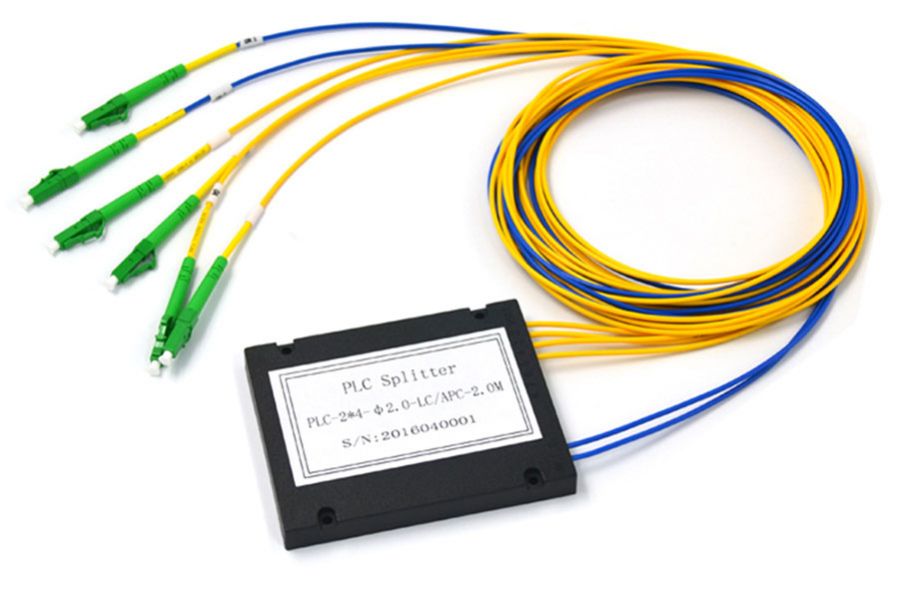

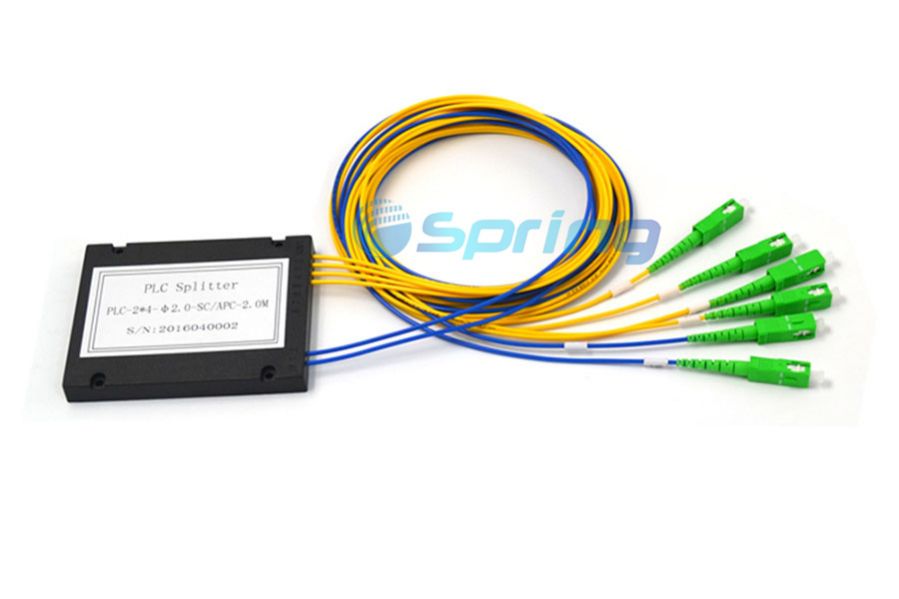

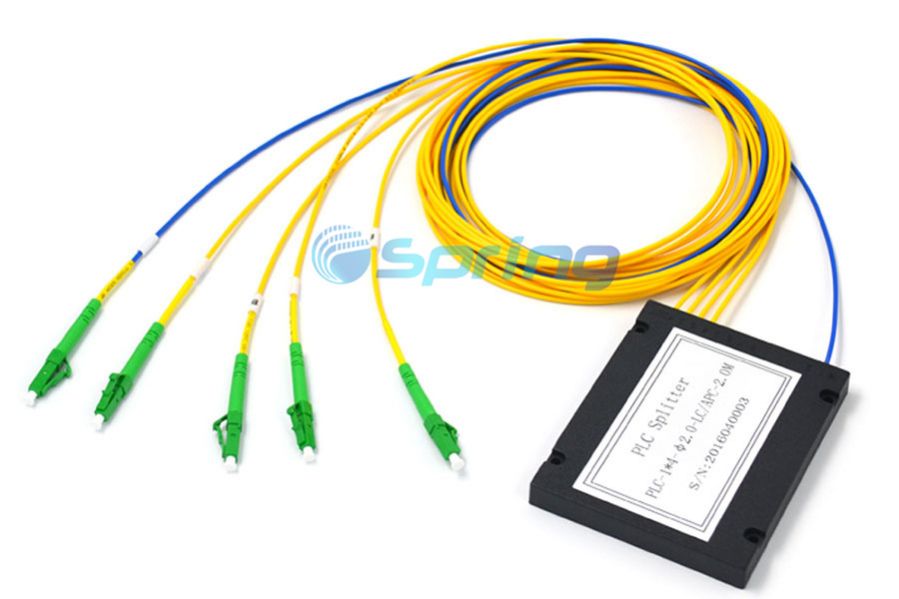

1X4 2×4 ABS Box PLC Splitter

Product Description

We can 1X4&2×4 ABS box type PLC Splitter with connector and without connector.

Springoptic offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here. The springoptic  PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here.

Features
  • 1X4&2×4 ABS Box PLC Splitter Features:
  • Low insertion lossLow Polarization Dependent Loss

    Excellent Environmental Stability

    Excellent Mechanical Stability

    Telcordia GR-1221 and GR-1209

     Options:

    1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits

    2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits

    Unconnectorized

    Fiber jacketing outside boxes 2mm and up to 3mm

    ABS box type or inside metal box/module cassette type

    SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options

    Custom connector configurations and combinations

Specification

1X4 PLC Splitter (Measured at room temperature and excludes connector loss)

TYPE 1*4
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 6.8
Max 7.5
Loss Uniformity(dB) Max 0.7
Polariation Dependent Loss(dB) Max 0.2
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

 2×4 PLC Splitter (Measured at room temperature and excludes connector loss)

TYPE 2*4
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 7.4
Max 7.8
Loss Uniformity(dB) Max 1.4
Polariation Dependent Loss(dB) Max 0.3
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

1×4 PLC Splitter (Measured at room temperature and includes connector loss)

TYPE 1*4
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 7
Max 8
Loss Uniformity(dB) Max 0.7
Polariation Dependent Loss(dB) Max 0.2
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

 2×4 PLC Splitter (Measured at room temperature and includes connector loss)

TYPE 2*4
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 7.9
Max 8.3
Loss Uniformity(dB) Max 1.4
Polariation Dependent Loss(dB) Max 0.3
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)



Application

1X4 2×4ABS Box PLC Splitter Applications:

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment
