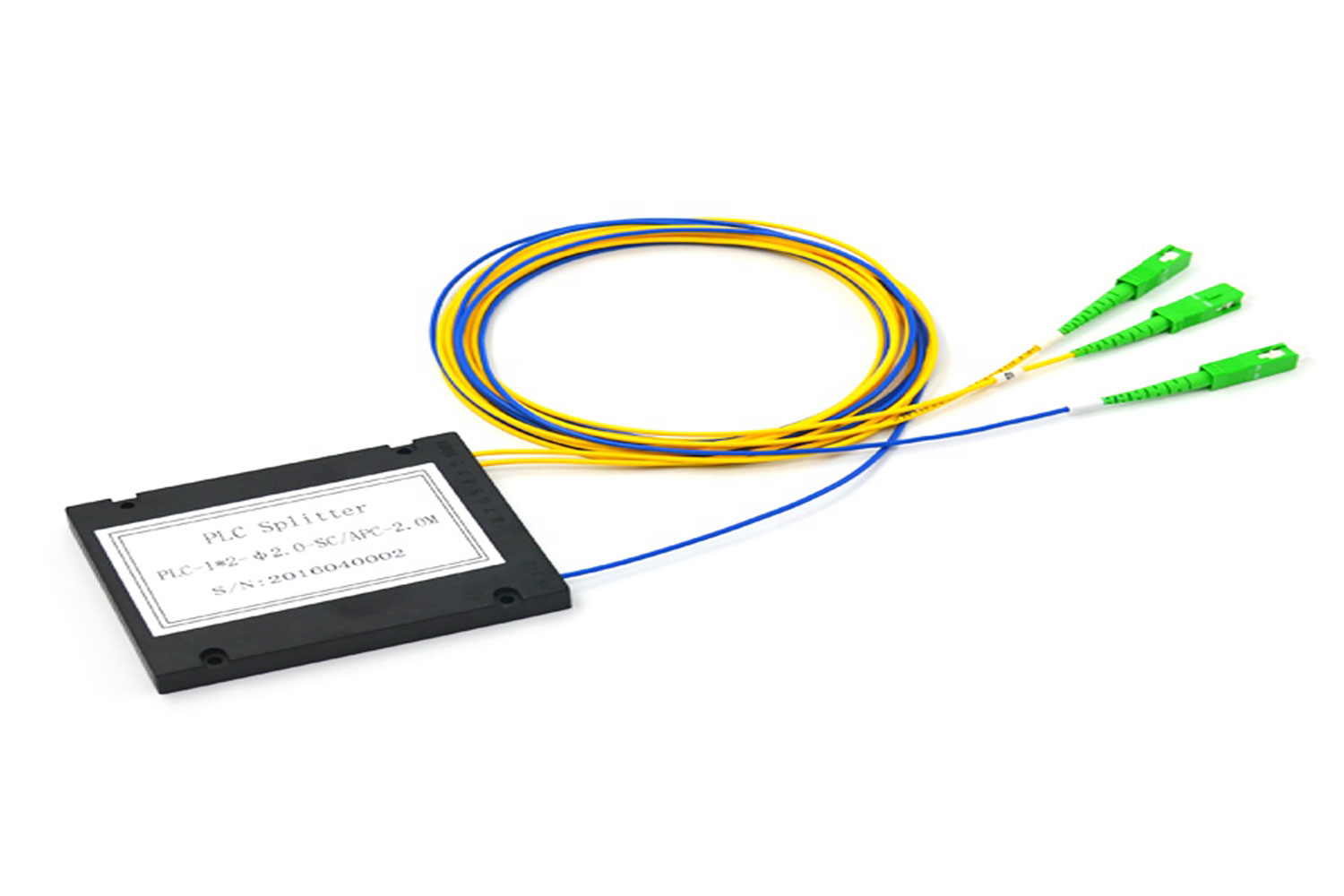

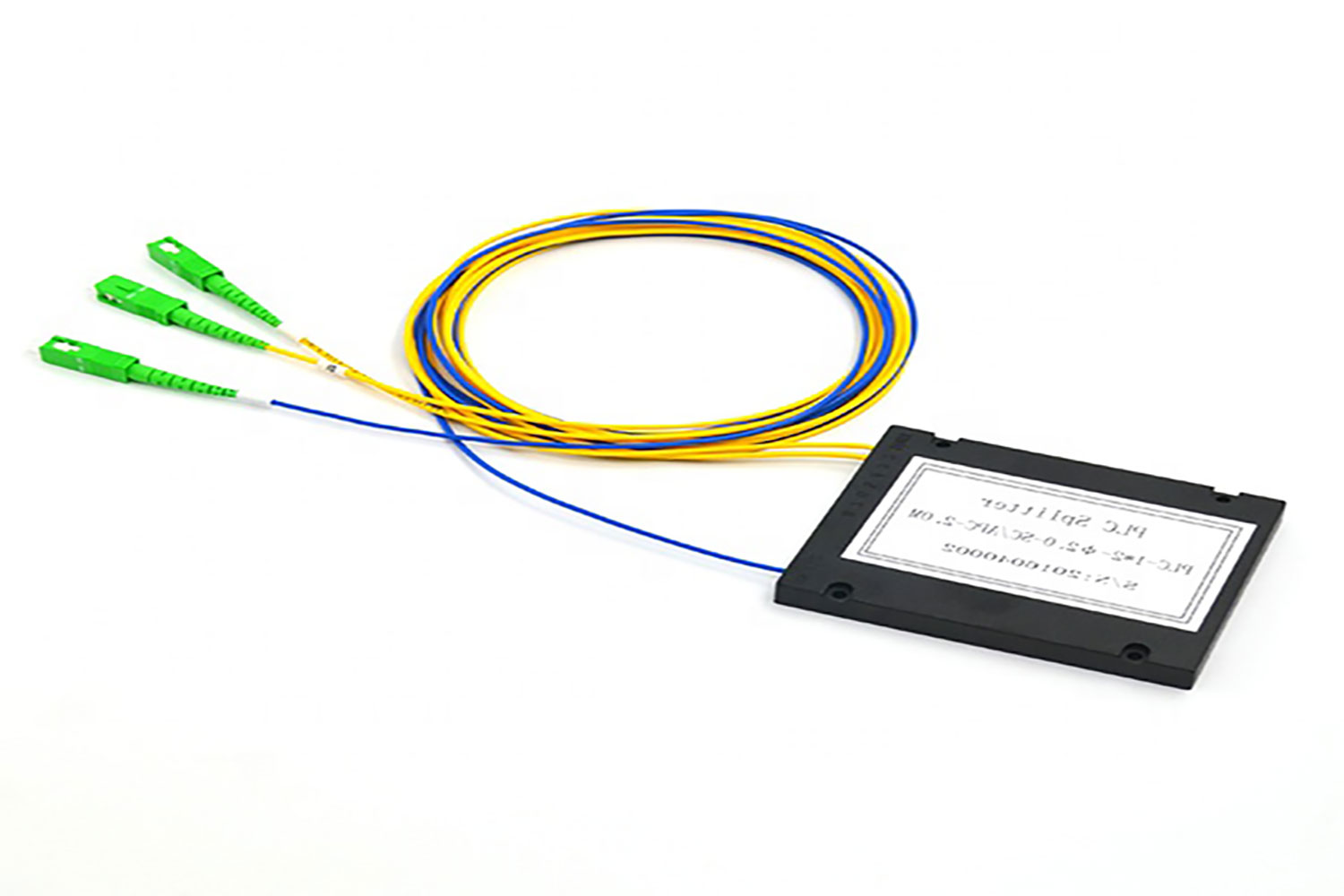

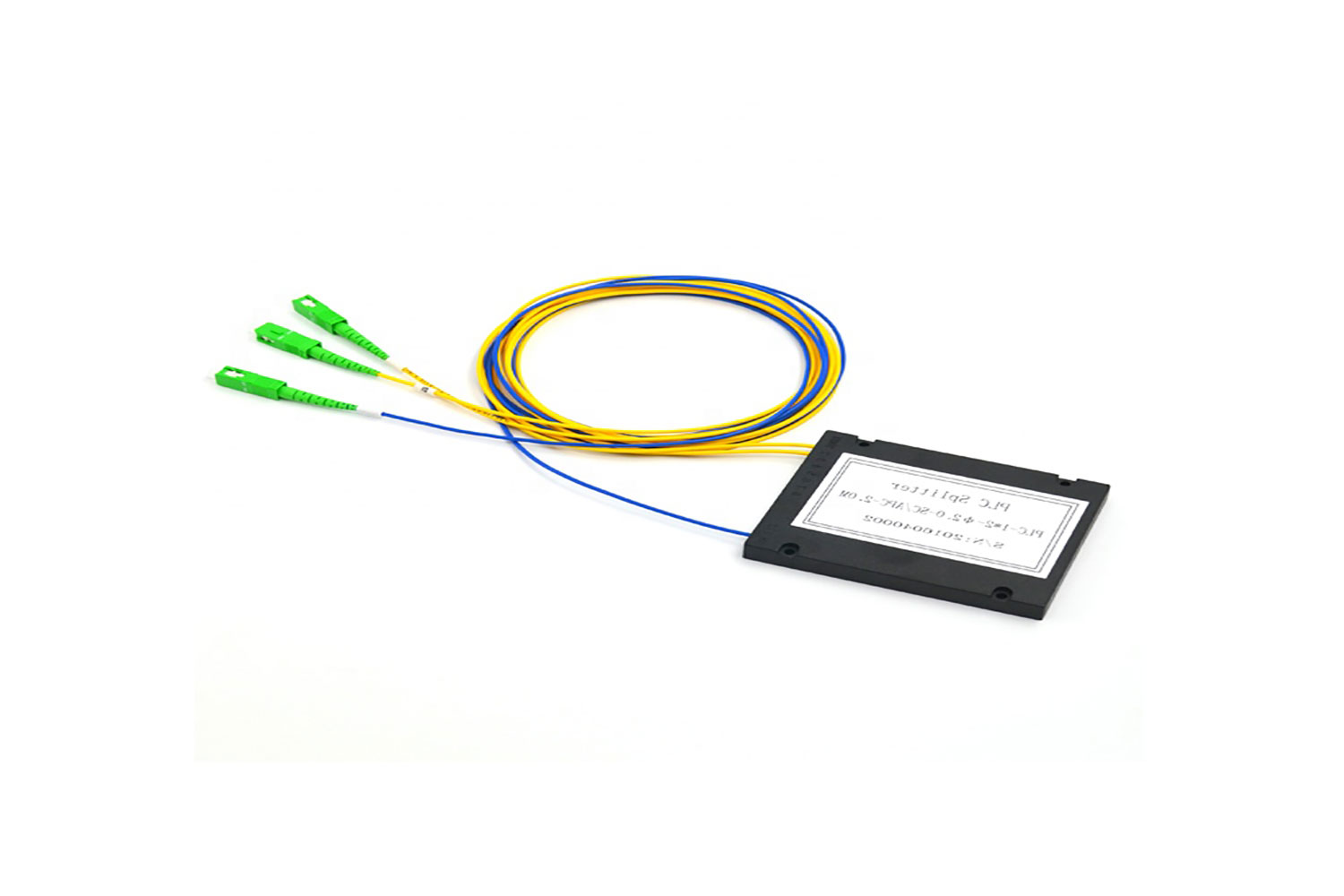

1*2 SC APC ABS Module PLC Optic Fiber Splitter

Product Model

 SP-AP-1X2-SCA

Product Description

PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs. The Spring optic PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications. Customized designs are also available for customer needs.

Features
  1. Low insertion loss
  2. Low Polarization Dependent Loss
  3. Excellent Environmental Stability
  4. Excellent Mechanical Stability
  5. Telcordia GR-1221 and GR-1209

Components through TLC-Certified, Conform to YD1117-2001

Specification
Specifications (1XN):
Parameters 1X2 1X4 1X8 1X16 1X32 1X64
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.6/4.0 7.2/7.4 10.2/10.5 13.5/13.7 16.2/16.7 20.5/21
Uniformity (dB) 0.4 0.6 0.8 1 1.2 1.8
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL(dB) 0.5
Operating/Storage Temperature (℃) -40~85
Specifications (2XN):
Parameters 2X2 2X4 2X8 2X16 2X32 2X64
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.8/4.2 7.5/7.8 10.7/11 14/14.2 17/17.5 21/21.5
Uniformity (dB) 0.6 1 1.2 1.5 1.8 2
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL(dB) 0.5
Operating/Storage Temperature (℃) -40~85
Application
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Download

ABS Module Fiber Optic PLC Splitter with SCAPC Connector
