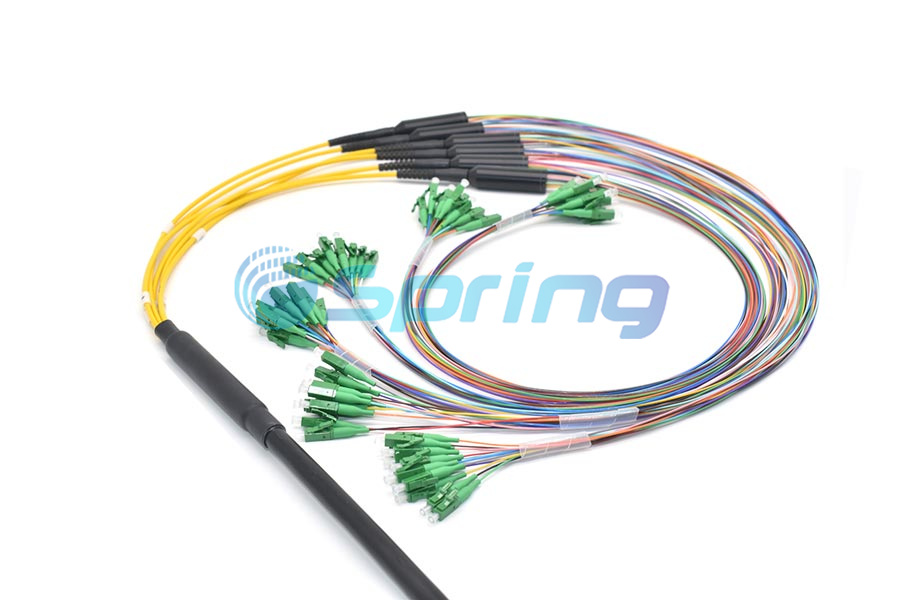

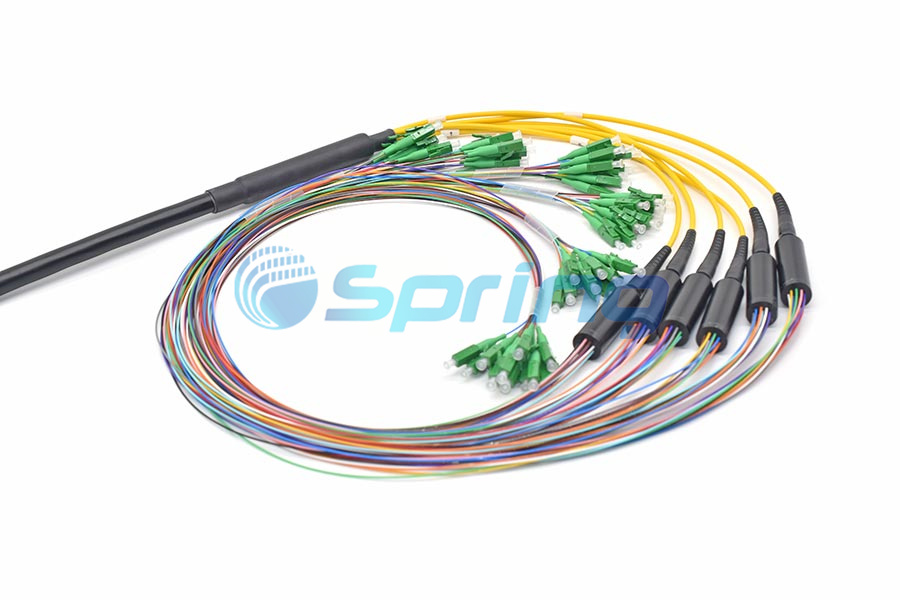

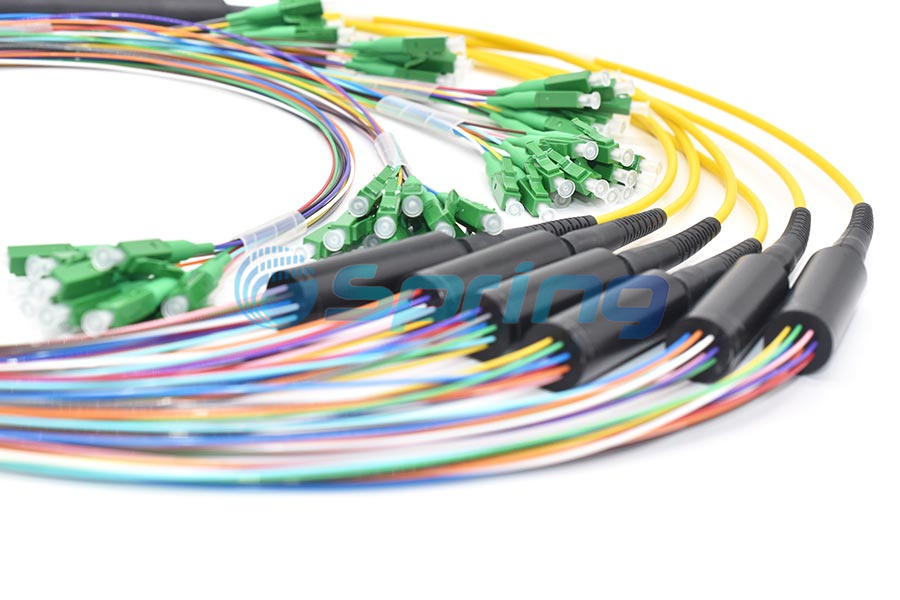

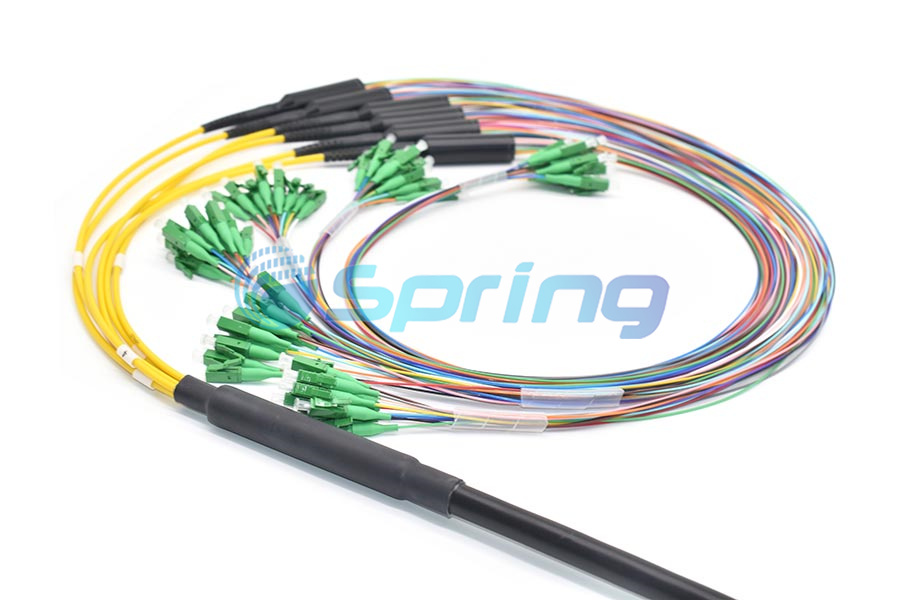

GYTY Outdoor 72core Fiber Optic Cable Assemblies with LC/APC Connectors

Product Description

Anti Ultraviolet Radiation GYFY outdoor optical fiber cable.Fiber Optic Cable Outdoor SC/APC-SC/APC Singlemode 72 Core Fiber Optical Patchcord
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. Spring Optical provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Features

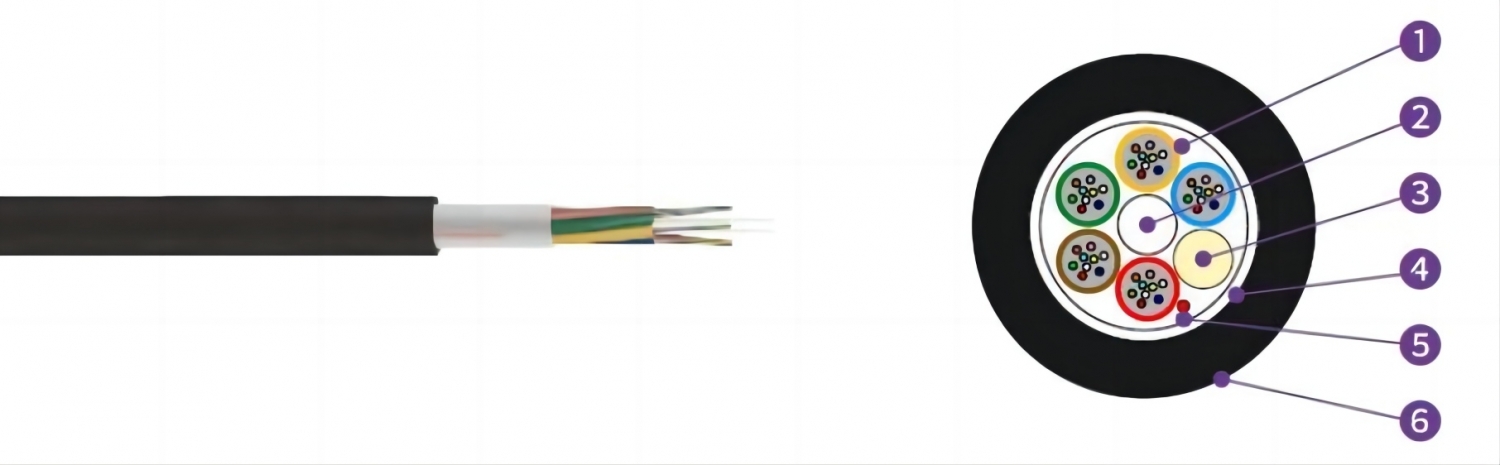

GYFY-Semi dry All-Dielectric Optical Fiber Cable GFRP CSM Stranded Semi-Dry Loose Tube Duct

1. Loose Tube: thermoplastic material, containing optical fibers and filled with gel.

2. Central Strength Mlember: glass fibre reinforced plasticrod (GFRP) coated with PE when needed.

3. Filler Elements: thermoplastic rods.

4. Longitudinal Water Blocking Material: Water blocking tape.

5. Ripcord

6. Outer Sheath: black polyethylene.

Features:

Non-metallic structureLighting resistance
Duct installation or aerial installation
Semi-dry core design, easy for installation and splice

Specification

Item	Contents		Value
	Fiber Count	24	48	72	96	144	288
Loose Tube	No. of tubes*fibres per tube	4×6	4×12	6×12	8×12	12×12	24×12
	Outer diameter (mm)	1.9	2.4
Central strength member	Material	GFPR
	Diameter (mm)	2.0	2.0	2.6	2.6	2.6	2.6
	Coated CSM diameter (mm)	–	–	–	4.2	7.4	4.8
water blocking material	Material	Water blocking tape
Outer Sheath	Thickness (mm)	Nominal:1.8
Cable diameter(mm)Approx.		10.0	10.8	11.6	13.2	16.4	19.2
Cable weight(kg/km)Approx.		85	100	120	155	220	275
Operating temperature range(℃)		-40~+70
Tensile Strength Short/ Long Term(N)		2000/600
Crush resistanoe short/long term (N/100mm)		1000/300
The colour arrangement of fibre and tube is specified in the colour identification table.
Other structure and fibre count are also available according to customer requirements.
