Mini FTTH Box 8 Core Fiber Optic Terminal Box

Product Model

SP-1603-M8

Product Description

SP-1603-M8 is used for FTTH, it provide protective connection for fiber optic cable and pigtail. The box is ABS material, mainly use for indoor and corridor installation.

Features

Features:

1) 2 cable ports suitable for max. 15mm cable in and out.

2) Cable no cutting and direct connection.

3) Turnover splice tray for max. 12 fiber splicing.

4) Snap-in type, easy to open and close, can repeatable use.

5) Can load 1pc 1×8 PLC steel tube type splitter & 1pc SC simplex adapter for input and 8pcs SC simplex adapters for output.

Dimension

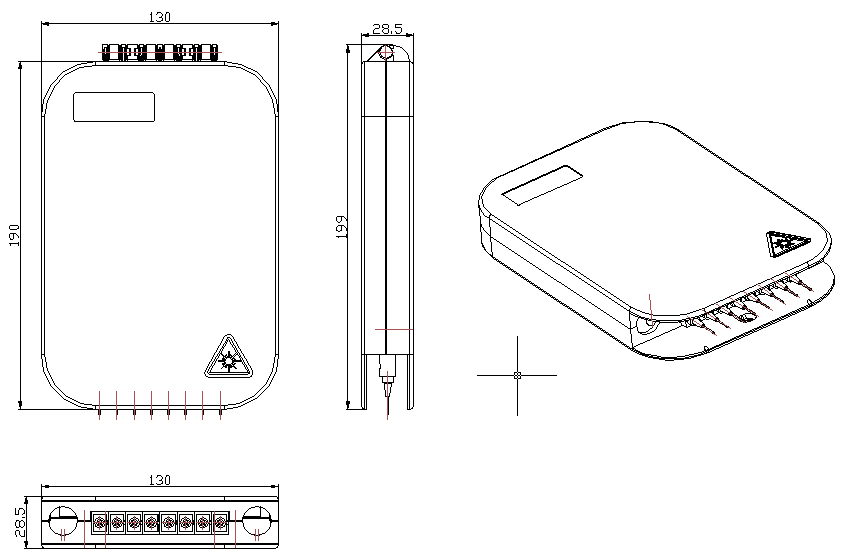

Product Dimension:

Accessory

Accessory:

Item	Specification	Qty	Remark
Heat shrinkable tube	￠3.0*45mm	8PCS
Nylon cable ties	3*120mm	6PCS
Plastic expansion tubes	φ6	3PCS
Cross Countersunk head tapping screws	M3.5*25	3PCS
Adapter	SC simplex	8PCS	optional
