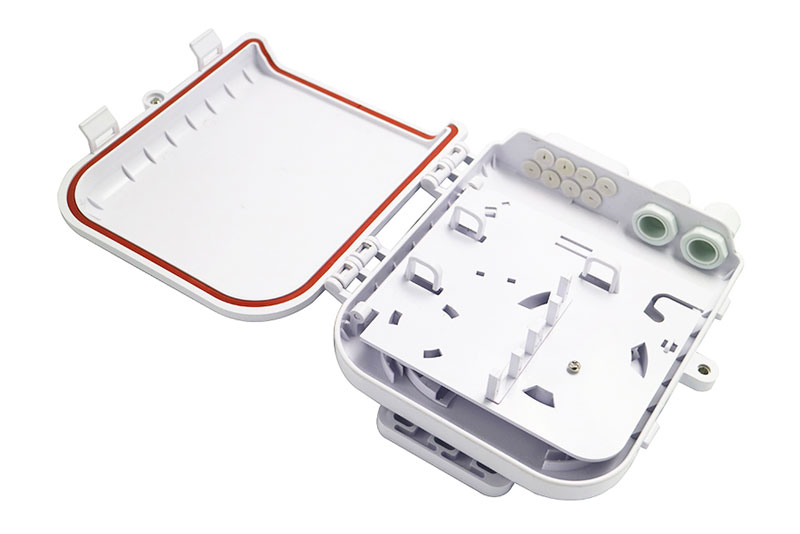

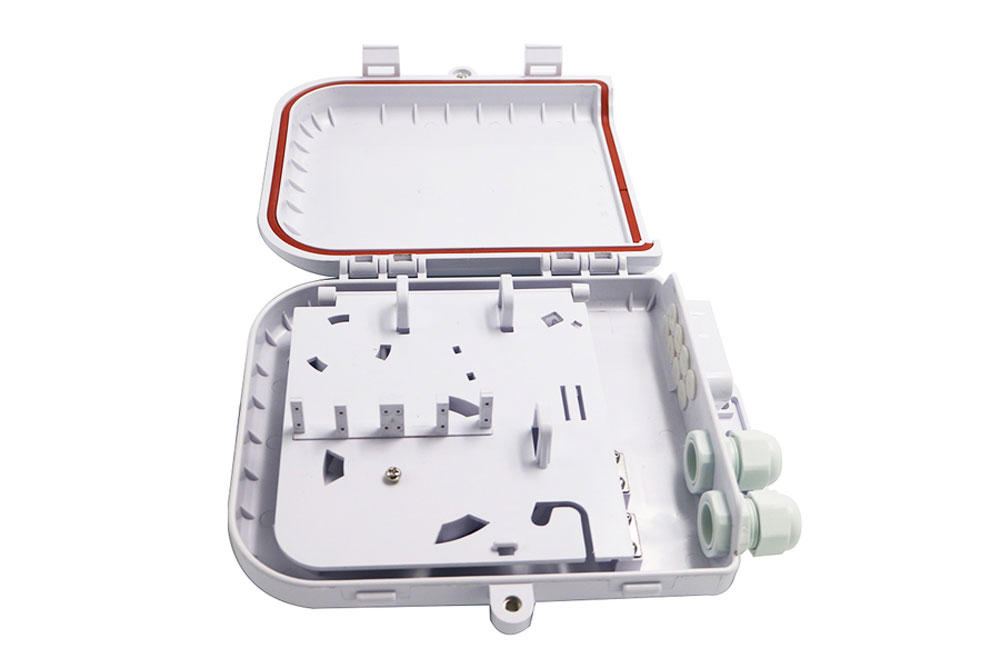

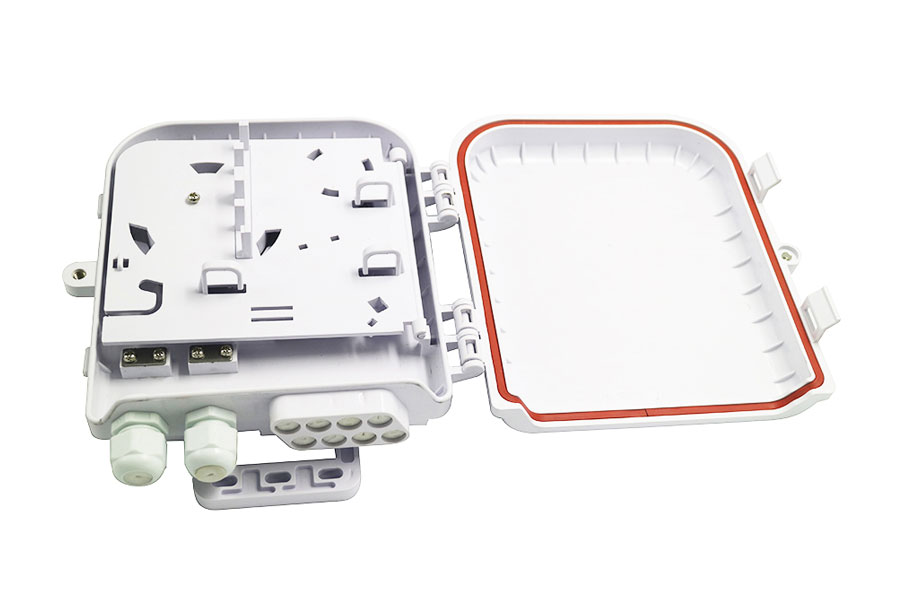

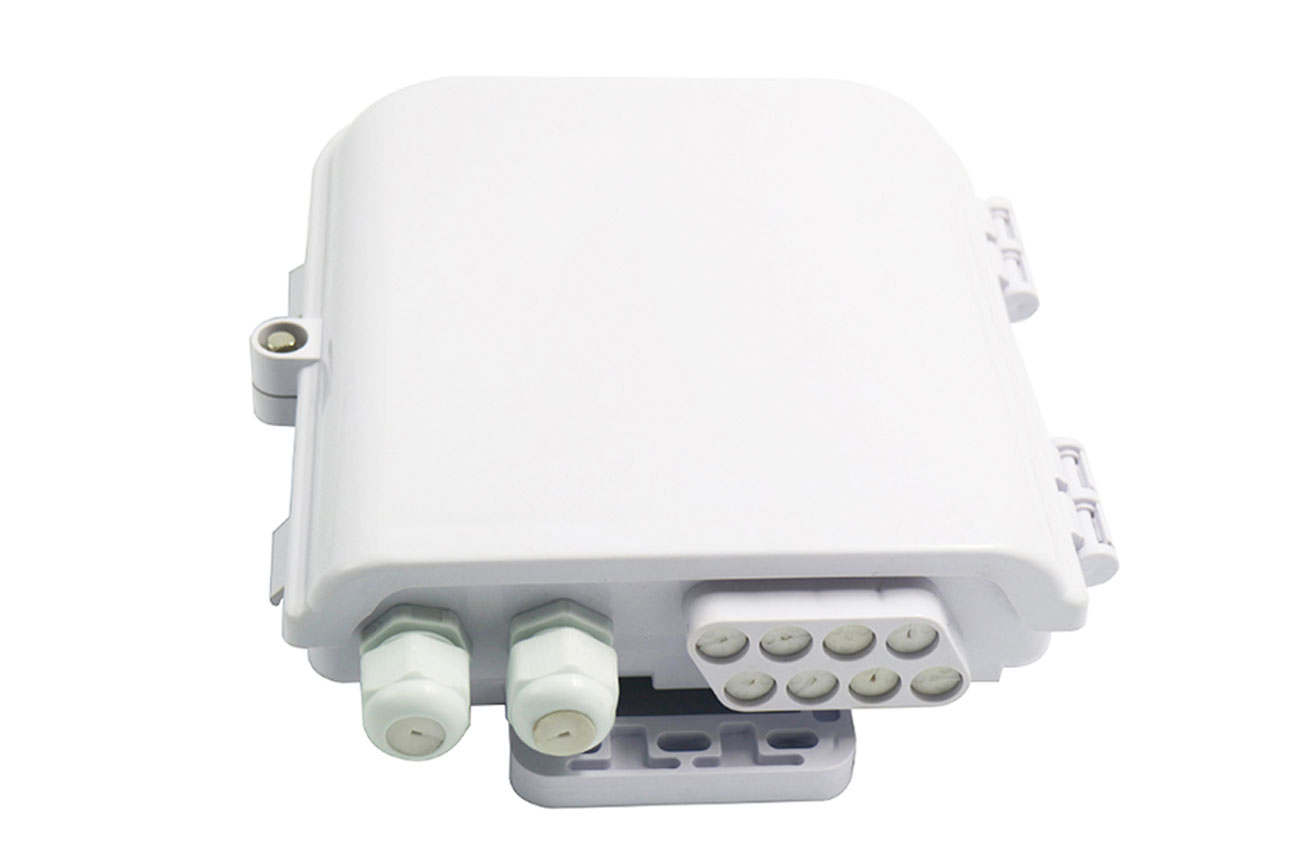

Optical Fiber Outdoor 8 Core Splitter Termination Box

Product Model

SP-1606-8B

Product Description

SP-1606-8B fiber termination box is perfect for external walls, corridors, basements, and other places needing FTTH or Network Connections. It is made with a high quality plastic and fitted with rubber gasket, it is also UV-Resistant and rainfall resistant. This termination boxes is highly customizable; it can be outfitted with almost any connector and can be used in a wide range of application, including FTTH projects, telecommunication networks, CATV networks, data and Local Area Networks(LAN).

Features

Features:

Made of high-impact plastic
UV Resistant and weather proof
Up to 8 FTTH drop cables
Upto 8 SC Adapters
2inlet port, 8outlet ports
Great for wall mounting or pole mounting
Protection class-IP67
RoHS Compliance

Specification

Specification:

Type	SP-1606-8B
Size(mm) WDH	20521555mm
Color	White
Cable Exit Ports	8
Cable Entrance Ports	2
Max capacity of splice	8 port for SC, 16port for LC Duplex
Adapter type	SC/UPC, SC/APC,LC/UPC,LC/APC
Material	ABS
Cable Entrance Diameter	Max Diameter 20mm
Cable Output Diameter	2.0*3.0mm or 3.0mm
Installation	Wall-Mounted or Pole-Mounting

Operation Conditions:

Temperature	-40℃ — 60℃
Humidity	93% at 40℃
Air Pressure	62kPa – 101kPa
Package Contents	Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; Wall mount accessories: 1 set
