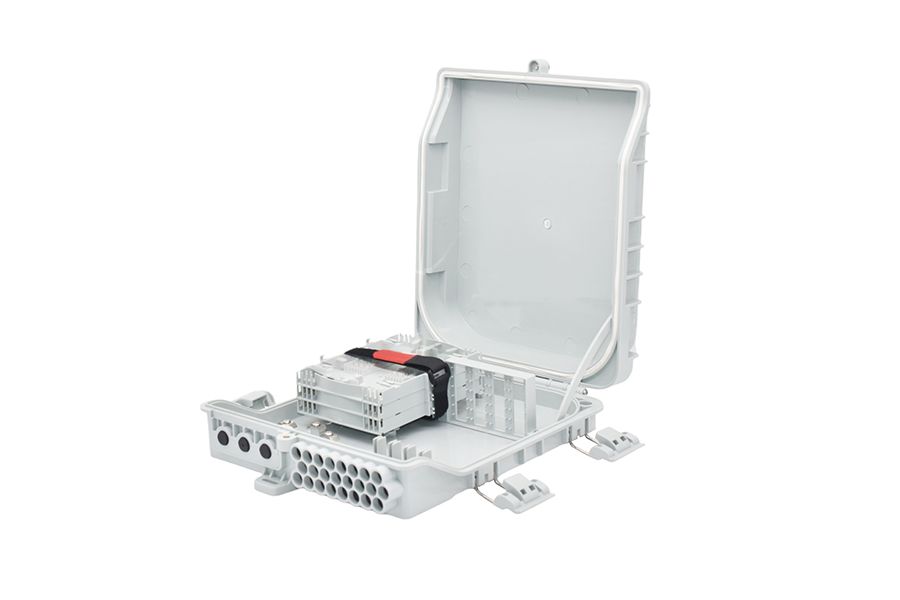

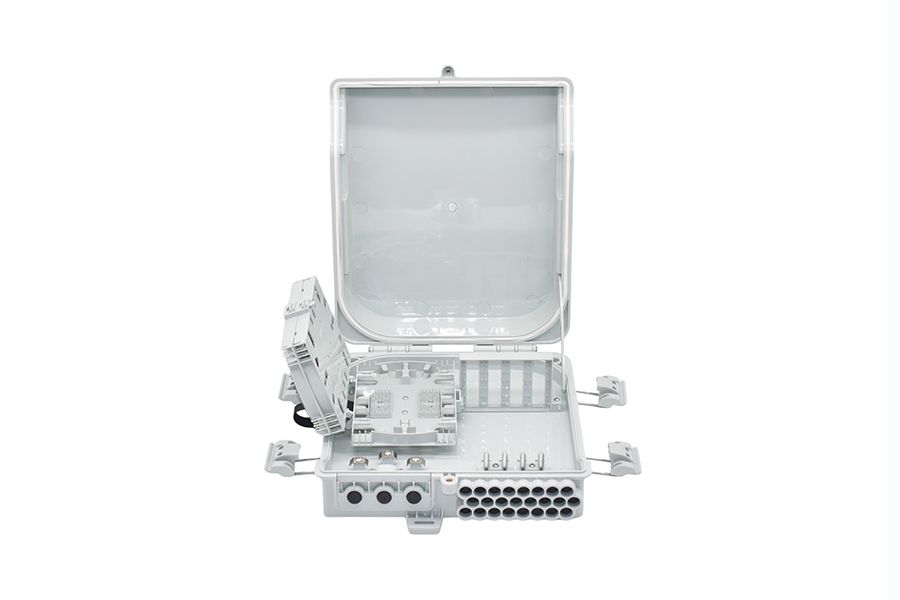

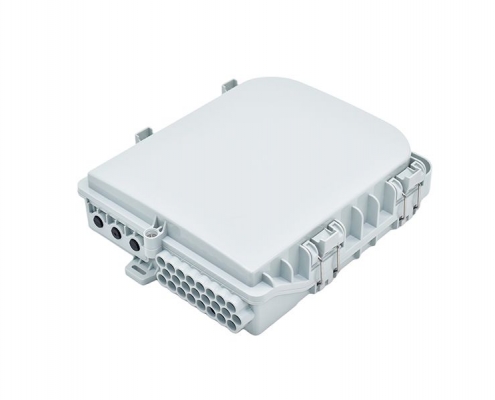

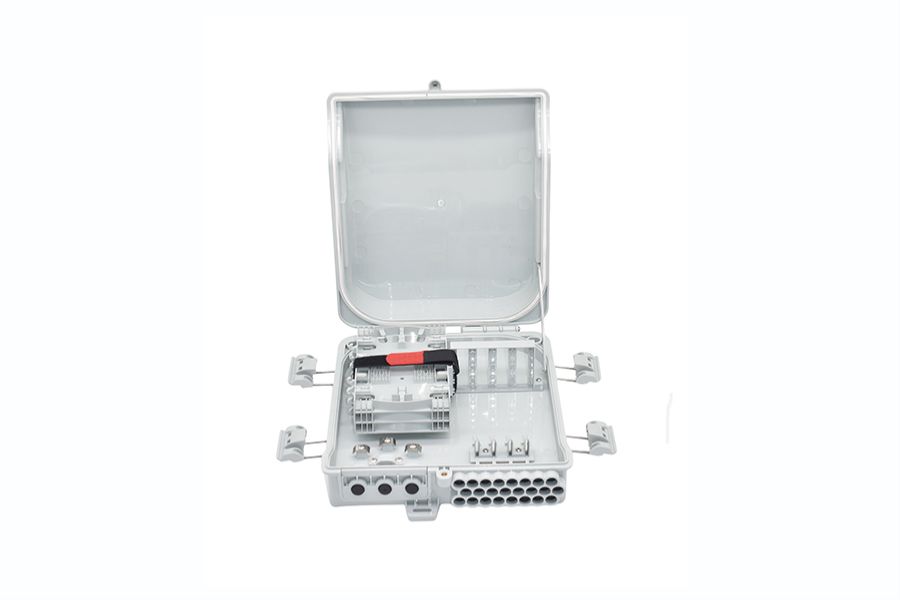

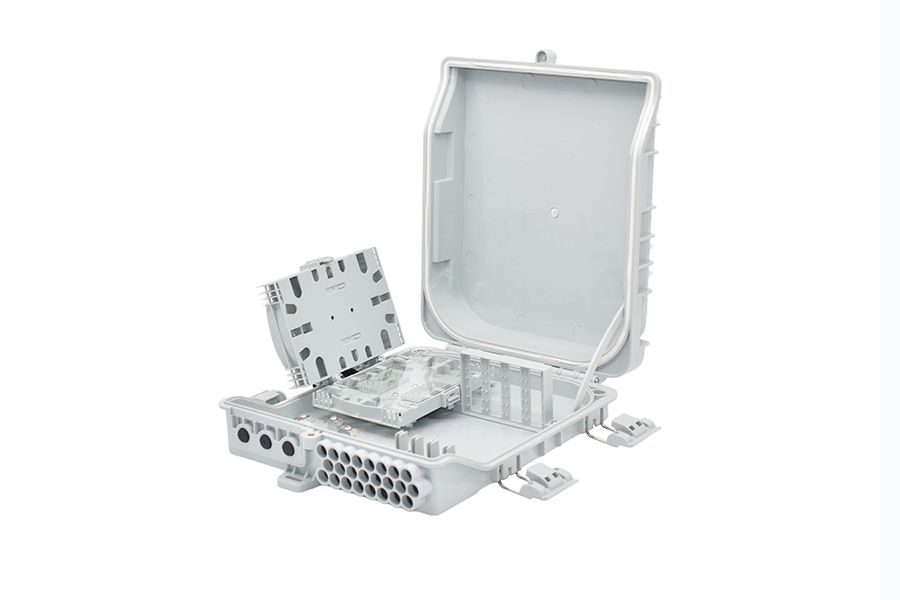

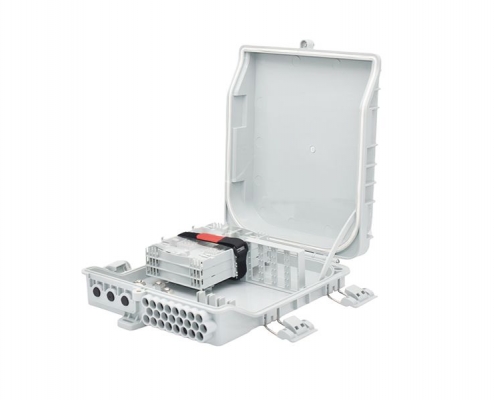

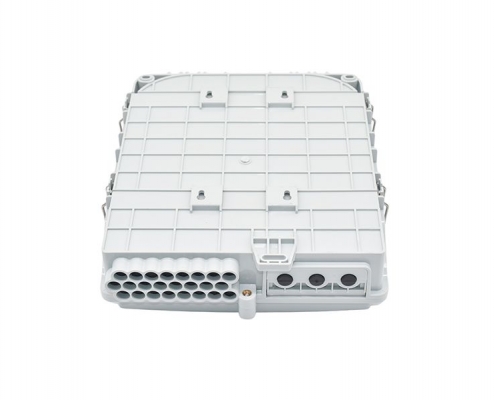

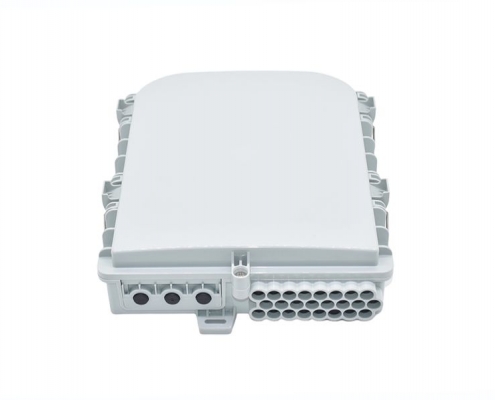

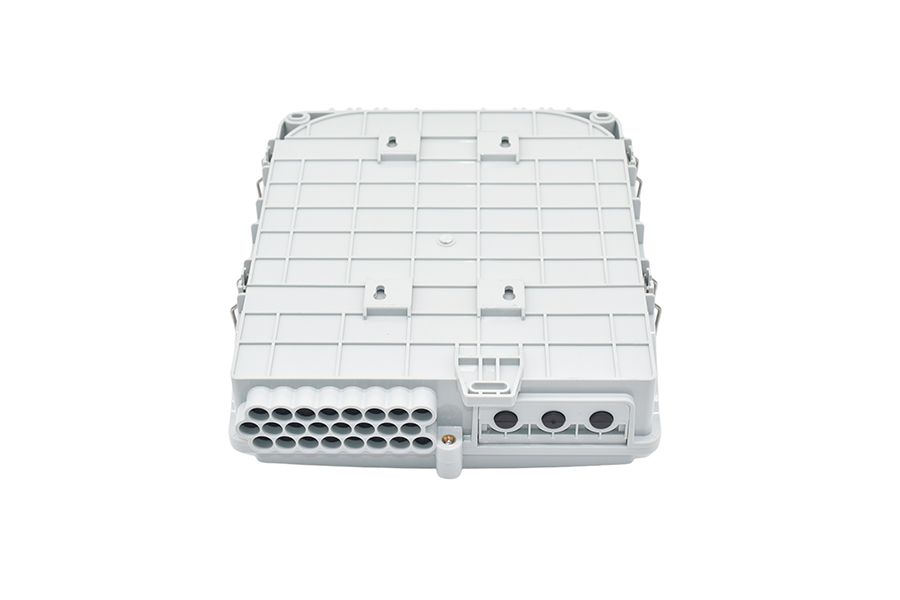

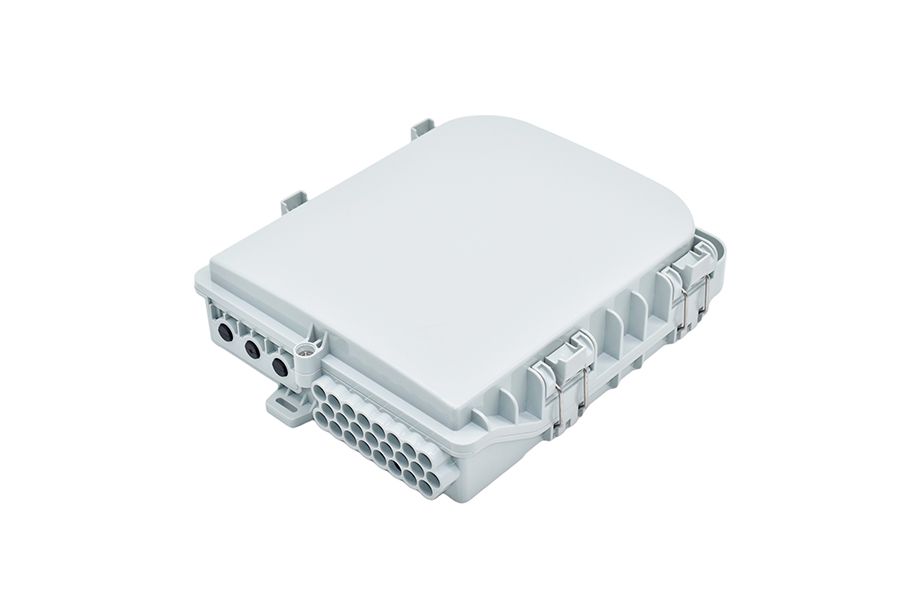

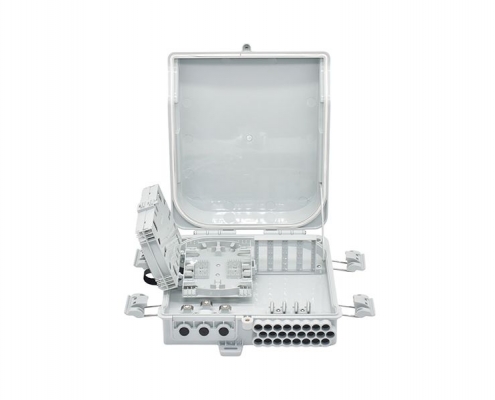

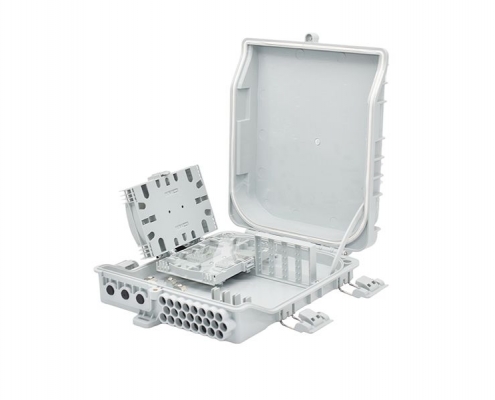

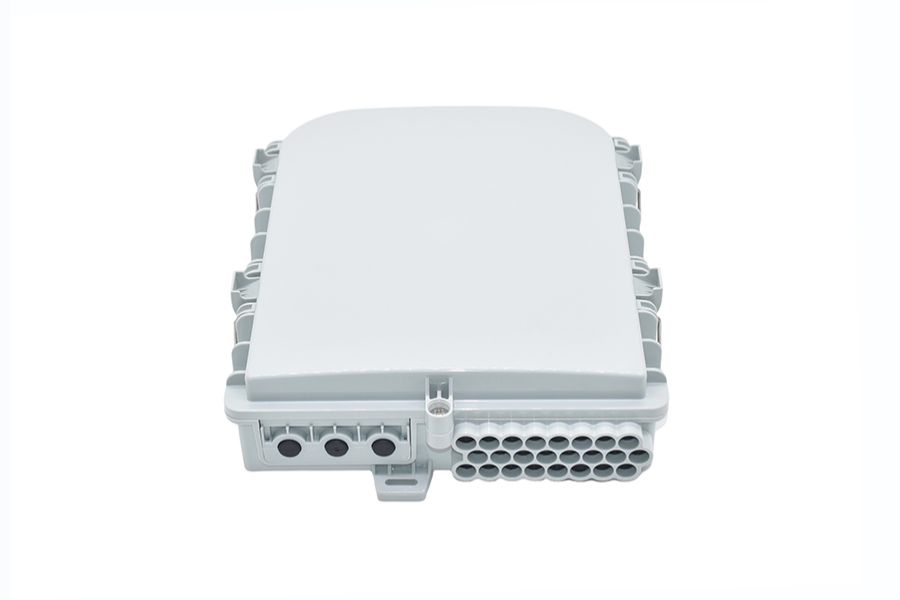

24 Port Fiber Optic Distribution Splitter Box Wall Mounted IP65

Product Model

 SP-1801-24

Product Description

This fiber optics distribution box terminates up to 3 fiber optic cables, allocates 24 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

Features:

  • It is suitable for outdoor and made of high-quality plastic.
  • Can accommodate ABS box type PLC splitter. 1×8 2pcs,1X16 1pcs.
  • Rainfall-resistant, outdoor use
  • Can load 24 pcs SC-type adapters
  • Wall mounting and pole mounting application
  • 2 pcs cable entry ports; the cable can be entered without cutting
  • 24 pcs exit ports for FTTH drop cable
  • There is one entrance that can go through the fast connector directly
Specification

Specification:

Item Specifications
Size 310*260*80mm
Material PC+ABS
Protection Level IP55
Splitter 1×8 2pcs,1X16 1pcs
Pigtail 24pcs
Bending radius ≥ 30mm
Entry ports cable dia.(max) Up to 3 cables , Max Dia. 14mm
Output ports and cable dia.(max) 2.0*5.0mm drop cables
Box Color Black
Operating Temperature -40~+60℃
Application

Application:

  • Telecommunication subscriber loop
  • Fiber to the home(FTTH)
  • LAN/WAN
