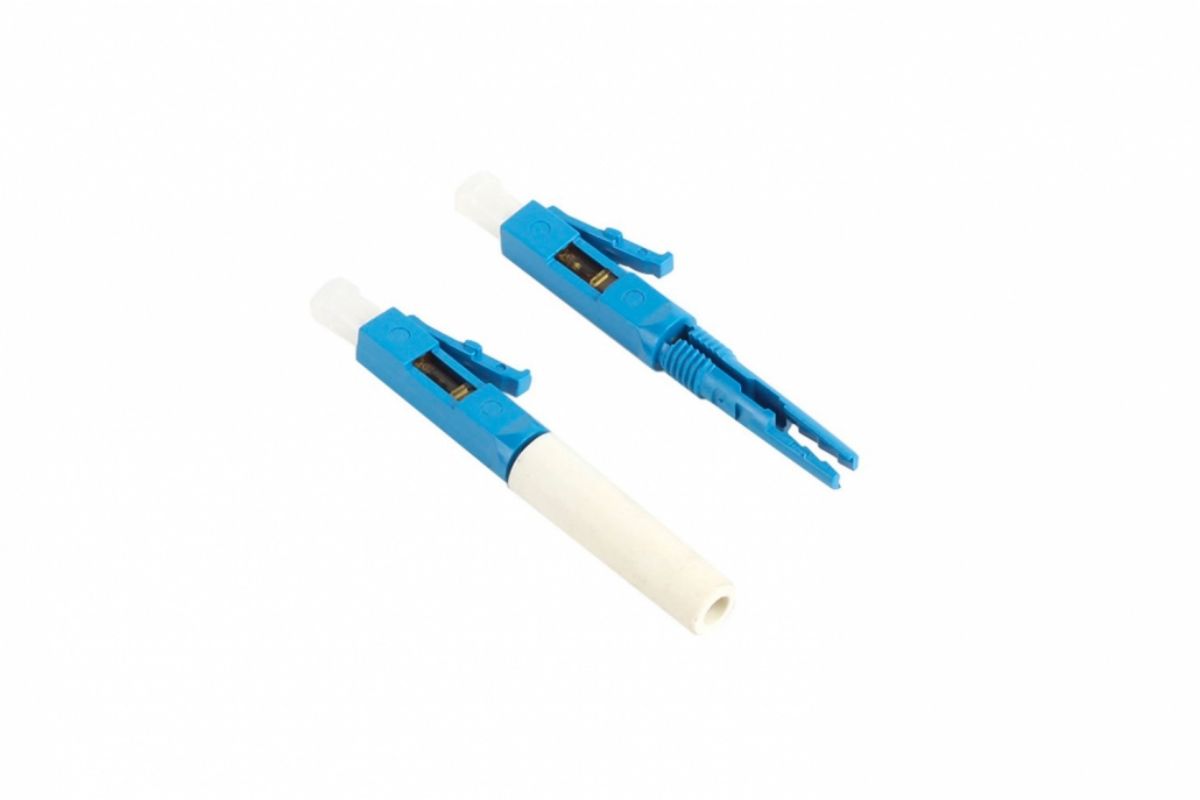

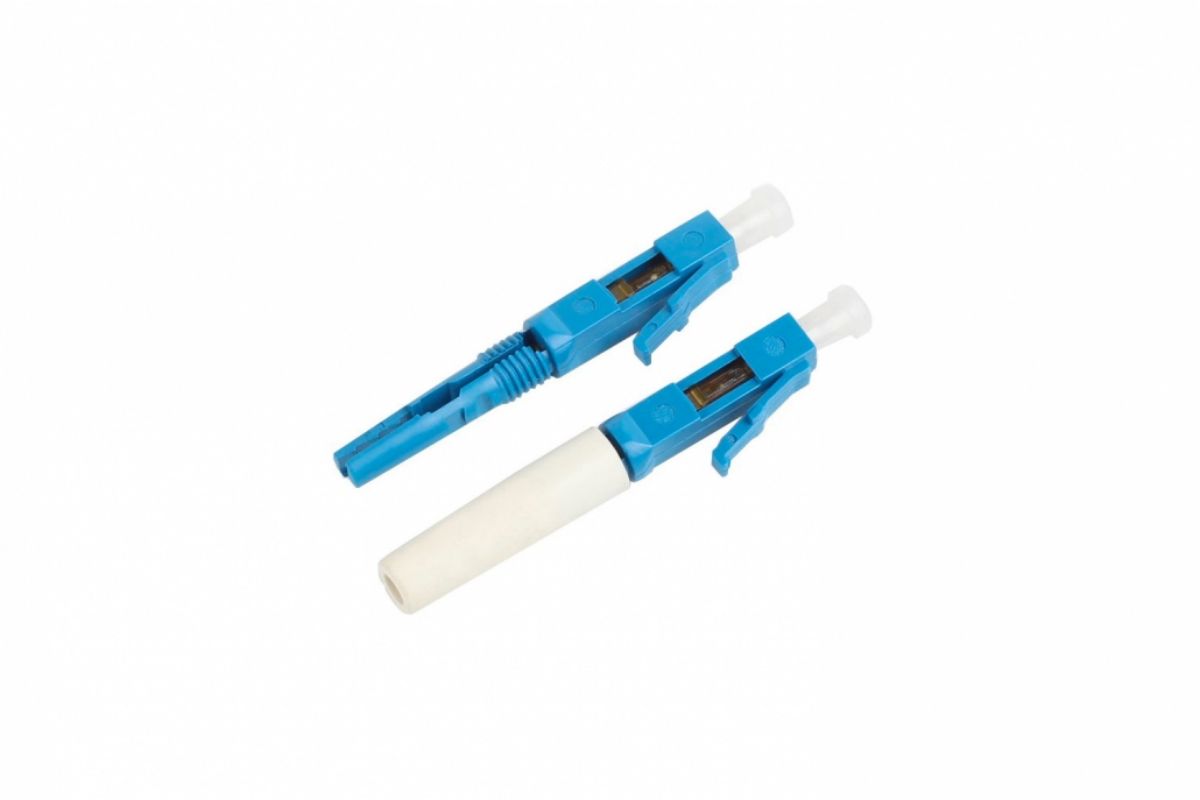

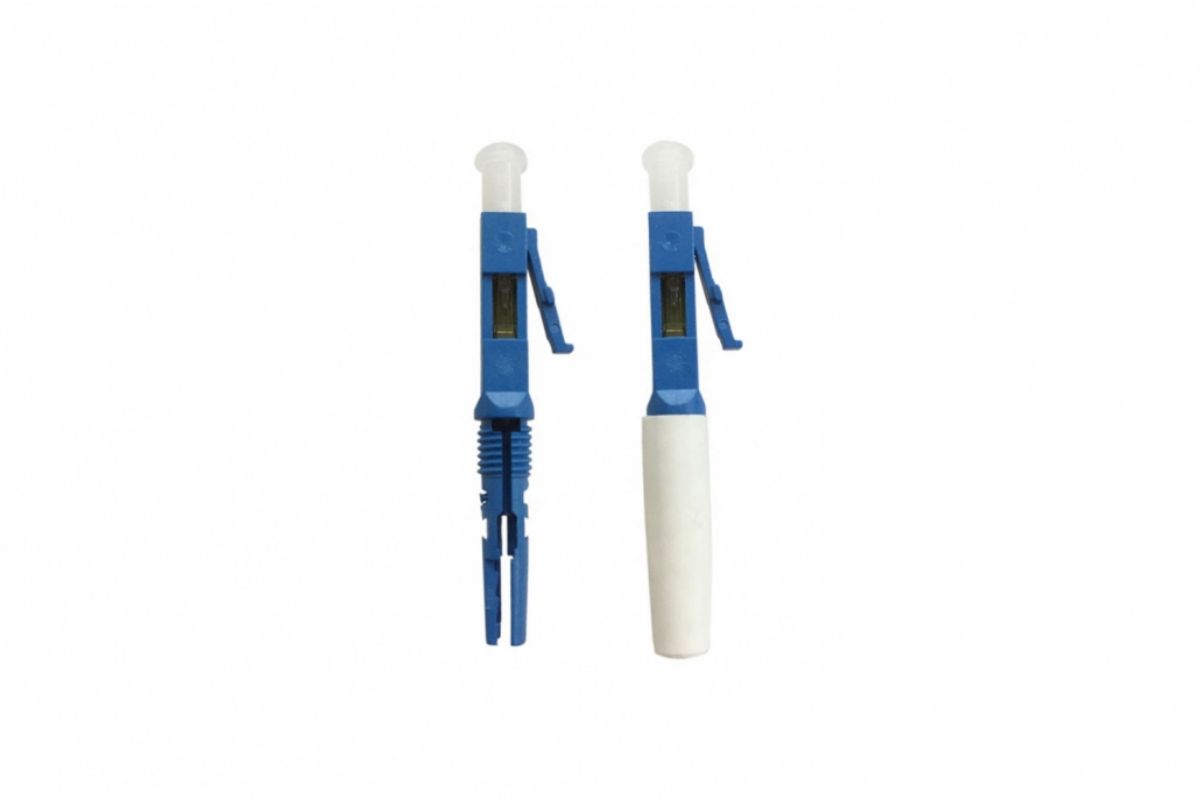

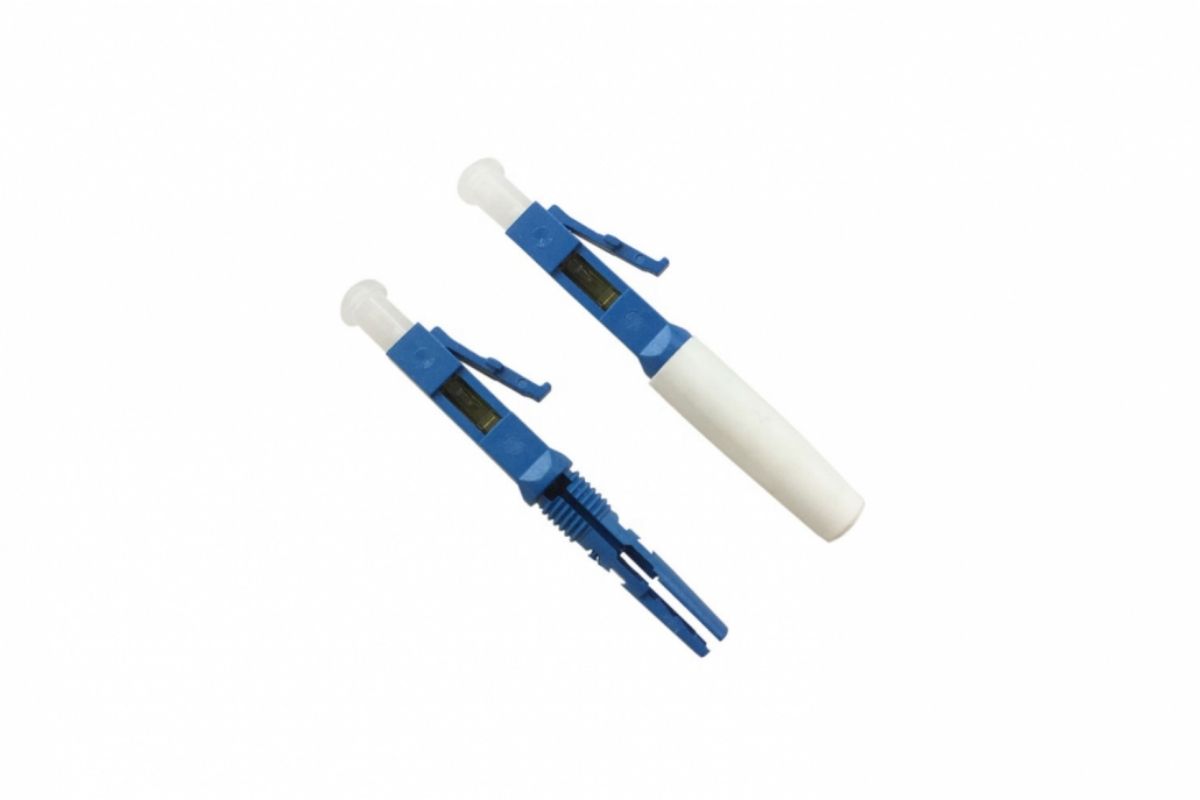

LC/UPC Fast Connector Used for 2.0mm Round Cable

Product Model

SP-LC/UPC -2.0mm

Product Description

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

  • LC / APC FAST CONNECTOR
  • Head type: LC / APC
  • Cable types supported: Single Mode
  • Support cable size: 2.0,3.0mm drop cable & 0.9mm Tight buffer
  • Head size: 1.25 mm
  • cross-sectional type: inclined 8 degrees
  • Insertion Loss: 0.2 dB.
  • Return Loss: -65 dB.
  • Head length: 5.2 centimeters
  • Color: Green-White
  • Lock pattern: slide up
  • Unlock pattern: slide down
