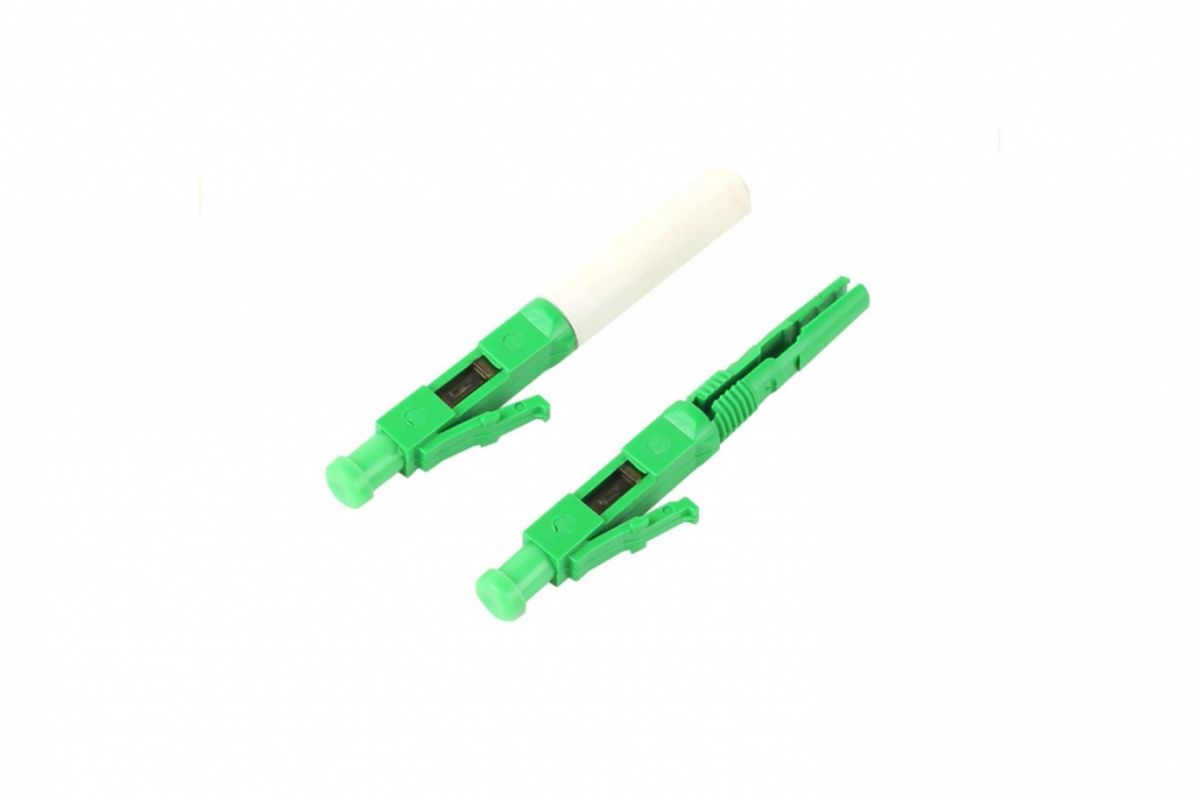

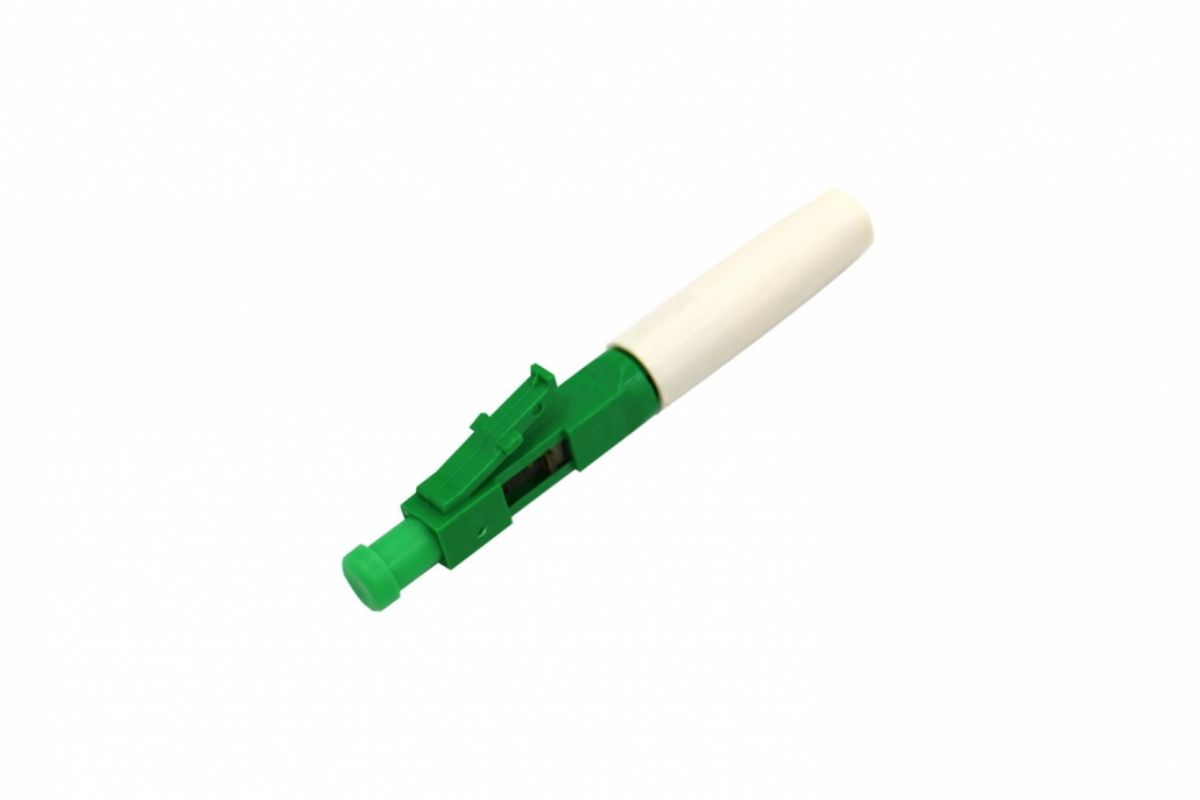

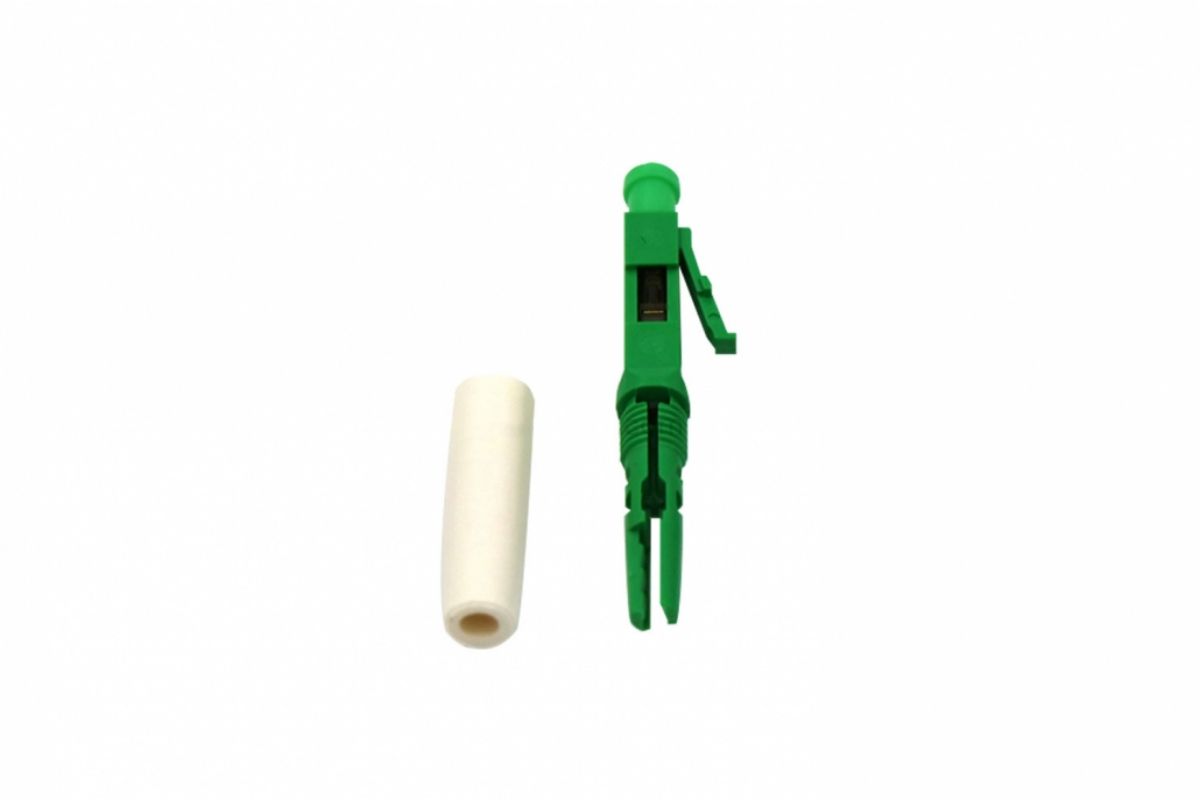

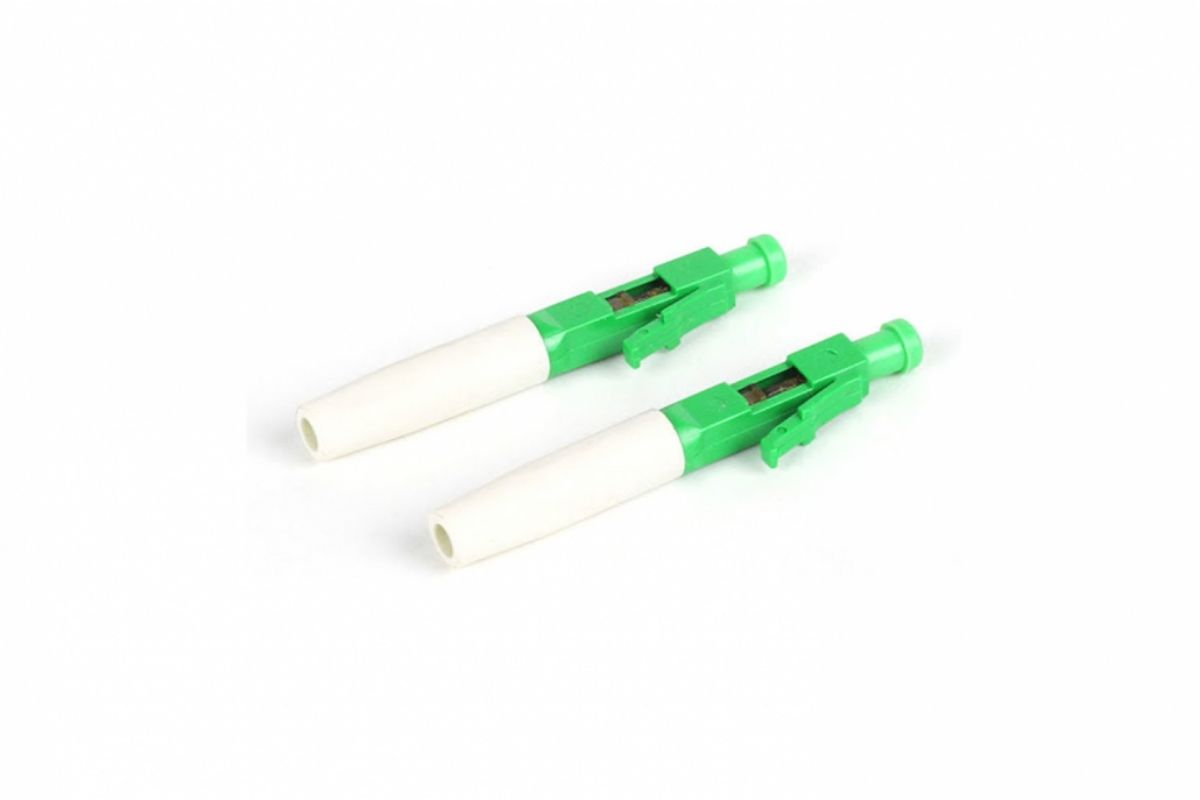

LC/APC Fast Connector Used for 2.0mm Round Cable

Product Model

SP-LC/APC -2.0mm

Product Description

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Features

LC / APC FAST CONNECTOR
Head type: LC / APC
Cable types supported: Single Mode
Support cable size: 2.0,3.0mm drop cable & 0.9mm Tight buffer
Head size: 1.25 mm
cross-sectional type: inclined 8 degrees
Insertion Loss: 0.2 dB.
Return Loss: -65 dB.
Head length: 5.2 centimeters
Color: Green-White
Lock pattern: slide up
Unlock pattern: slide down

Specification

Item	Parameter
Cable Scope	0.9mm, 2.0mm, 3.0mm round cable and 3.0 x 2.0 mm drop cable
Length	45mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB
