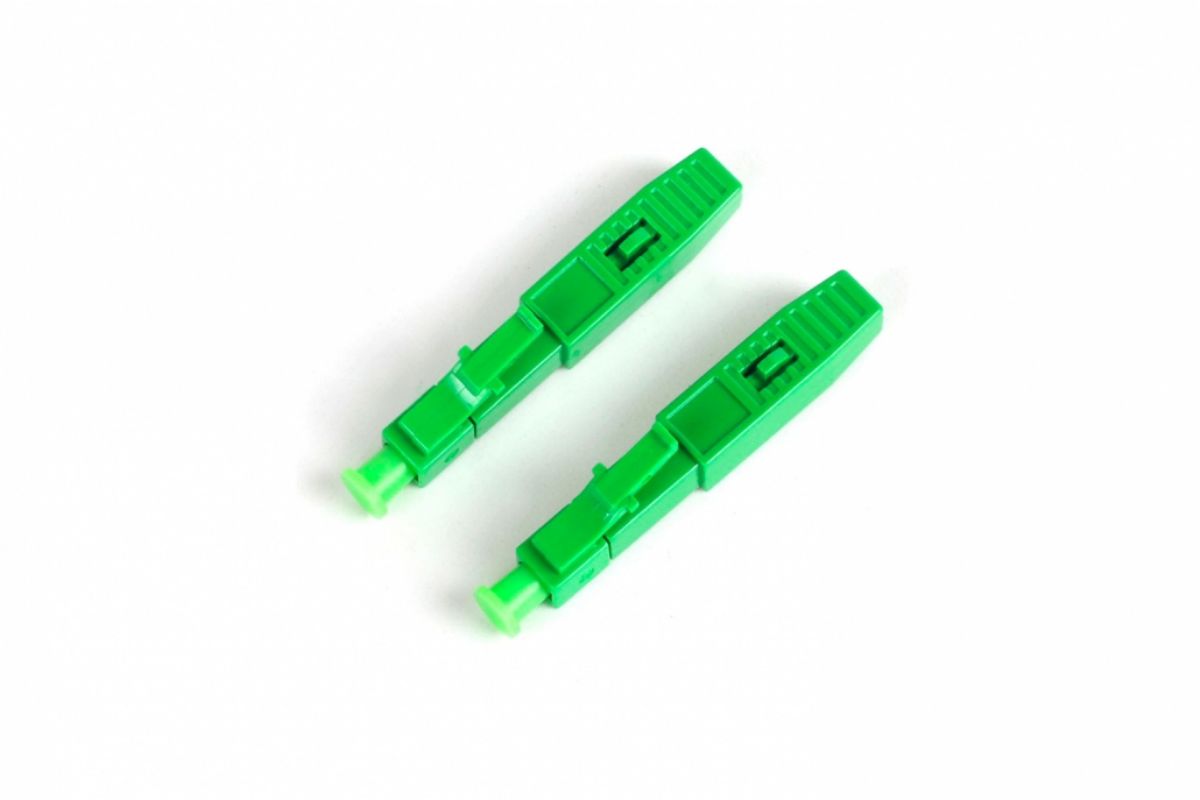

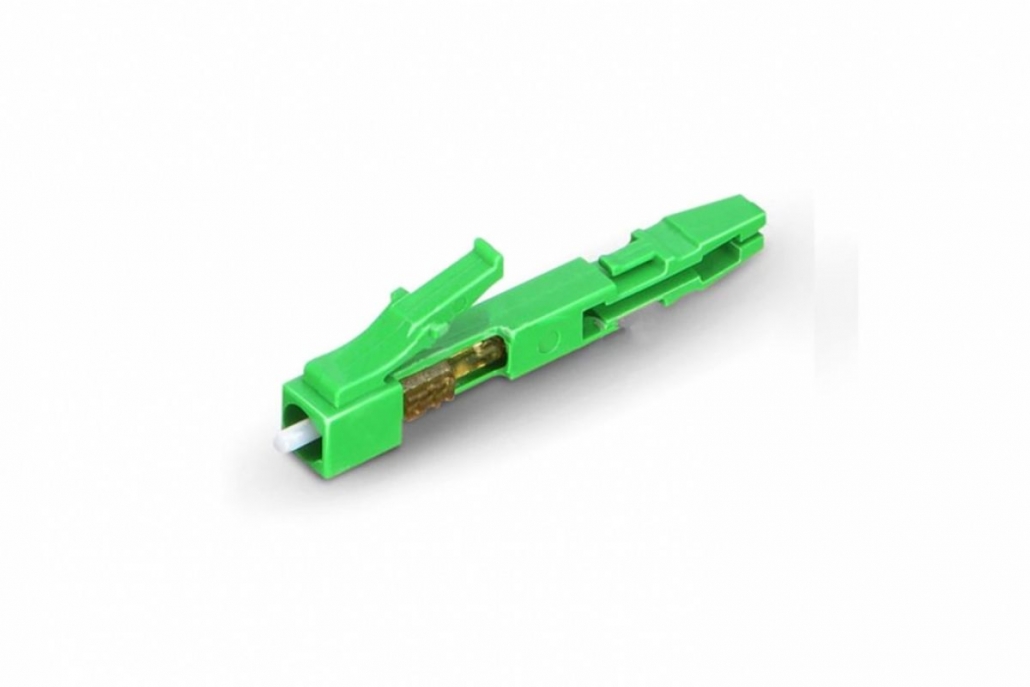

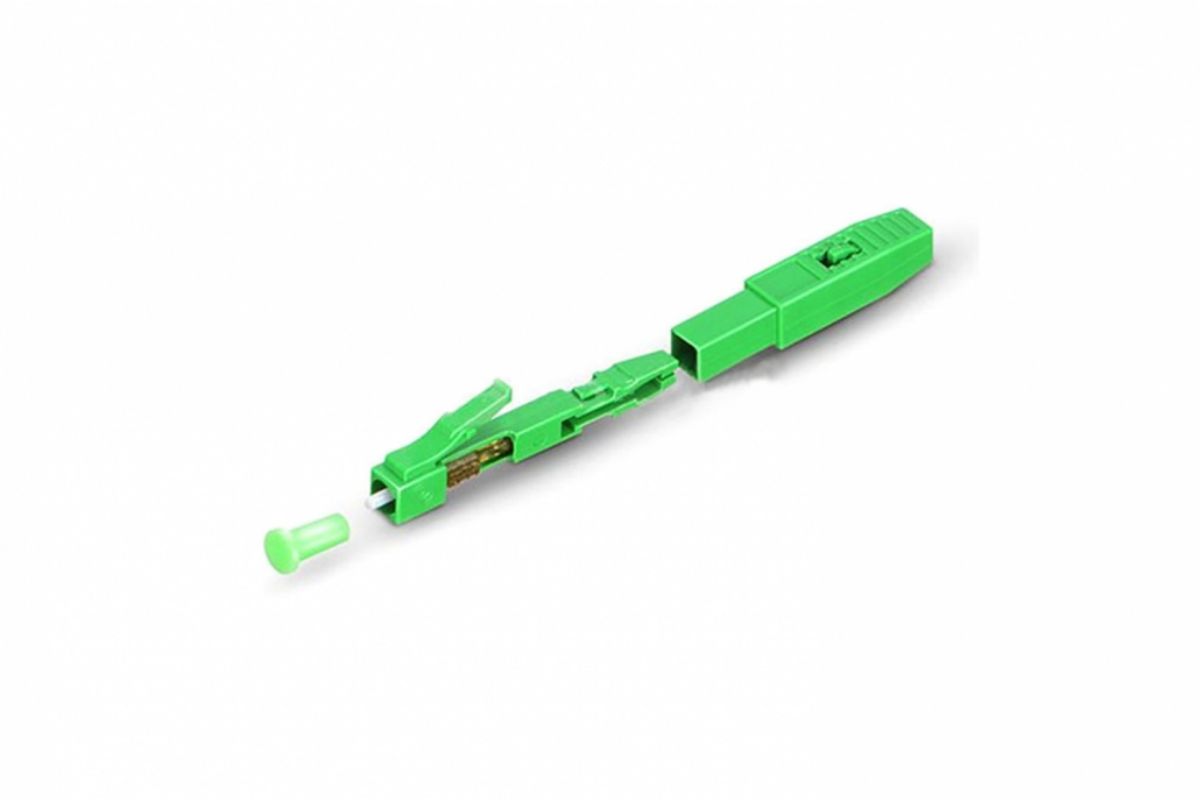

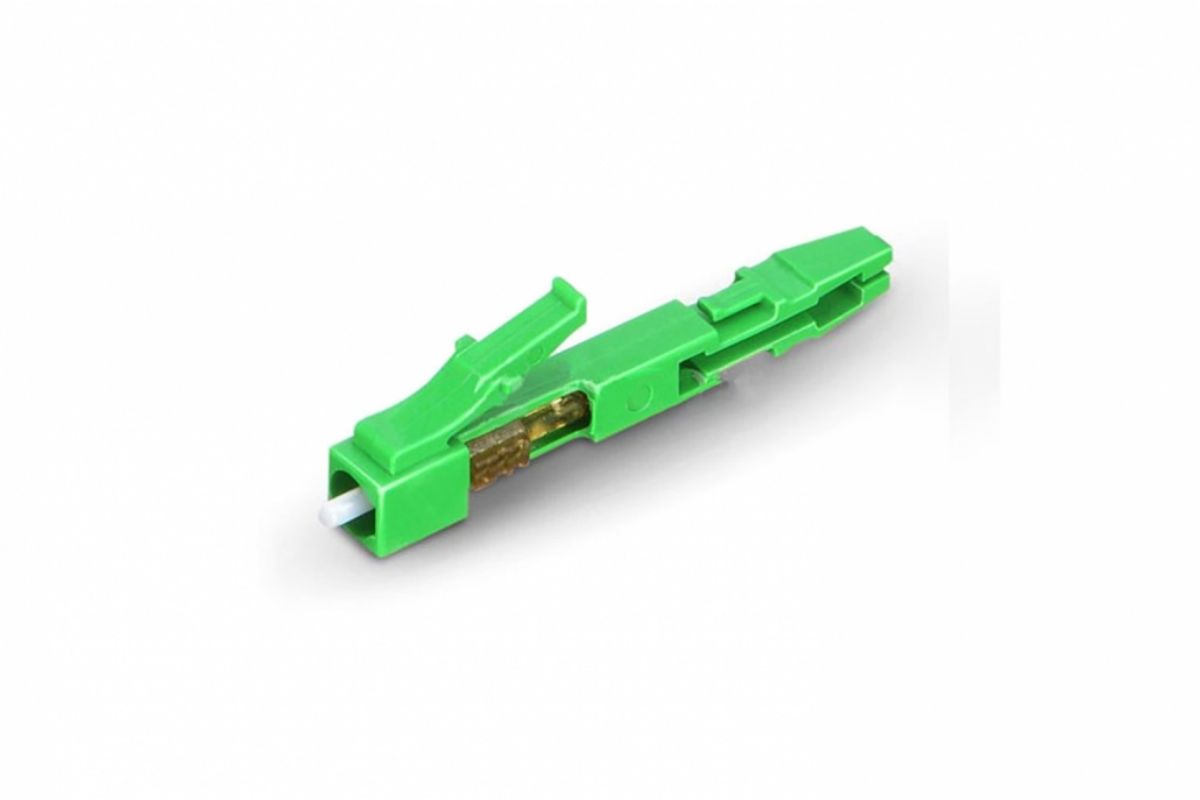

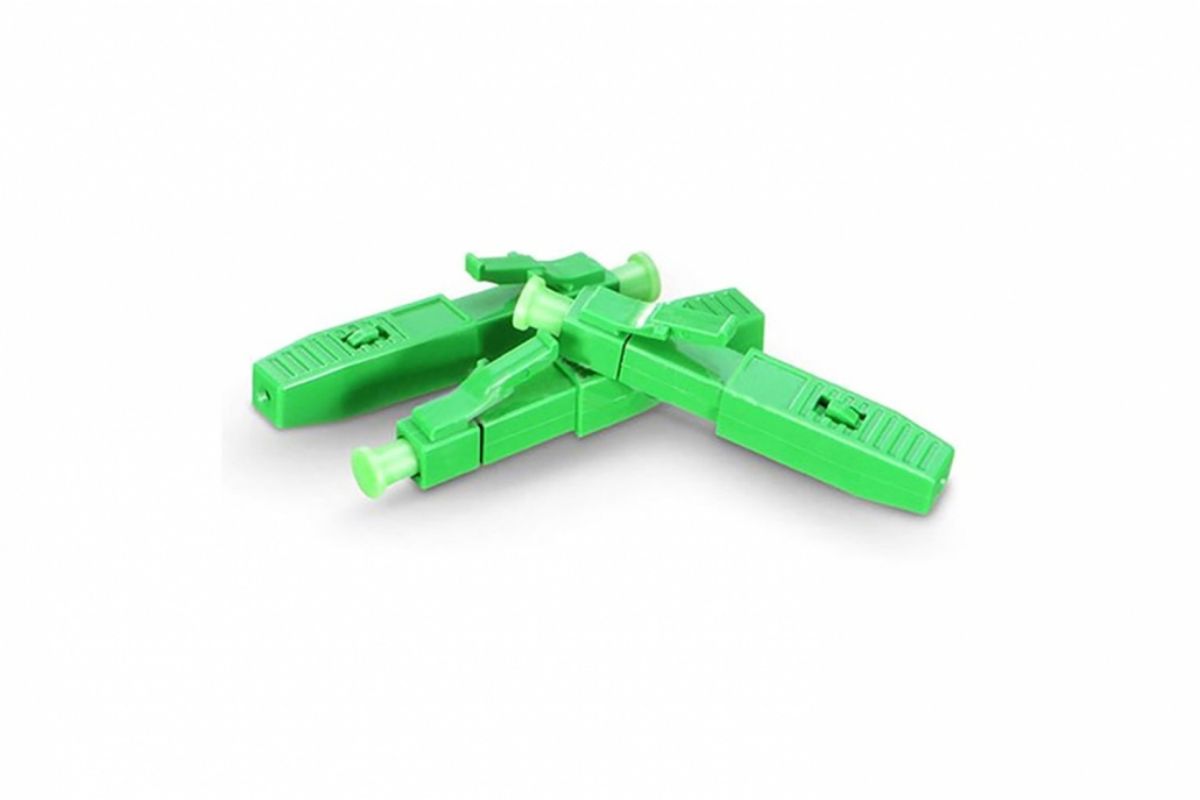

LC/APC Fast Connector Used for 0.9 Round Cable

Product Model

SP-LC/APC -0.9mm

Product Description

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Features

LC UPC Fast Connector (5)LC UPC Fast Connector (6)

Specification
Item Parameter
Cable Scope 0.9mm, 2.0mm, 3.0mm round cable and 3.0 x 2.0 mm drop cable
Length 45mm
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.3dB(1310nm & 1550nm)
Return Loss ≤ -50dB for UPC, ≤ 55dB for APC
Success Rate >98%
Reusable Times >5 times
Tighten Strength of Naked Fiber >5 N
Tensile Strength >30 N
Temperature -40 ~ +85 C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test IL ≤ 0.3dB
Application

1. Patch panels

2. Enclosures

3. Maintenance or disaster recovery of fiber networks

4. FTTH sockets

5. Connection on the table for the local network

6. Fiber optic patch cord and pork tail

7. Telecommunication devices

8. Data Networks

9. Fiber optic LAN and access network

10. Industrial and military applications
