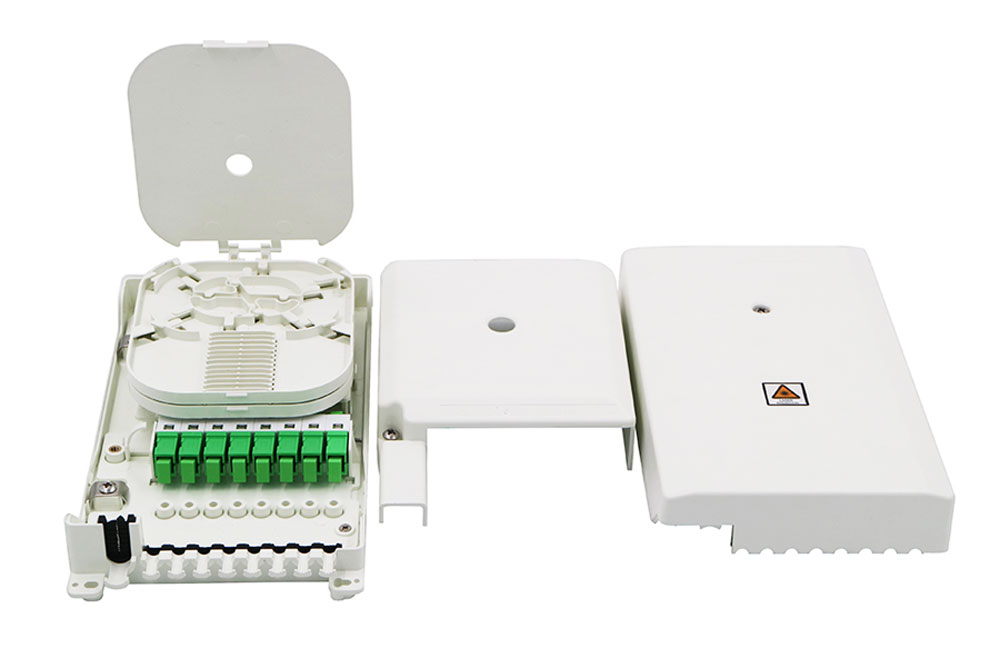

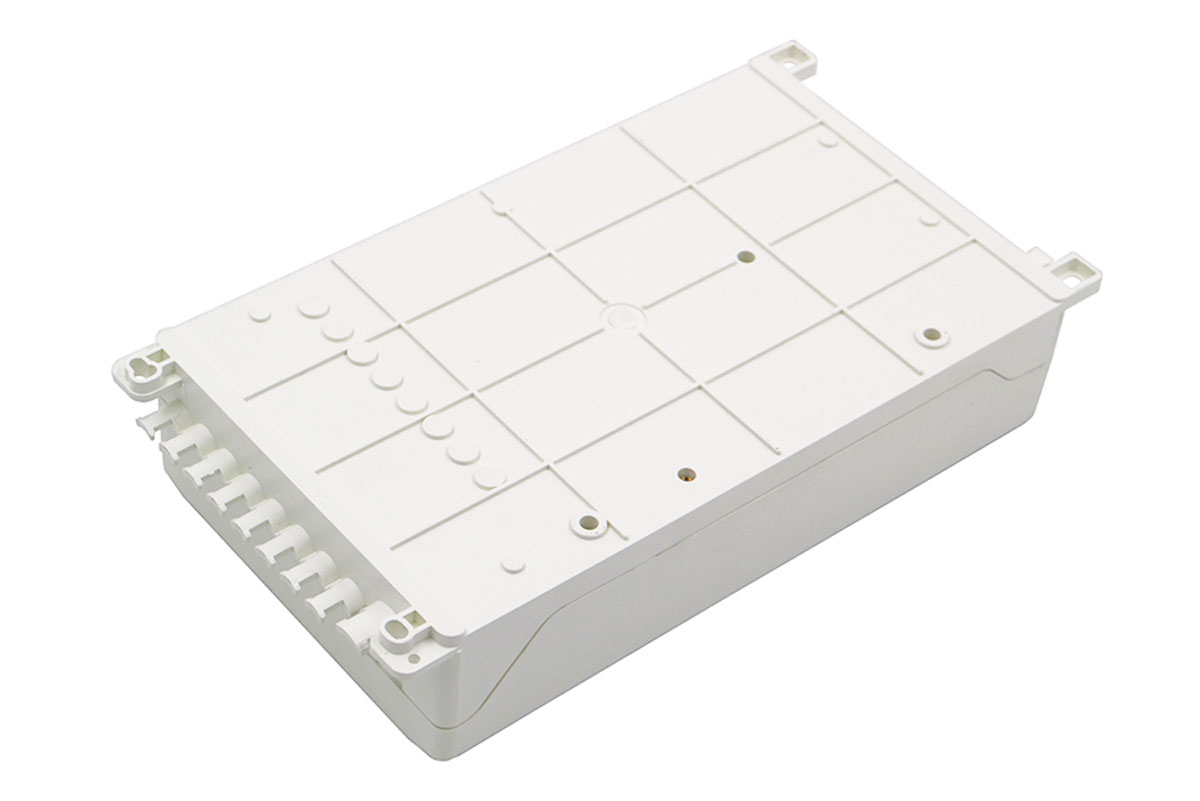

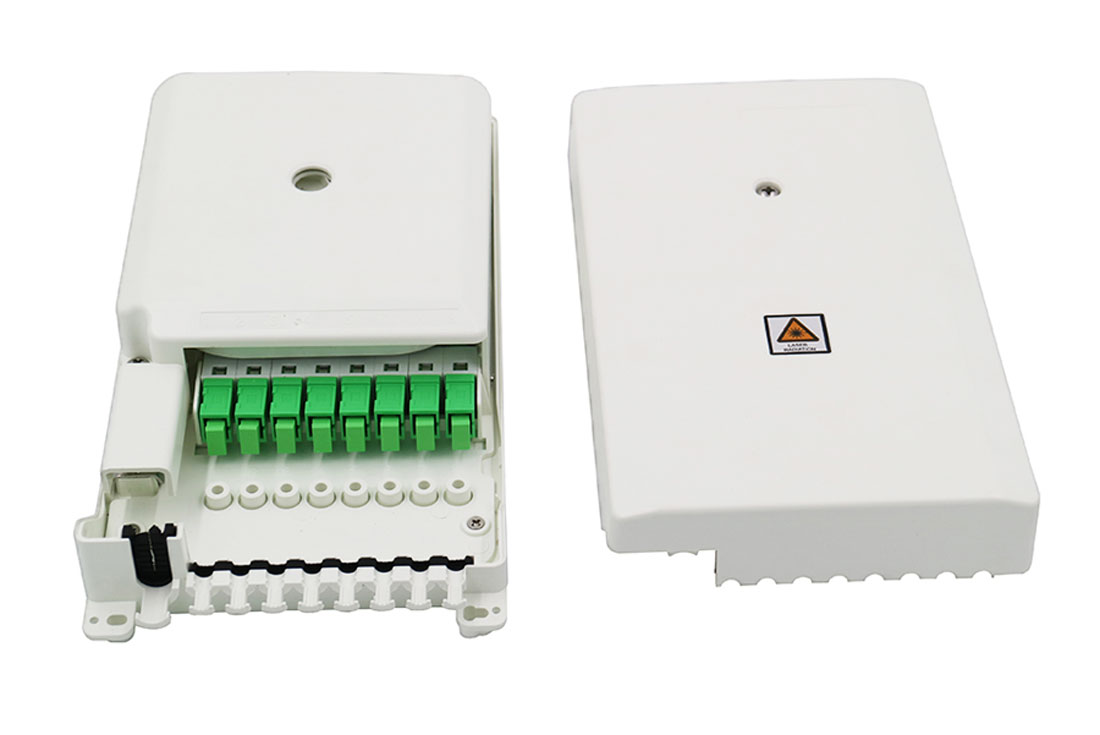

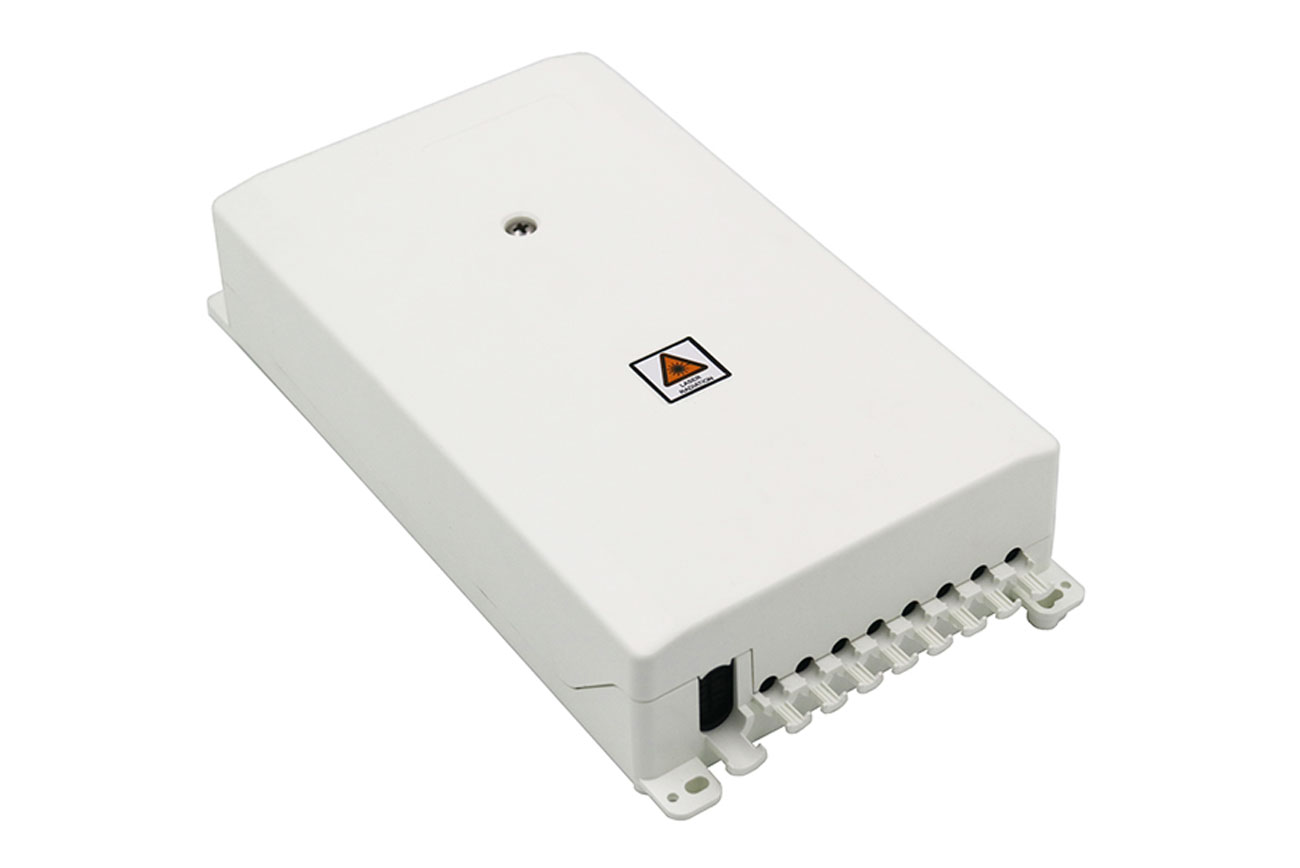

Telecom Level 8 Core Fiber Optic Splitter Termination Box

Product Model

SP-1602-8D

Product Description

SP-1602-8D fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connector with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Features:

Water-proof design with IP65 protection level for outdoor
Integrated with 2x splice trays and 8x shutter type adapters
Fiber bend radius control more than 35mm
2 x inlets for uncut cable with maximum diameter 12mm
2x covers structure to provide a better protection and neat cabling. Unauthorized tampering is prevented.
Each splice tray accommodates 8x sleeves (60×1.0mm) and 2x splitters (1:2,1:4 or 1:8)
Made by industrial PC+ABS plastic with UL94-V0 fire retardant feature, life span at least 20 years.
8x outlets for 2x3mm flat type or 3-5mm round type drop cable.

Specification

Specification:

Material

A*B*C (mm)

Max Capacity

Cable Entrance

Weight

Color

PC+ABS

236*126*50

Splice trays 2pcs*8FO

Fiber Adapters 8SC or 16LC
