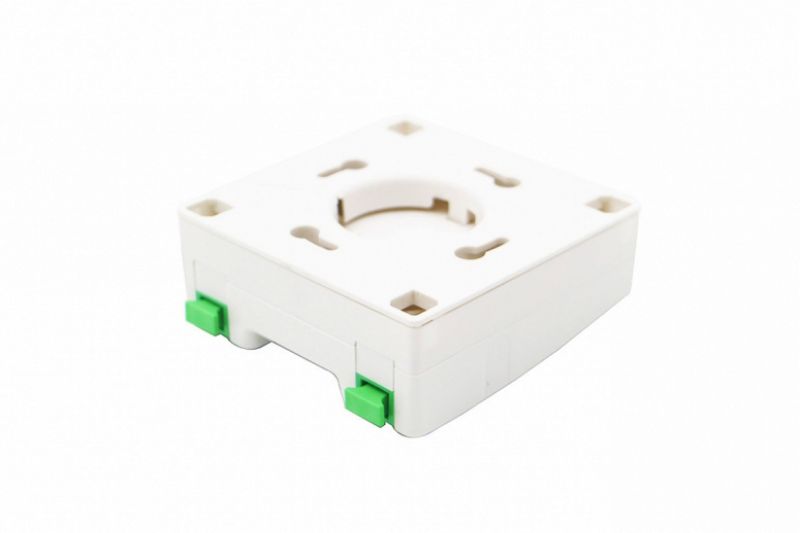

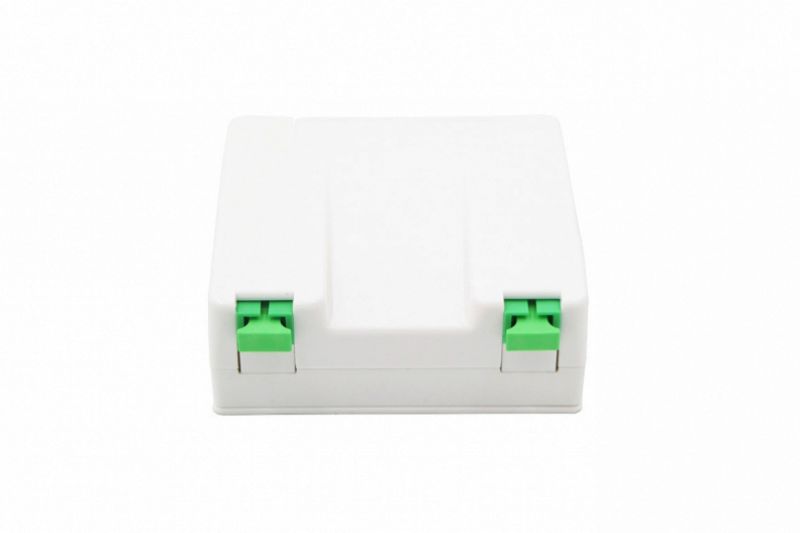

Indoor Faceplate 4 Core Optical Fiber Termination PTO Box

Product Model

FTB-104B

Product Description

This product is suitable for the indoor cable’s termination and fixation of user’s cable and pigtail splicing. It meets the needs of traditional transmission network.

Features

Features:

Made of high quality plastics;
4 SC simplex or 4 LC duplex adapter slots are set at the output end, and is equipped with dust plugs as required, which meets the direct splicing of 1 ～ 4 single-core pigtails;

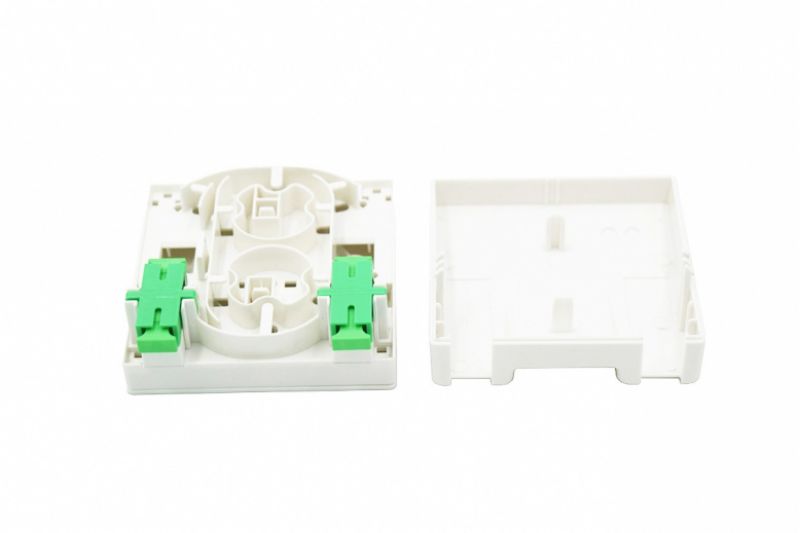

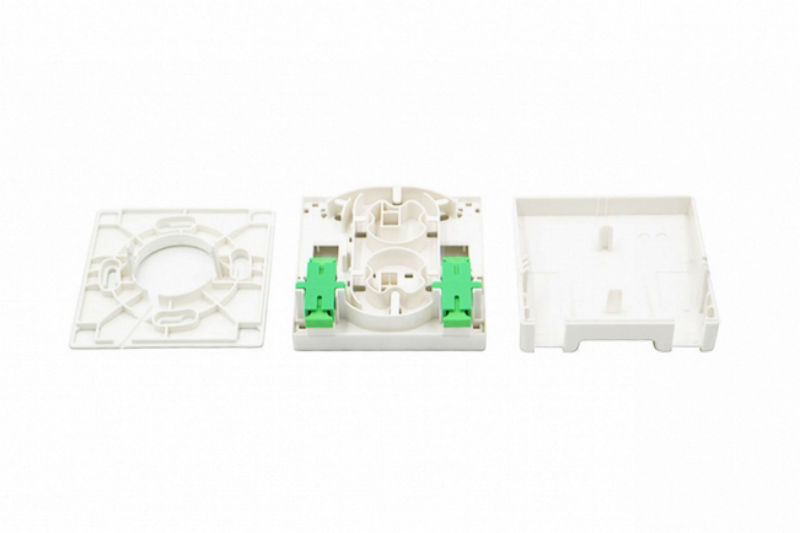

Three-layer partition structure of the box makes 3 clear-cut area for cable entry, fiber pigtail storage and splicing, which avoids crossing lines, and is convenient to lay and maintain the optical cables;
Multiple cable entry holes on the left, right and upper part of the box meet the flexible and variable routing mode in the construction field;
Indoor wall mounting.

Technical index

Technical index:

Fiber radius of curvature: ≥30mm
Optical disk additional loss: ≤ 0.01dB
Working temperature: – 10°C ~ + 60°C

Specification

Specification:

Type	FTB104B
Size (mm)	868634
Max splitting	1:4 (2pcs)/ 1:8(1pcs)
Weight (Kg)	0.1
Cable diameter(mm)	≤ ￠4
Cable inlet/outlet:	6 / 4
Fiber core capacity	4 (single core)
Adaptor type	SC simplex / LC duplex
