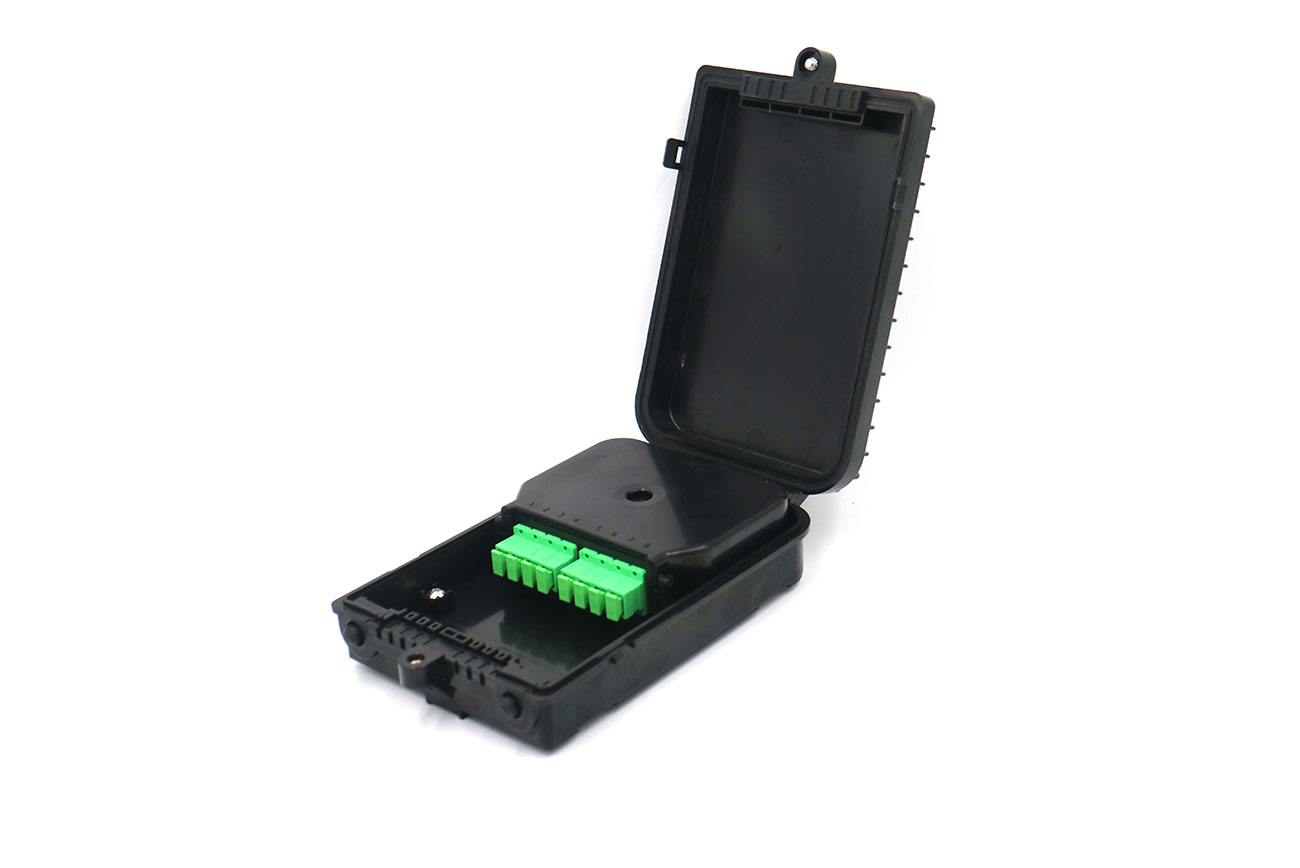

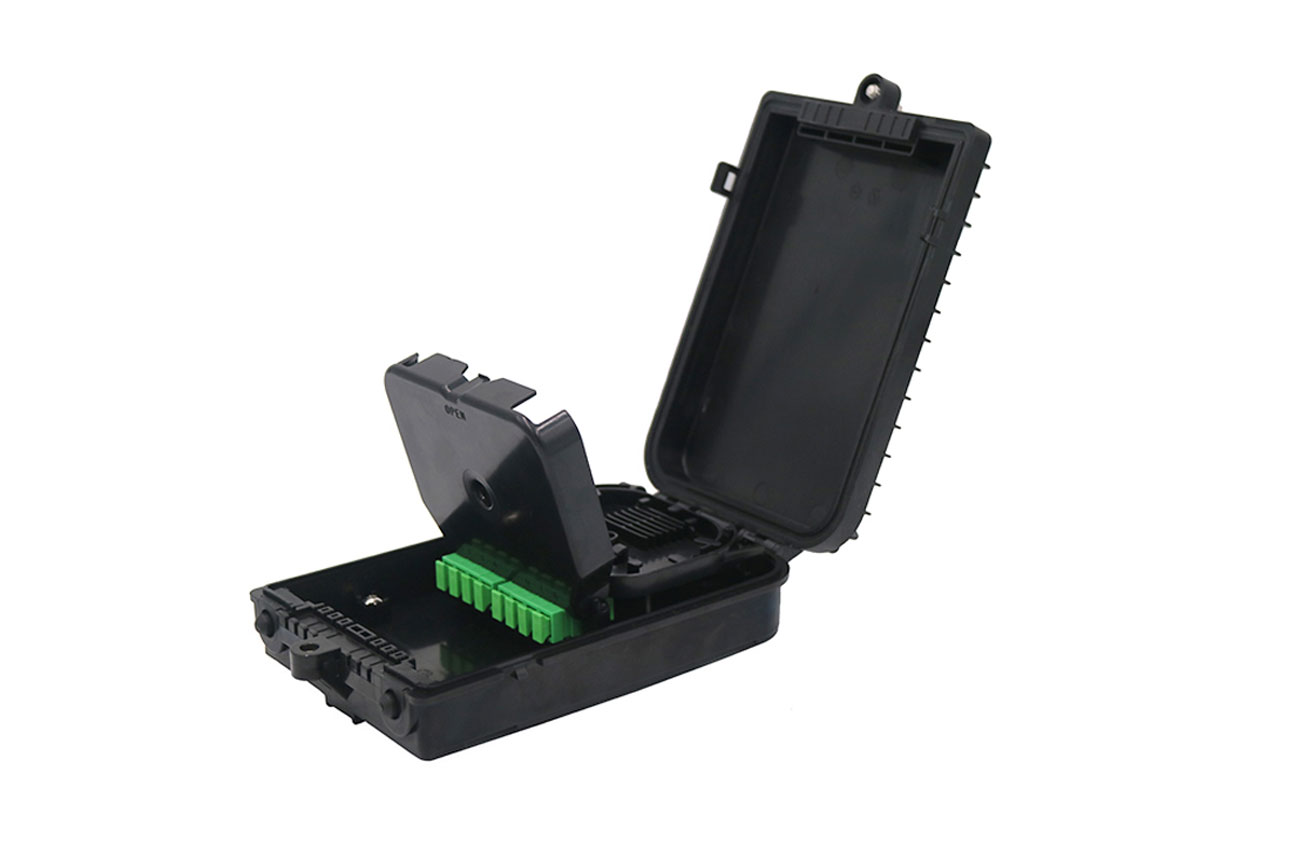

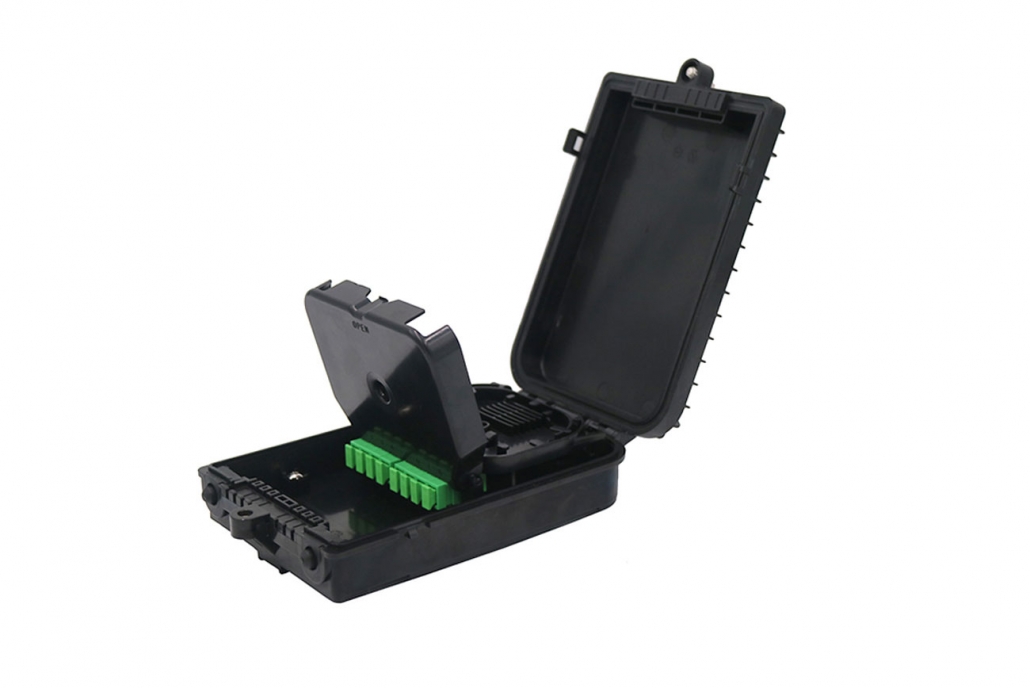

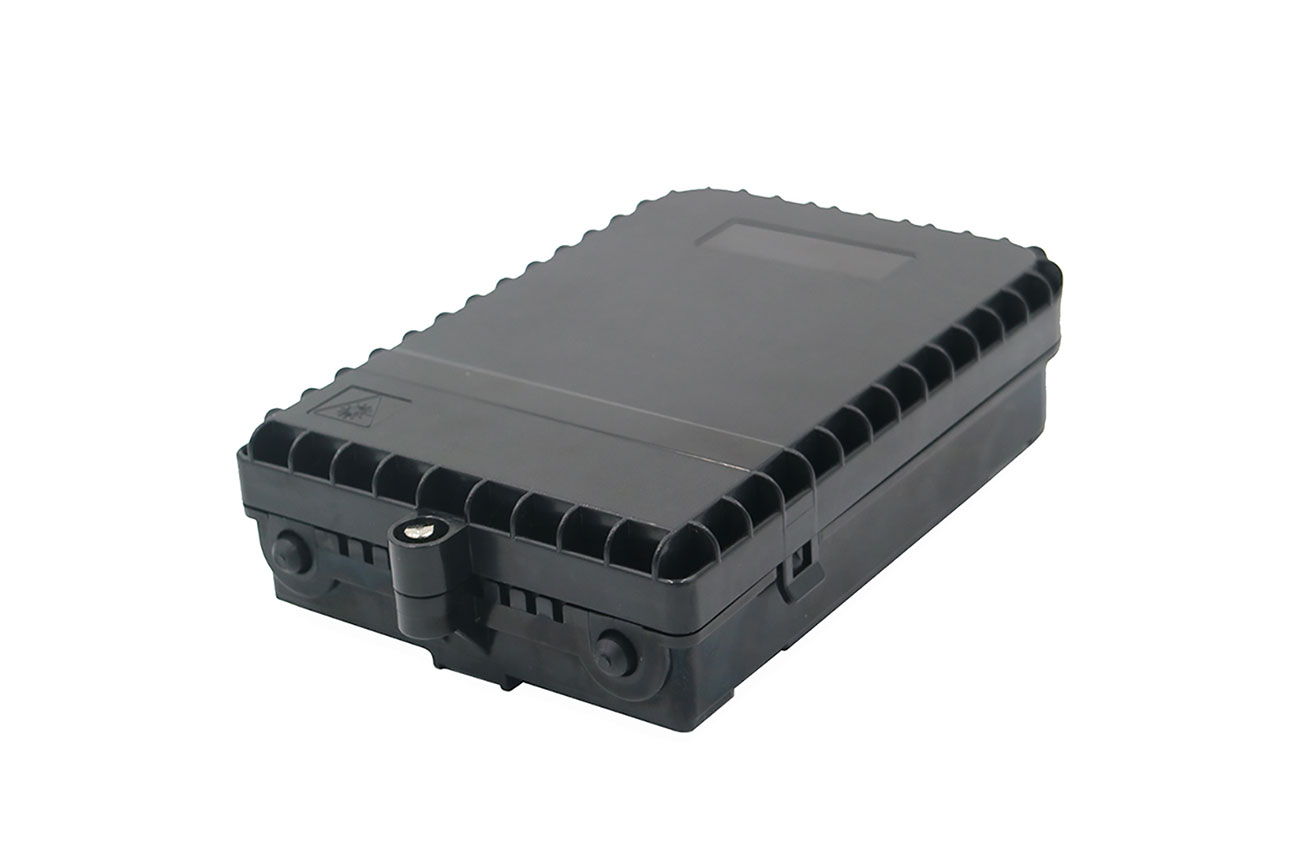

Anti-UV Telecom Box 8 Port Fiber Optic Splitter Termination Box

Product Model

FDB-0208D

Product Description

This product integrates the optical fiber splicing, splitting and wiring. It can realize the cable direct or branch connection and is suitable for client’s terminal access. Connecting with the optical communication equipment, through the adapter installed in the box, the drop cable leads the signal out and achieves optical fiber distribution; also it applies to the protective connection of cables and pigtails; in addition, optical cable can be spliced with home cable after splitting, to achieve signal transmission.

Features

Features:

made of high quality and impact resistant plastics;
accommodates 1:4 splitter ( 2 pcs) or 1:8 PLC splitter (1pc);
Anti-UV, anti-impact and waterproof;
Wall or pole mounted;
The toothed slots at the outlet can hold outgoing fibers, which avoids loosening or falling off by external force;
The box body has two opened-type inlets, which realizes operation without breaking the cable;

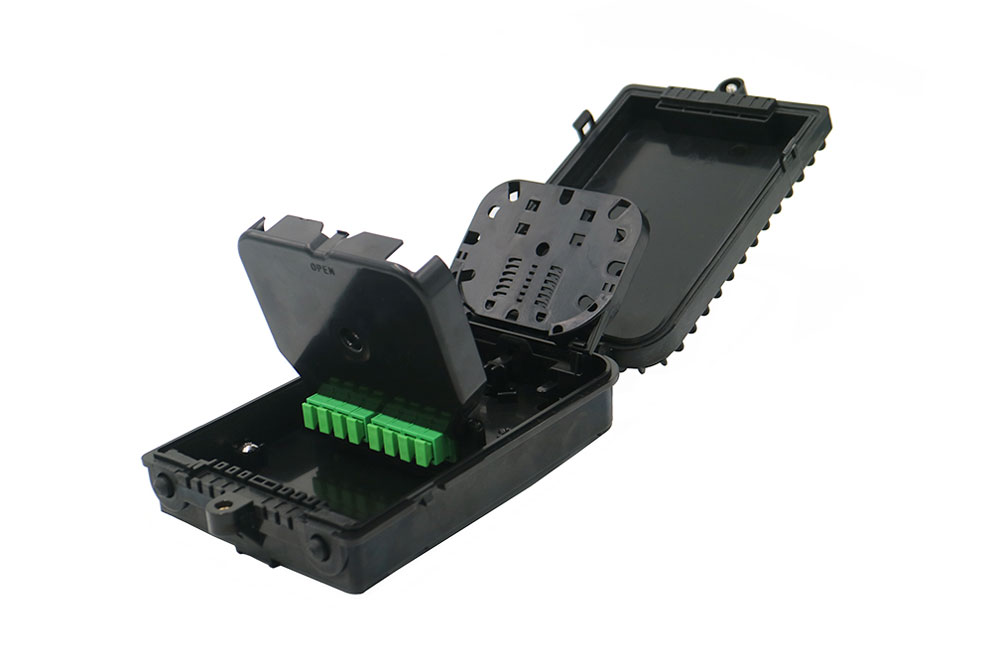

The structural design of bottom box, reversible plate and inner cover make the cable inlet and outlet, fiber splicing area and fiber storage area form a closed and independent partition, which is conducive to manage and maintain.

Application

Application:

Widely used in FTTH access network;
Telecommunication Networks;
CATV Networks;
Data communications Networks;

Specification

Specification:

Type:	FDB-0208D
Size (mm) L×W×H	19213252
Max splitting	1:4 (2pcs)/ 1:8(1pcs)
Weight (Kg)	0.5
Cable diameter(mm)	≤ F12
Cable inlet/outlet:	2 / 8
Fiber core capacity	8 (single fiber)
