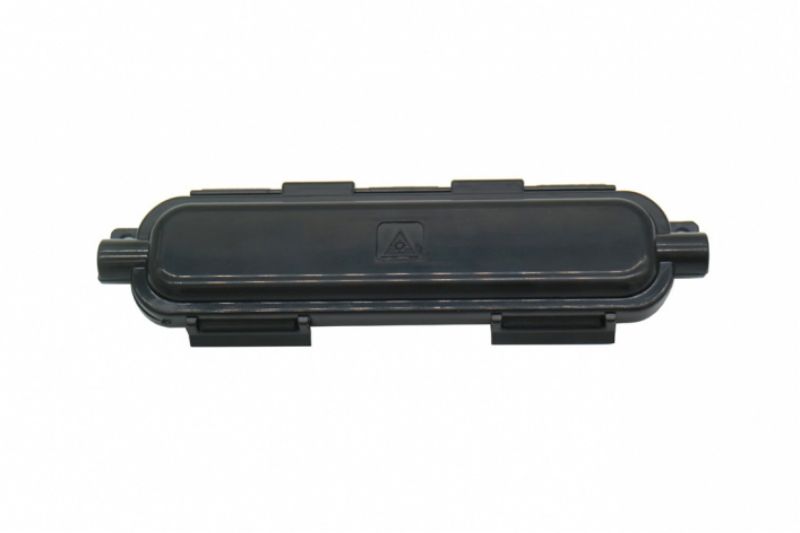

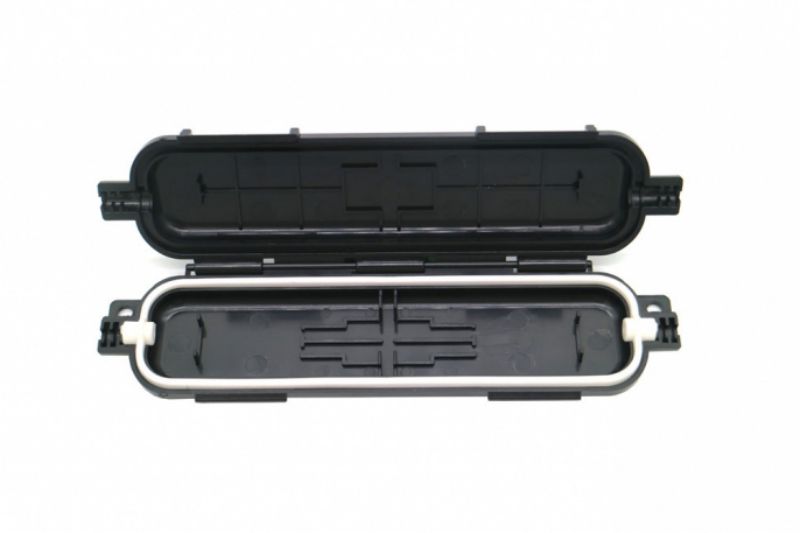

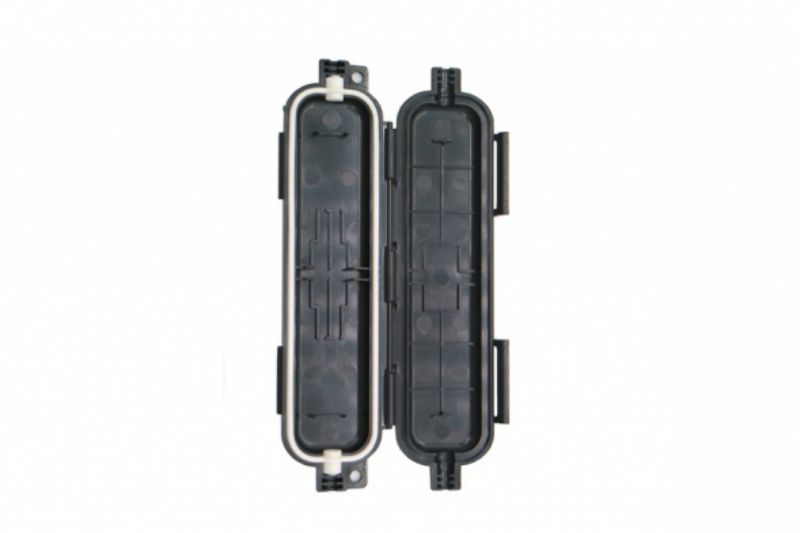

FTTH Outdoor Waterproof Optical Fiber Drop Cable Protection Box

Product Model

SP-1601-1A

Product Description

Drop Cable Protect box is used for drop cable connecting, splice and protection. It can hold 1piece SC Simplex adapter, 2pcs SC fast connectors, suitable for FTTH. It could be indoor or outdoor use, with good waterproof capacity. It is compact size, good appearance. Provides extremely economical and optimal protection for exposed single fiber connectors.

Features

Features:

Suitable for 2.0*3.0mm FTTH drop fiber cable and normal fiber cable.
Max 2 fibers connection (LC Connector).
Small size, easy installation.
Waterproof IP65, dust proof.
Indoor outdoor used.
Size: 160*47.9*16mm
2 mounting holes distance 150mm
Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.

Application

Application:

Suitable for indoor or outdoor use
Used for protect drop cable
Used in FTTH, Telecommunications, CATV ect.

Specification

Specification:

Type	SP-1601-1A
Size(mm) WDH	10647.916mm
Material	PP
Scope of Application	3.0*2.0mm drop cable or indoor cable
IP Grade	IP65
Adapter type	SC Simplex Adapter; LC Duplex Adapter
Color	White or Black
