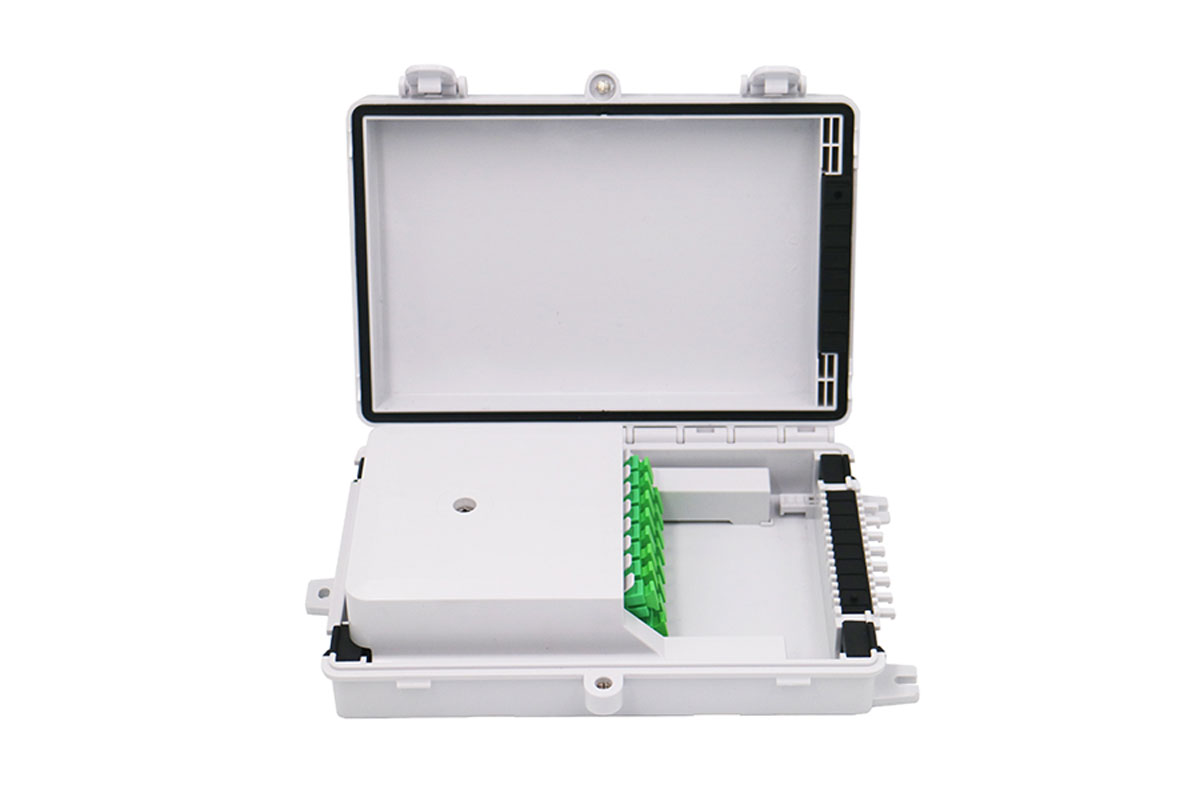

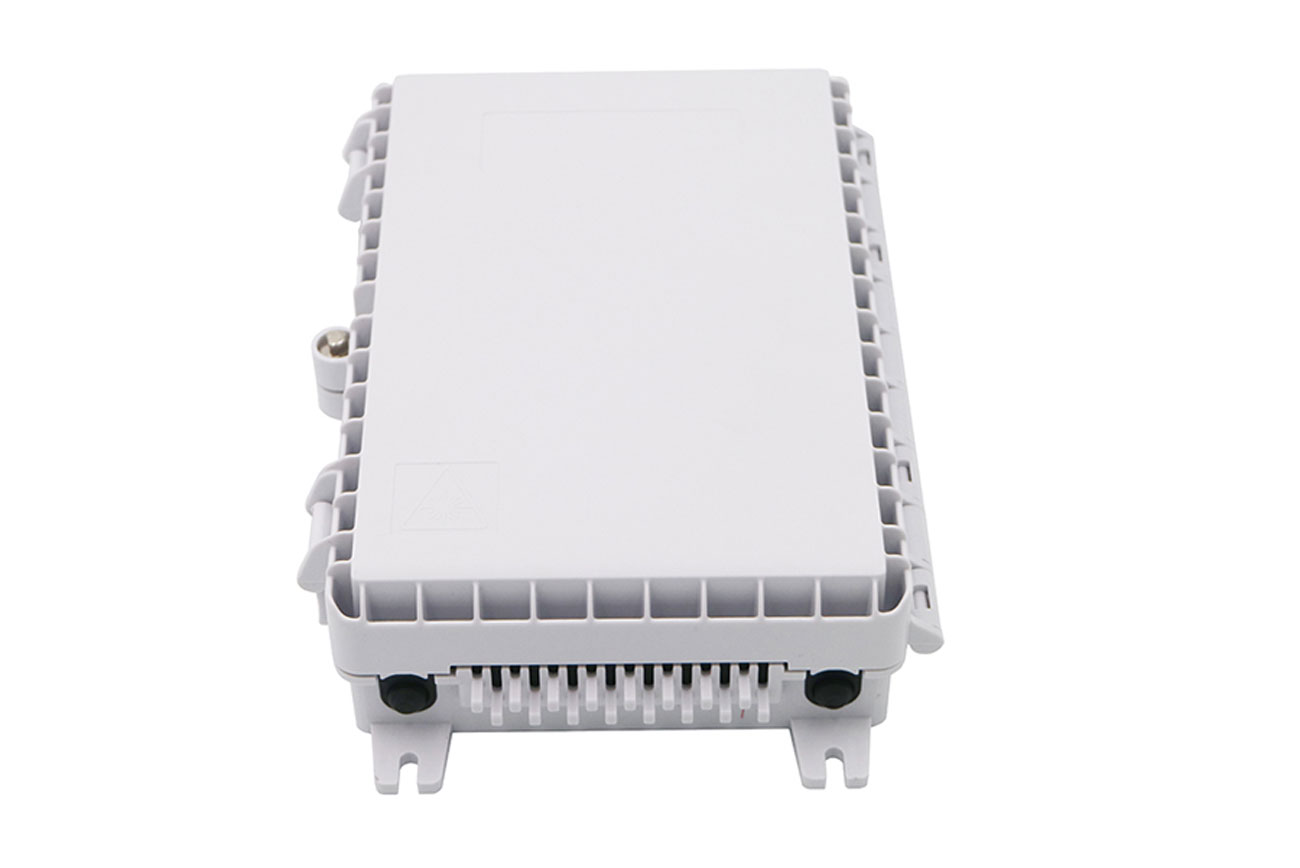

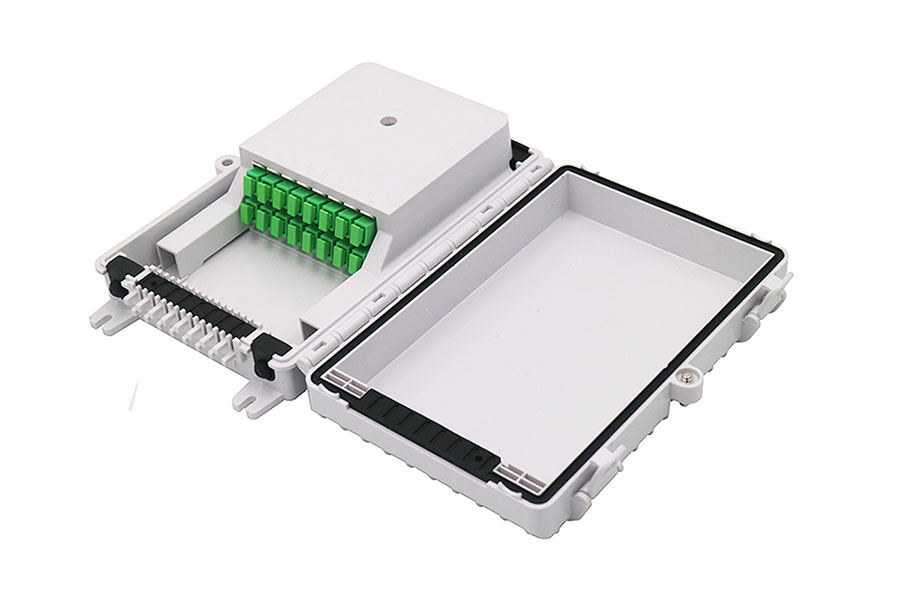

IP54 Termination Box 16 Core Fiber Optical Splitter Distribution Box

Product Model

FDB-0416A

Product Description

This product integrates optical fiber splicing, splitting, and wiring. It can realize the cable direct or branch connection. Connecting to the optical communication equipment, it suits for the user’s terminal access. Through the adapter installed in the box, the drop cable leads the signal out, and achieves optical fiber distribution; it also applies to the protective connection of cable and pigtail; in addition, optical cable can also be spliced with home cable after splitting, finally achieve the optical signal transmission.

Features

Features:

Made of high quality and impact resistant plastics with standard user interface;
Can accommodate 2pcs 1:8 splitters or 1pcs 1:16 splitters;
With UV, impact and water resistance;
Wall and pole mountable, or in aerial application;
The adapter (earless SC) bracket is a two-in-one independent component that can be separately installed and removed, and can be rotated by a certain angle, which is very convenient for operation and can adjust the bending radius of the outgoing cable;
All the four open inlets can be operated without breaking the optical cable;

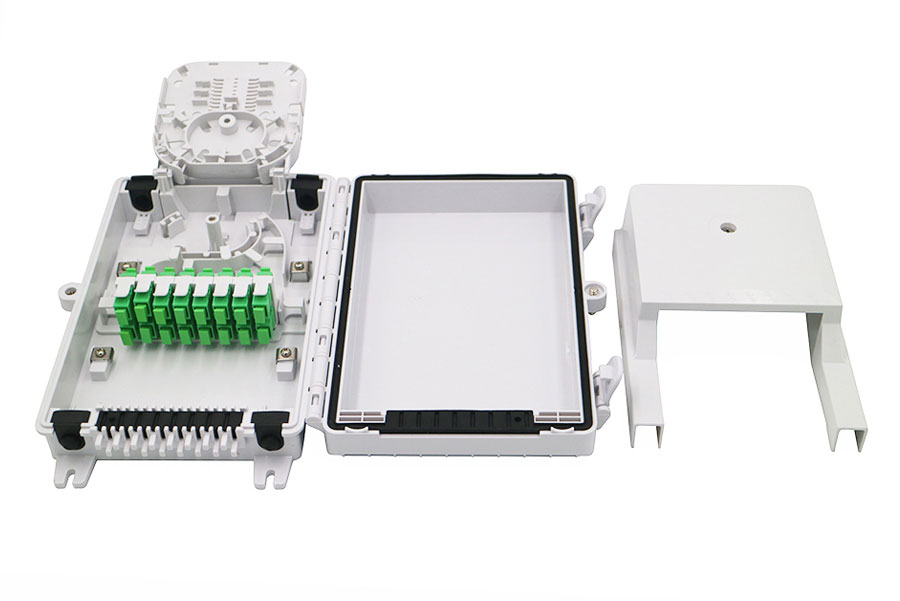

The structural design of the bottom shell, the reversible flip board and the inner cover makes the incoming and outgoing cable area, the fusion area, the cable storage area form a closed and independent partition, which is convenient for management and maintenance.

Techincal Index

Techincal Index:

Optical fiber radius of curvature: ≧30mm
Splice tray additional loss: ≦0.01dB
Working temperature: -10℃~+70℃
Side pressure: ≧2000N/10cm
Impact resistance: ≧20N.m
Protection level: IP54

Specification

Specification:

Type	FDB-0416A
Size (mm)	23115259
Max splitting	1:4 (2pcs)/ 1:8(1pcs)
Weight (Kg)	0.6
Cable diameter(mm)	≤ 12
Cable inlet/outlet:	4 / 16
Fiber core capacity	16 (single core)
