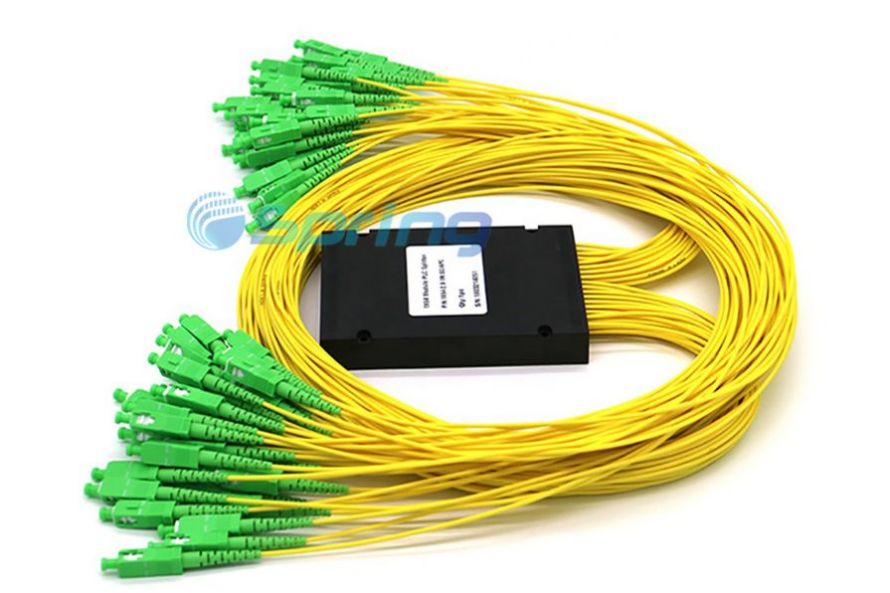

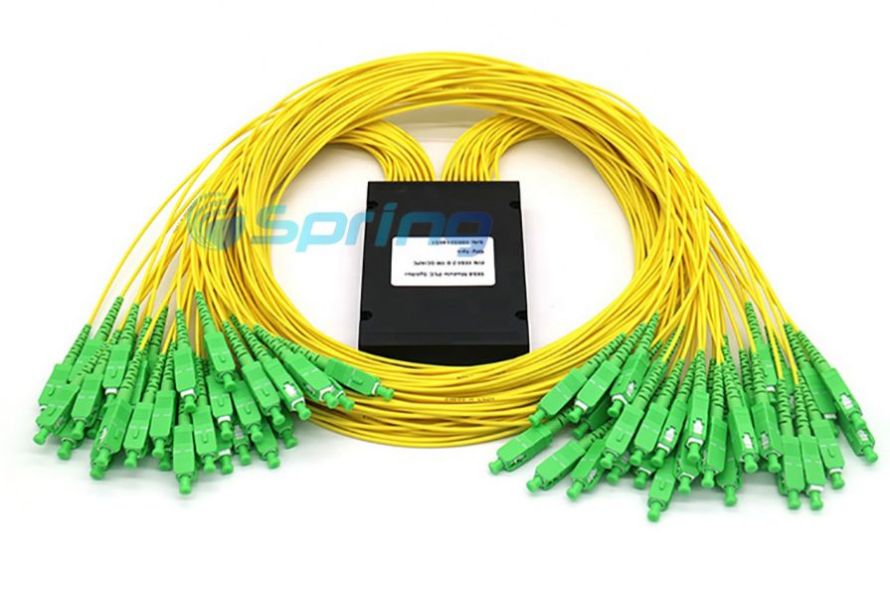

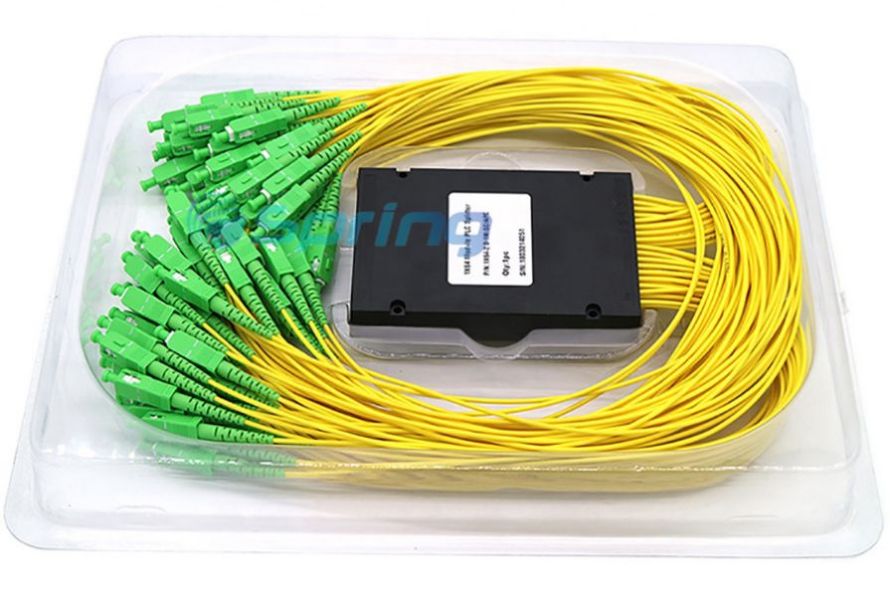

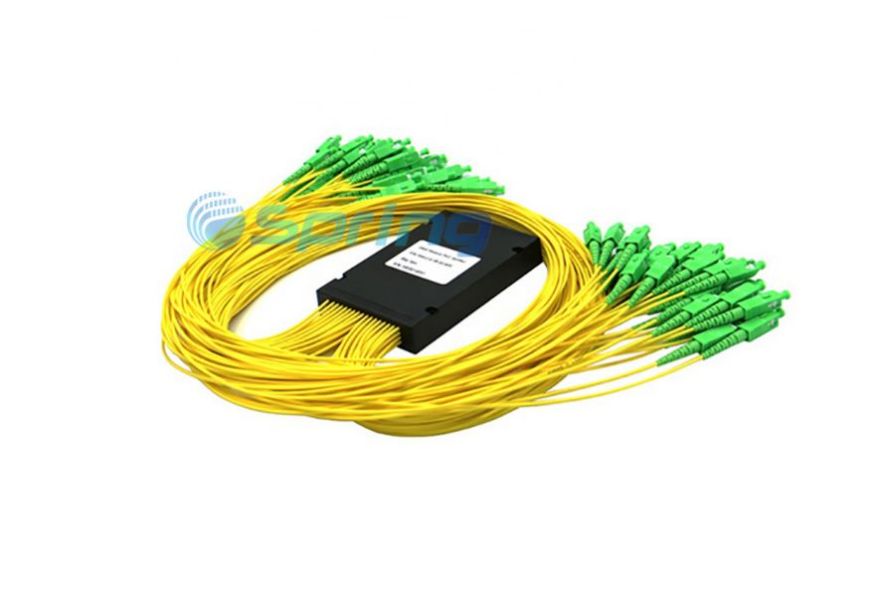

Fiber 1*64 SC LC ABS Type Box PLC Splitter

Product Model

1×64 2×64 ABS Box PLC Splitter

Product Description

We can 1X64&2×64 ABS box type PLC Splitter with connector and without connector.

Springoptic offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here. The springoptic PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or e-mail us [email protected] about anything you need that you don’t see here.

Features

1X64&2×64ABS Box Moudle PLC Splitter Features:

Low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical Stability

Telcordia GR-1221 and GR-1209

Options:

1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits

2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits

Unconnectorized

Fiber jacketing outside boxes 2mm and up to 3mm

ABS box type or inside metal box/module cassette type

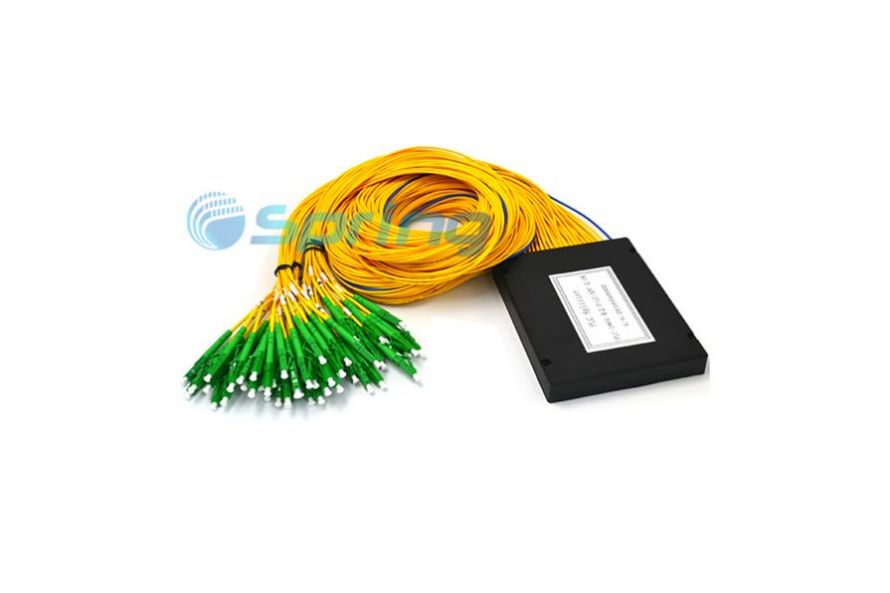

SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options

Custom connector configurations and combinations

Specification

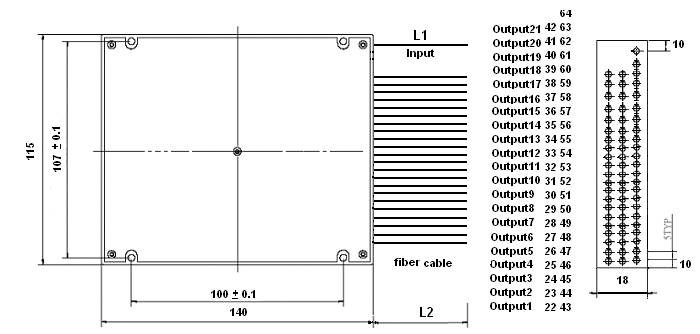

64 ABS Moudle PLC Splitter excludes connector loss

TYPE 1*64 2*64
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 20.5 21.5
Max 21.5 22
Loss Uniformity(dB) Max 2.5 3
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

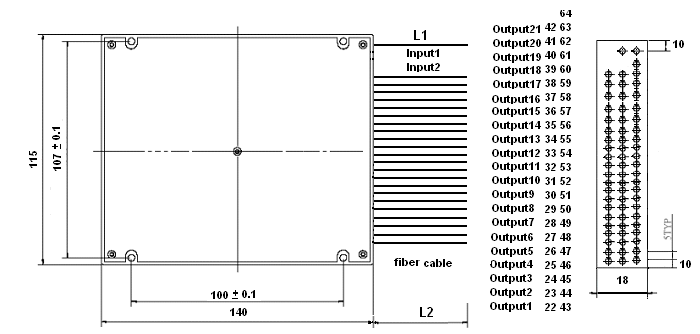

 2×64 PLC Splitter (Measured at room temperature and excludes connector loss)

TYPE 2*64
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 21.5
Max 22
Loss Uniformity(dB) Max 3
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

 64 ABS Moudle PLC Splitter includes connector loss

TYPE 1*64
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 21.5
Max 22
Loss Uniformity(dB) Max 2.5
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

2×64 PLC Splitter (Measured at room temperature and includes connector loss)

TYPE 2*64
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 22
Max 22.5
Loss Uniformity(dB) Max 3
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)



Application

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment
