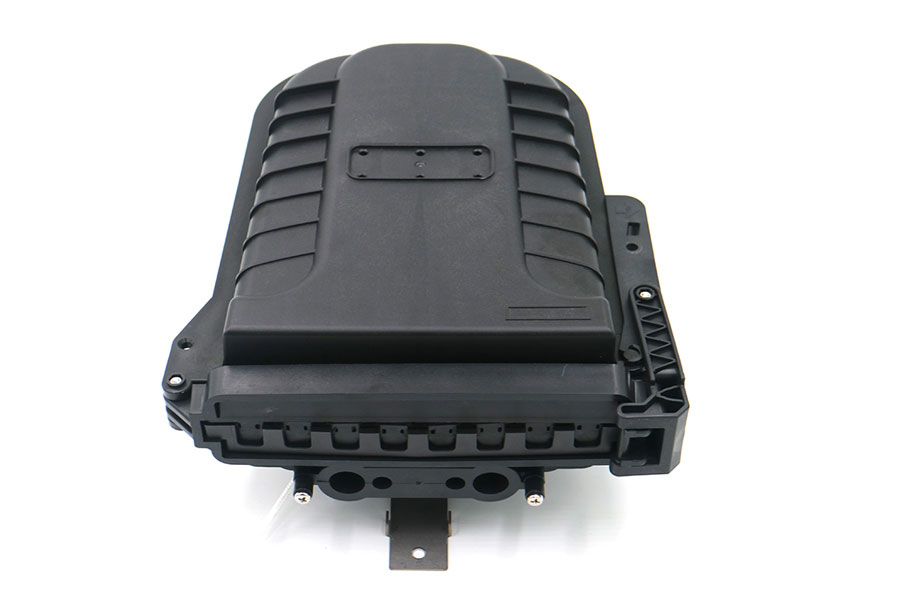

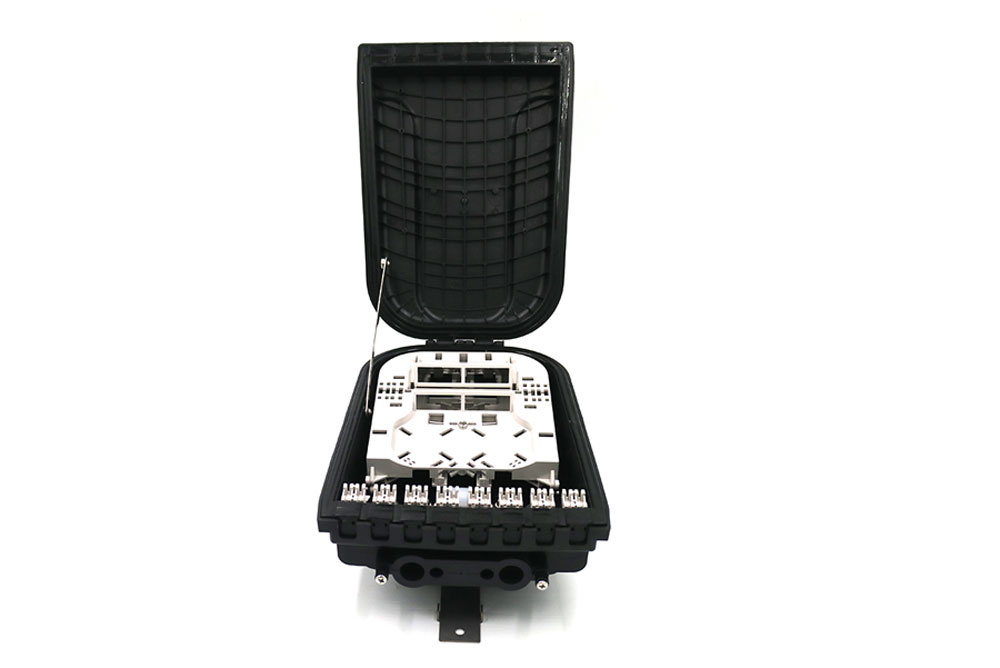

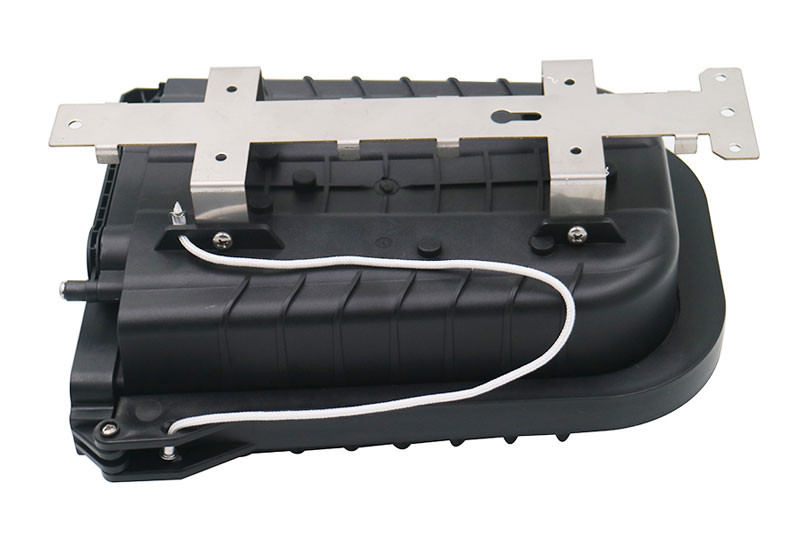

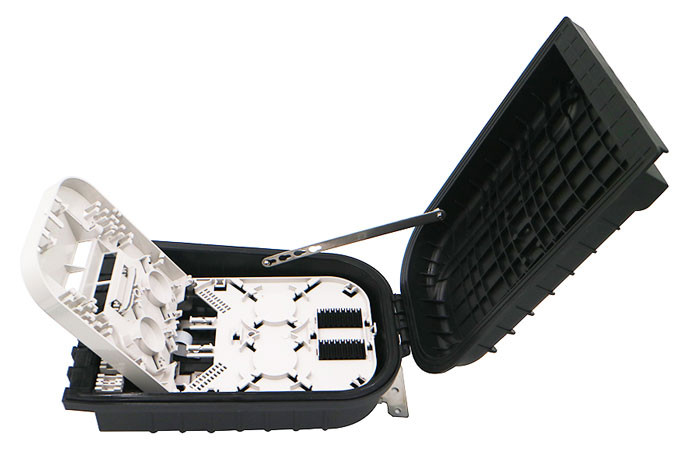

FTTH Aerial Fiber Access Terminal Splitter Closure 16 Port Optical Fiber Distribution Box

Product Model

SP-1609-16E

Product Description

FTTH Aerial Fiber Access Terminal Splitter Closure provides a high-density wall mounted or pole solution for next-generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.

Features

FTTH Aerial Fiber Access Terminal Splitter Closure

Features:

Water-proof design with IP65 Protection level;
Manager fibers in a reasonable fiber radius condition;
Fiber bend radius control more than 40mm;
1*16 micro type Splitter can be installed;
Suitable for the fusion splice;
Easy to maintain and extend the capacity.

Application

Application:

Wall mounting, pole mounting and aerial mounting installation
FTTH pre-installation and filed installation

Specification

Specification:

Type	SP-1609-16E
Protection level	IP65
Max splitting	1:16 Mini PLC Splitter
Weight (Kg)	1.8
Cable diameter(mm)	≤ 15
Cable inlet/outlet:	4 / 16
Fiber core capacity	16 (single core)
