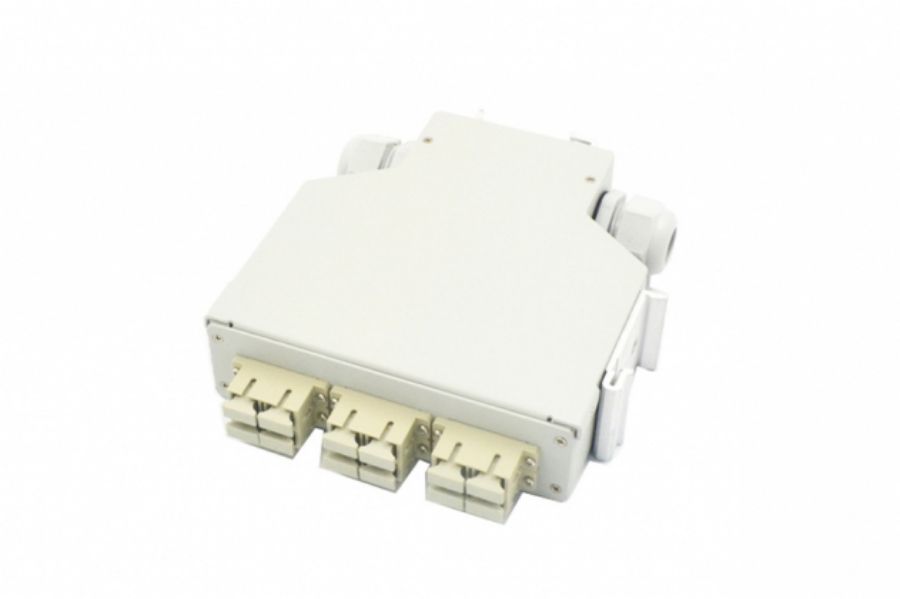

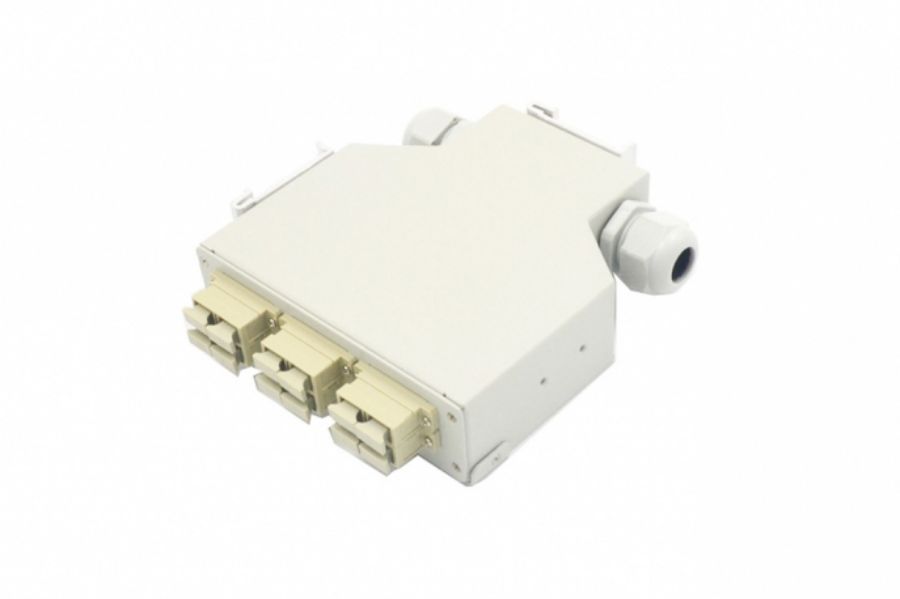

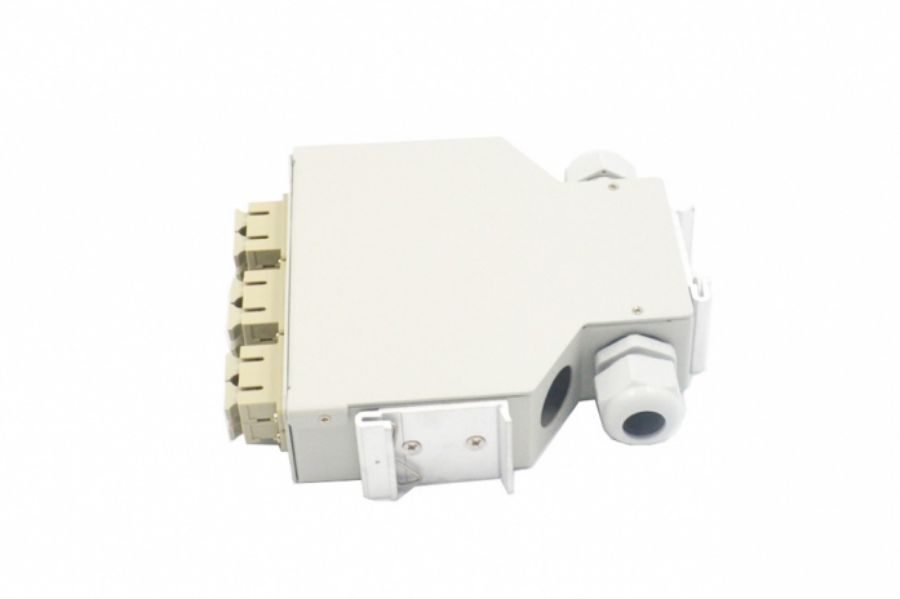

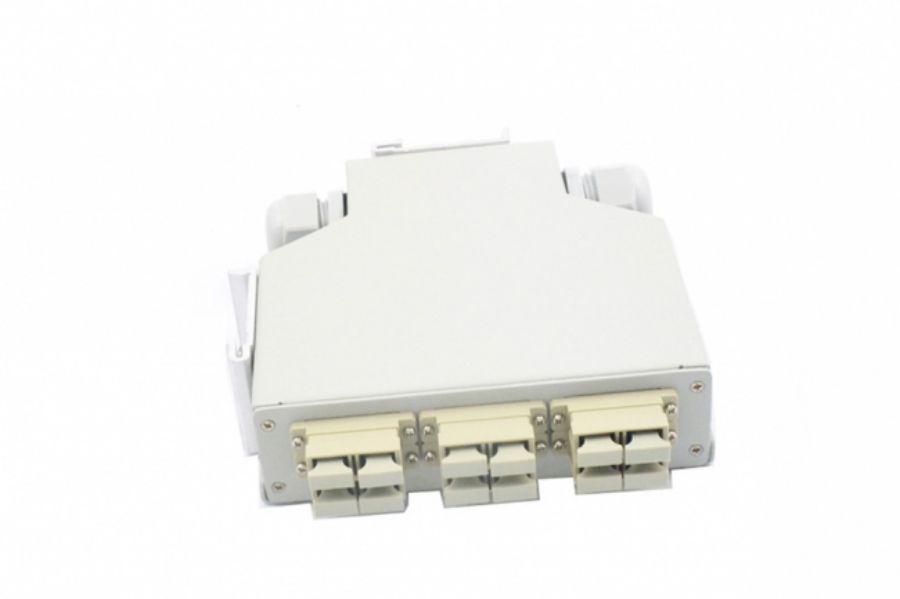

FTTH Indoor DIN Rail Box 12 Core Optical Fiber Distribution Box

Product Model

 SP-DIN-03

Product Description

DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. All of the Din Rail Boxes can be fully populated.

Features

Features:

  1. Aluminum, electrostatic painting
  2. Suitalbe for different adapters: FC, SC, ST, LC …
  3. 2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports
  4. Splicing module of 12 fibers inside
  5. Max. 12pcs adapters can be loaded
Application

Application:

  • Suitable for Pigtail, ribbon and bunch cable connect distribution
  • Used for wall-mounted applications
  • Used in FTTH, Telecommunications, CATV ect.
Specification

Specification:

Type SP-DIN-03
Color Grey
Material Aluminum
Weight (Kg) 0.5
Size 128.8*140.5*36.4 mm
Adapter type SC/LC/ST/FC
Fiber core capacity 12 (single core)

Download
