Passive Fiber Optic 6 Core Cable Terminal Box

Product Model


Product Description

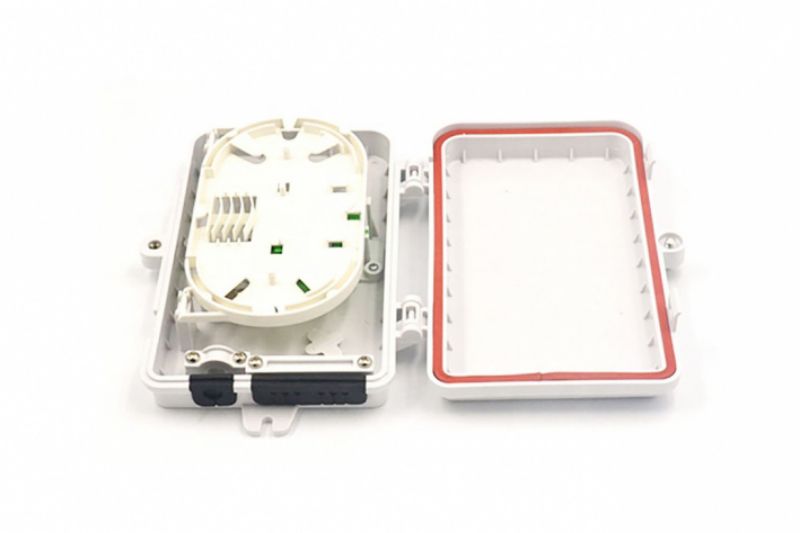

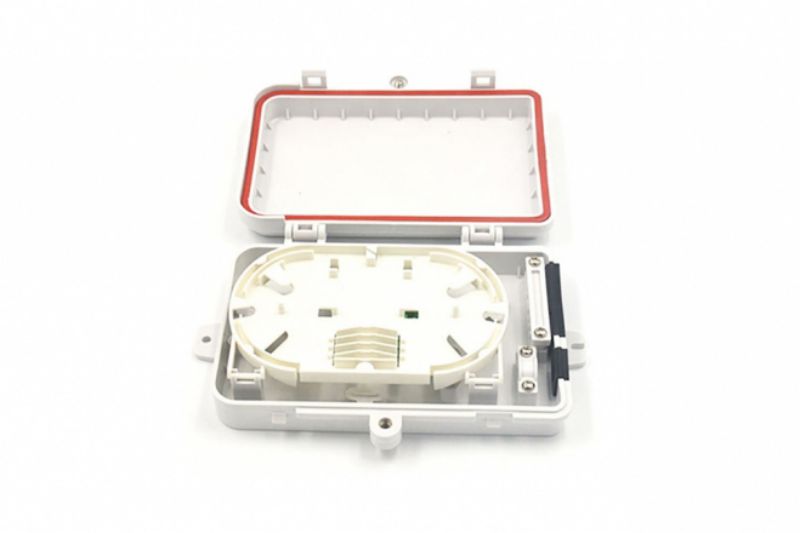

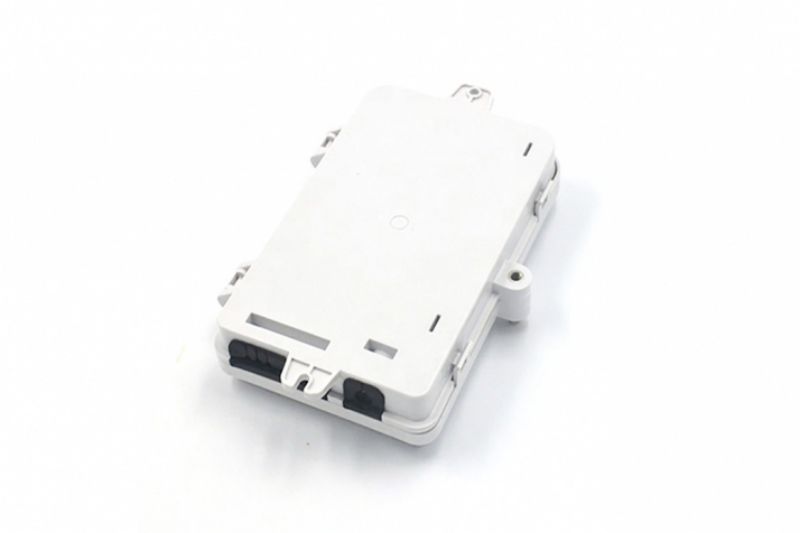

Passive Fiber Optic 6 Core Cable Terminal Box Model SP-1602-6A Fiber termination boxes are used in the end termination of residential building and villa, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall. For connecting up to 12 LC or 6 SC/FC connectors. In order to prevent access by unauthorized people, the box door is equipped with a lock and key. In addition, the box can be sealed.


Passive Fiber Optic 6 Core Cable Terminal Box


  1. White color, graceful style and good adaptability to environment.
  2. Anti-UV, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
  3. Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact. All the materials complied with ROHS standard.
  4. Remarkable laser warning identification.

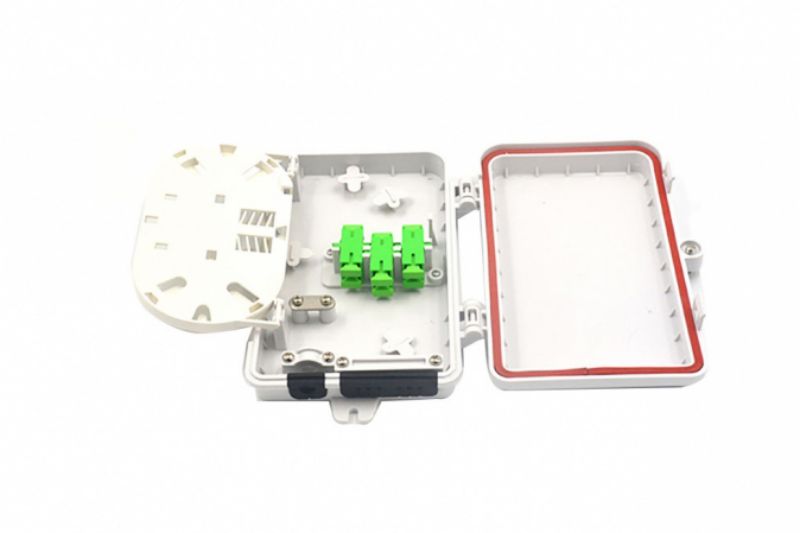

  5. Internal termination box can house up to 6 SC simplex or 6 LC duplex adaptors
  6. The base and cover of the box adopts self-clip & screw-clip two times lock method, which is better to use in outdoor for high sealing and waterproof.
  7. Special design ensures the excess fiber cords and cables in good order, effectively prevent the miss-operation.
  8. Easy operation, saving installation working hours, lower costs.


Working temperature -25~+60°C Storage temperature. -40~+70°C
Humidity 93%(+30°C ) Air Pressure 70KPa~106KPa
Size (H×W×D) mm 212x144x42 Weight (kg) 0.3
Color White Material ABS+PC
Functions: Cable terminal, passive splitter port 1 input port and 6output ports
Capacity (cores) 6(SC simplex),12(LC duplex) Installation Models Wall Mounted
Connect Models Fusion splicing,Mechanical Splicing, FMC Max number of splices 12 * fusion or 6 * mechanical
Drop cable (Round) ≤9mm Curvature Radius (mm) ≥30
