FTTH Outdoor 8 Port Fiber Optic Distribution Box IP66

Product Model

SP-1602-8B-2

Product Description

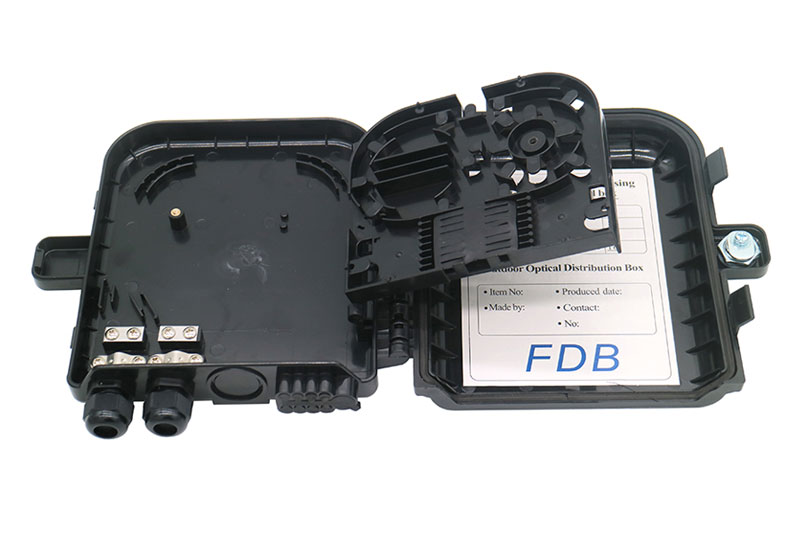

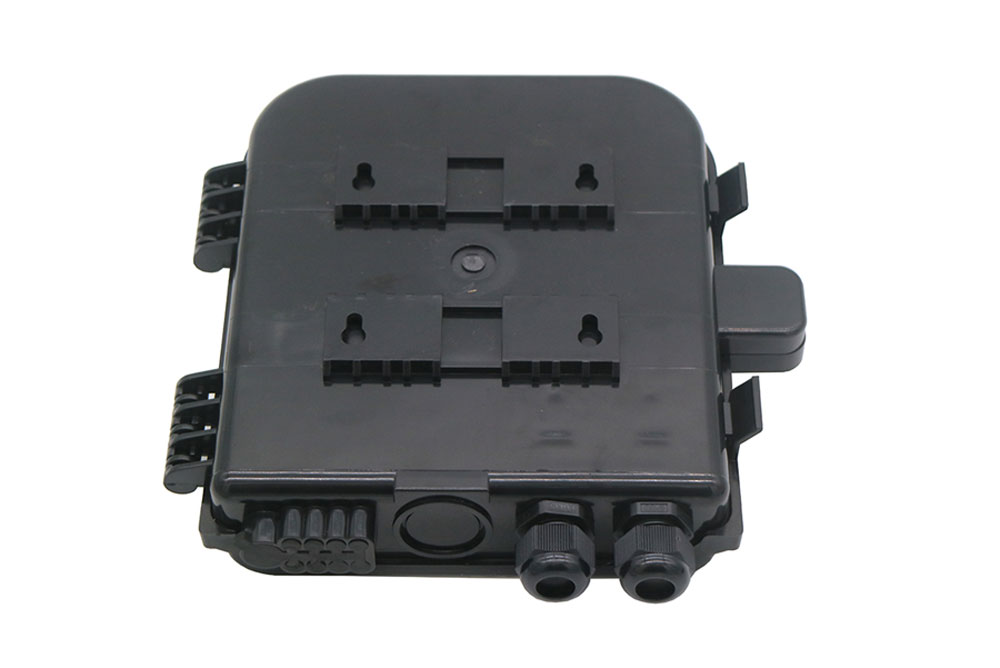

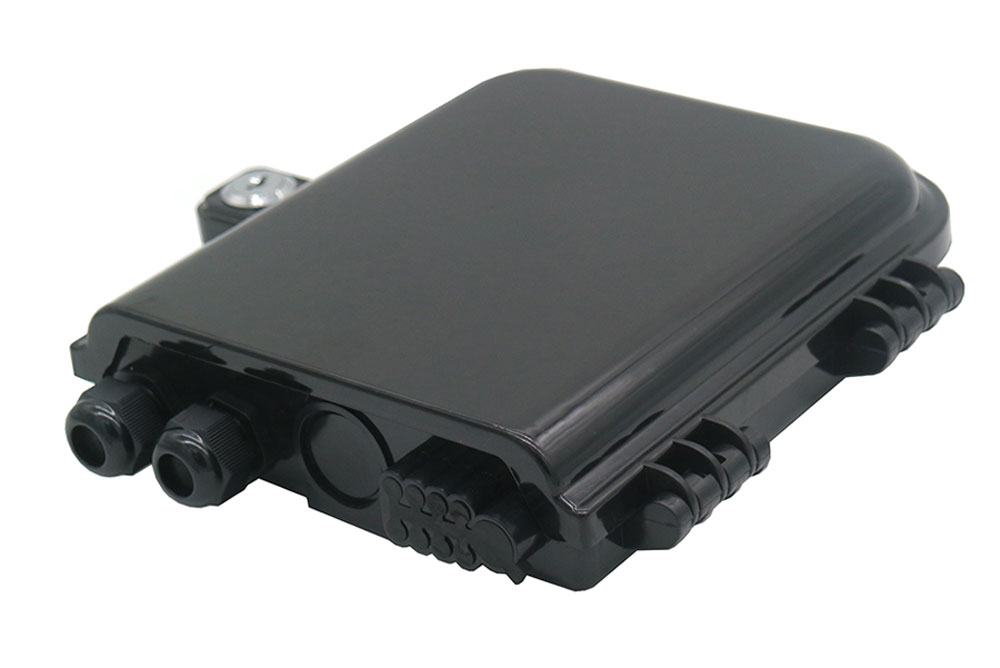

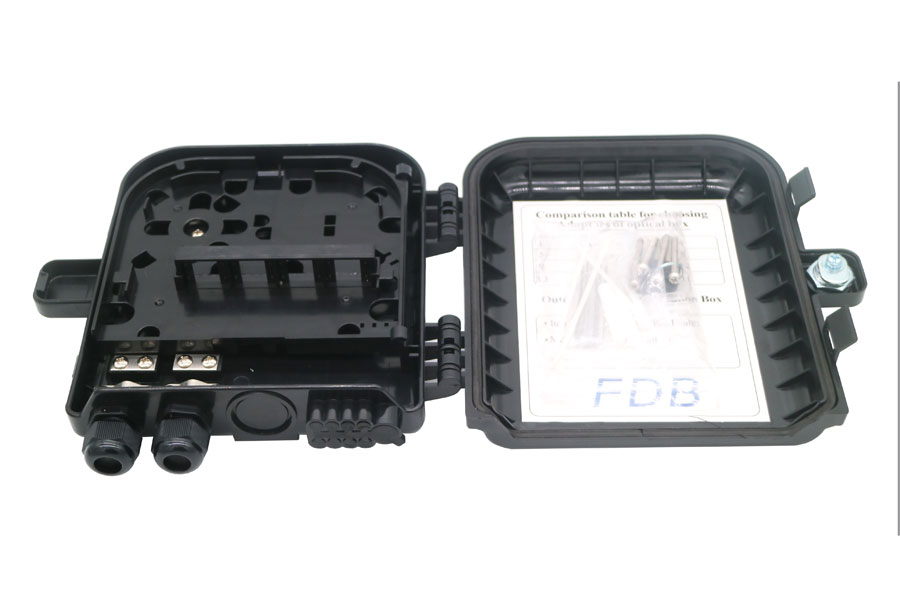

FTTH Outdoor 8 Port Fiber Optic Distribution Box IP66 model SP-1602-8B-2 is a fiber access termination box that is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Features

FTTH Outdoor 8 Port Fiber Optic Distribution Box IP66

Features:

Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*8 Splitter can be installed as an option.
Efficient cable management.
8 ports cable entrance for drop cable.

Specification

Material	Size	Max Capacity			Weight	Color
PC+ABS	22711854.5	SC 8 ports	LC 16 ports	PLC 1×8(SC)	0.6kg	White/Black

Application

Tab Content goes here

Download

FTTH Outdoor 8 Port Fiber Optic Distribution Box IP66

Specification Download
