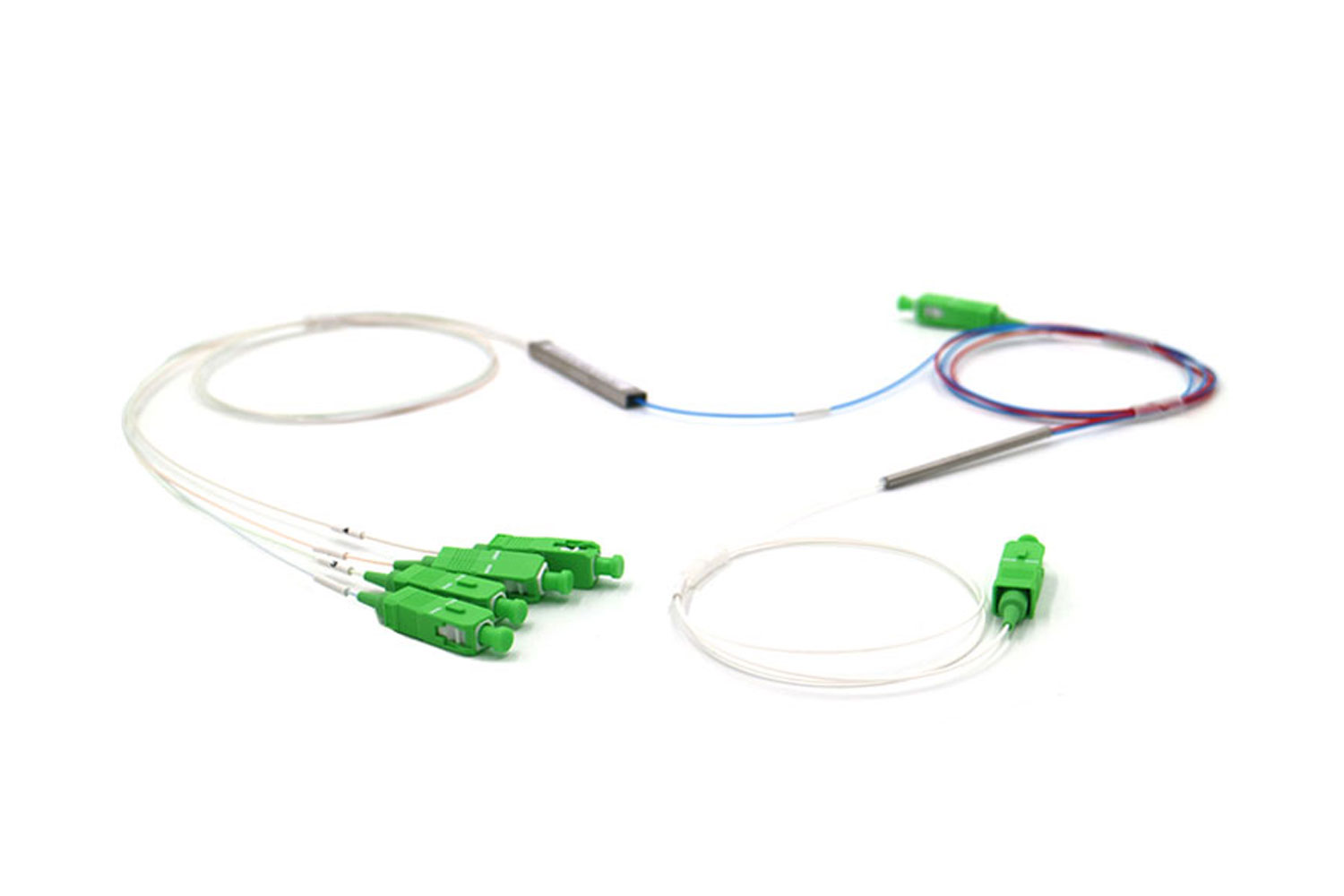

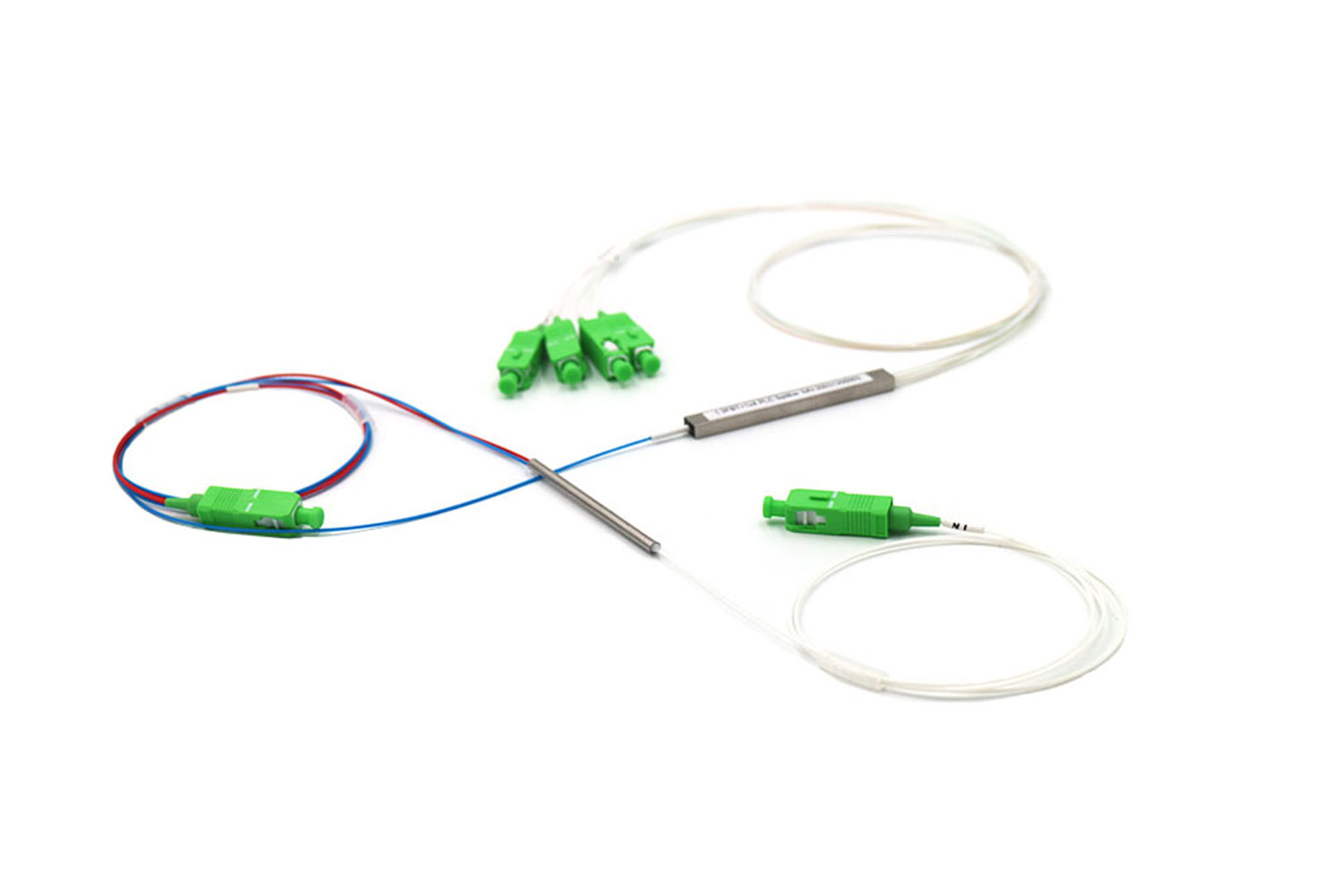

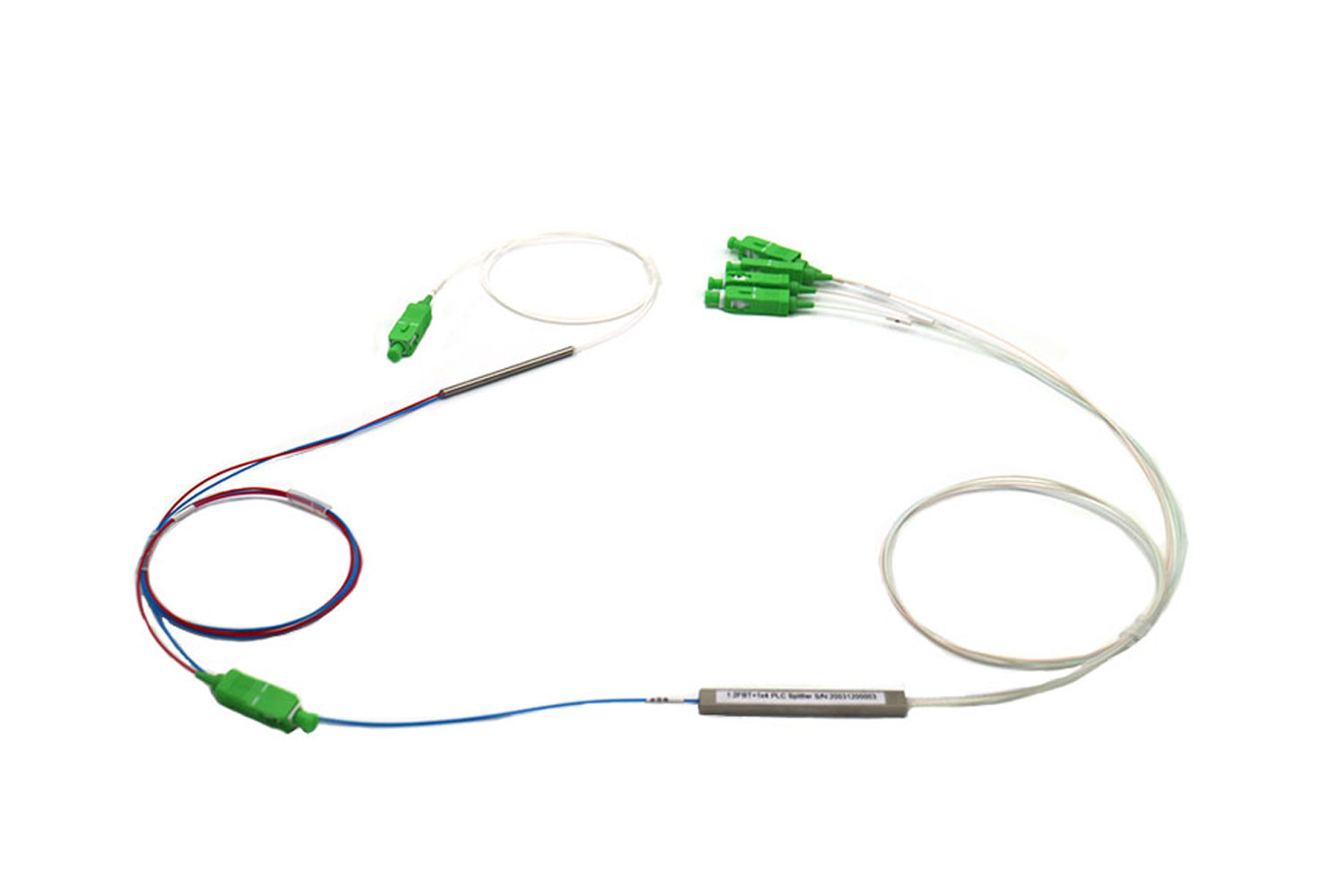

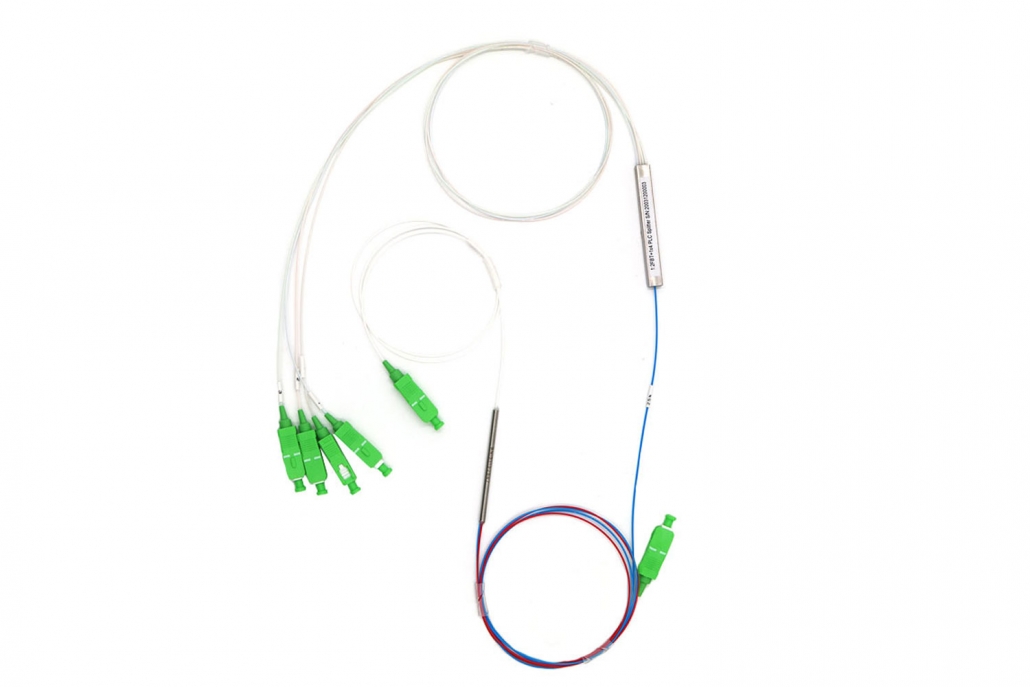

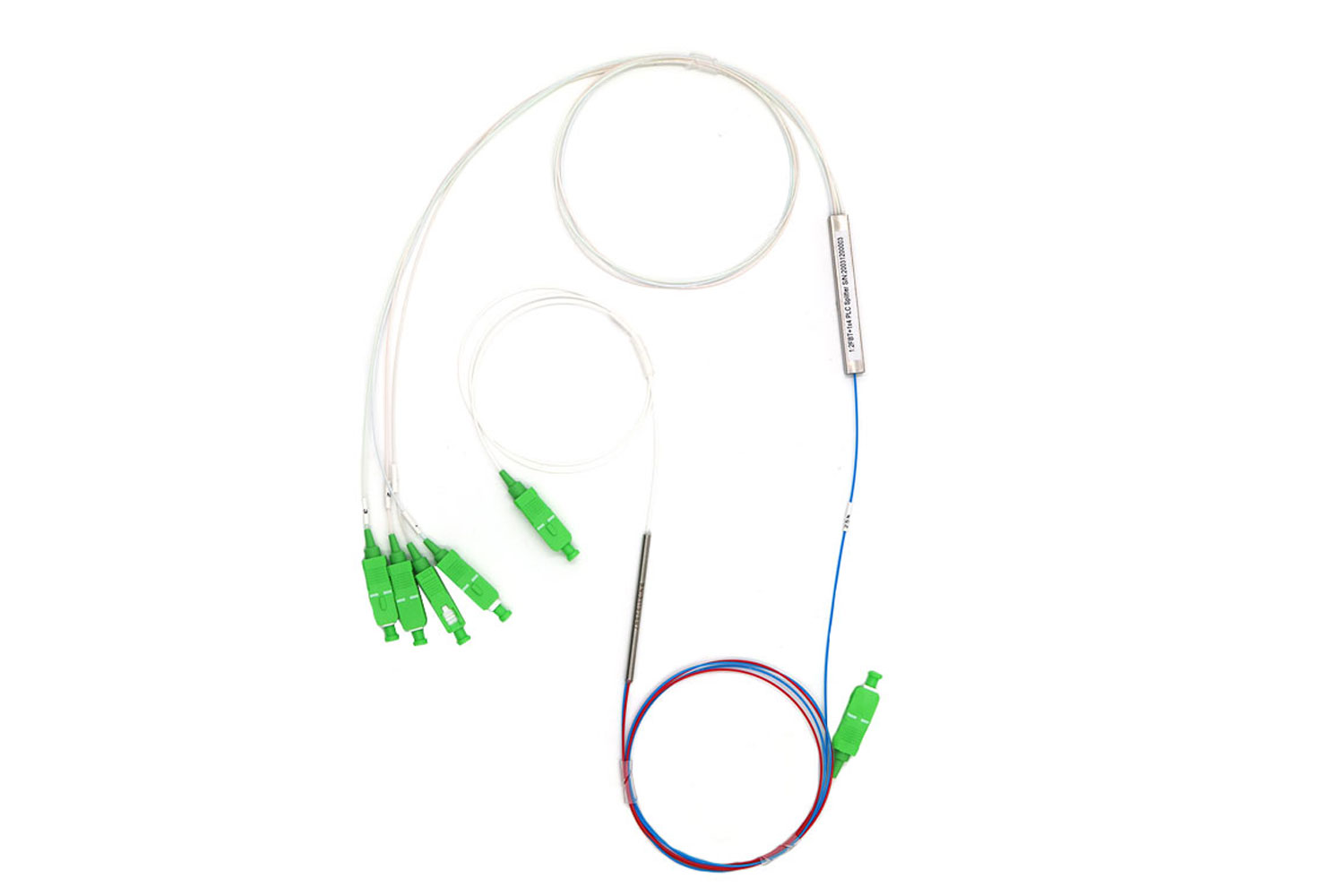

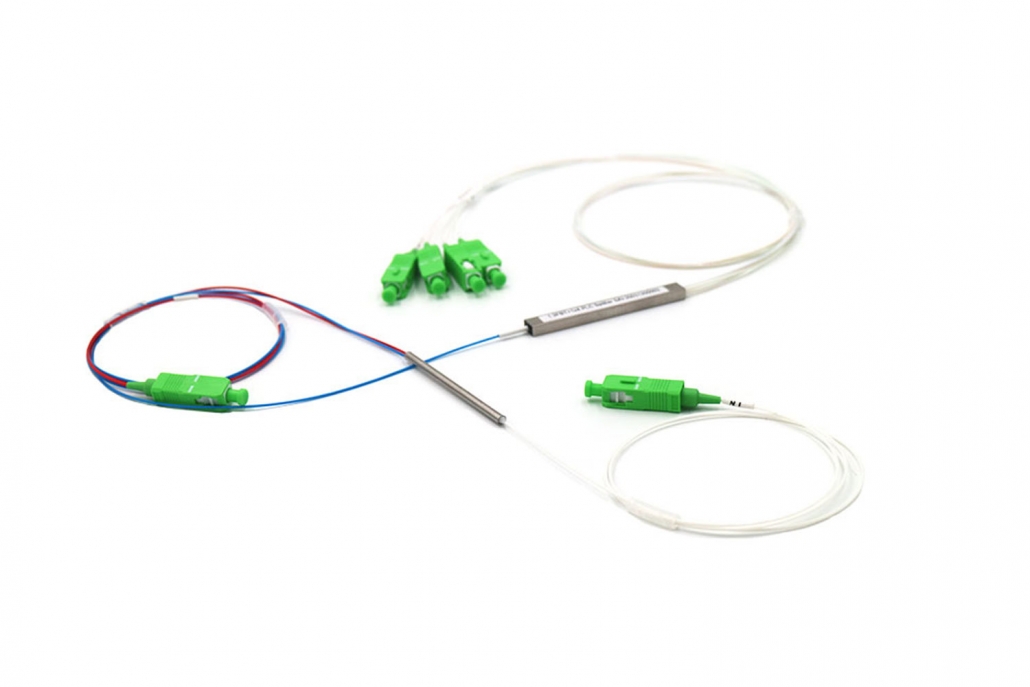

1×4 PLC Splitter+1×2 Unbalanced Coupler SC APC Hybrid Splitter for FTTA

Product Model

 SP-F2-P4-SCA

Product Description

Fiber optic coupler, is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers.For the fused optical splitter,It can be divided into different ratios,such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other,or other ratio according to your requirement.

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

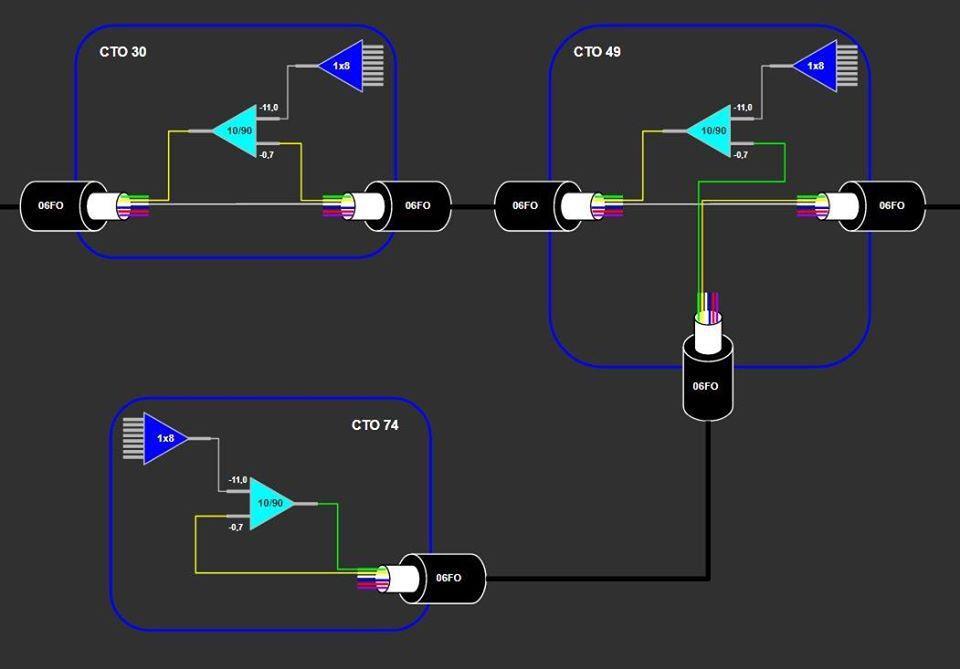

The hybrid splitters is major used in the FTTA applications, it can be much commercial and affordable solution for unblance light divide.

Features

Features

  1. Low Insertion Loss
  2. Low Polarization Dependent Loss
  3. Wide Operation Wavelength
  4. Wide Operation Temperature
  5. Environmental Stability and Reliability
  6. High optical return loss
  7. Better uniformity
  8. Small package size

Components through TLC-Certified, Conform to YD1117-2001

hybrid splitters

Specification
Item 1/99 + 1:8 2/98 + 1:8 5/95 + 1:8 10/90 + 1:8 15/85 + 1:8 20/80 + 1:8 25/75 + 1:8 30/70 + 1:8 35/65 + 1:8 40/60 + 1:8 45/55 + 1:8
Insertion Loss (dB) – outs 1 to 8 32.10 29.20 25.10 21.50 20.10 18.40 17.45 16.50 15.85 15.20 14.65
Insertion Loss (dB) – output with the highest power 0.30 0.40 0.50 0.70 1.00 1.40 1.70 1.90 2.30 2.70 3.15
Polarization Dependent Loss – PDL (dB) 0.2
Return Loss (dB) ≥ 55
Directivity (dB) ≥ 55
Working Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -25 ~ +75
Storage Temperature (°C) -40 ~ +85
Input Connector Type SC/APC (Green)
Output Connector Type SC/APC (Green)
Connector Insertion Loss – each (dB) ≤ 0,3
Connector Retorn Loss – each (dB) ≥ 60
Application

1.FTTH, LAN, PON and Optical CATV

2.Local ring net

3.Optical fiber communication system

4.Optical fiber test equipment

5.Optical fiber sensor

Download

1X2 Coupler +1X4 PLC SC APC Hybrid Splitter
