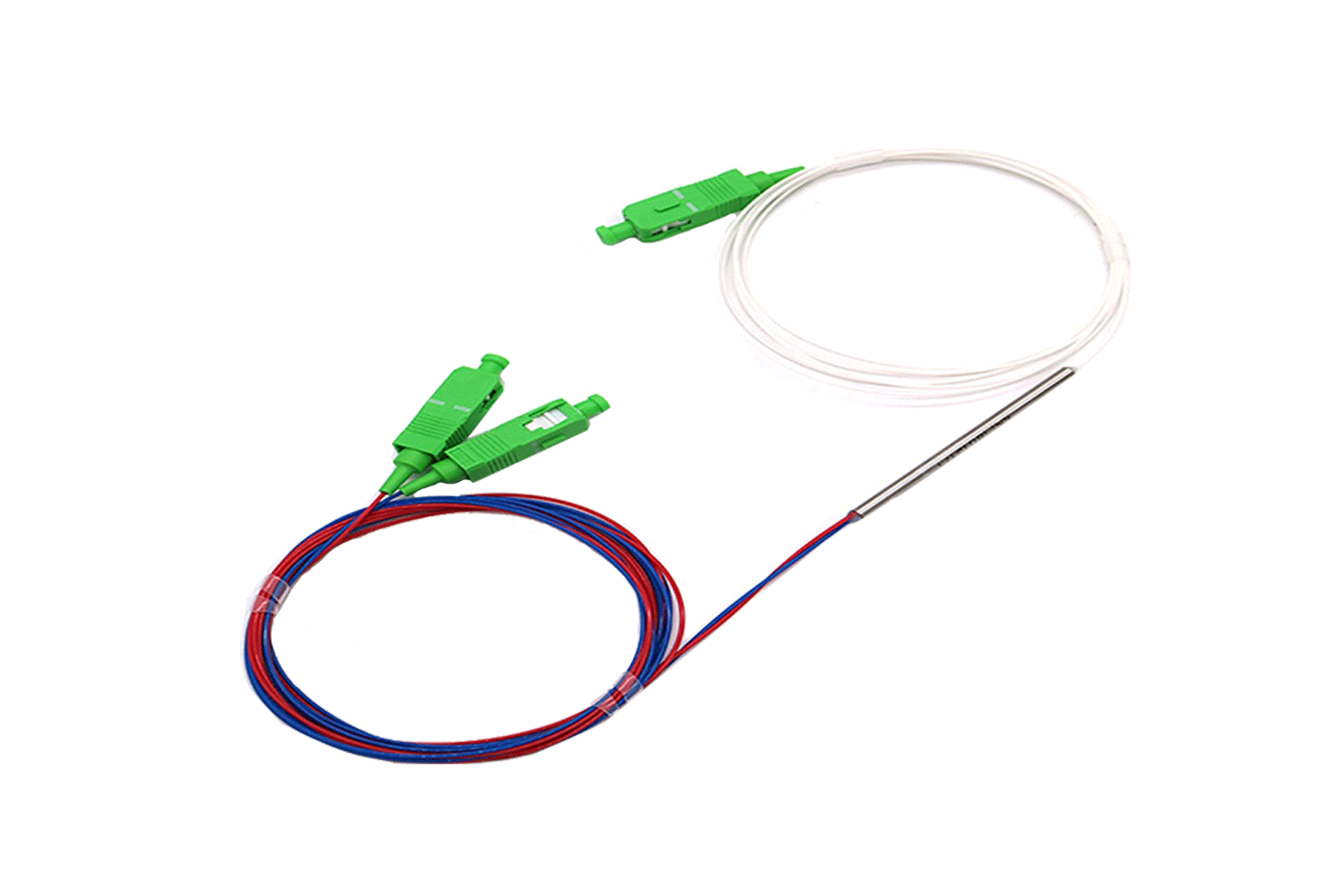

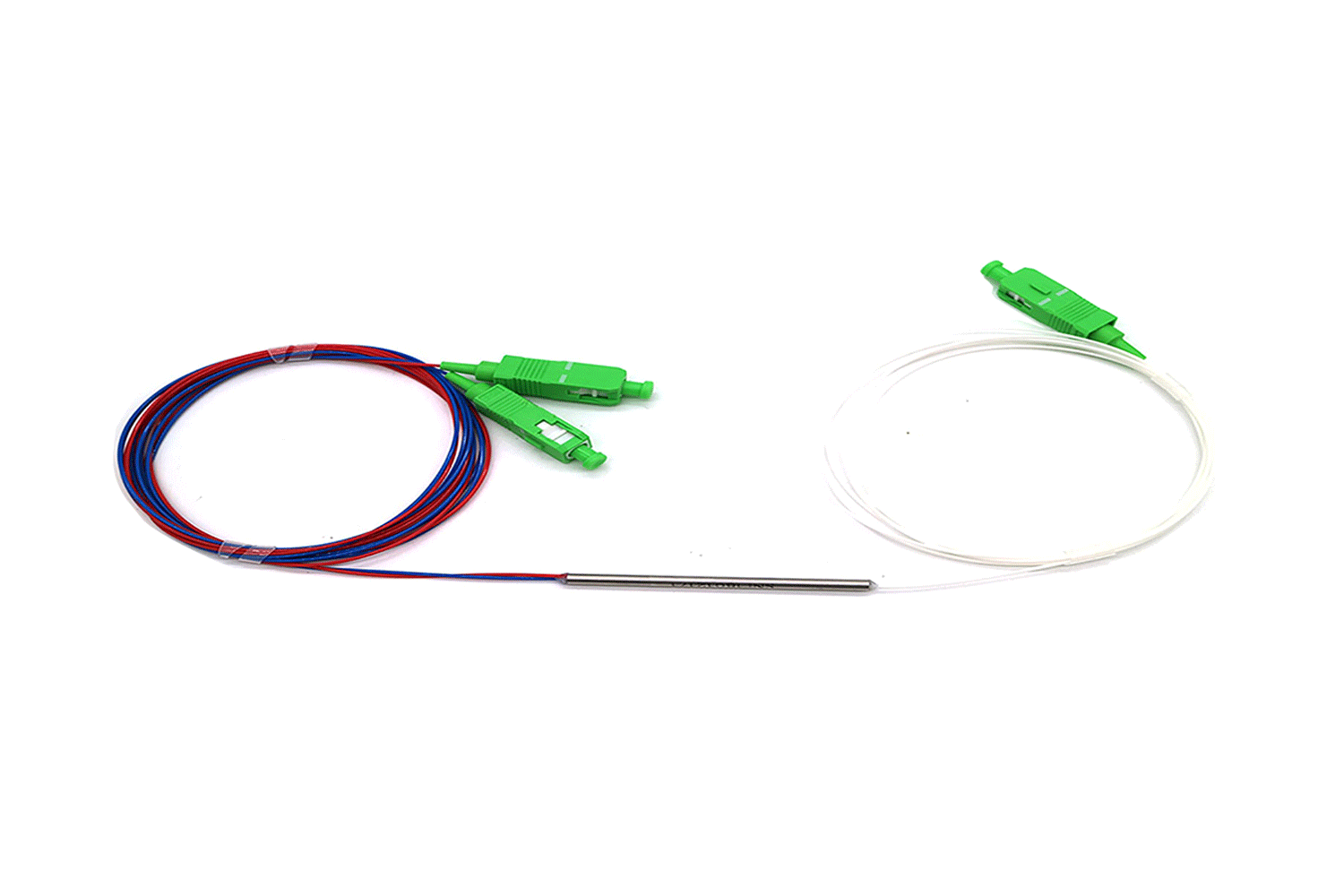

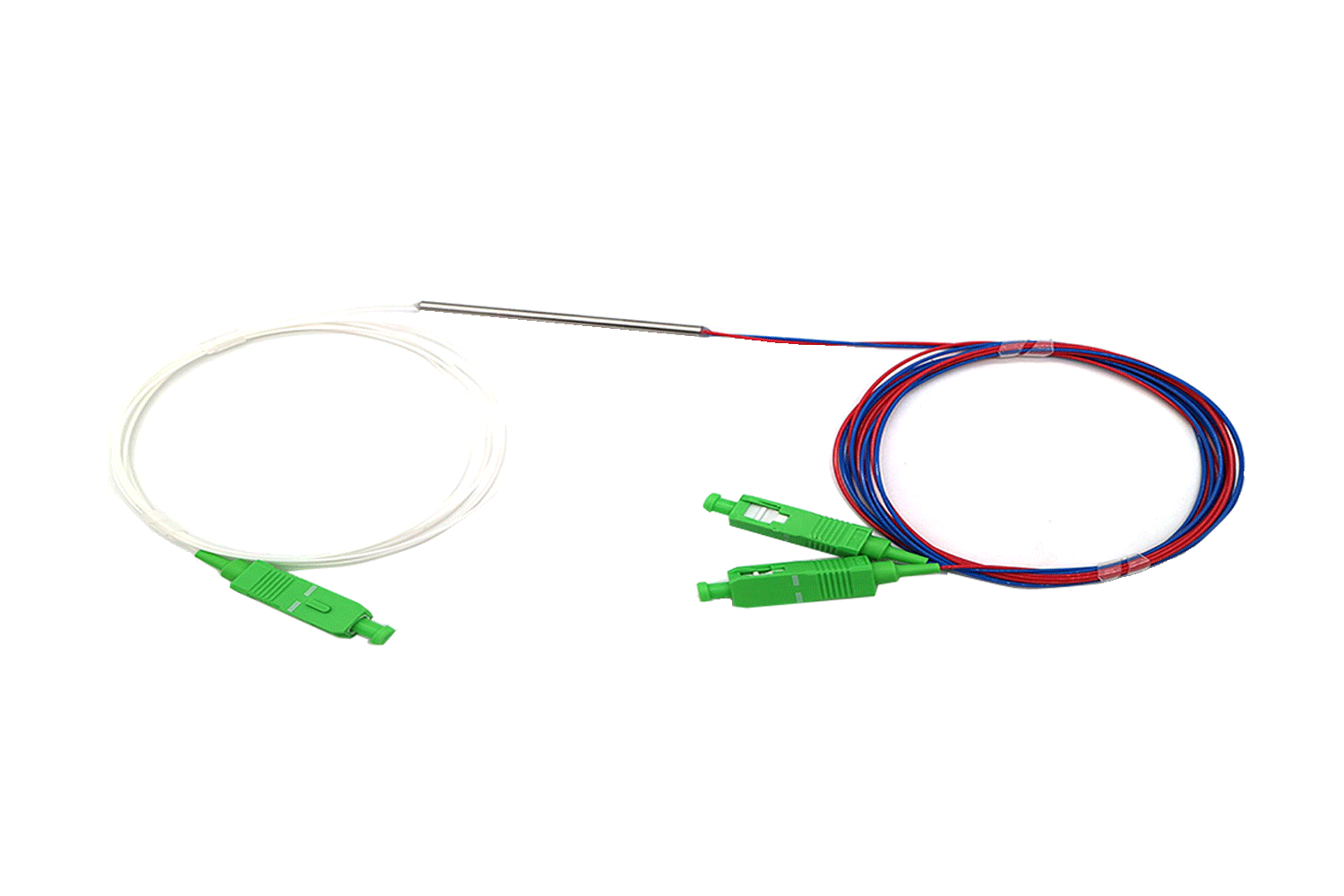

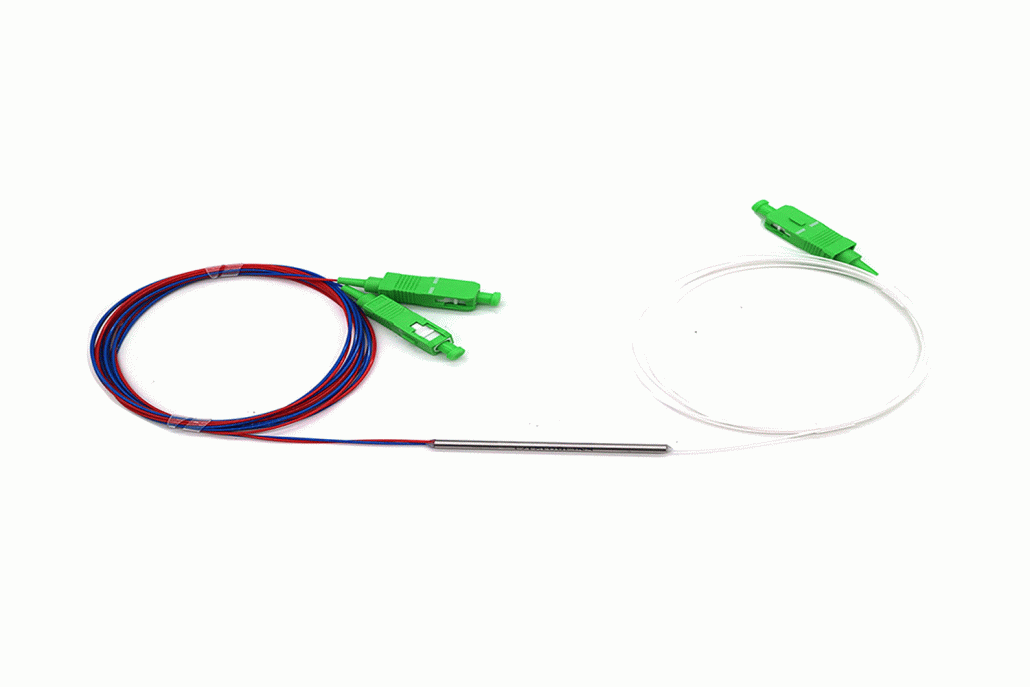

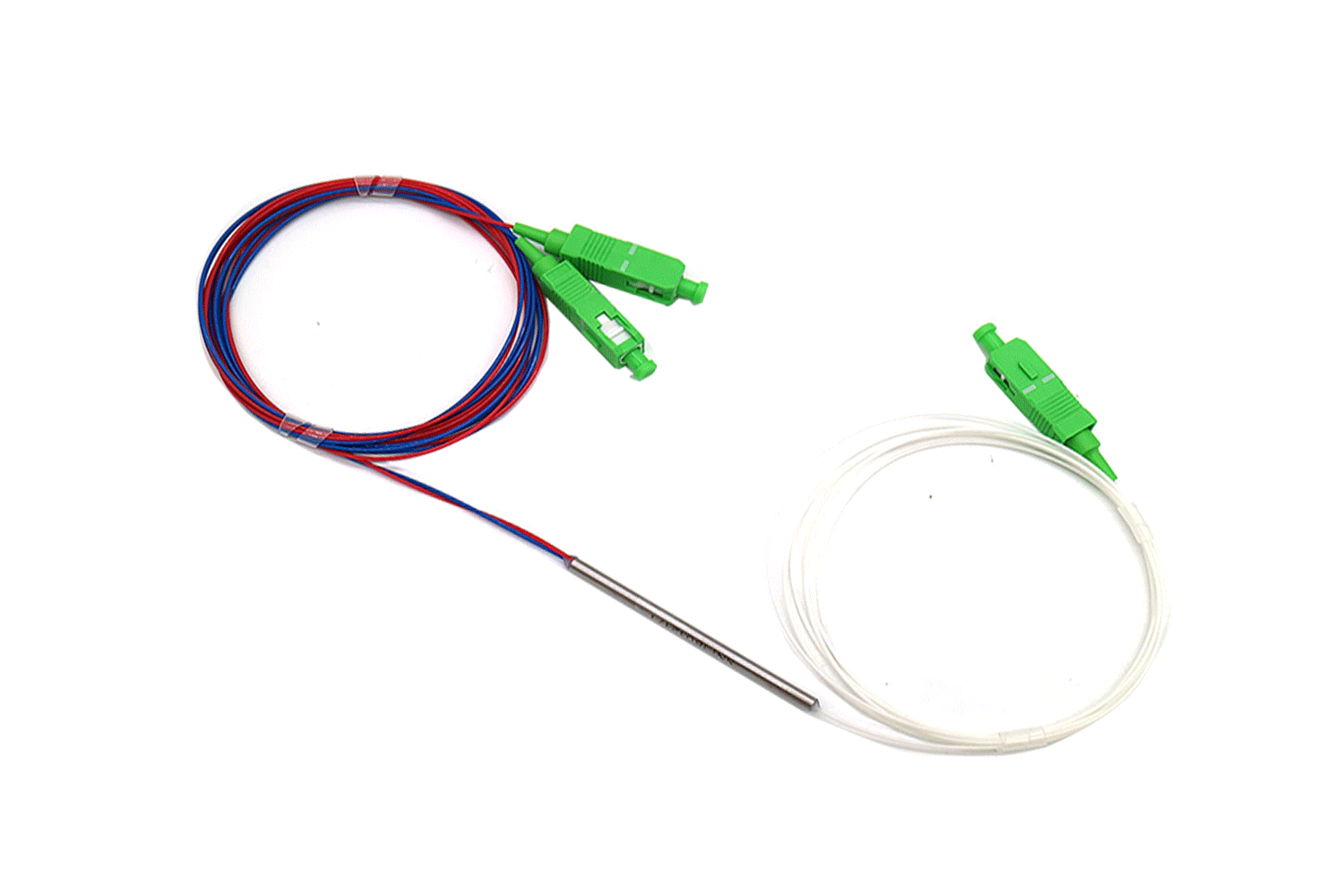

Dual Window Steel Tube SC APC 1310/1490/1550nm Fiber Optic FBT Splitters/Couplers

Product Model

 SP-FBT-1X2-SCA

Product Description

Fiber optic coupler , is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).Cable diameter can be 0.9mm,2.0mm,3.0mm ,Single window,dual window and three window all we can supply .

The single mode standard coupler  features low excess loss, high stability and reliability. It is built by asymmetric coupling technique. The operating bandwidth of this normal coupler is expanding to ±40nm, and the ultra broadband coupler is expanding to ±80nm.

Features
  1. Various coupling ratio
  2. Single mode and multi mode available
  3. Low insertion loss, low PDL
  4. Environmental stable
  5. Industry standard and custom housing available
  6. Variety of connectors available
  7. 1×2, 1×4 and 1x n customized couplers configuration available
Specification
Coupling Ratio Insertion Loss
Premium A Grade
40/60 4.7/2.7 5.0/2.9
30/70

6.0/1.9

6.4/2.1
20/80 7.9/1.2 8.4/1.4
10/90 11.3/0.5 12.7/0.8
5/95 15.2/0.4 18.5/0.5
1/99 22.5/0.3 23.0/0.4
Application

Optical Fiber Communication Systems

• Optical Fiber CATV

• Passive Optical Network (PON)

• Optical Amplifiers

• Optical Access Networks/LAN

• Monitoring Systems

• Optical Fiber Sensor
