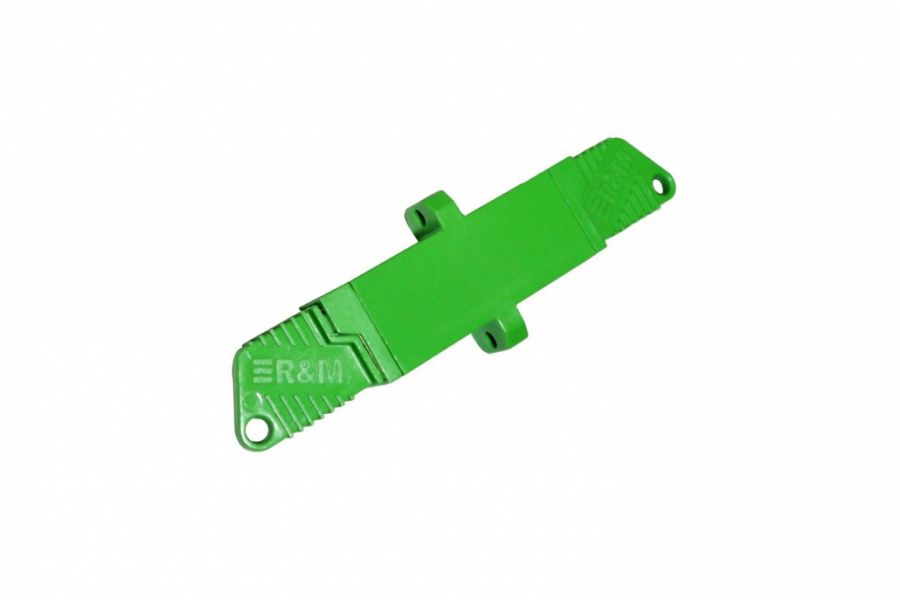

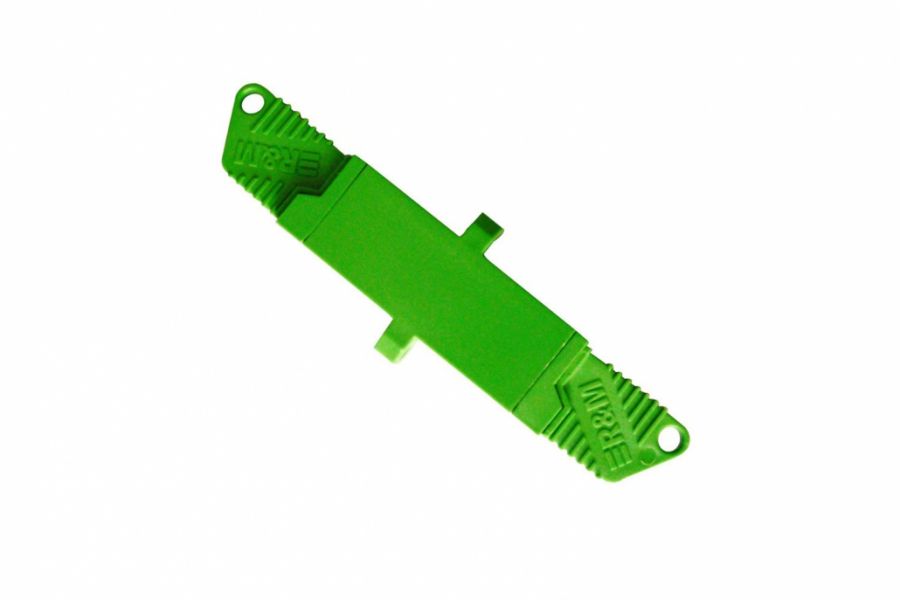

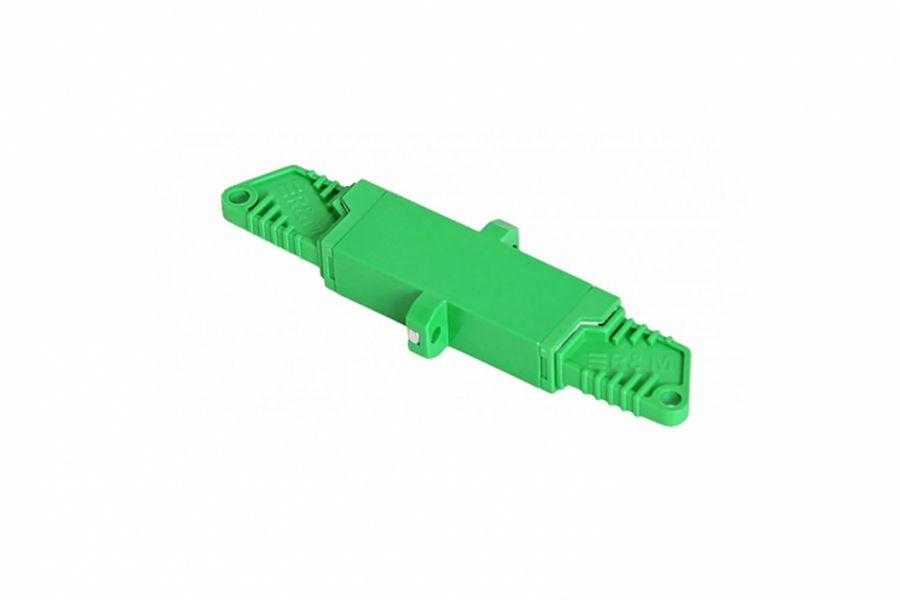

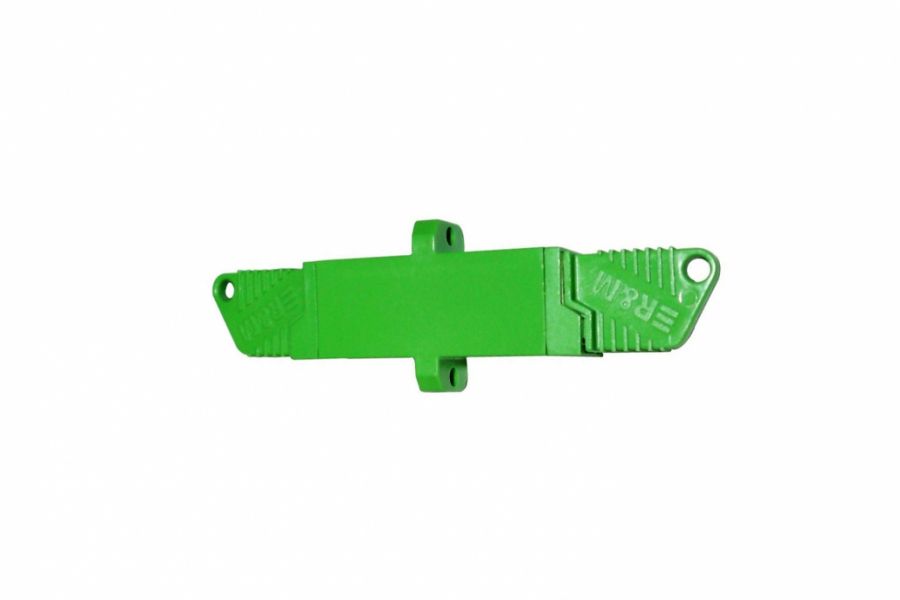

Fiber Optical E2000 APC Adapter

Product Model

SP-E2000-APC

Product Description

The fiber optic E2000 adapter are suitable for both PC and APC applications. They are mainly used in telecommunication and networking systems. This E-2000 fiber optic adaptor is constructed with plastic body. The housing colors for each model are differed for easy identification: blue for SM, grey for MM and green for APC. It features low insertion loss and strong temperature stability by adopting high precise ceramic sleeve. Please note this adaptor is only available in simplex version.

E2000 Adapter are developed to couple and mate two E2000 connector plugs. The E2000 fiber optic adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.

Features

Spring loaded shutter
High quality split ceramic sleeve
Low insertion loss and high return loss
Injection molded PBT housing UL94 V-0 rated
Meet ANSI, TIA/EIA, Bellcore, Telcordia, IEC standards

Specification

Insertion Loss: ≤0.3dB

Exchangeability: <0.2 Repeatability (500 remates): <0.2 Operating Temperature: -20~70℃ Storage Temperature: -40~75℃ Note: Can produce higher performance type, such as insertion loss<0.2dB [/av_tab] [av_tab title='Application' icon_select='yes' icon='ue8ad' font='entypo-fontello' av_uid='av-85ak4']
