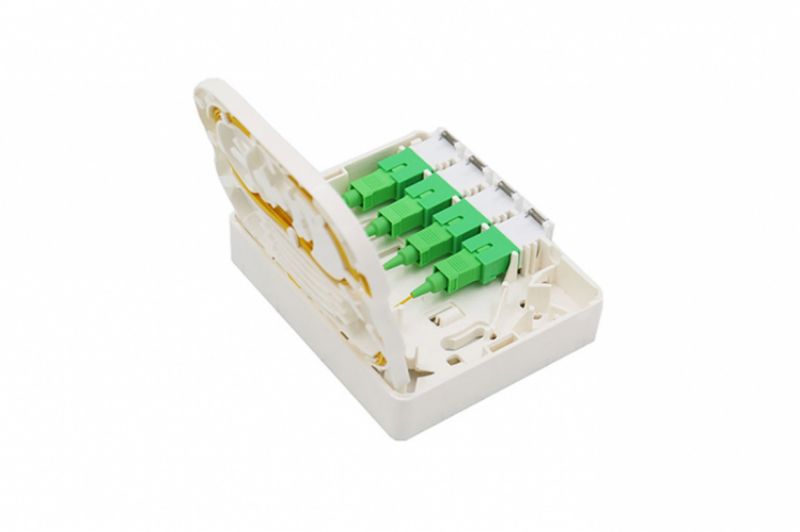

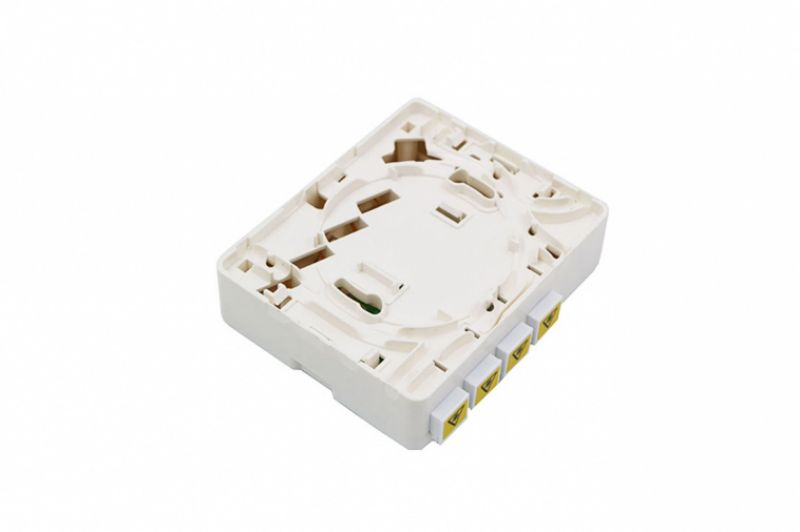

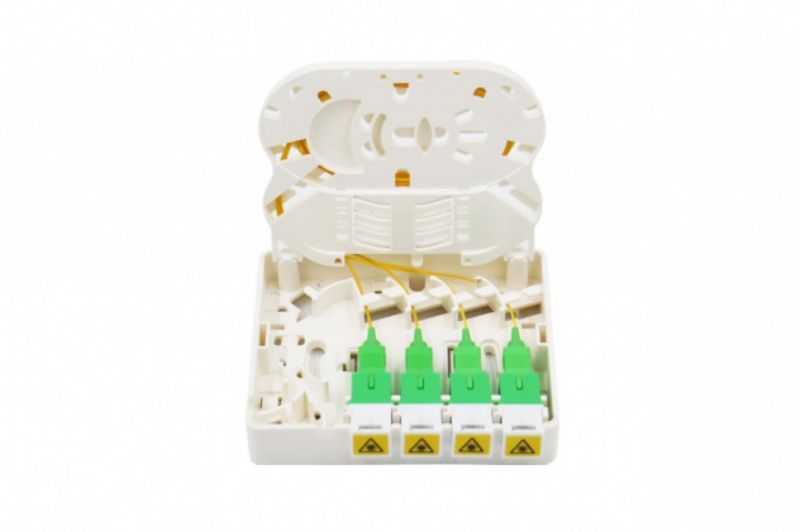

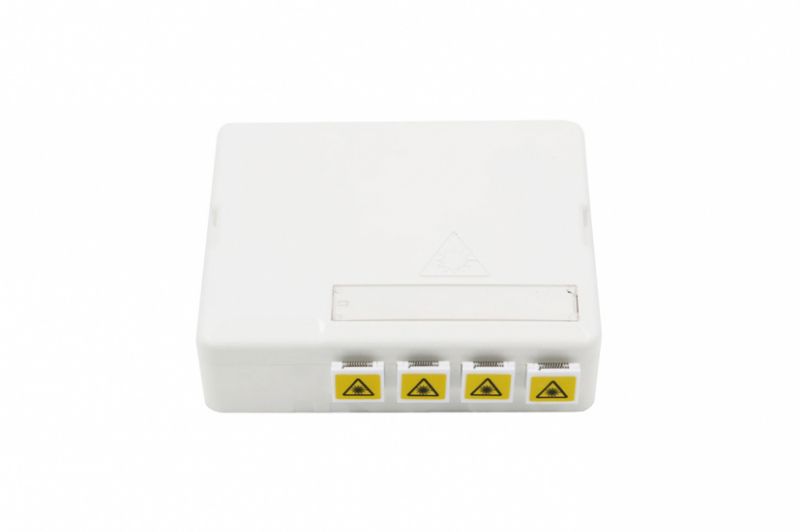

Wall Mounted 4 Port Fiber Optic Terminal Box

Product Model

SP-1602-4F

Product Description

SP-1602-4F fiber termination box is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. The PTO allows a fiber reserve on two independent levels as well as the placement of heat-shrinkable protections or mechanical splices. It integrates fiber termination, storage and cable connection in one solid protection box.

Features

Features:

Dust-proof design with IP-45 Protection level.
Integrated with cable termination and management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the wall mounted installation.
Visualization of the connection made easy by external identification system
Embedded type surface, easy for installation and removal.
Assembly and disassembly in closed position: protection of the interior elements
4 port cable entrance for drop cable or patch cable.

Specification

Specification:

Type	SP-1602-4F
Size(mm) WDH	1008128mm
Color	White
Cable Ports	4
Max capacity of splice	4(single fiber) for SC, 8port for LC
Adapter type	SC/UPC, SC/APC,LC/UPC,LC/APC
Material	PC+ABS
