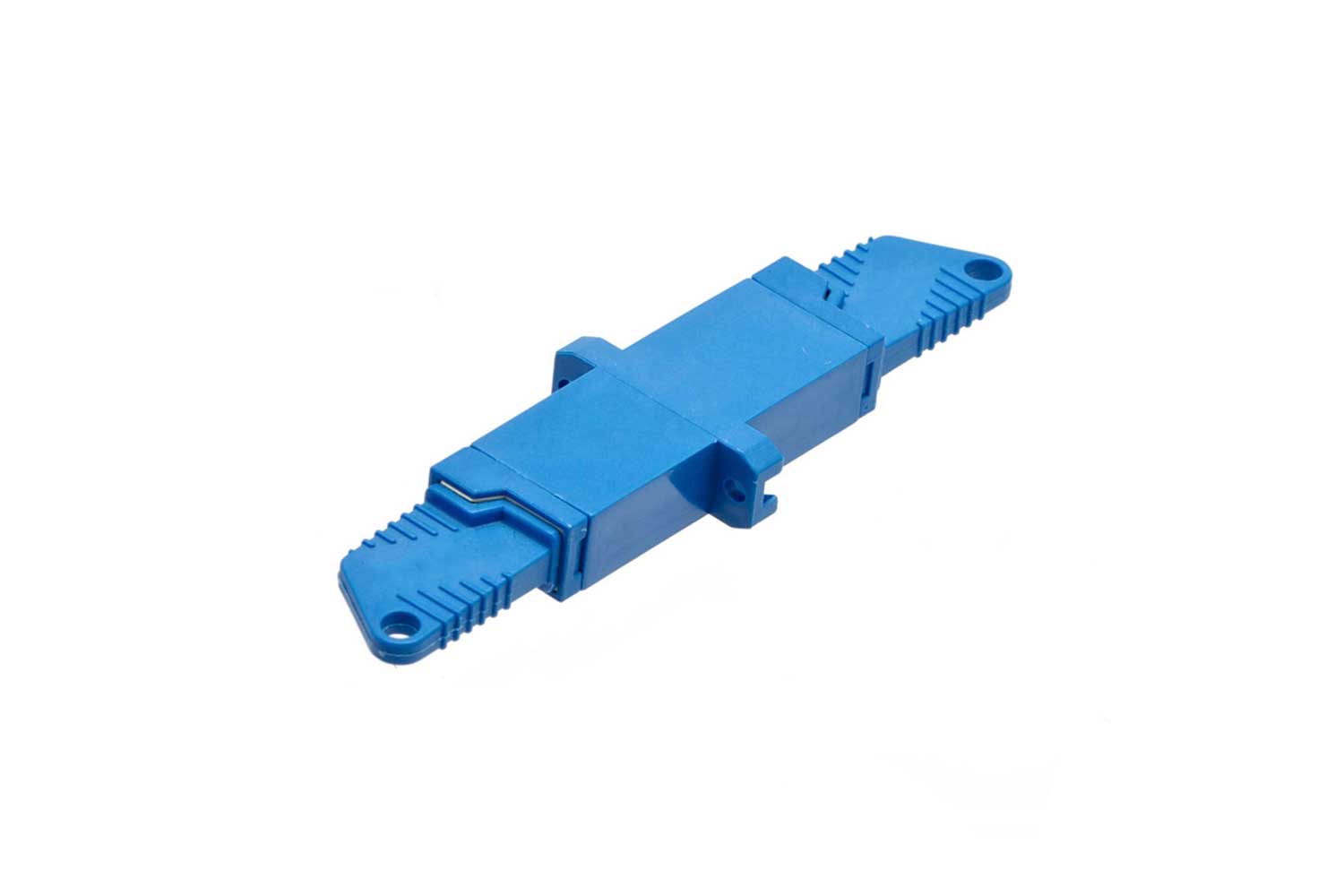

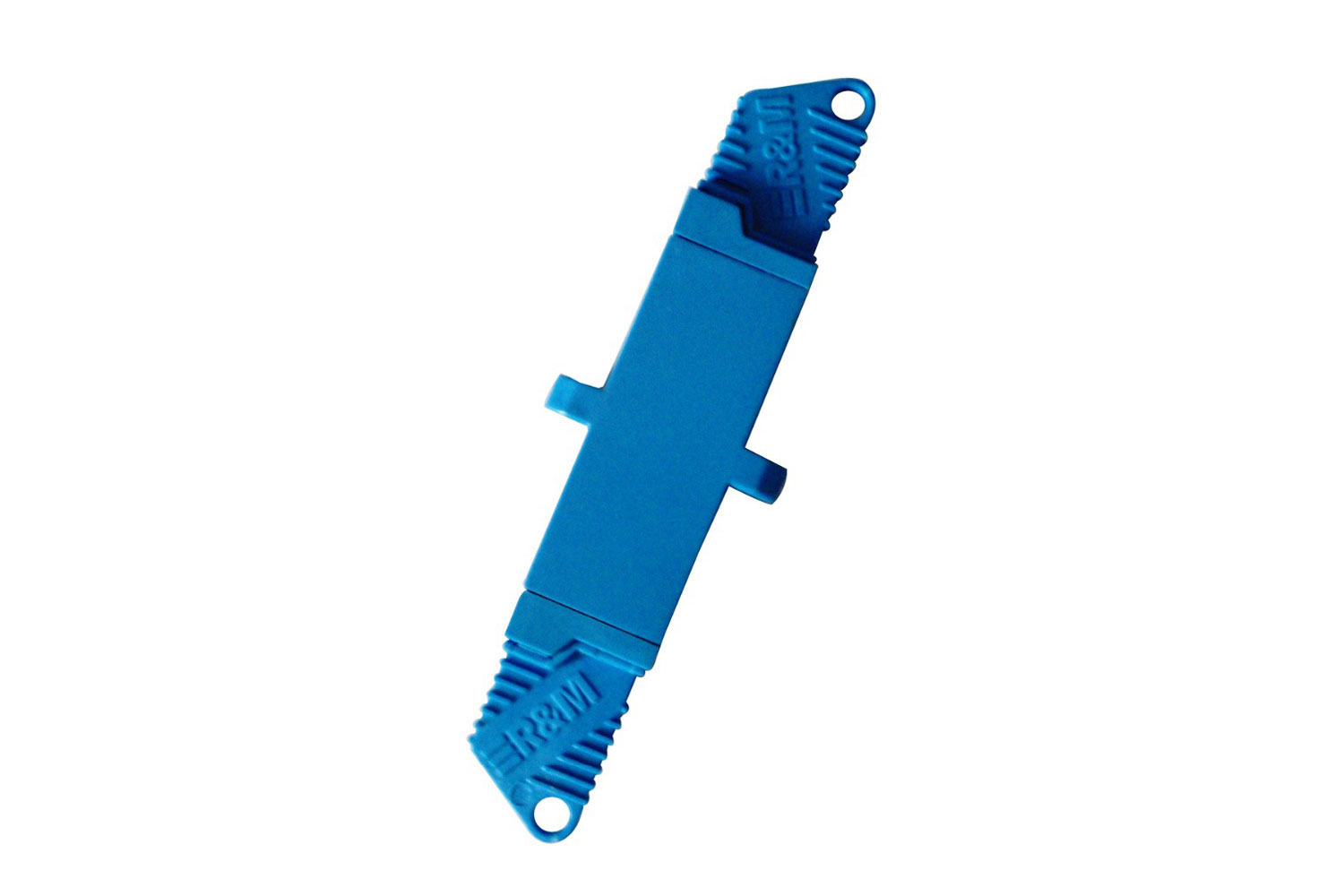

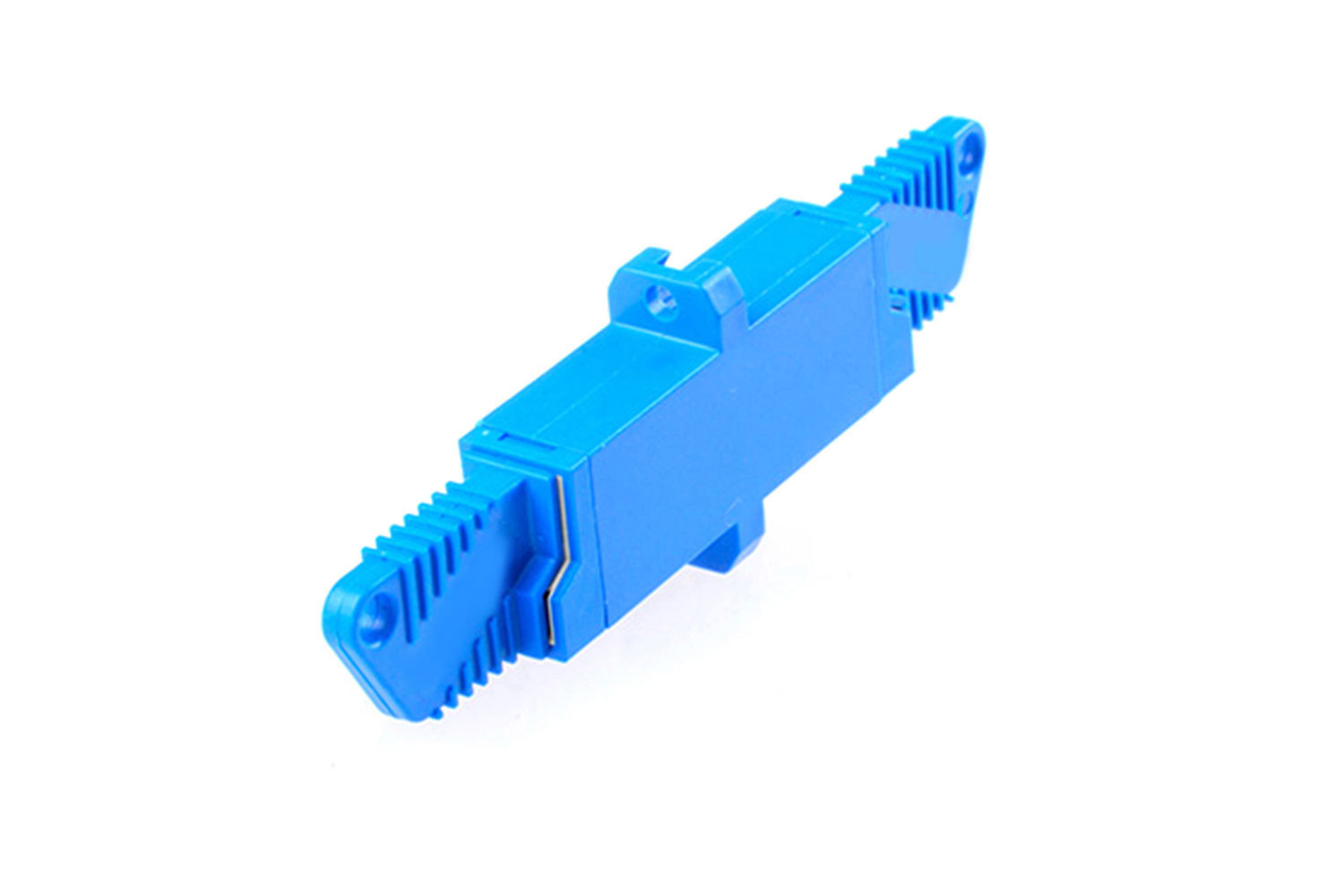

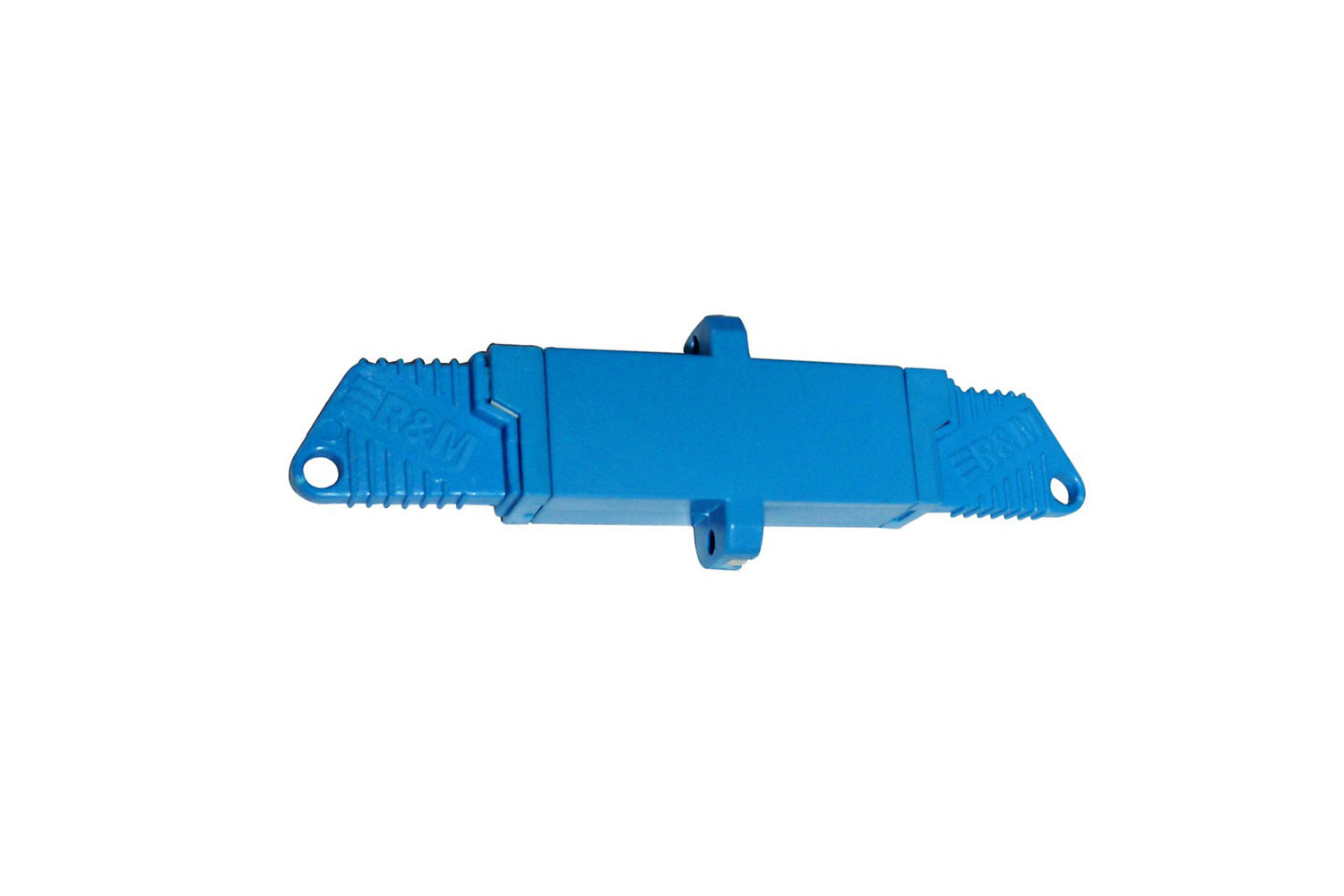

Fiber Optical E2000 UPC Adapter

Product Model


Product Description

The fiber optic E2000 adapter are suitable for both PC and APC applications. They are mainly used in telecommunication and networking systems. This E-2000 fiber optic adaptor is constructed with plastic body. The housing colors for each model are differed for easy identification: blue for SM, grey for MM and green for APC. It features low insertion loss and strong temperature stability by adopting high precise ceramic sleeve. Please note this adaptor is only available in simplex version.

E2000 Adapter are developed to couple and mate two E2000 connector plugs. The E2000 fiber optic adapter features injection-molded PBT housing, rated to the UL94V-01 Flammability Index. Spring-loaded shutters protect against dust and scratching. A high-quality split ceramic sleeve ensures high performance over 1000 mating cycles. The adapter may be ordered with color coded housing and frames.

  1. Spring loaded shutter
  2. High quality split ceramic sleeve
  3. Low insertion loss and high return loss
  4. Injection molded PBT housing UL94 V-0 rated
  5. Meet ANSI, TIA/EIA, Bellcore, Telcordia, IEC standards
