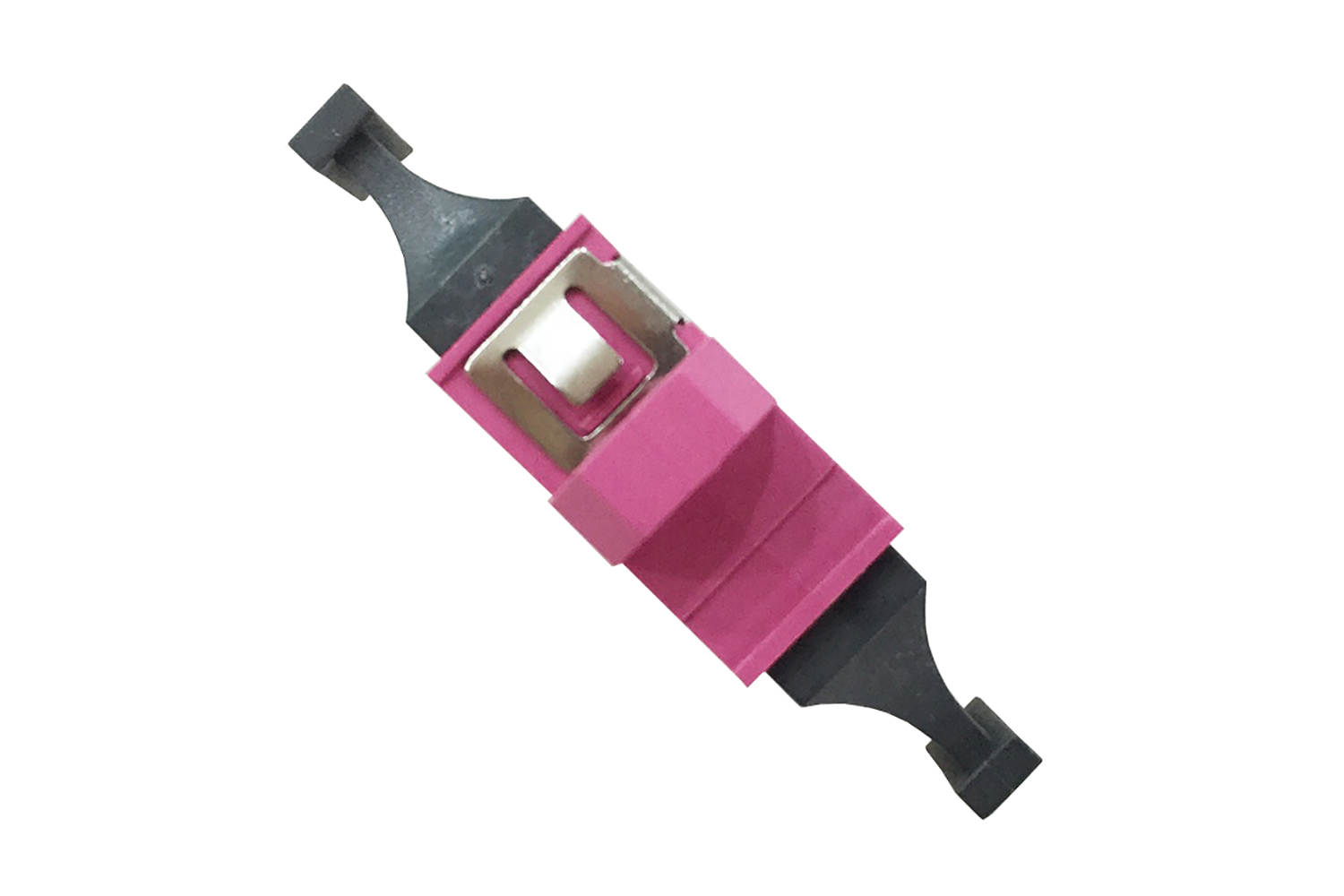

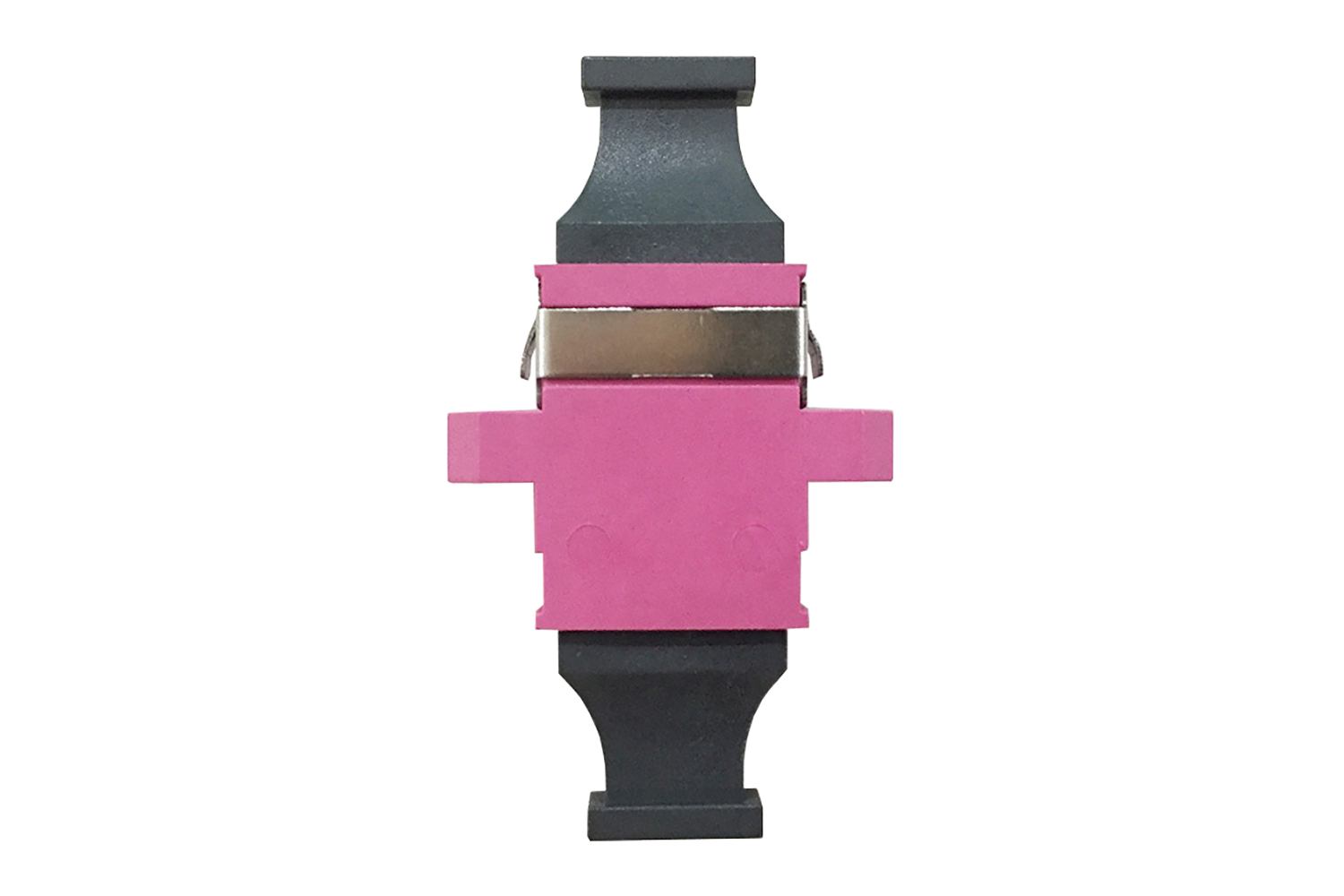

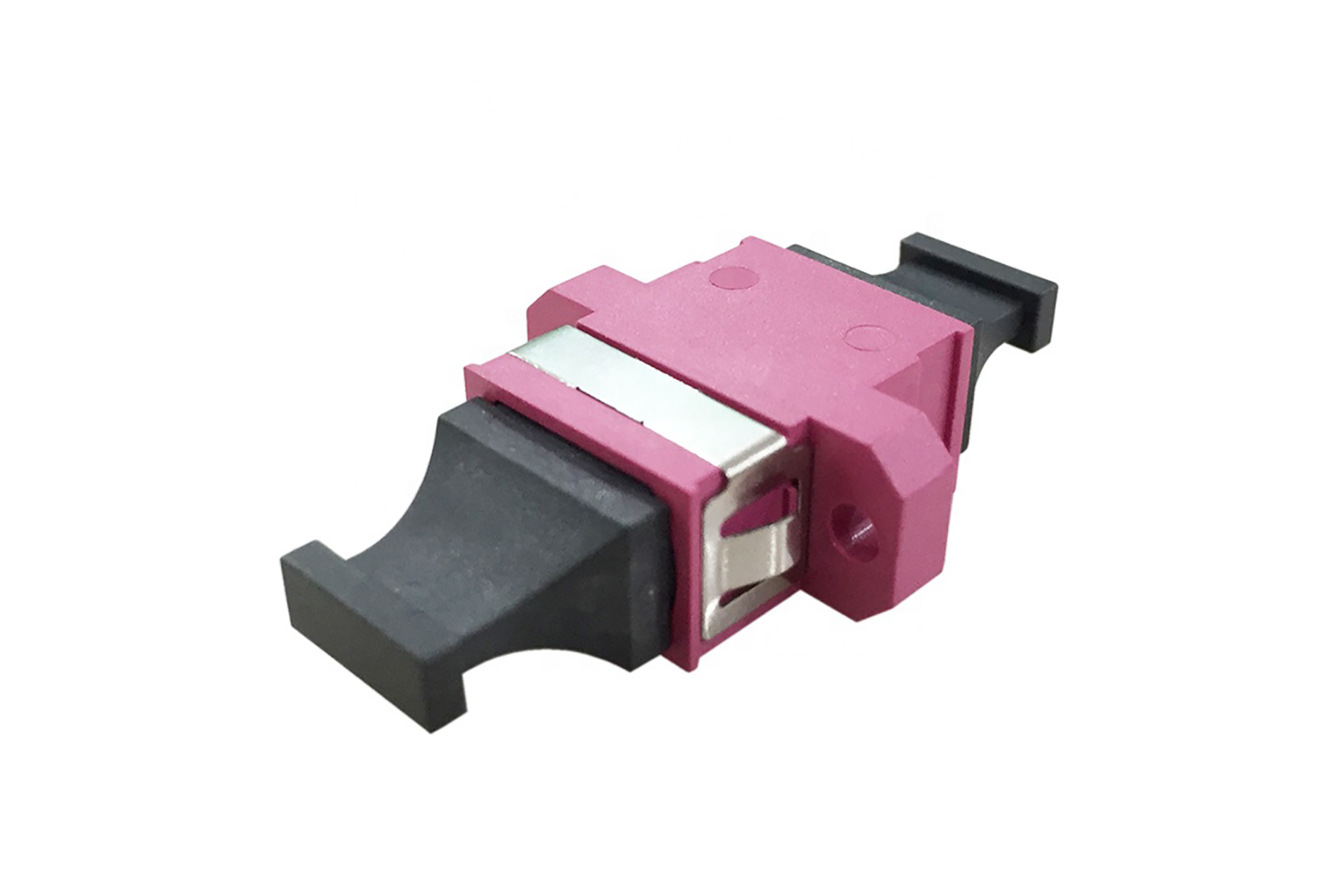

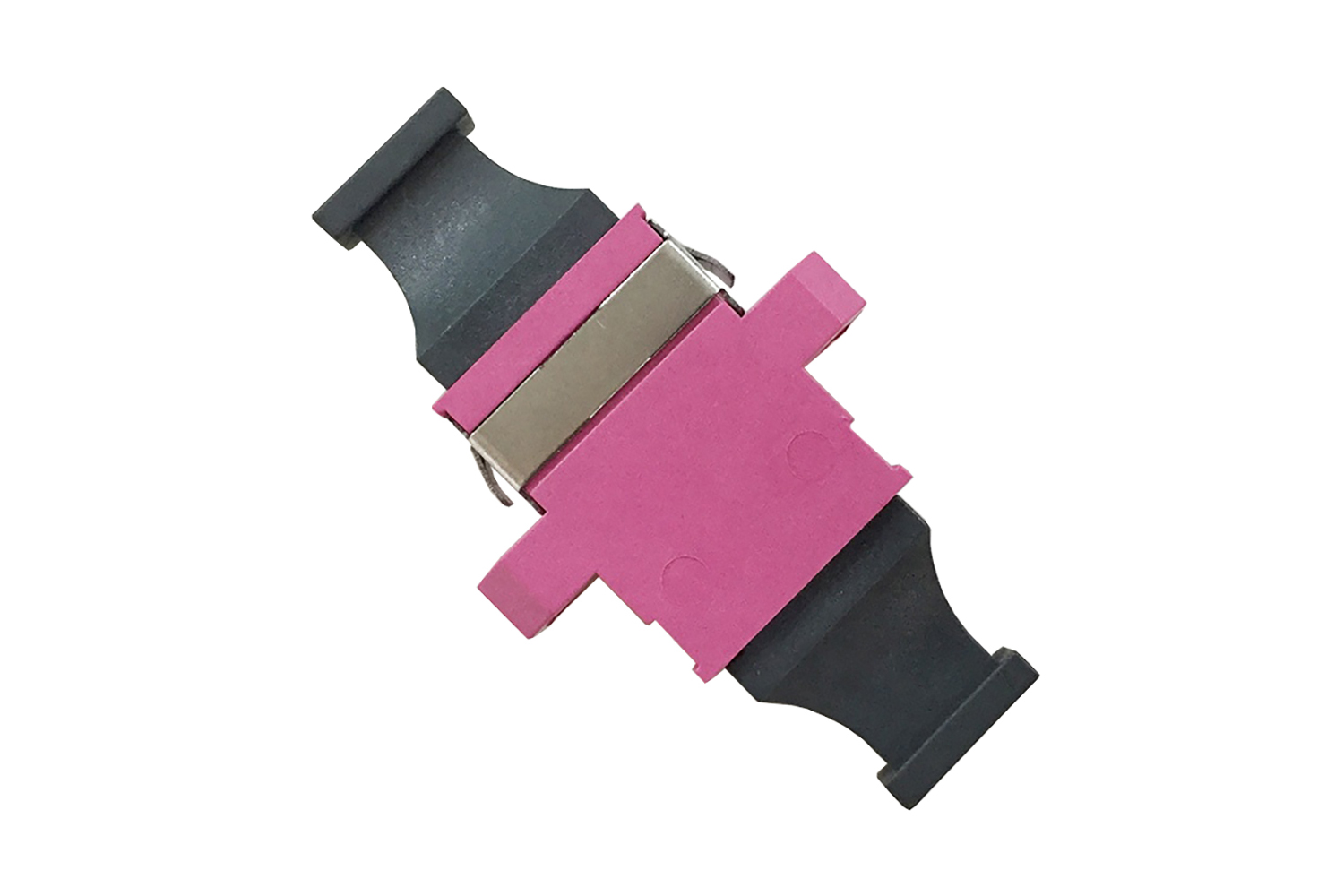

MTP / MPO OM4 Fiber Optical Adapter for Data Center

Product Model

 SP-MPO-OM4-AD

Product Description

MPO/MTP adaptor provides alignment for a male and female MPO/MTP connector, its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colours and with options for flange or flangeless body.

Features

Features:

  1. Applied to 4-24 core SM or MM fiber connection
  2. Two-piece type adapter can be customized opposed (UP-DOWN)key and aligned(UP-UP) key
  3. Two-piece type adapter can be customized plastic housing and metal housing
  4. One-piece type adapter is stable opposed(UP-DOWN) key
  5. Plastic housing can be customized black, green, yellow, water blue, pink and other colors
  6. Customized with flange and short flange adapter
  7. SC-type MPO adapter compatible with SC panel
  8. Standard shockproof spring, close to the panel installation
  9. Comply with IEC61754-7-1, Telcordia GR-1435, ROHS standard
Specification

Specification:

 Insertion Loss  ≤0.2dB
 Return Loss  ≥45dB
 Mating Durability  ≤0.2dB typical change, 1000 times
 Operating Temperature  -40 ~ +75 ℃
 Storage Temperature  -40 ~ +85 ℃
Application

Application:

  • Data communication applications
  • Data Center infrastructure
  • Storage Area Network – Fiber Channel
  • Emerging 40 and 100Gbps Protocols compatible
