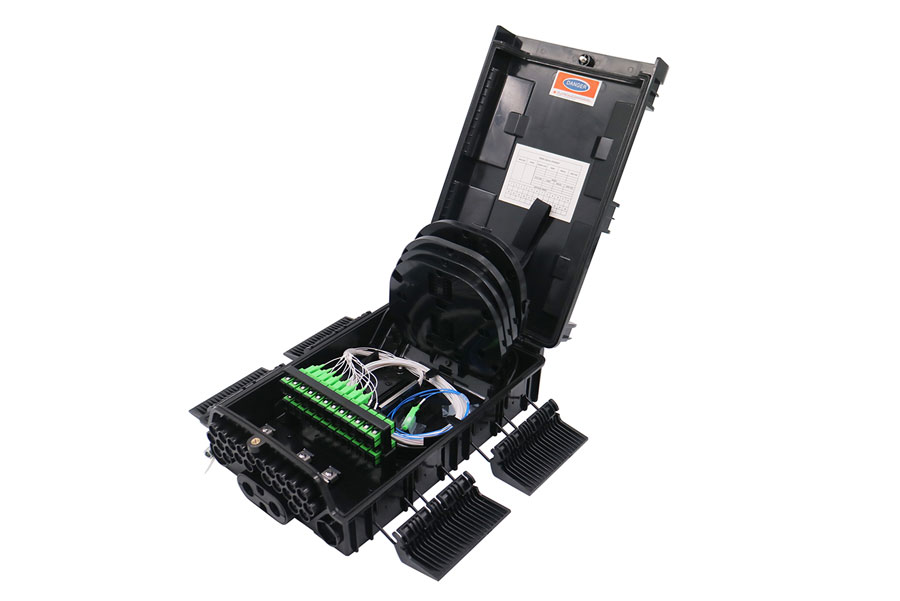

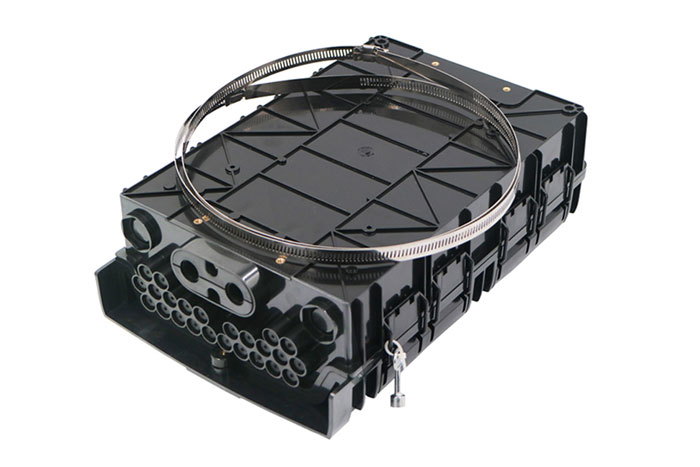

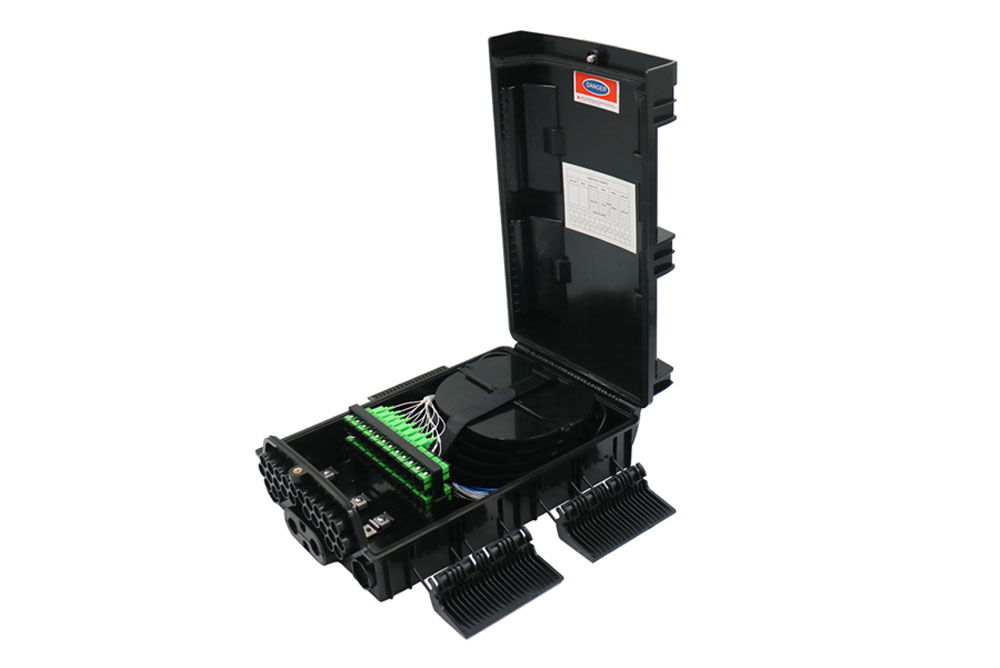

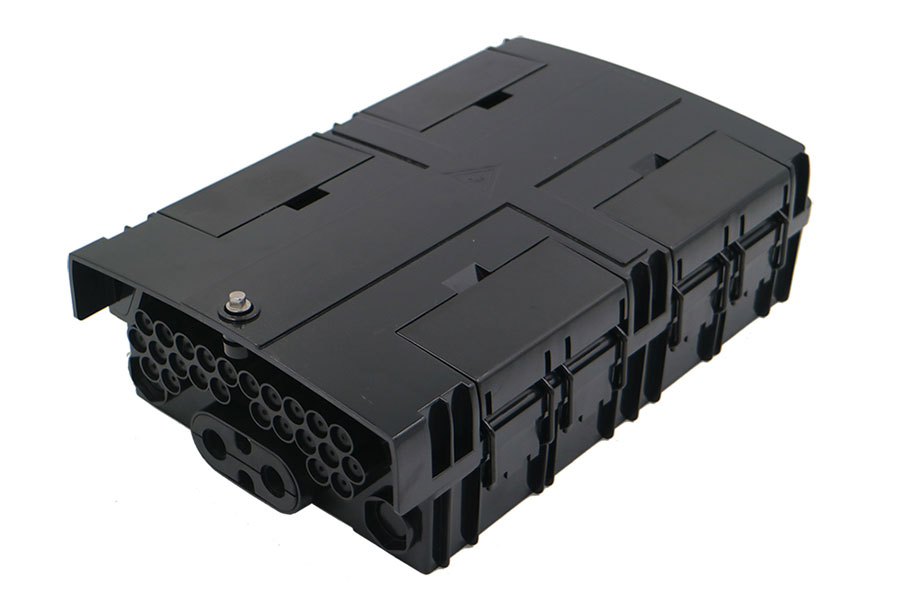

24 Core Waterproof Fiber Optic Distribution Box with 1×8 PLC Splitter

Product Model

 SP-1608-24N

Product Description

24 core distribution box with 1×8 PLC Splitter model SP-1608-24N This box is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system.

It integrates fiber splicing, splitting, distribution, storage, and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.

Features

24 Core Waterproof Fiber Optic Distribution Box with 1×8 PLC Splitter

Features:

  1. Water-proof design with IP65 Protectionlevel
  2. Integrated with splice
  3. Maximum 120 fiber splice capacity, stainless anti-rust bolts andnuts
  4. Easy for maintenance and expansion, neat
  5. Fiber bend radius control more than
  6. 180 degree access with buckled lock
  7. 3pcd 1×8 PLC Splitter can be
  8. 24 pcs of mechanical ports for 3-7mm drop
  9. 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cablegland(8-13.5mm)
Specification

Specification:

Model SP-1608-24N
Material PC+ABS
Size 340*220*95
PLC 3pcs 1×8 steel tube PLC Splitter
Adapter 24pcs SC/UPC or SC/APC Adapters
Color Gray/Black
Net. Weight 1.85kg
Work Temperature -40  ⁰   C ~+75  ⁰ C
Max Capacity Splice 120 Fibers (5 trays,24fiber/tray)
Relative Humidity ≤ 85% (+30  ⁰  C)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation The grounding device is insulated with the Termination box,

IR ≥1000m Ω/500V (direct current)

Withstand Voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no

breakdown and flashover. U ≥3000V (direct current)

Application

Application:

  • Wall-mountedInstallation
  • Pole-mountedInstallation
  • Aerial-hangingInstallation

Standard Accessories:

  1. Splice cassette and cable management tools
  2. Installation nuts and bolts
  3. Protection sleeves
  4. hose clamp
  5. cable tube
  6. key
