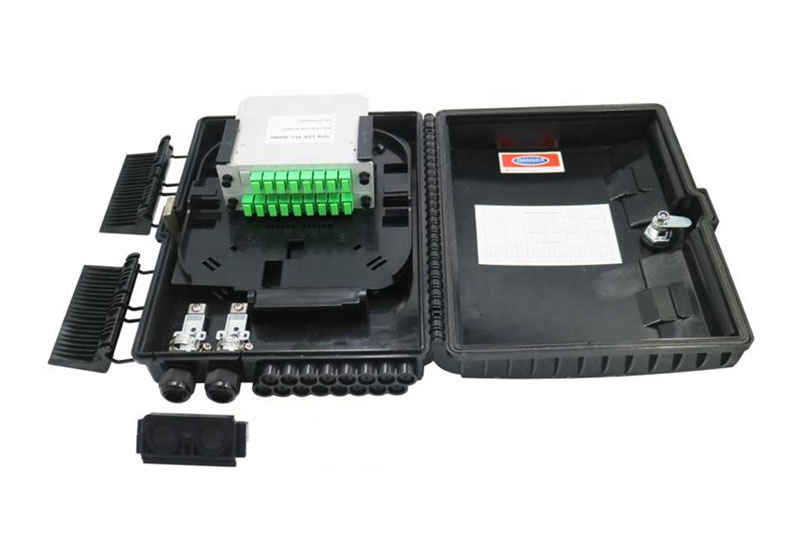

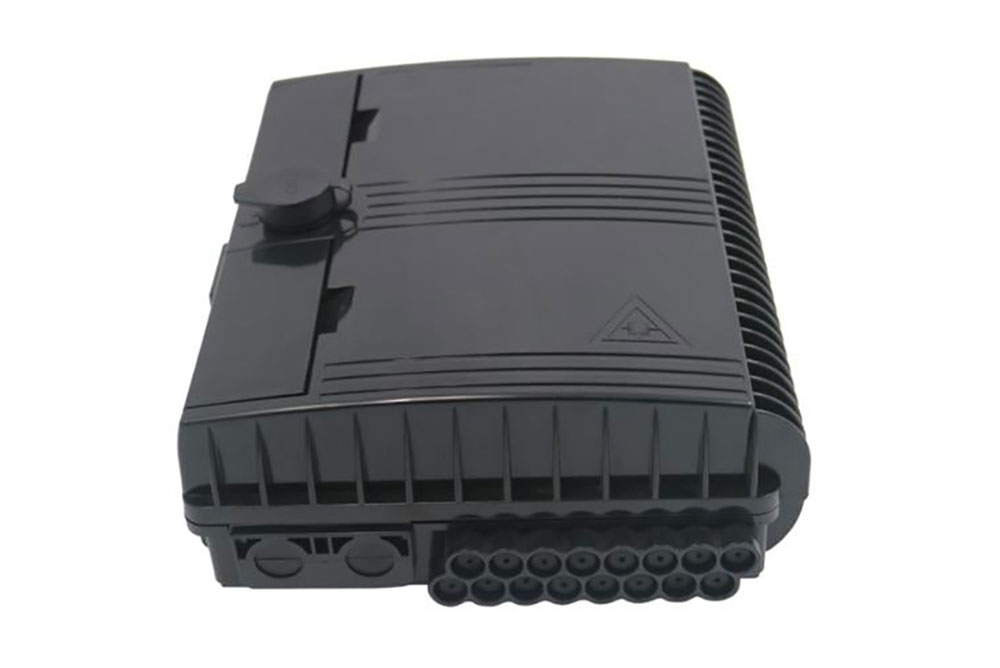

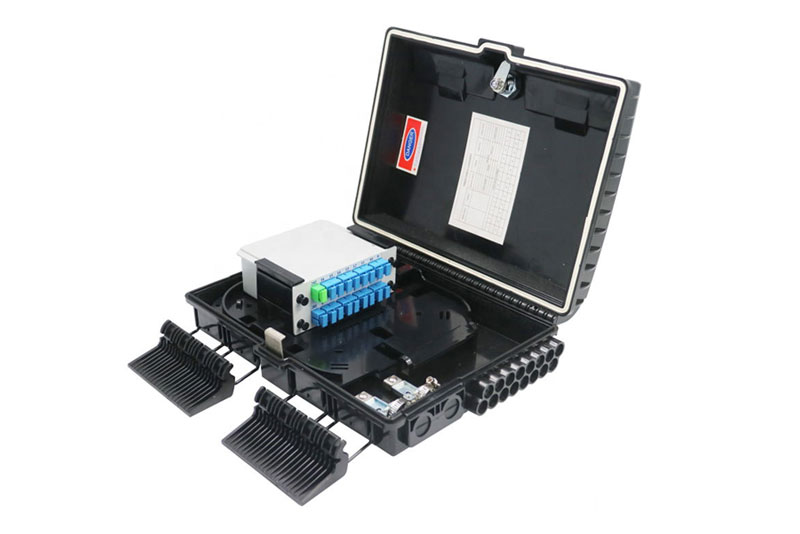

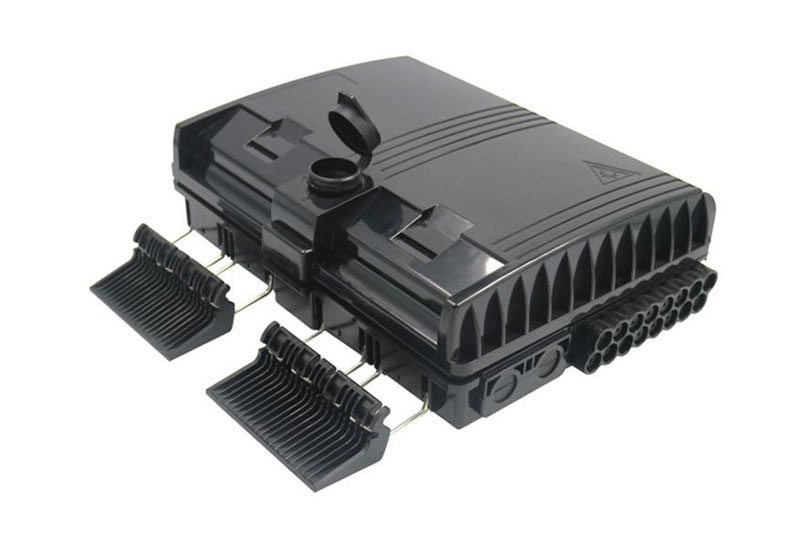

16 Port Optical CTO Box with 1×16 LGX Splitter Box Pole Mounted Termination Box

Product Model

SP-1606-16D

Product Description

Outdoor fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

Features:

Total enclosed structure.
Material: PC+ABS, wet-proof, dust-proof, anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

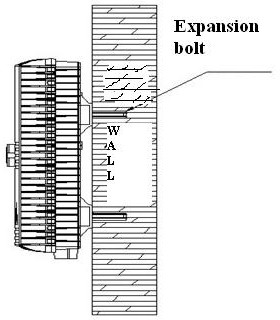

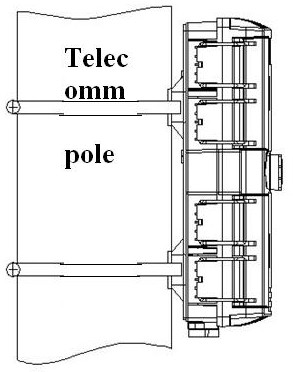

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification

Specification:

1. Environmental requirement Working temperature:-40℃～+85℃ Relative humidity:≤85%（+30℃） Atmospheric pressure:70KPa～106Kpa

2. Main technical datasheet Insertion loss:≤0.2dB UPC return loss:≥50dB APC return loss:≥60dB Life of insertion and extraction:＞1000 times

3. Thunder-proof technical datasheet The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC） IR≥2MΩ/500V The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture, no flashover; U≥3000V

Model	SP-1606-16C
Size(ABC)mm	29321984
Installation Size(D*E)mm	155*82
Total qty for outer carton	10pcs
Total weight for outer carton	17.5kg
Carton Size(cm):	59.533.551.5
