Pre-connectorized Hardend SST Flat Dielectric Drop Cable Assemblies

Product Description

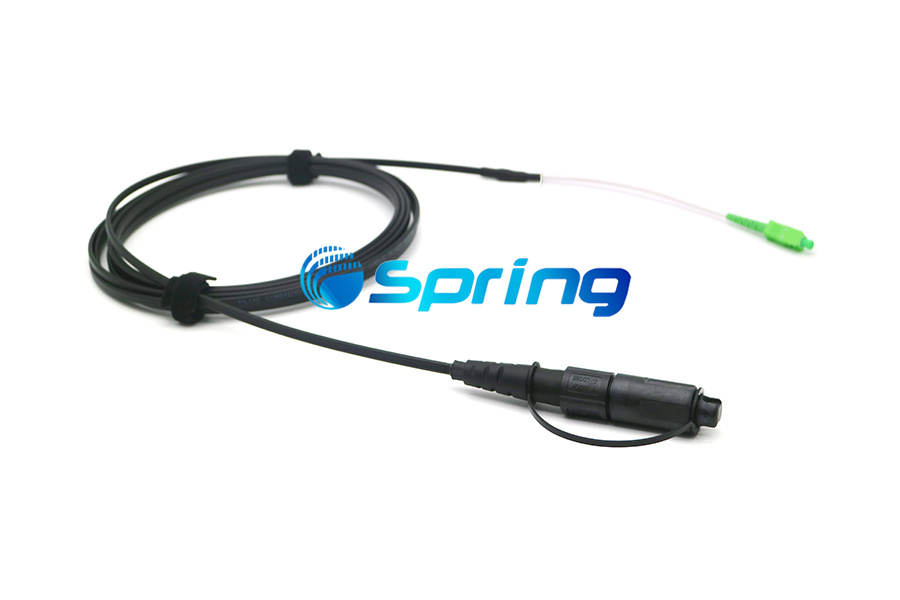

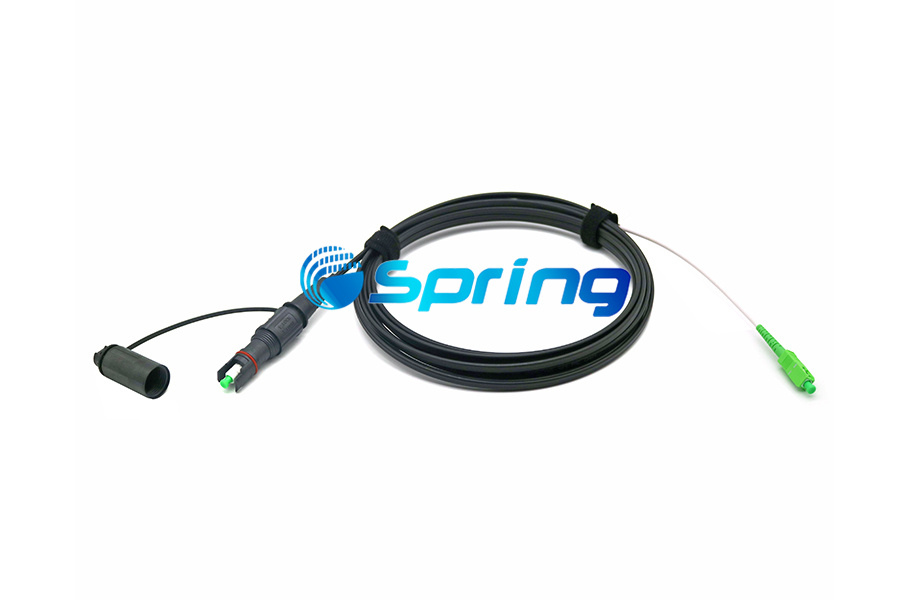

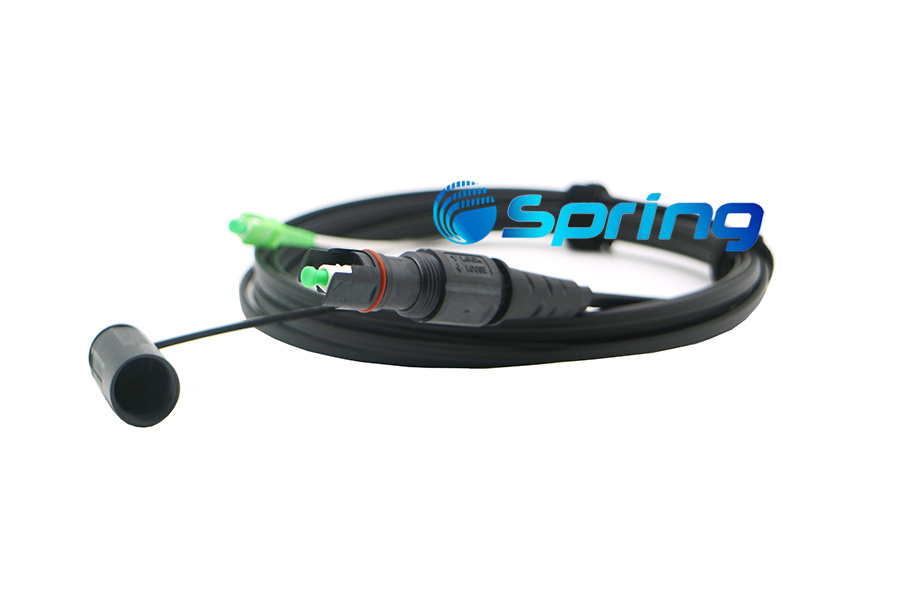

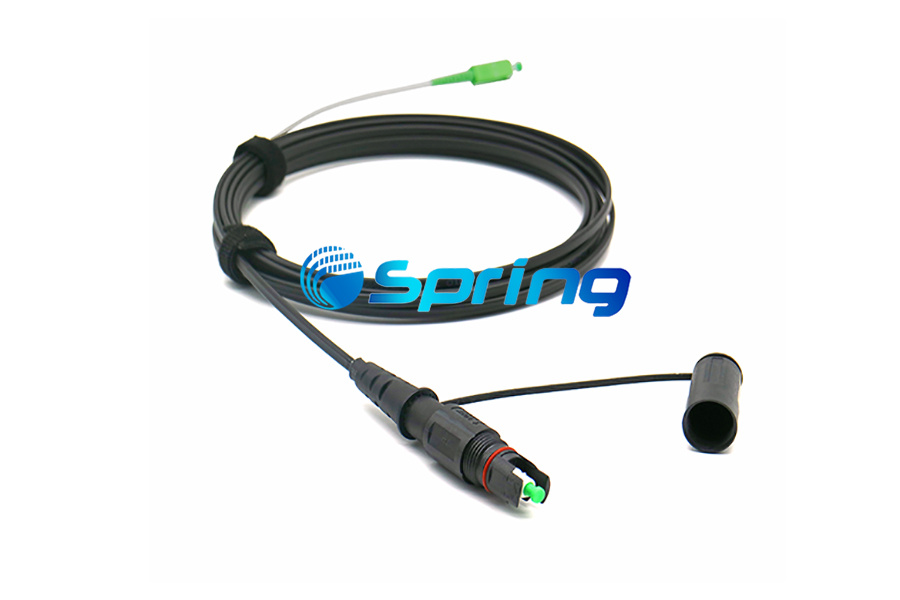

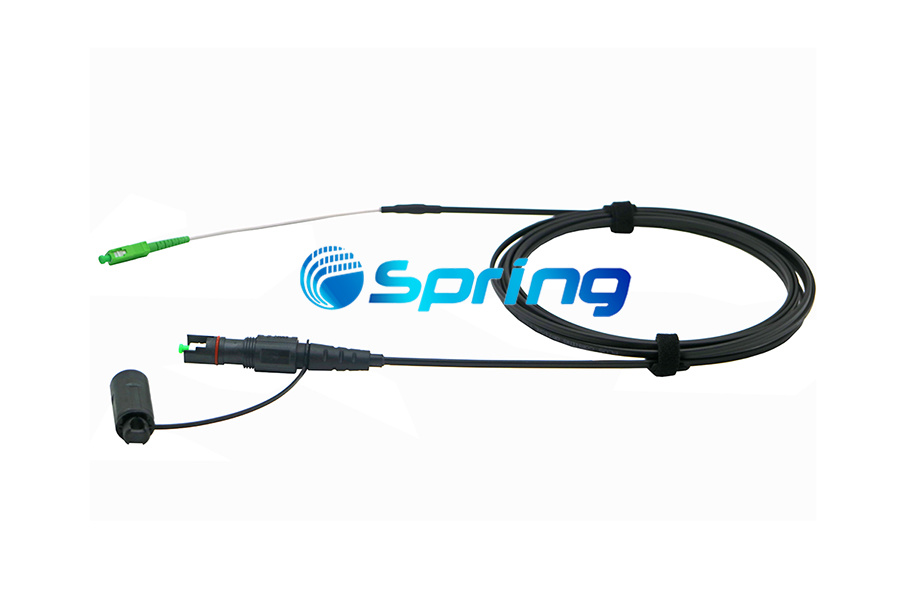

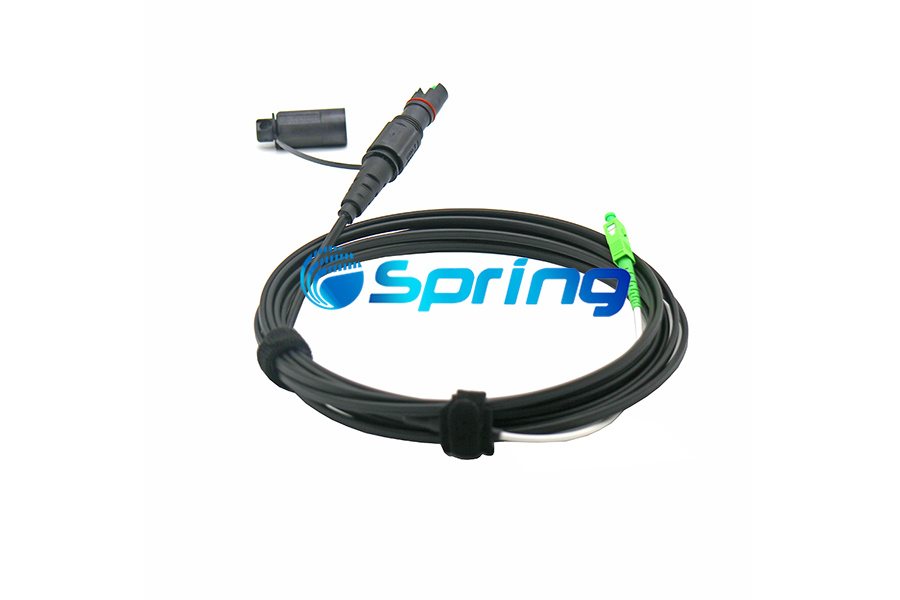

Spring Compatible OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.

Features

  • Compatible with Corning-OptiTap and H-Connector
  • Cable length 100ft, 200ft, 300ft, 500ft, 1000ft or customized
  • Factory terminated for high performance
  • Available with one or both ends connectorized
  • Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip
  • Available in dielectric or toneable
  • Designed for aerial, direct-buried or duct installation
  • IP-68 water and dust protection
  • -40℃~85℃ operating temperature
Specification
Product Name Pre-connectorized Hardend SST Flat Dielectric Drop Cable Assemblies

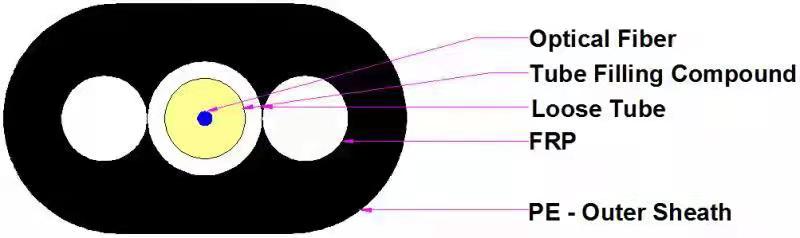

Cable Type SST Flat Dielectric Drop Cables
Cable Diameter 4.5*8.1mm drop FTTH
Applications Aerial,Direct Buried,Duct
Termination Both end terminated or one end terminated
Specifications – Connector A
Reflectance, Typical -65 dB
Insertion Loss, Typical ≤ 0.15 dB
Connector Type SC/APC OptiTap Compatible connector(H Connector)
Specifications – Connector B
Reflectance, Typical -65 dB
Insertion Loss, Typical ≤ 0.15 dB
Connector Type Standard SC/APC Connectors
Optical Characteristics
Fiber Type Single-mode
Fiber count 1F
Fiber Category G652D or G657A
Wavelengths 1310 nm / 1550 nm
Maximum Attenuation 0.35 dB/km / 0.25 dB/km
Application
  • FTTH;
  • Outdoor Areas
  • Harsh Environment
