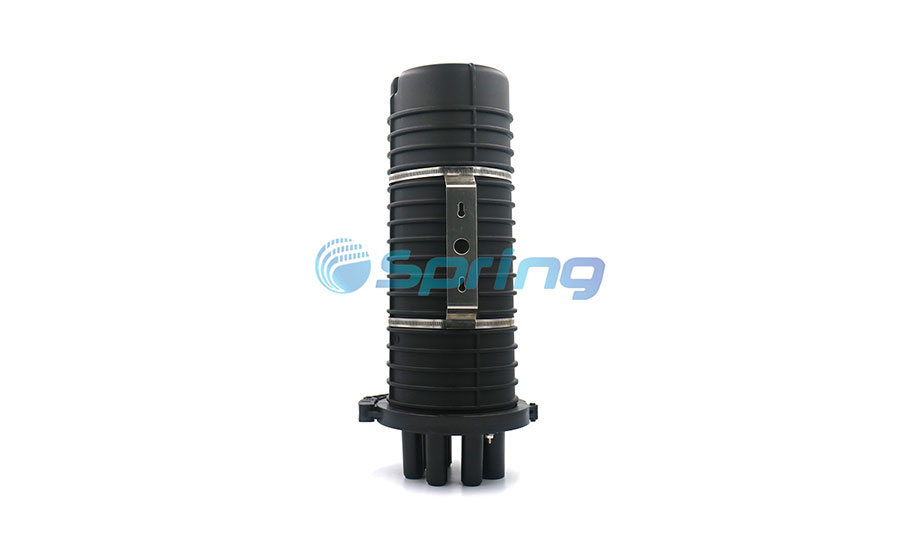

SP-GJS-03F 192Core Fiber Optic Dome IP68 Splice Closure

Product Model

SP-GJS-03F

Product Description

  • Introduction:

This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

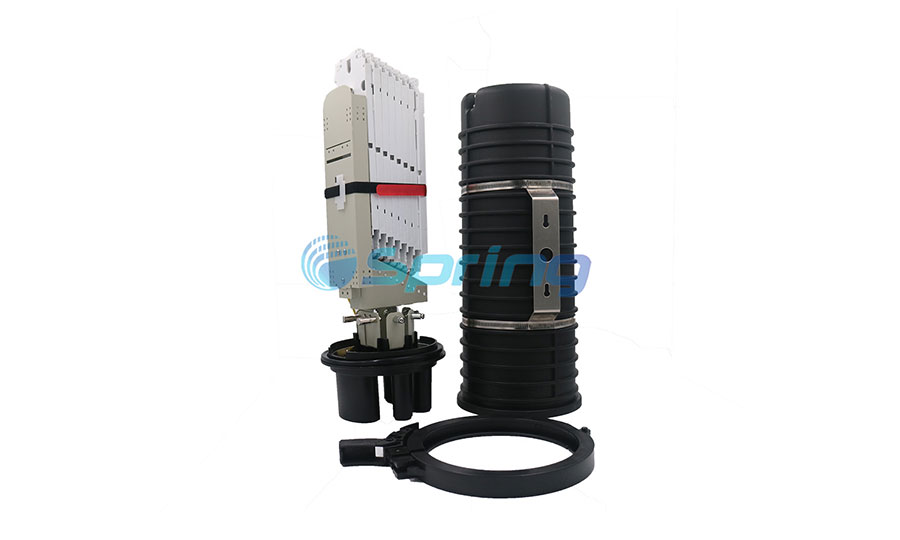

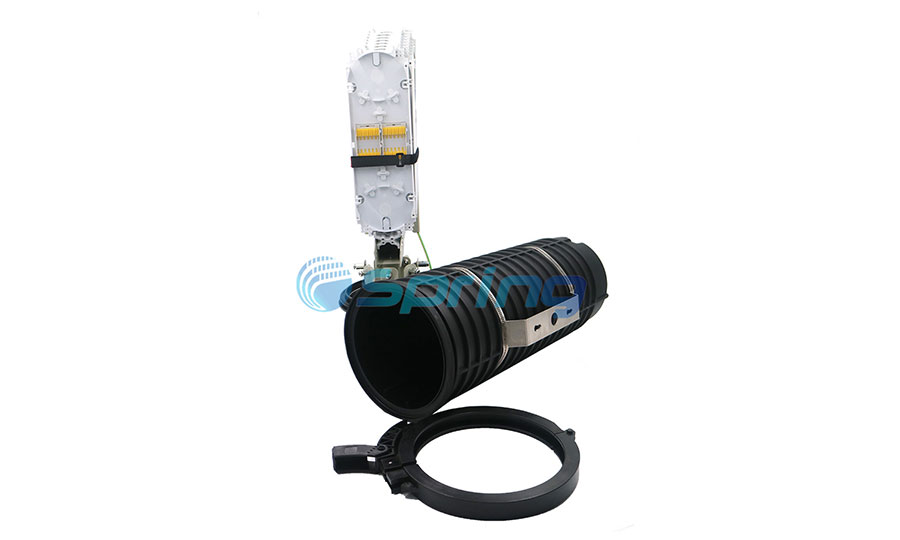

Dome-to-base design; up to 12 pieces splice trays with excessive loose buffer storage basket, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.

  • Specification:
Model: SP-GJS03F
Size: 588*217 mm Raw material Dome,clamp: modified PP,  Base:Nylon +GF

Tray: ABS

Metal parts:Stainless steel

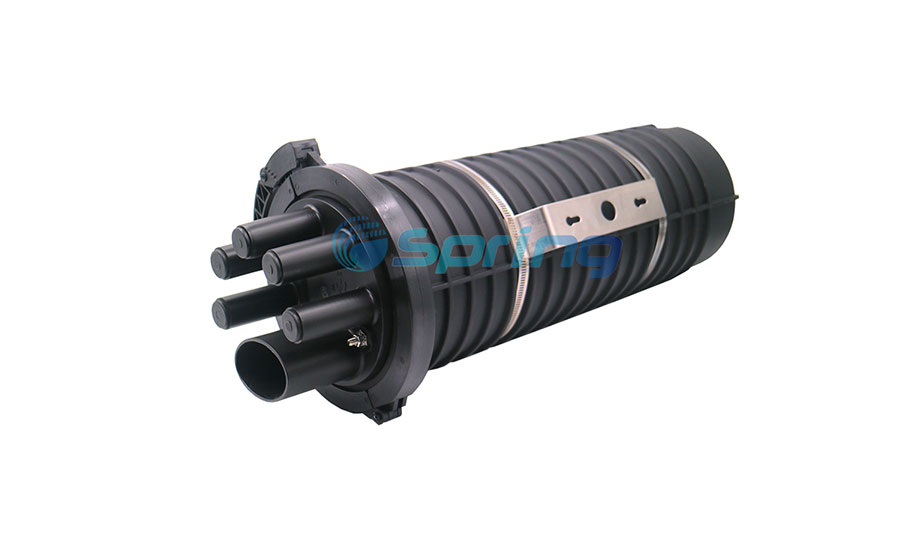

Entry ports number: 1 oval port, 5 round ports Available cable dia. Oval port:available for 2 pcs, 10~30mm cables

Round ports:Each available for 1pc 6-21mm cable

Max. tray number 12 trays Base sealing method Heat-shrink
Tray capacity: 24F Applications: Aerial, directly buried, Wall/ pole mounting
Max. closure splice capacity 288 F IP grade 68
