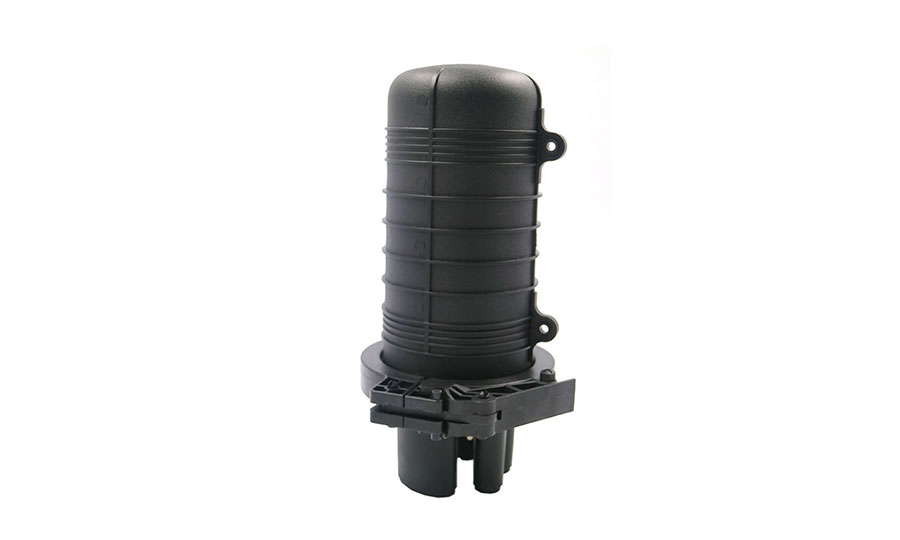

SP-GJS-03M 96Core Fiber Optic Dome IP68 Splice Closure

Product Model

SP-GJS-03M

Product Description

  • This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

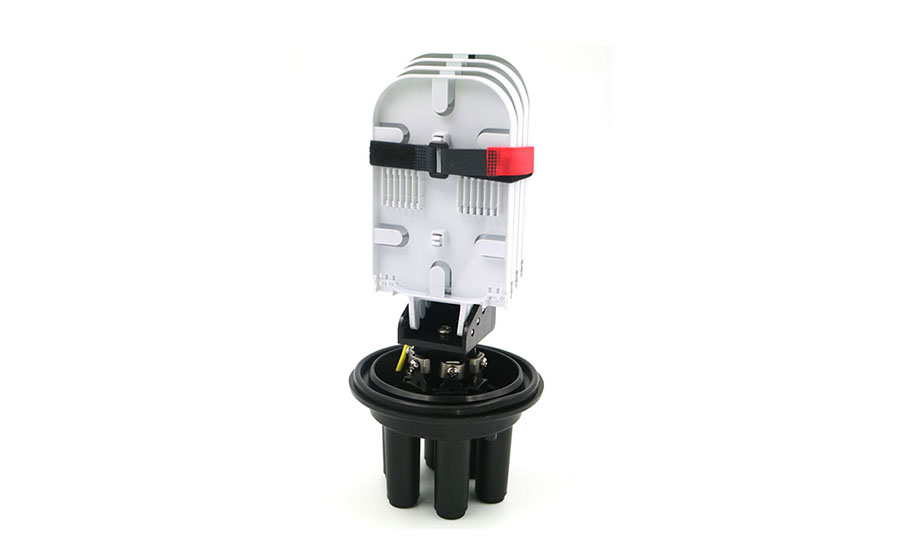

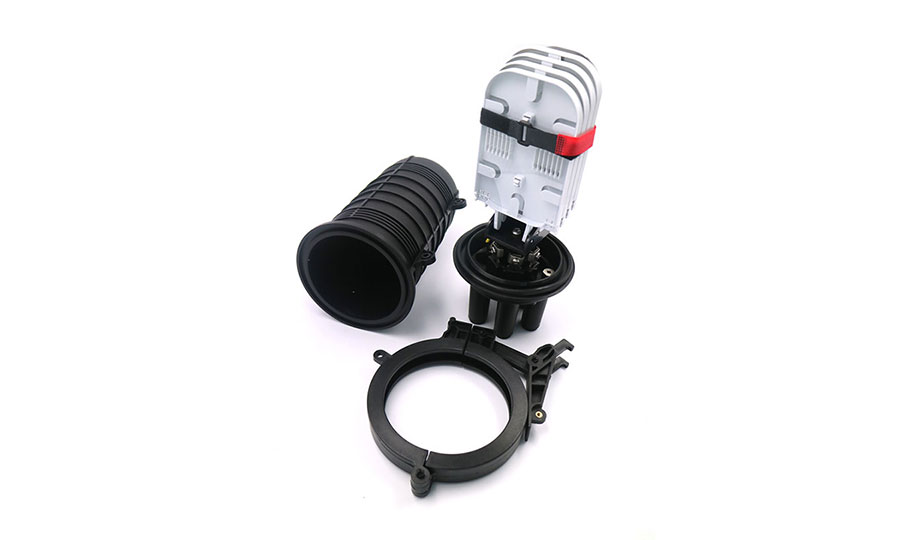

    Dome-to-base design; up to 4 pieces splice trays, hinge for access of any splice without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, wall mounting or directly buried.

Specification
Model: SP-GJS-03M-96
Size:

With clamp’s biggest outer dia.

315*189mm Raw material Dome,clamp,base:modified PP +GF

Tray: ABS

Metal parts:Stainless steel

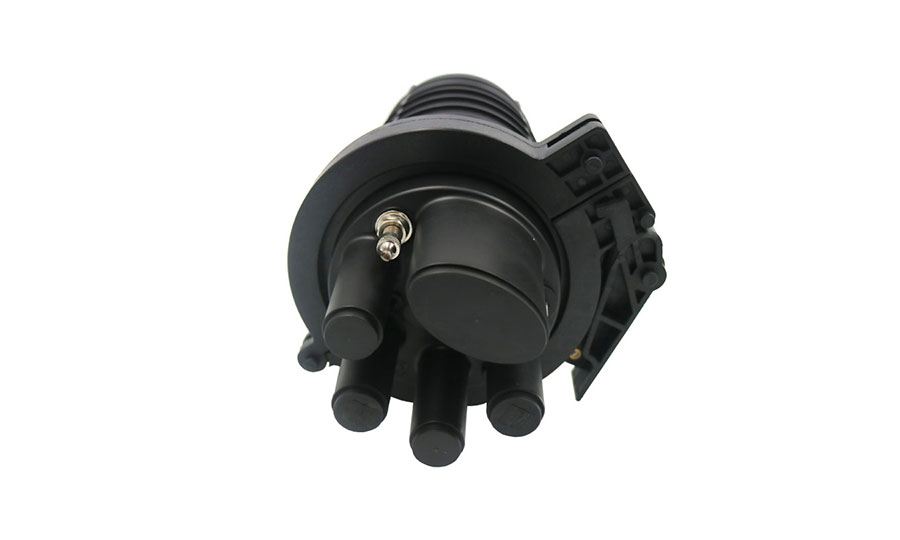

Entry ports number: 1 oval port,

4 round ports

Available cable dia. Oval port:available for 2 pcs, 6~22mm cables

Round ports:Each available for 1pc 6-16mm cable

Max. tray number 4 trays Base sealing method Heat-shrink
Tray capacity: 24 F Applications: Aerial, directly buried, Wall/pole mounting
Max. closure splice capacity 96 F IP grade 68
Technical Parameter

1. Working Temperature: -40 degrees centigrade~+65 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Flatten Resistance: 2000N/100 mm (1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV(DC)/1min, no arc over or breakdown
7. Temperature recycle: under -40℃~+65℃,with 60(+5)Kpa inner pressure, in 10cycles; Inner pressure shall decrease less than 5 Kpa when closure turn to normal temperature.
8. Durability:25 years
