Product Model
SP-GJS-D011

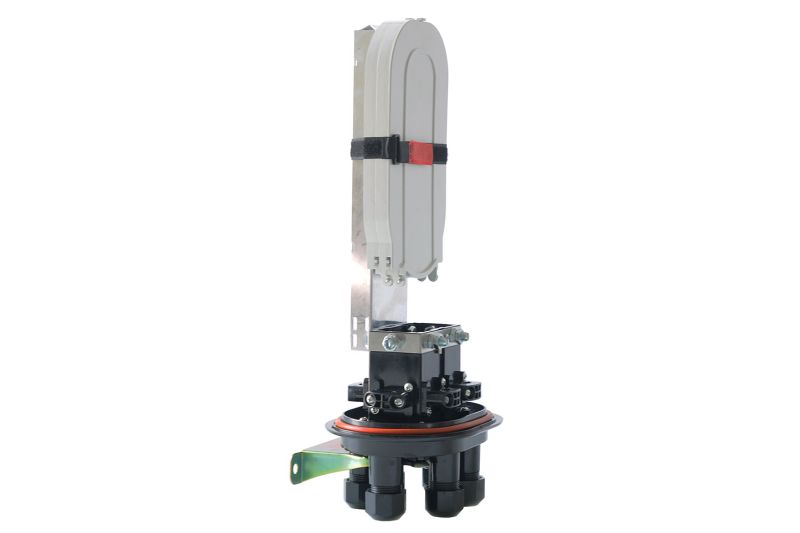

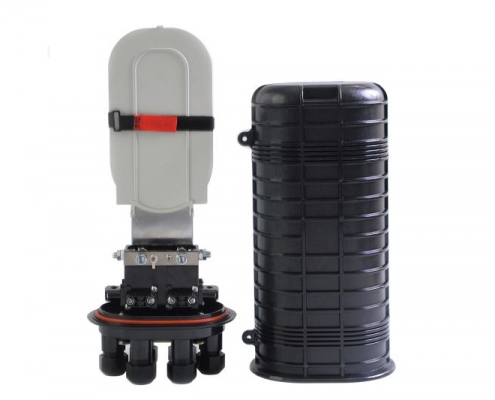

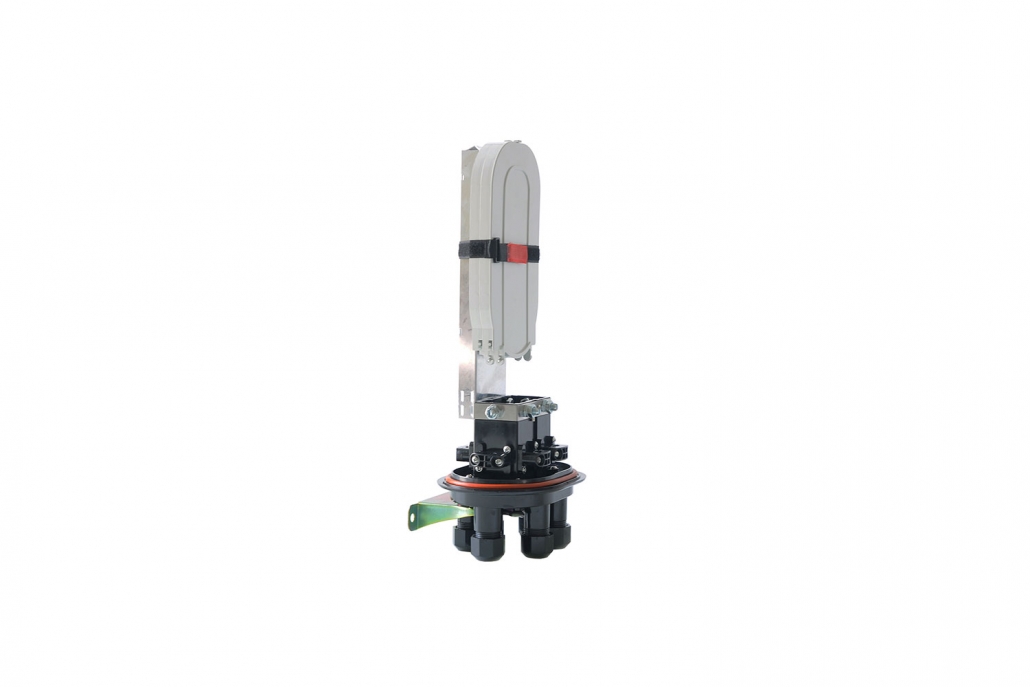

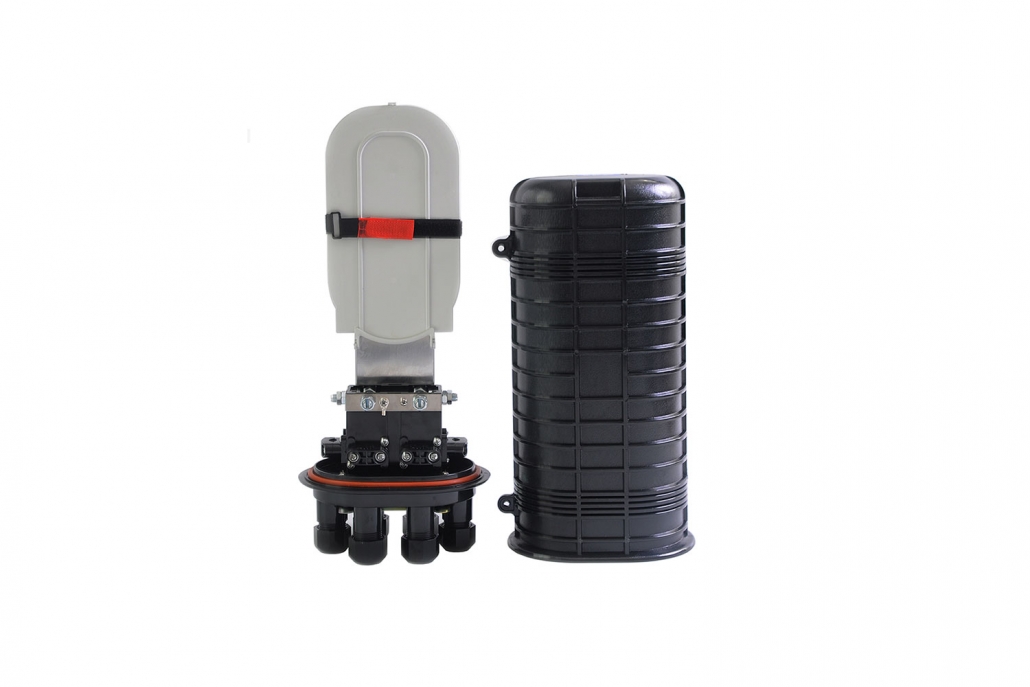

Product Description

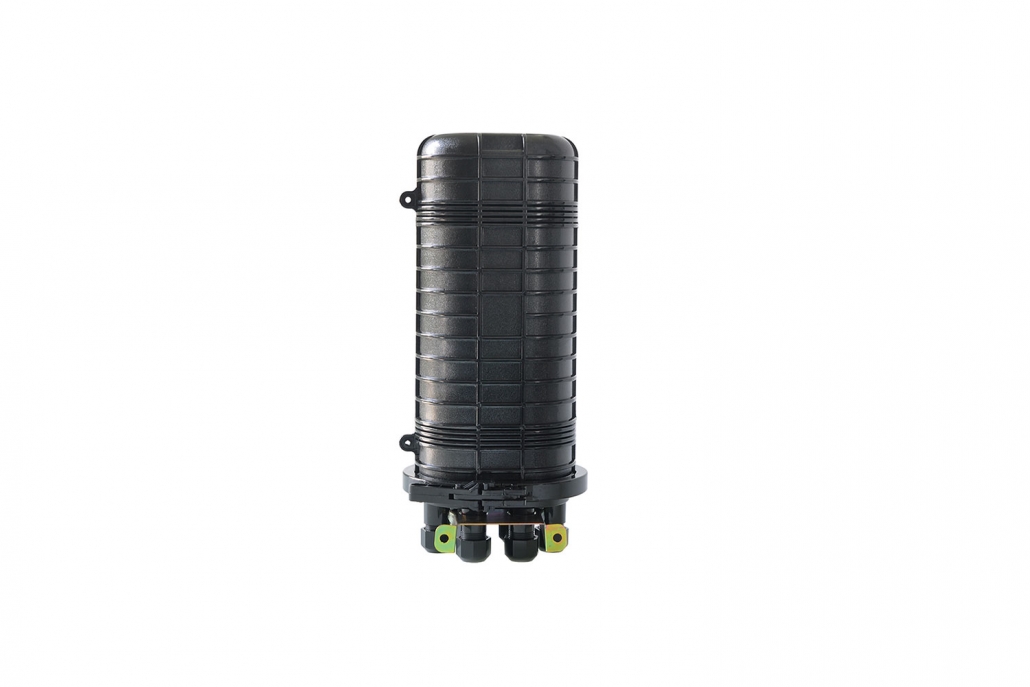

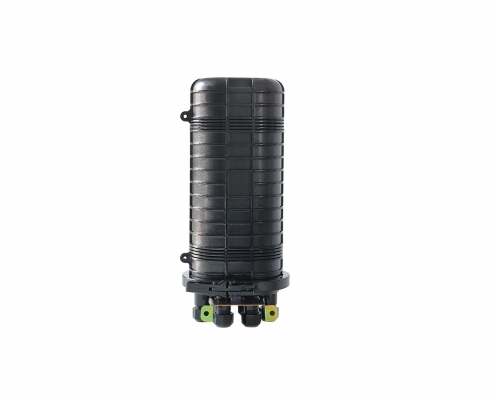

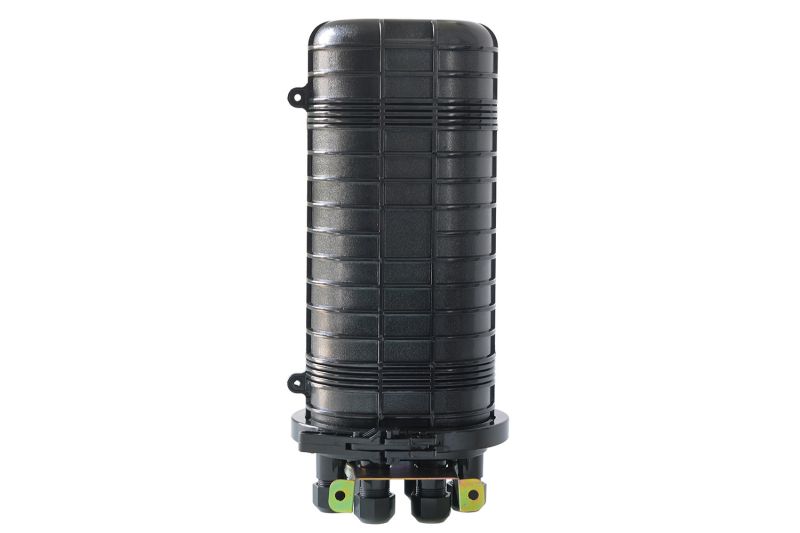

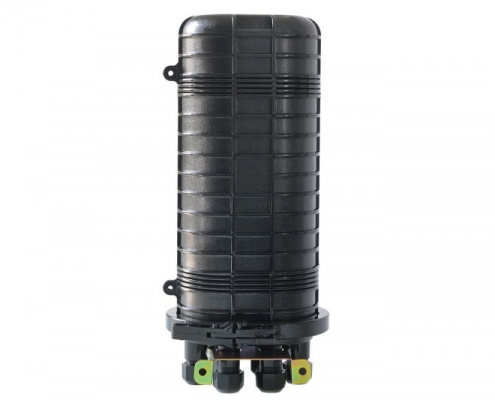

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40℃ to 65℃.
2.1 Dimension and capacity
| Outside dimension (Height x Diameter) | 480mm×220mm |
| Weight (excluding outside box) | 3500g—4100 g |
| Number of inlet/out ports | 6 pieces |
| Diameter of fiber cable | Φ8mm～Φ21mm |
| Capacity of FOSC | Bunchy:24-288 (cores), Ribbon: up to 432(cores) |

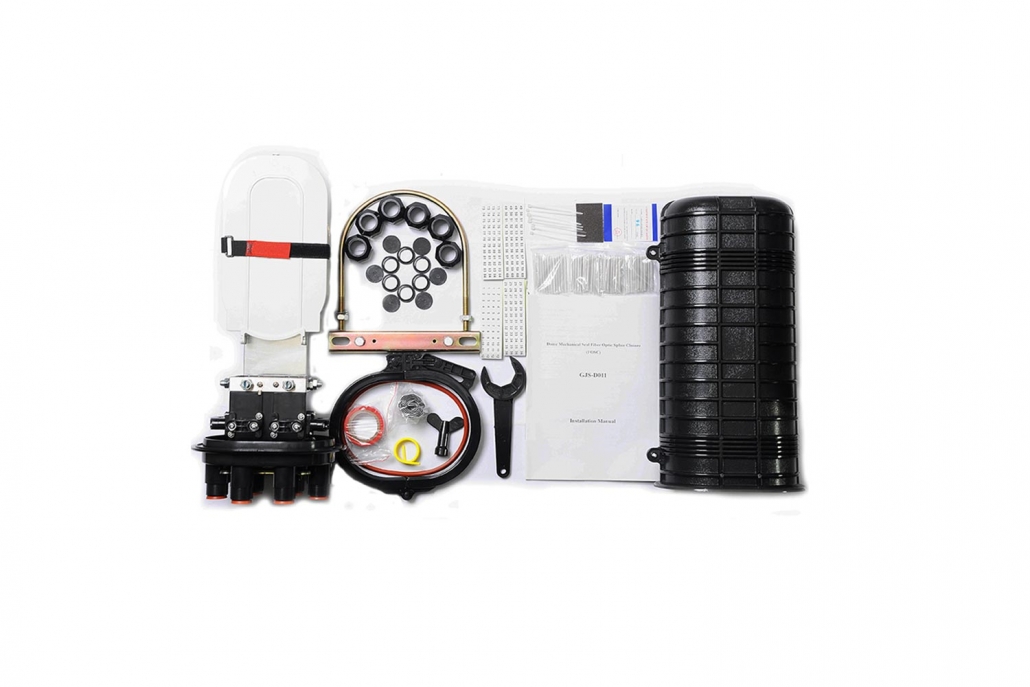

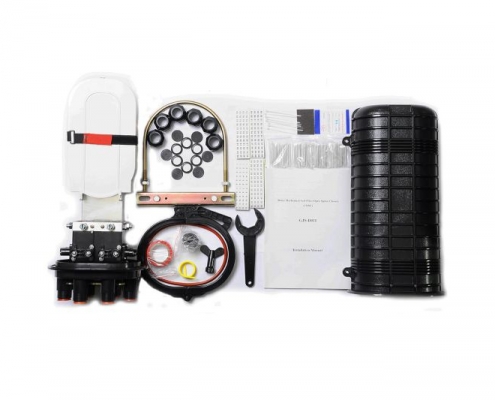

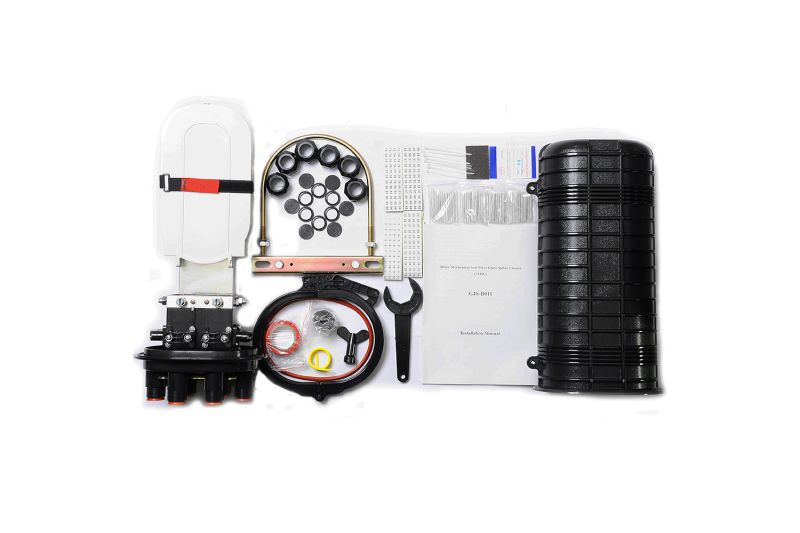

2.2 Main components
| No. | Name of components | Quantity | Usage | Remarks |

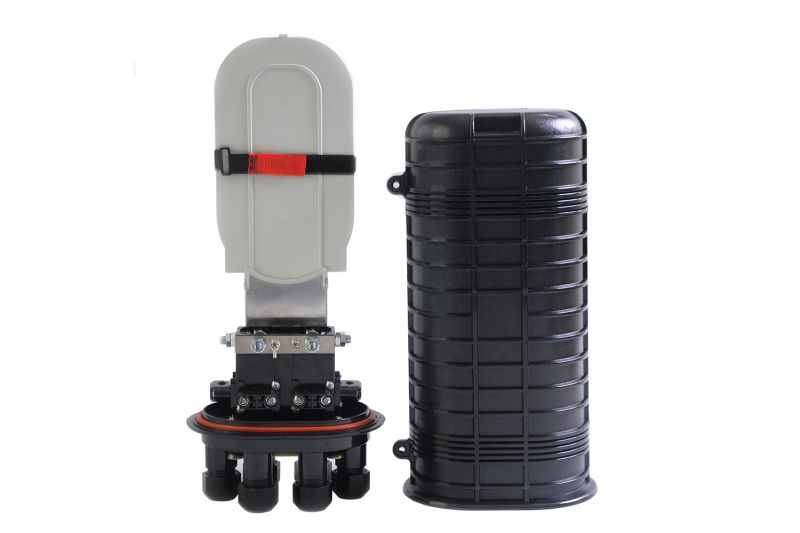

| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 400mm x 220mm |

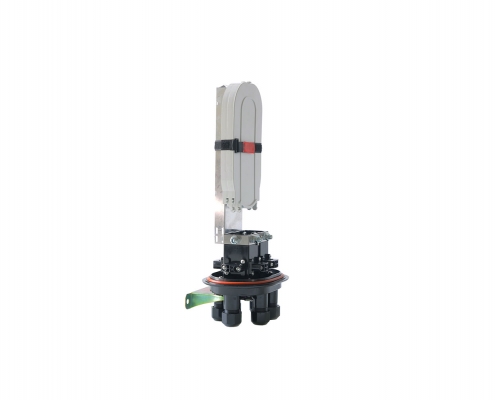

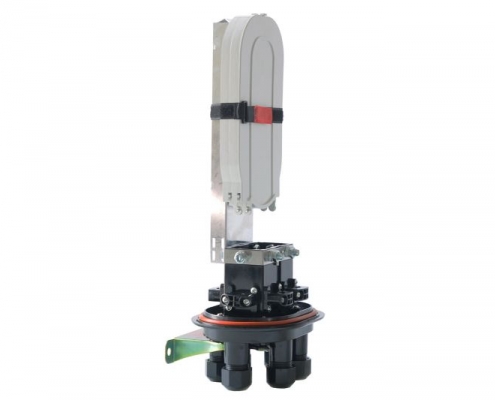

| 2 | Fiber optic splice tray (FOST) | Max. 6 trays (either bunchy or ribbon | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy: 24，36, 48, 72 (cores) Ribbon:12,18 (pieces) |
| 3 | Base | 1set | Fixing internal and external structure | |
| 4 | Fiber holding tray | 1 pcs | Holding fiber with protective coat | |
| 5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
| 6 | Gasket ring | 1 set | Big gasket ring is used to seal FOSC cover and base. Small gasket ring is used to seal entry/exit tube |
1 piece of big gasket ring, 6 pieces of small gasket ring |
| 7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metallic parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |

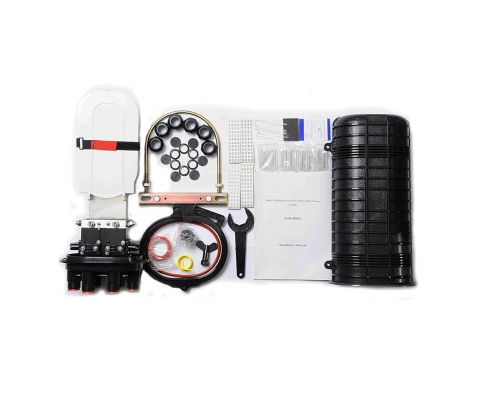

| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 4 | Abrasive cloth | 1 piece | Scratching fiber cables | |
| 5 | Labeling paper | 1 piece | Labeling fibers | |
| 6 | Special wrench | 2 pieces | Installing and tightening nut of reinforced core and nut (plastic) of entry/exit tube | |
| 7 | Measuring paper | 1 piece | To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape | |
| 8 | Seal tape | 1 ring | Enlarging diameter of fiber cable which fits in with gasket ring. | Configuration as per specification |
| 9 | Insulation tape | 1 ring | Enlarging diameter of fiber cable for easy fixing | |
| 10 | Metal hoop | 1 set | For wall mounting and pole hugging | |
| 11 | Buffer tube | decided by customers | Hitched to fibers and fixed with FOST, managing buffer. | Configuration as per requirement |
| 12 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air |
