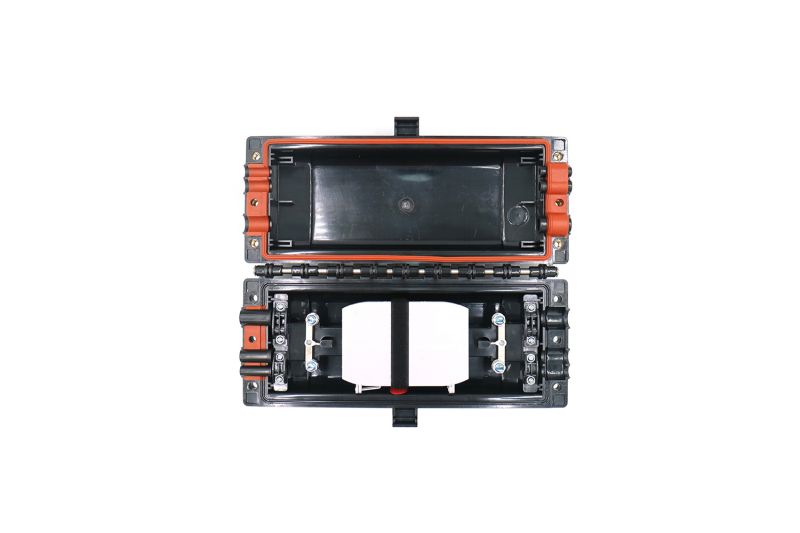

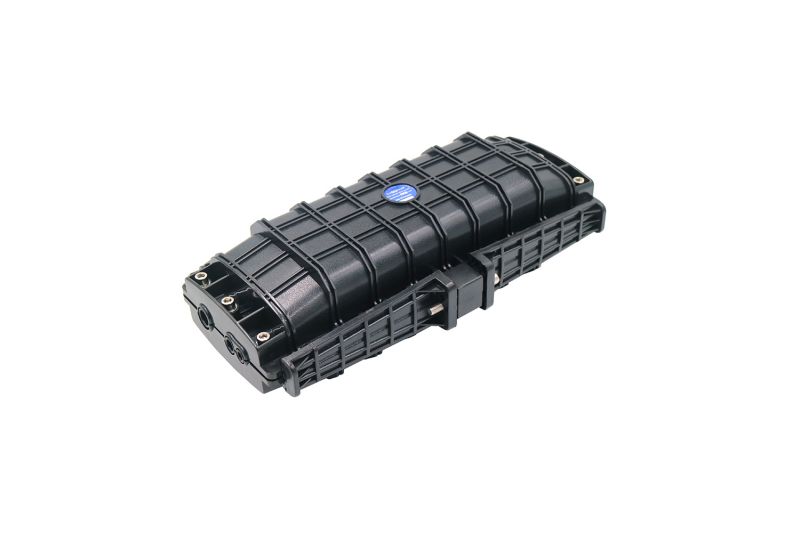

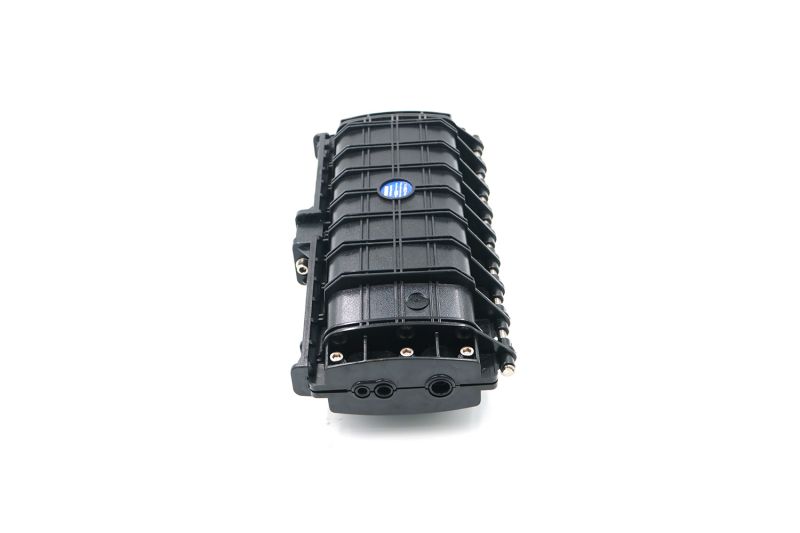

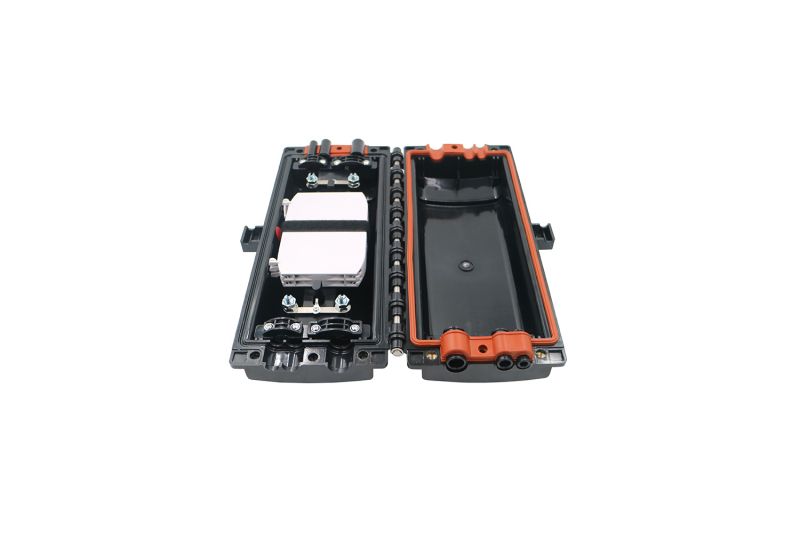

Product Model
SP-GJS-H008
Product Description
Spring Optical Communication is one of the largest and best gjs-h008 fiber optical waterproof joint splice closure box manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized gjs-h008 fiber optical waterproof joint splice closure box in stock with our factory. Also, free sample is also available if necessary.
2.1 Dimension and capacity
| Outside dimension (LxWxH) | 396x200x126 (mm) |
| Weight (excluding outside box) | 2500g-2700g |
| Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
| Diameter of fiber cable | Φ7—Φ20 (mm) |
| Capacity of FOSC | Bunchy: 12—96 (Cores) Ribbon: max. 144(Cores) |
2.2 Main components
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 330x120x110 (mm) |
| 2 | Insert plate | 1 pairs | Fixing the housing | 175x56x30(mm) |
| 3 | Fiber optic splice tray (FOST) |
max. 6 pcs (bunchy) max. 4pcs (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:3 (pieces) |
| 4 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | |
| 5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
| 6 | Port plug | 6 pieces | Sealing empty ports | |
| 7 | Pressure testing valve |
1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement |
2.3 Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 7 | Abrasive cloth | 1 piece | Scratching fiber cable | |
| 8 | Labeling paper | 1 piece | Labeling fiber | |
| 9 | Special wrench | 3 pieces | Fixing bolts, tightening nut of reinforced core | |
| 10 | Measuring paper | 1 piece | To measure circle, of which its diameter is enlarged with seal tape | |
| 11 | Buffer tube | to be decided by customers | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
| 12 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. |
| NO. | specification | carton size(cm) | capacity | N.W | Remarks |
| 1 | inner box | 40*20*12.5 | 1pcs | 2.6-2.8kg | Configuration as per weight |
| 2 | outer box | 66*40.5*42 | 10pcs | 26-28kg | Configuration as per weight |
