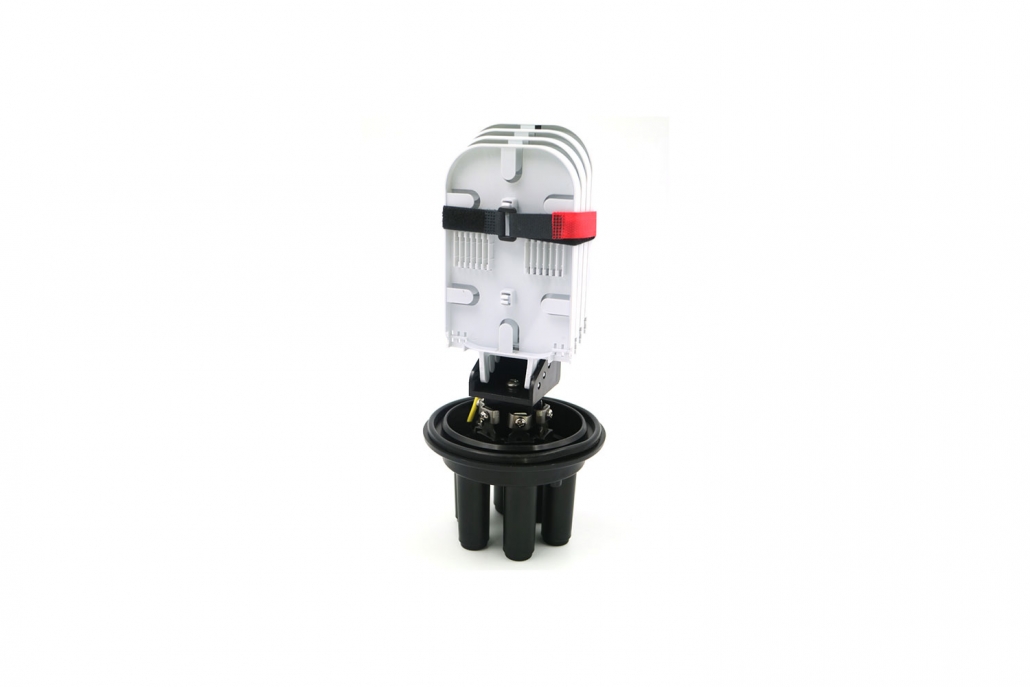

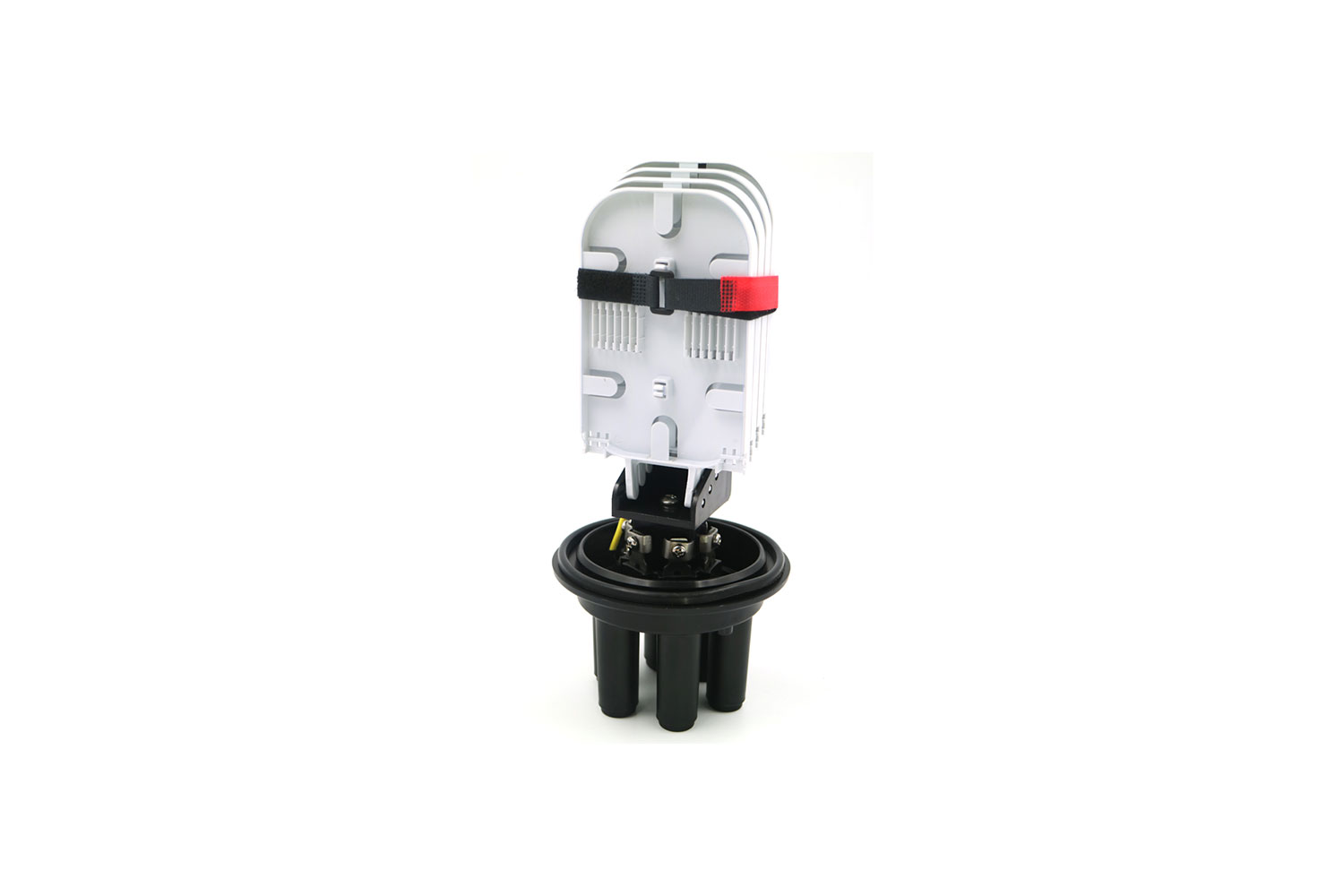

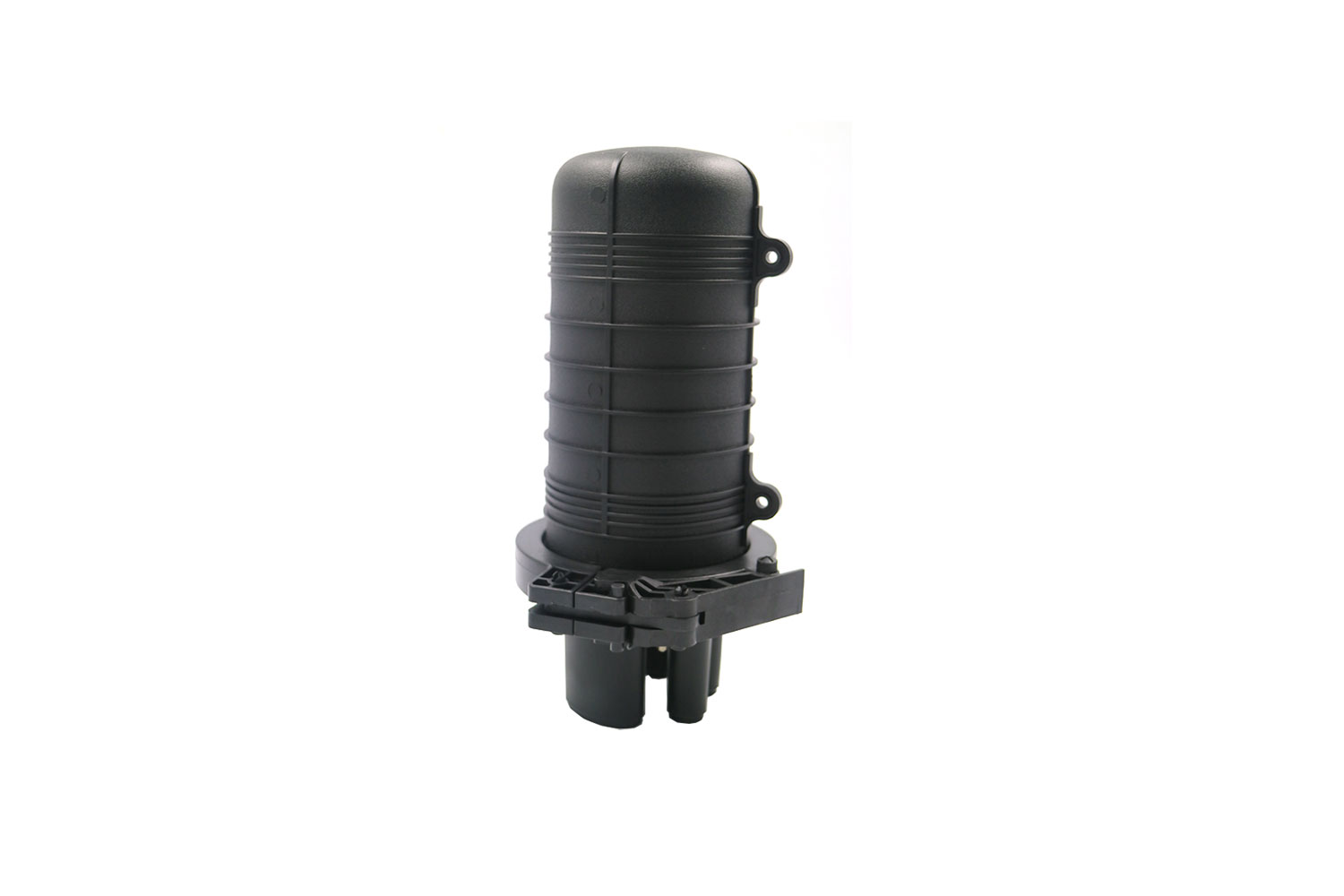

Fiber Optic Outdoor Vertical Splice Enclosure SP-GJS-03M

Product Model

SP-GJS-03M

Product Description

Fiber Optic Outdoor Vertical Splice Enclosure SP-GJS-03M Mini Fiber Splice Closure 96 Core Joint Enclosure Optic Junction Box

The strong housing provides fire-resistant, anti-aging, anti-UV, and waterproof, quake-proof while protecting splices during pulling, torsion, and impacting. Highly reliable sealing system. Heat-shrink on the ports. Can be used in aerial, underground, direct buried installation environments. Available for wall, stand, or pole mounting.

Features

<h2>Fiber Optic Outdoor Vertical Splice Enclosure SP-GJS-03M </h2>

1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
2. Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life
3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable on ports for ease of installation and reentry. No other sealing adhesive tape is needed

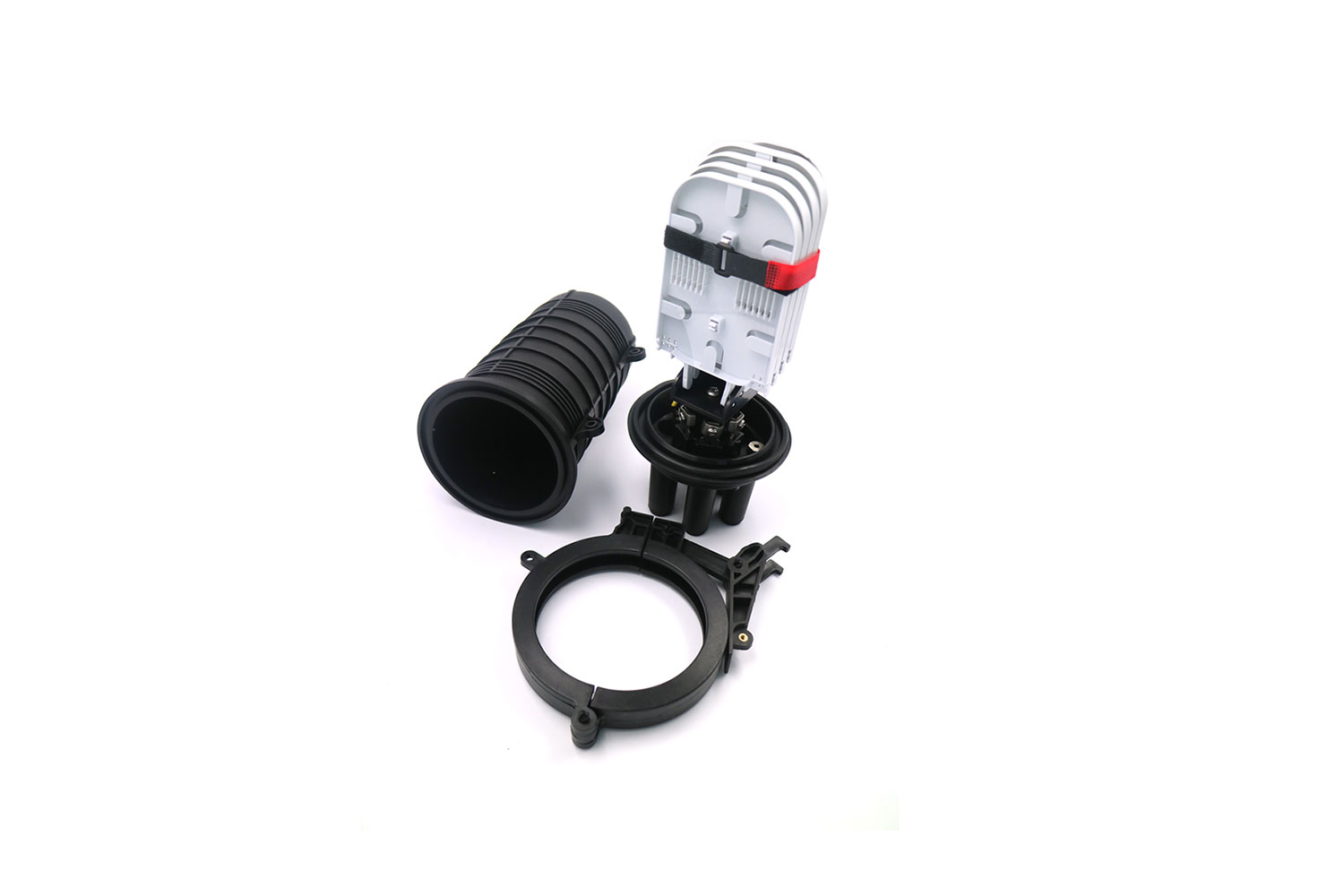

4. Base and dome sealed with clamp and O-ring system
5. The splice trays are hinged for access to any splice without disturbing others trays
6. The inner parts and fixing parts are made of 304 stainless steel
7. FOSC can order with a earthling device protect it from damage by lightning

Details

The strong housing provide fire resistant, anti-aging, anti-UV and waterproof, quake-proof while protecting splices during pulling, torsion and impacting. Highly reliable sealing system. Heat-shrink on the ports. Can be used in aerial, underground, direct buried installation environments. Available for wall, stand or pole mounting.

Model Trays  Tray capacity Total Capacity

(fibers)

Dimension

(max point)

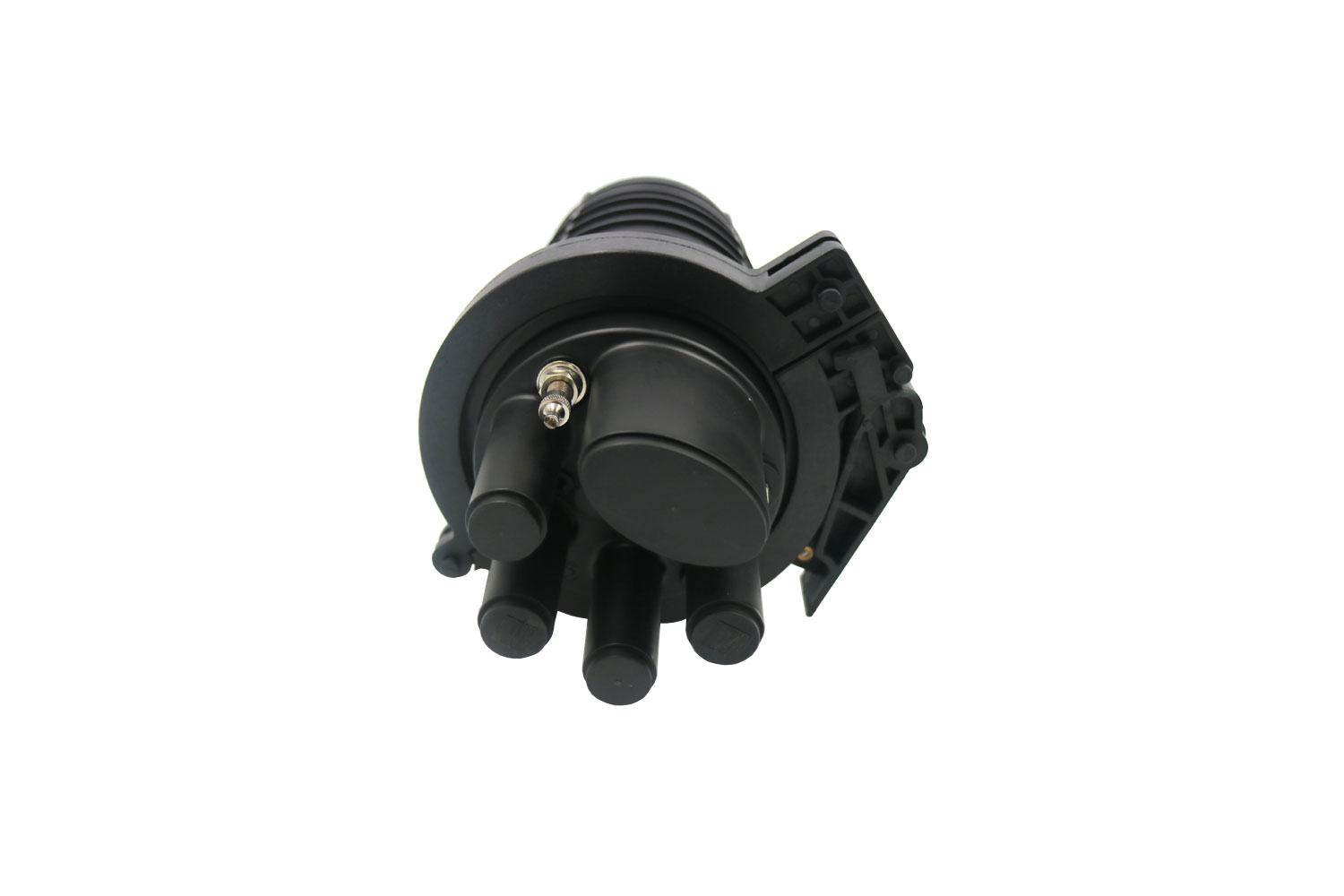

Cable Entry and available cable dia.  Raw material
SP-GJS-03M 4 24c 96 c 315*189 1 oval port for 2pcs 8~23mm cable.

4 round ports for 6~16mm cable

Dome & base :

Modified P.P

Tray: ABS

Accessories list:

GJS-SP03M Mini Fiber Splice Closure 96 Core Joint Enclosure Optic Junction Box

Accessories kits in details:

GJS-SP03M Mini Fiber Splice Closure 96 Core Joint Enclosure Optic Junction Box

Technical Parameter:

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius ≥ 37.5mm. Low optical loss.

Download

Fiber Optic Outdoor Vertical Splice Enclosure SP-GJS-03M

Specification Download
