SP-GJS-03S Fiber Optical 24/48/96/144core dome splice closure

Product Model

SP-GJS-03S

Product Description

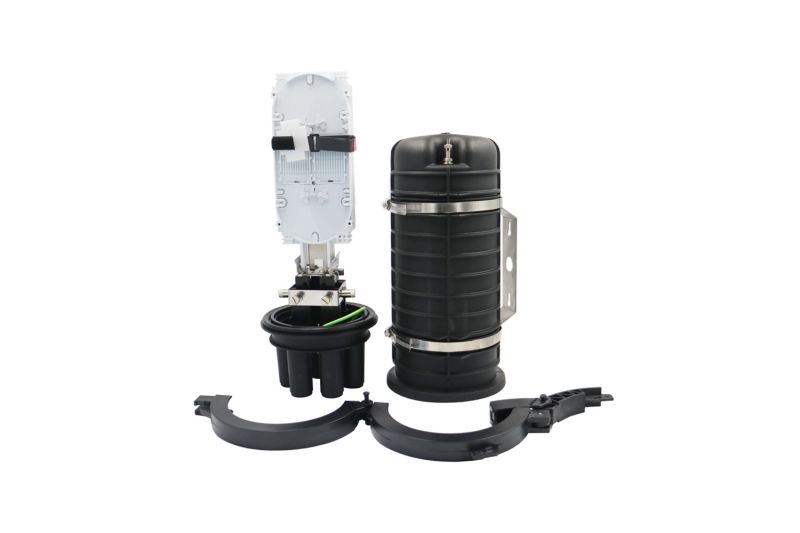

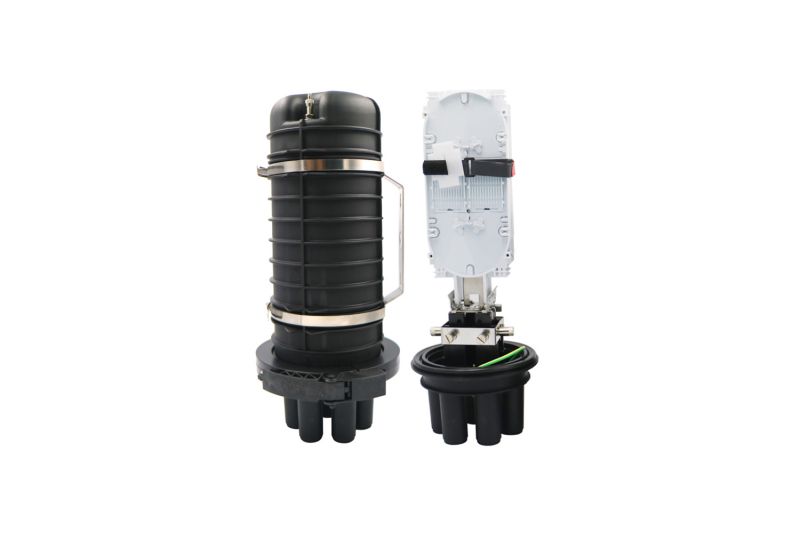

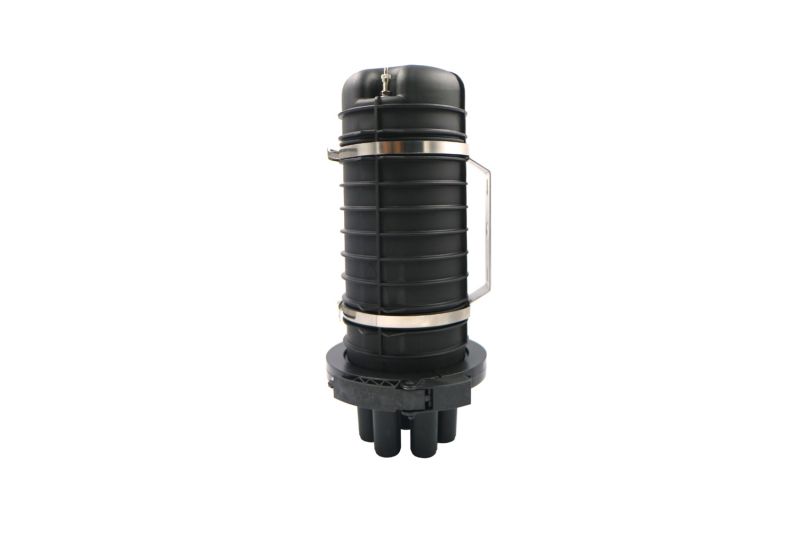

SP-GJS-03S Fiber Optical 24/48/96/144core dome splice closure

The strong housing provide fire resistant, anti-aging,waterproof,anti-UV and quake-proof while protecting splices during pulling, torsining and impacting.

Used to directly connect or splice optic cable fibers, in aerial, underground, direct buried, wall-mounting , hand hole and duct mounting application. Mounted on a pole, wall or a strand.

Features

1. Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life
2. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and reentry. No other sealing adhesive tape is needed
3. Base and dome sealed with clamp and O-ring system
4. The splice trays are hinged for access to any splice without disturbing others trays
5. The inner parts and fixing parts are made of stainless steel
6. FOSC with a grounding device protect it from damage by lightning
7. No special tools are needed to open the closure, and it can be opened and used repeatedly.

Application

SP-GJS-03S Fiber Splice Closure

It can be installed in aerial locations, duct-ed applications, direct buried, manholes. Small volume but large capacity

Model Trays  Tray capacity Total Capacity

(fibers)

 Dimension

mm

 Entry Port dia.  Raw material

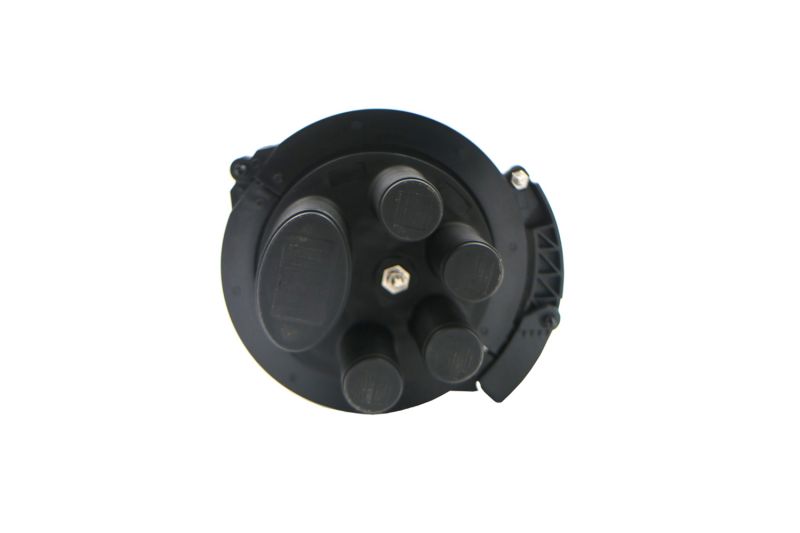

SP-GJS03S- 144C 6 12C / 24C 144C 420*150*180 4 round ports with dia. of—-Φ20 mm

1 oval port with size of—-Φ40mm~ Φ60mm

 Dome & base : Modified P.P

Tray: ABS

Accessories:

FTTH SP-GJS03S 24core 48core 96core 144core fiber optical dome splice closure

Technical Parameter

1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.
