Fiber 1*16 APC ABS Module PLC Optic Fiber Splitter

Product Model

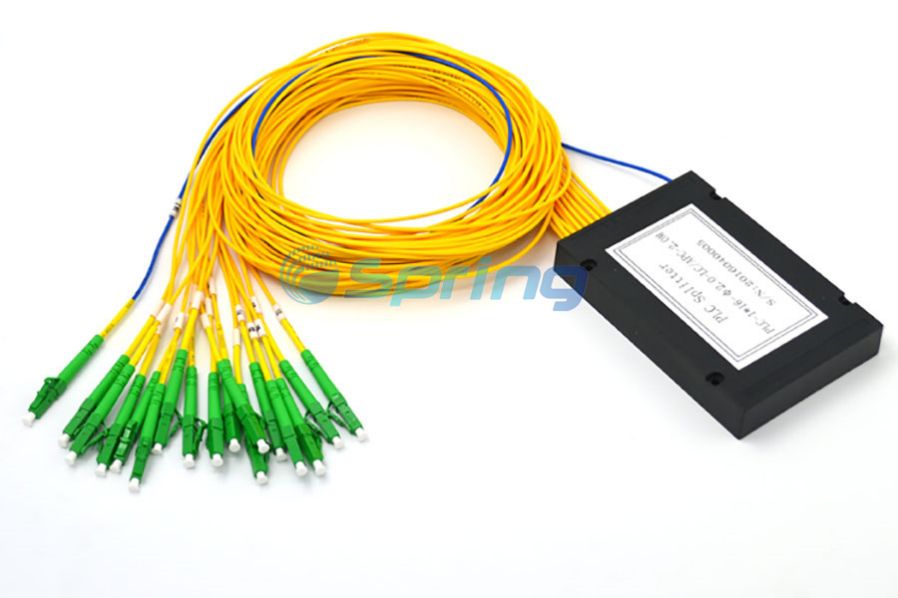

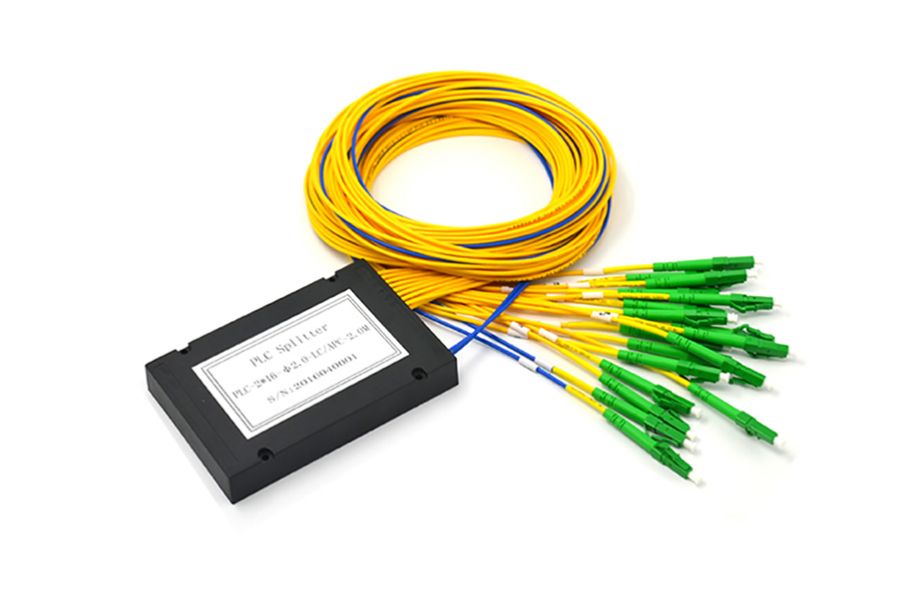

1×16 2×16 ABS Box PLC Splitter

Product Description

We can ABS box type PLC Splitter with connector and without connector.

Springoptic offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here. The springoptic  PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here.

Features

1X16&2×16 ABS Box PLC Splitter Features:

Low insertion loss

Low Polarization Dependent Loss

Excellent Environmental Stability

Excellent Mechanical Stability

Telcordia GR-1221 and GR-1209

Options:

1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits

2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits

Unconnectorized

Fiber jacketing outside boxes 2mm and up to 3mm

ABS box type or inside metal box/module cassette type

SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options

Custom connector configurations and combinations

Specification

16 PLC Splitter excludes connector loss

TYPE 1*16 2*16
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 13.5 14.2
Max 14 14.6
Loss Uniformity(dB) Max 1.5 2
Polariation Dependent Loss(dB) Max 0.3 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85

2×16 PLC Splitter excludes connector loss

TYPE 2*16
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 14.2
Max 14.6
Loss Uniformity(dB) Max 2
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

16 PLC Splitter includes connector loss

TYPE 1*16
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 14
Max 14.5
Loss Uniformity(dB) Max 1.5
Polariation Dependent Loss(dB) Max 0.3
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)

2×16 PLC Splitter includes connector loss

TYPE 2*16
Fiber Type 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650
Insertion Loss(dB) Typical 14.7
Max 15
Loss Uniformity(dB) Max 2
Polariation Dependent Loss(dB) Max 0.4
Directivity(dB) ≥55
Return Loss (dB) UPC:50  APC:55
Operating  Temperature (°C) -40~+85 Storage Temperature (°C)



Application

1X16&2×16 ABS Box PLC Splitter Applications:

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment
