12ct fiberhub box

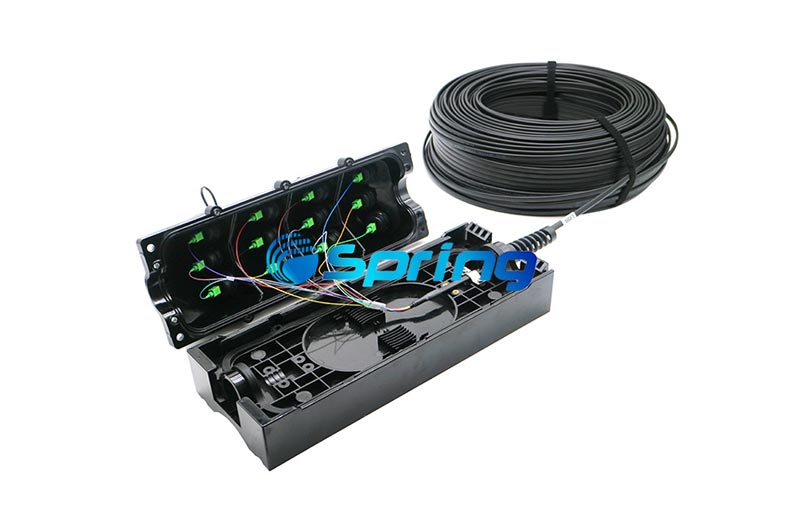

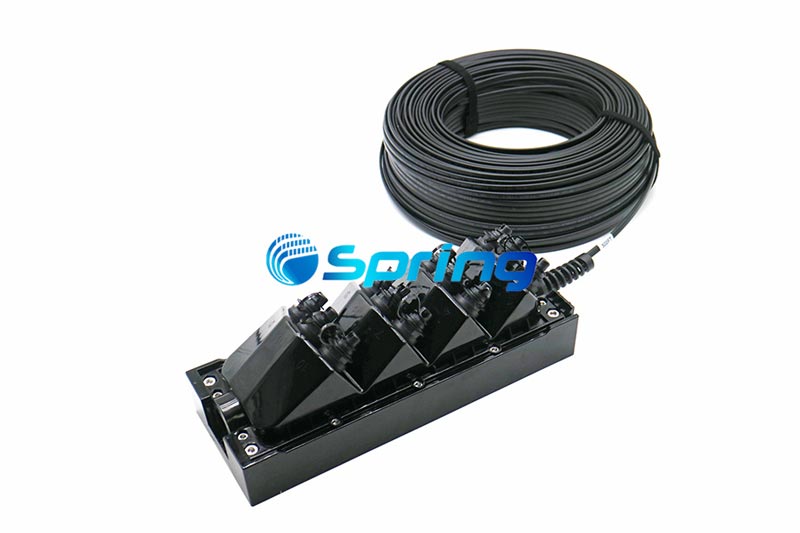

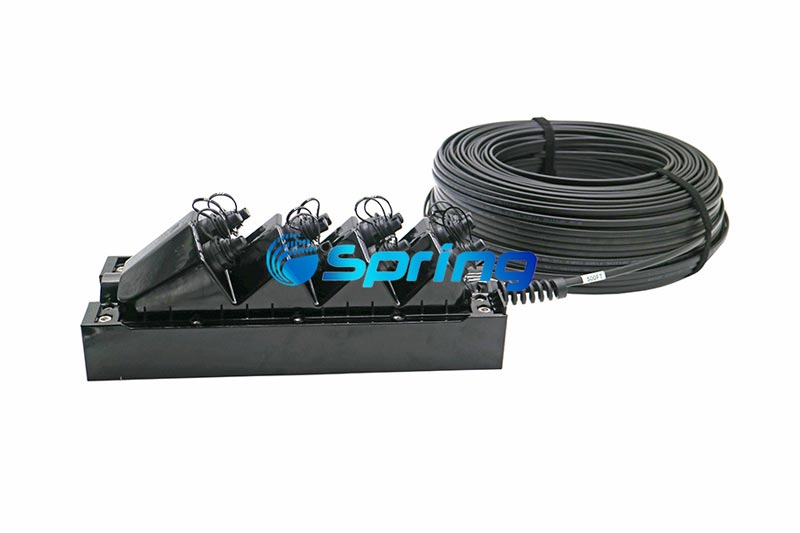

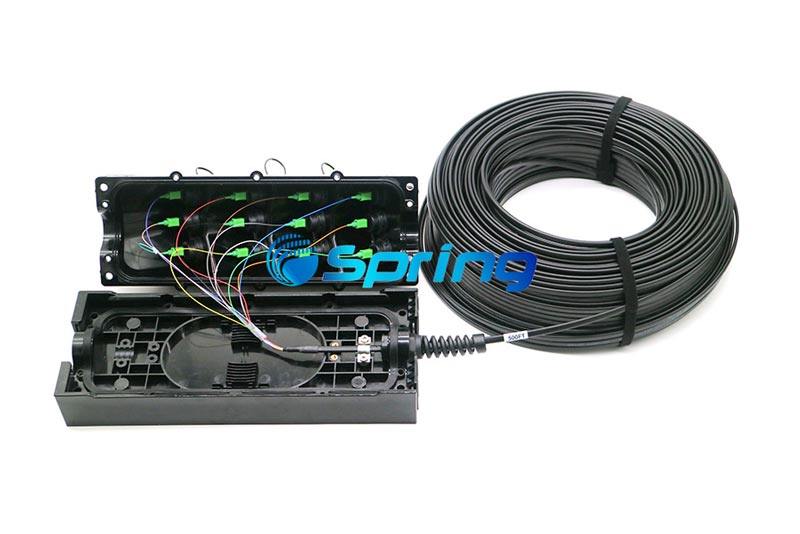

12 Fiber MST Fiberhub Fiber Optic Multiport Service Terminal Enclosure Box

Product Model

SP-MST-12CT

Product Description

FiberHub is a new economic fiber distributed solutions for outdoor use. Compare traditional products, FiberHub is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installationi, based on different situation. FiberHub not only used in FTTH field, but also used in FTTA or other harsh environment field.

Features

12 Fiber MST Fiberhub Fiber Optic Multiport Service Terminal Enclosure Box

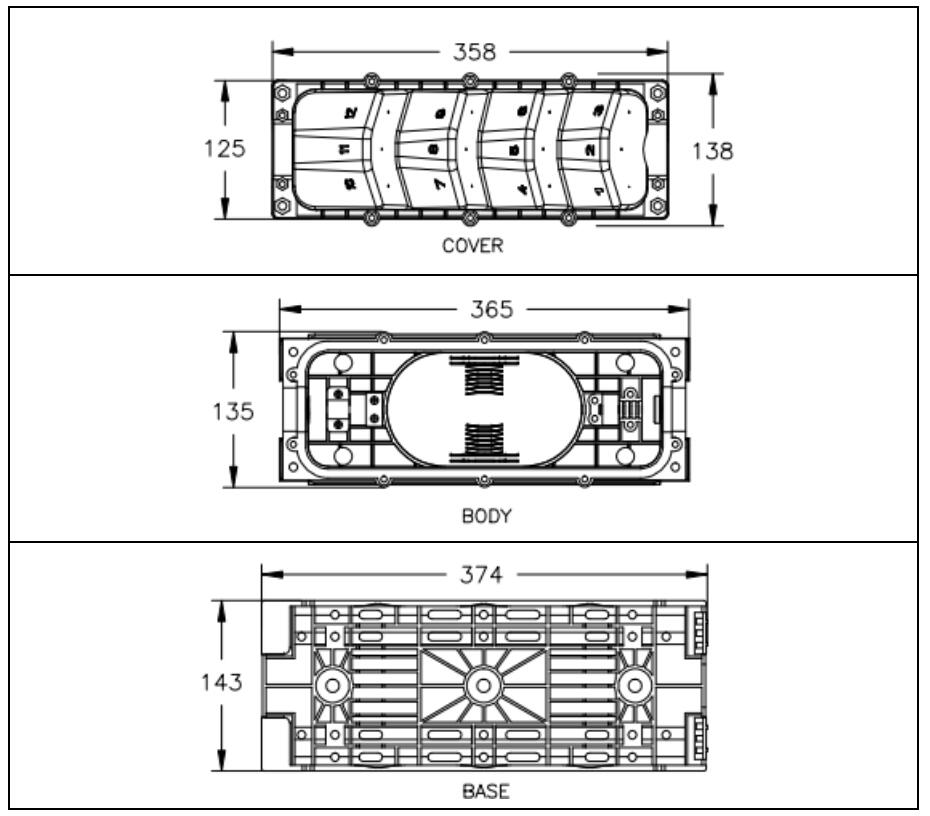

Fiberhub Drawings:

  • High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
  • Factory-sealed or field assembly.
  • IP68 water and dust protection
  • Strong enough: working under 1200N pulling force long term.

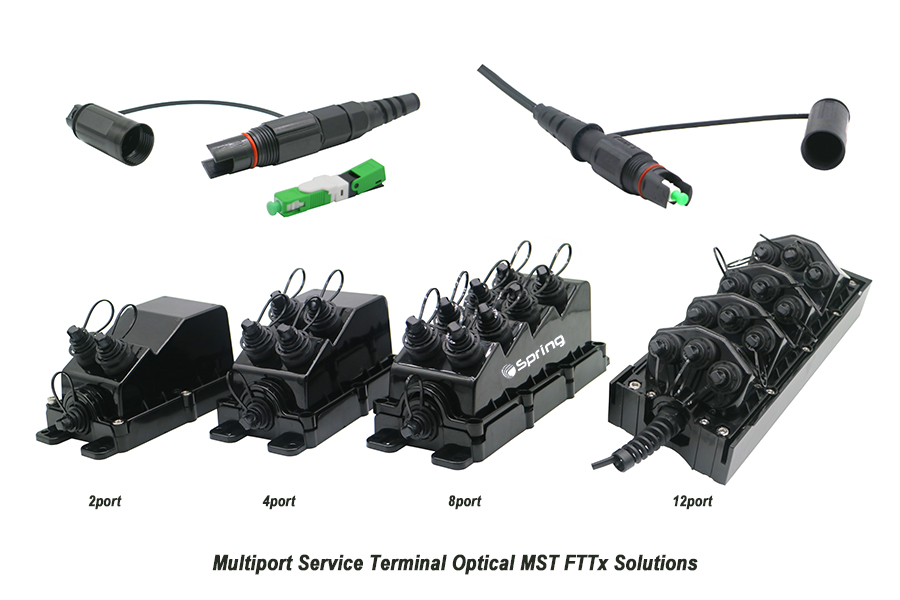

  • From 2 to 12 ports for single or multifiber harsh connectors.
  • IP68 waterproof rating.
  • Wall-mounting, aerial installation or holding pole installation.
  • Decreased angle surface and height make sure no connector interfering when operating.
  • Meet IEC 61753-1 standard.
  • Cost effective: save 40% operating time.
  • Available with PLC or splice sleeve for fiber divide.

Specification
Dimensions(LxWxH) 365x137x90mm(Without cover)             375x142x120mm(With cover)
Ingress Protection IP67
Working Temperature -40~85℃
Cable Strength Member Armoured or Non-armoured
Cable Type Hybrid or non-hybrid
Round Cable OD 5.0mm to 14.0mm
Flat Cable Dimension 4.6×8.9mm
Cable Jacket Material LSZH,PE or TPU
Bending Radius 20D
Cable Crush Resistance 200N/cm long term
Tensile Strength 1200N long term
UV Resistance ISO 4892-3
Fire Protection Rating UL94-V0
Number of PLC 1~2pcs
Number of Fusion Protection Sleeves 1~24pcs
Application
  • FTTH Projects
  • FTTA Projects
  • Truck cable connectings
  • Prospecting or military communication

Download

Specification Download
