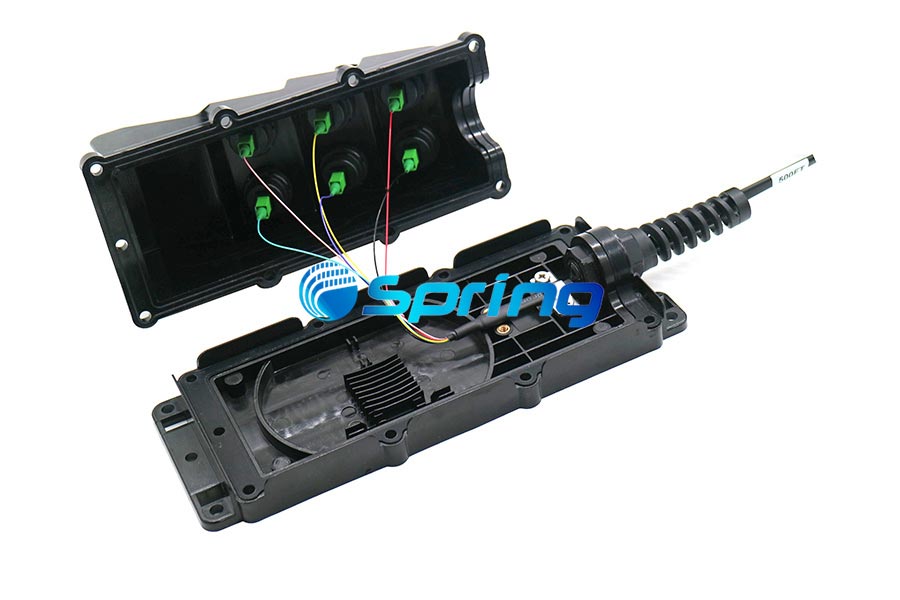

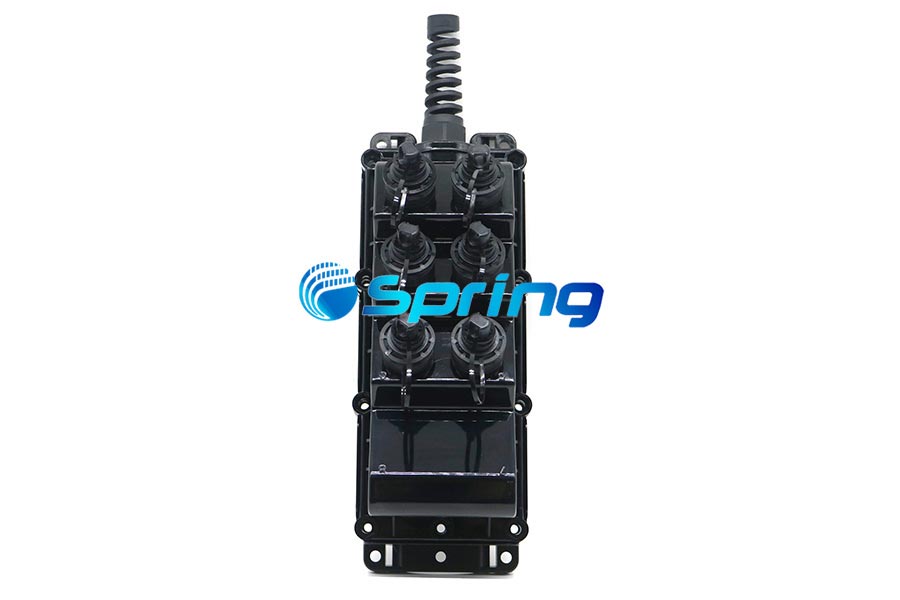

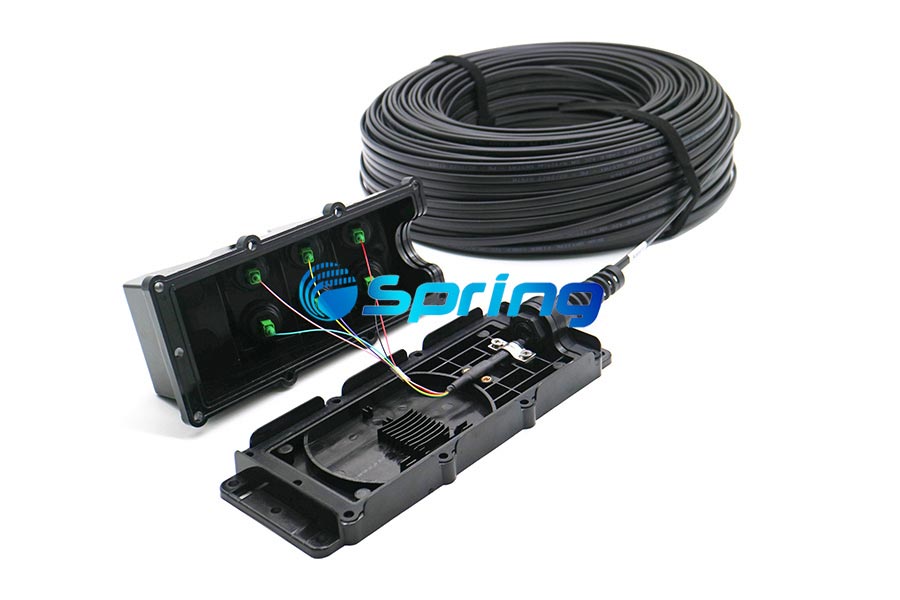

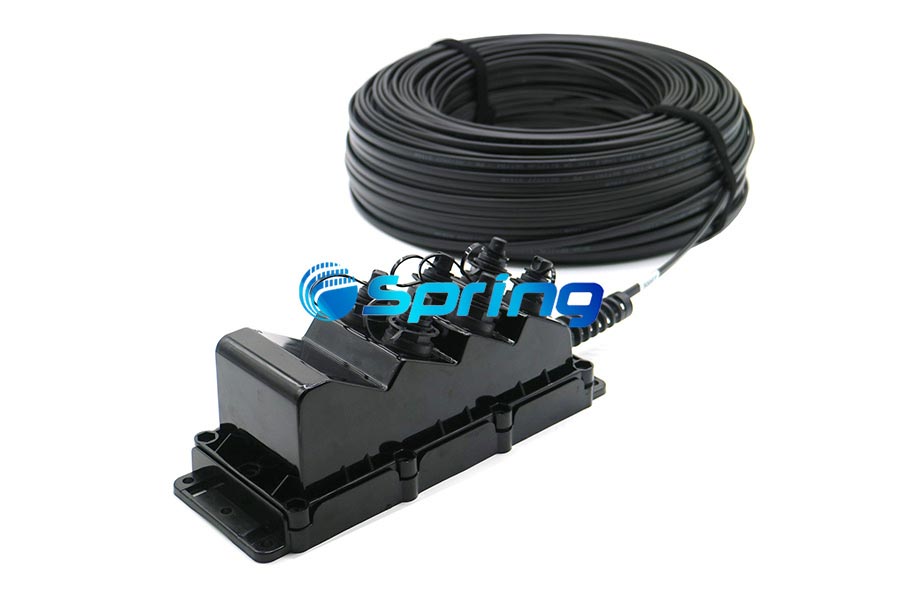

6 Fiber MST Fiber Optic Multiport Service Terminal Enclosure Box with OptiTap compatible SST drop cables

Product Model

SP-MST-6CT

Product Description

Fiber MST Fiber Optic Multiport Service FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Features

6 Fiber MST Fiber Optic Multiport Service Terminal Enclosure Box with OptiTap compatible SST drop cables

  • High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
  • Factory-sealed or field assembly.
  • IP68 water and dust protection
  • Strong enough: working under 1200N pulling force long term.
  • From 2 to 12 ports for single or multifiber harsh connectors.
  • IP68 waterproof rating.
  • Wall-mounting, aerial installation or holding pole installation.
  • Decreased angle surface and height make sure no connector interfering when operating.
  • Meet IEC 61753-1 standard.
  • Cost effective: save 40% operating time.
  • Available with PLC or splice sleeve for fiber divide.

Specification
Dimensions(LxWxH) 210x105x93mm(4Core) 283x105x95mm(8Core)
Ingress Protection IP68
Working Temperature -40~85℃
Cable Strength Member Armoured or Non-armoured
Cable Type Hybrid or non-hybrid
Round Cable OD 5.0mm to 14.0mm
Flat Cable Dimension 4.6×8.9mm
Cable Jacket Material LSZH,PE or TPU
Bending Radius 20D
Cable Crush Resistance 200N/cm long term
Tensile Strength 1200N long term
UV Resistance ISO 4892-3
Fire Protection Rating UL94-V0
Number of PLC 1~2pcs
Number of Fusion Protection Sleeves 1~24pcs
Application
  • FTTH Projects
  • FTTA Projects
  • Truck cable connectings
  • Prospecting or military communication
