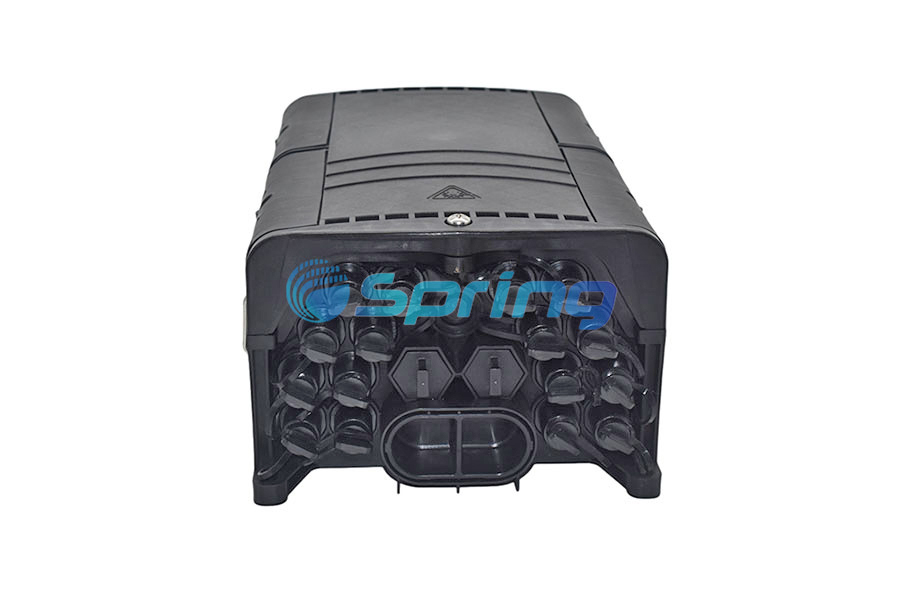

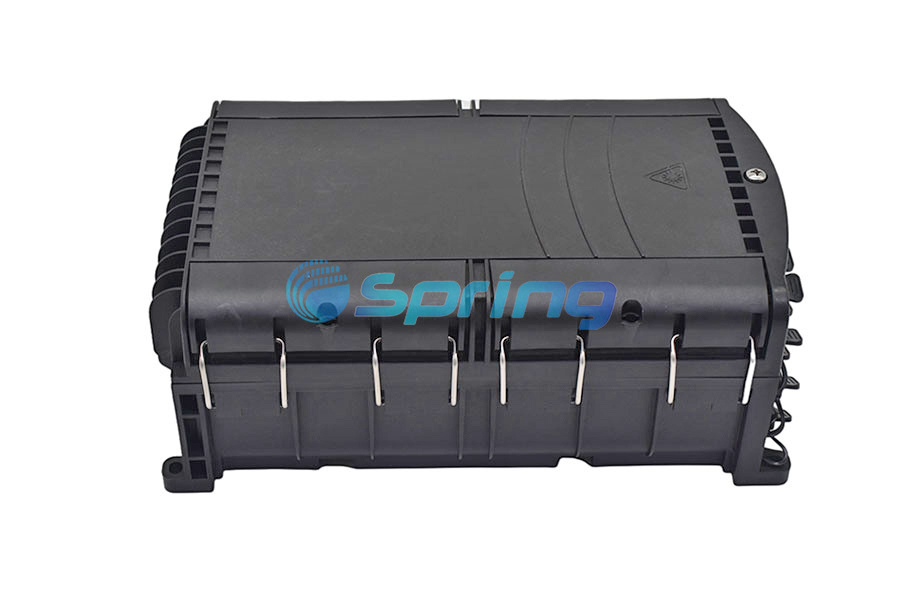

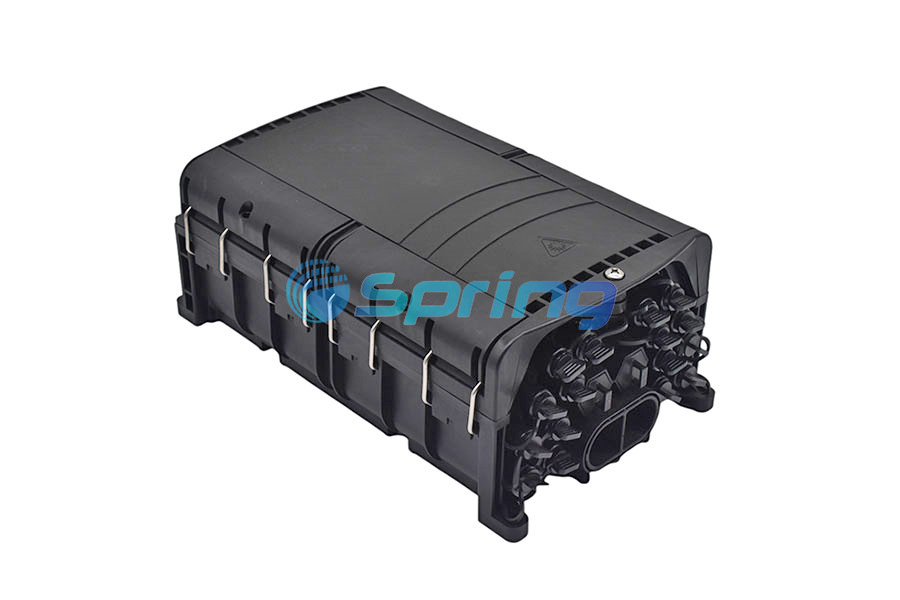

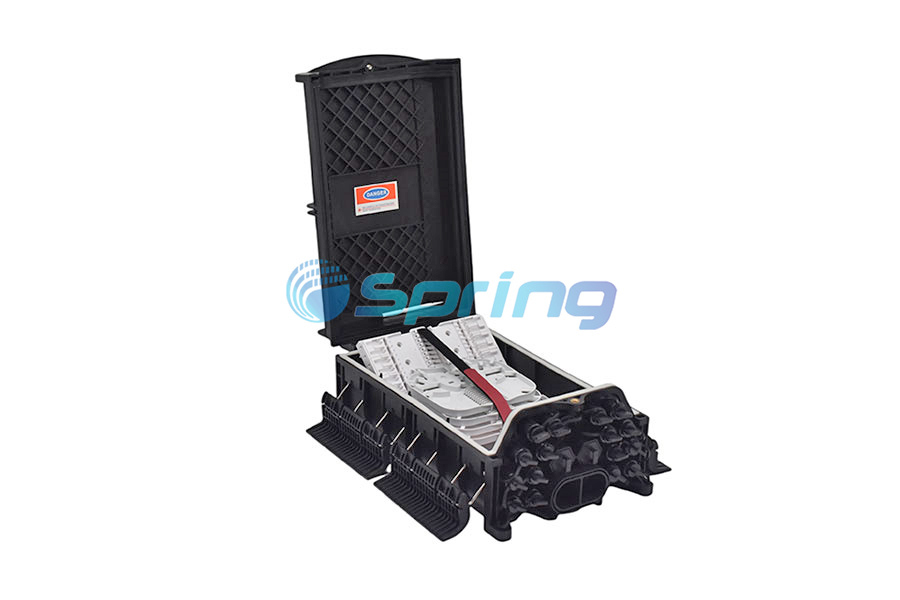

16 Core FTTH Fiber Optic Termination Box Distribution Box for FTTA Network

Product Model

SP-JW003-16R

Product Description

The equipment is a half-style closure that is sealed mechanically pre connected horizontal connector box .It is single-ended design and is generally used as a hub box node in an unequal ratio fully pre-connected solution, converting traditional optical cables into single core pre-connected SC/APC output ports.

Specification

Model No.	SP-JW003-16R
Color	Black
Capacity	16 cores
Protection rating	IP68
Material	PP+GF
Inlet/outlet	1/11
Dimension(MM)	355215145
Weight	2.47kg

Package Information

QTY	4 PCS
Carton size	484434cm
G.W	12.3kg
N.W	11.5kg

Feature

Feature:

◆The box is a half-style closure that is sealed mechanically.The back of the box comes with a reinforced backplane,You can just wear the hoop.The additional backplane can also be used

◆Plug and play, pre-connected household cable instead of fusion, no need to open the box

◆ Fast insertion can fix and seal the optical cable outside the connector box for quick installation

◆Support a variety of installation methods, holding pole, hanging wall, hanging cable

◆Suitable for a variety of installation scenarios, support above-ground, underground, human well, hand well

◆ Material: PP+GF, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68

Download

GETTING MORE DETAILS AND SPECIAL PRICE FROM US
