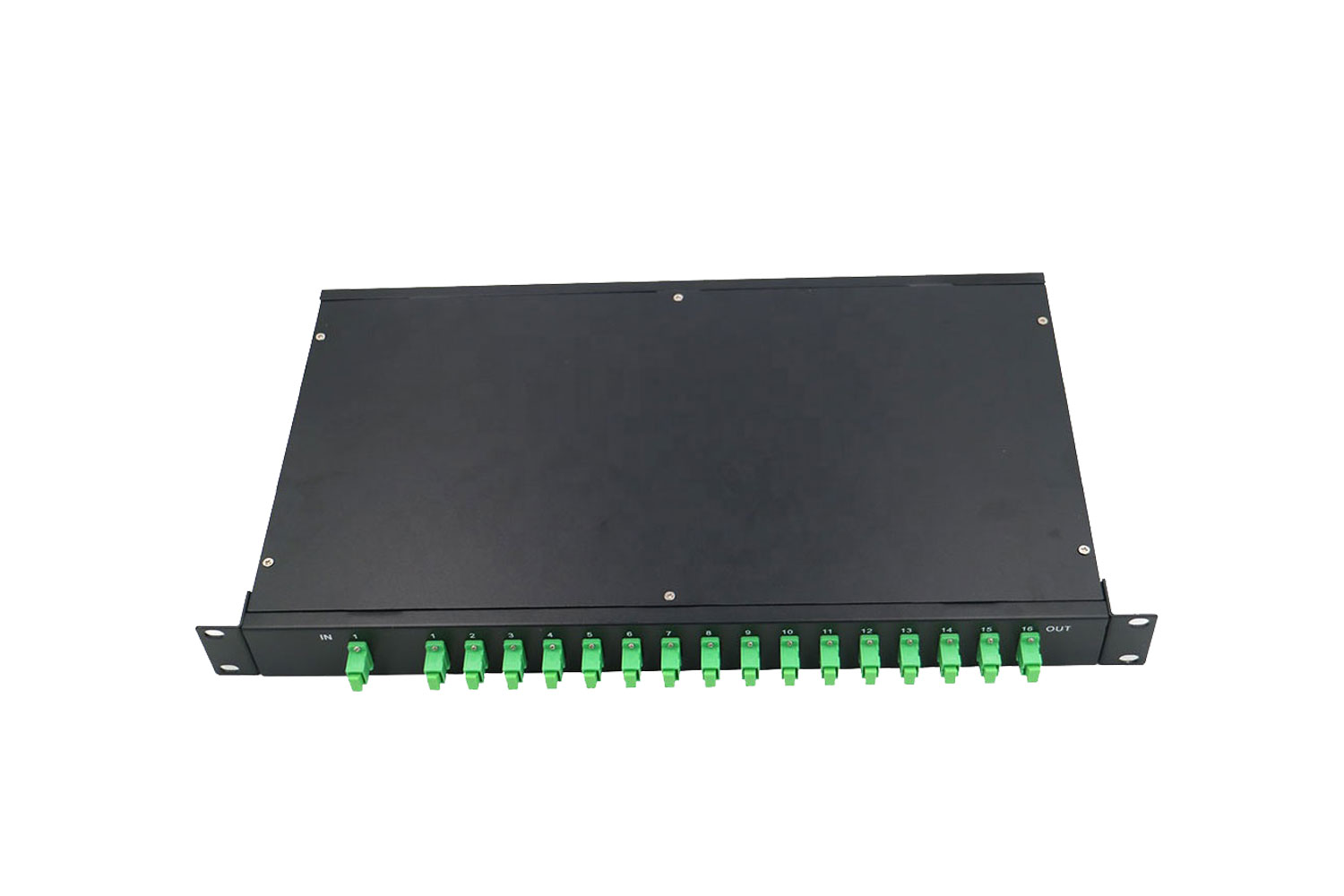

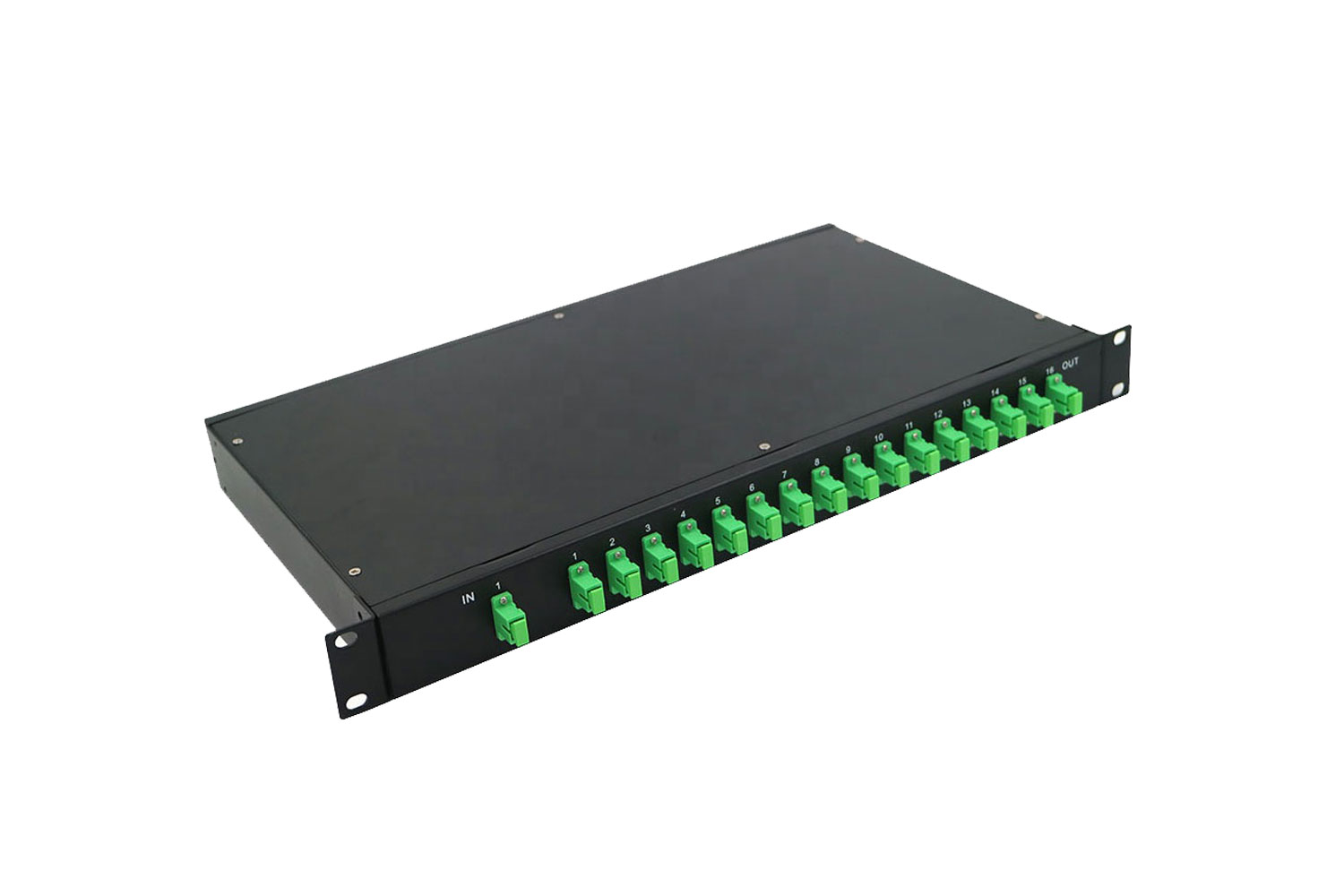

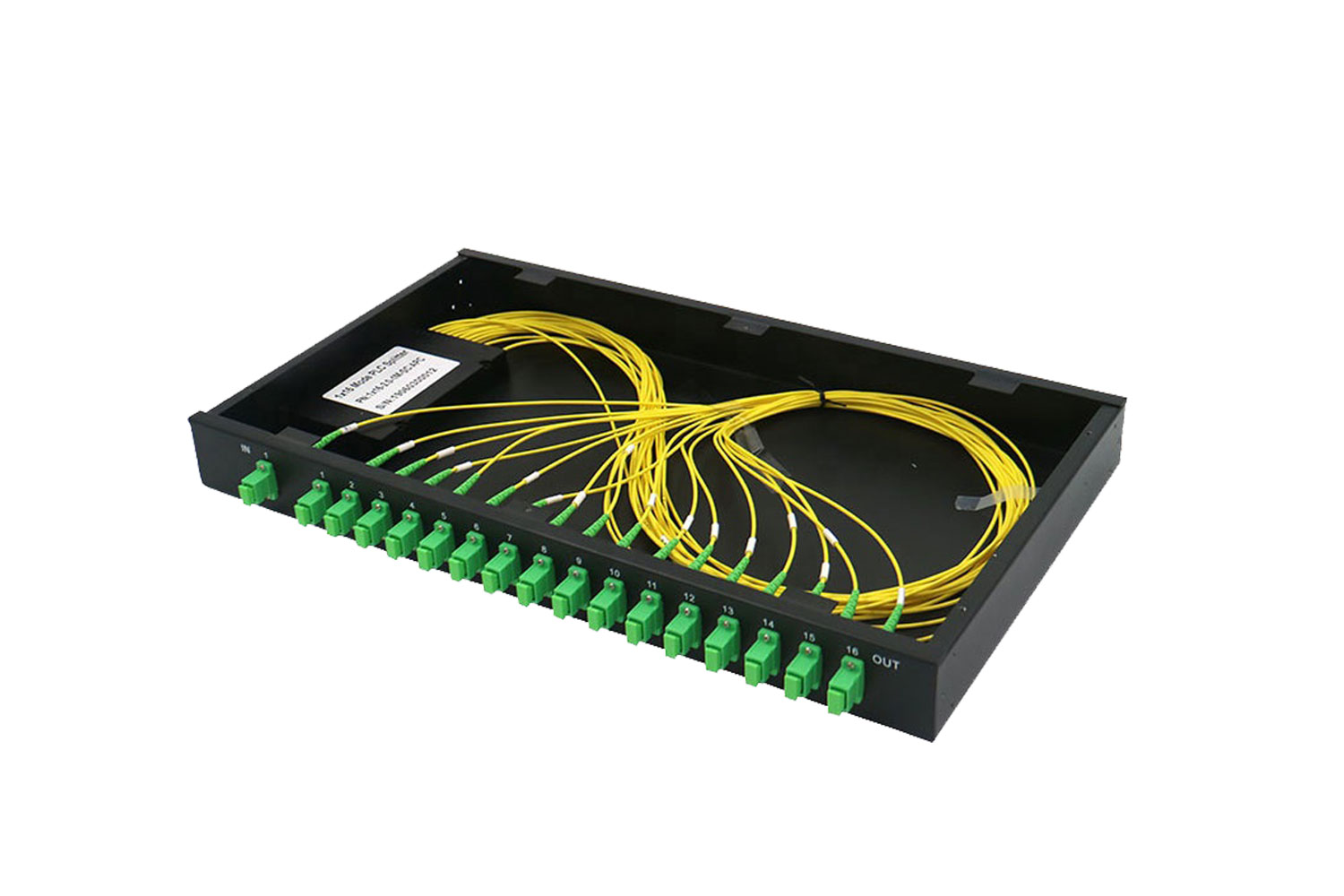

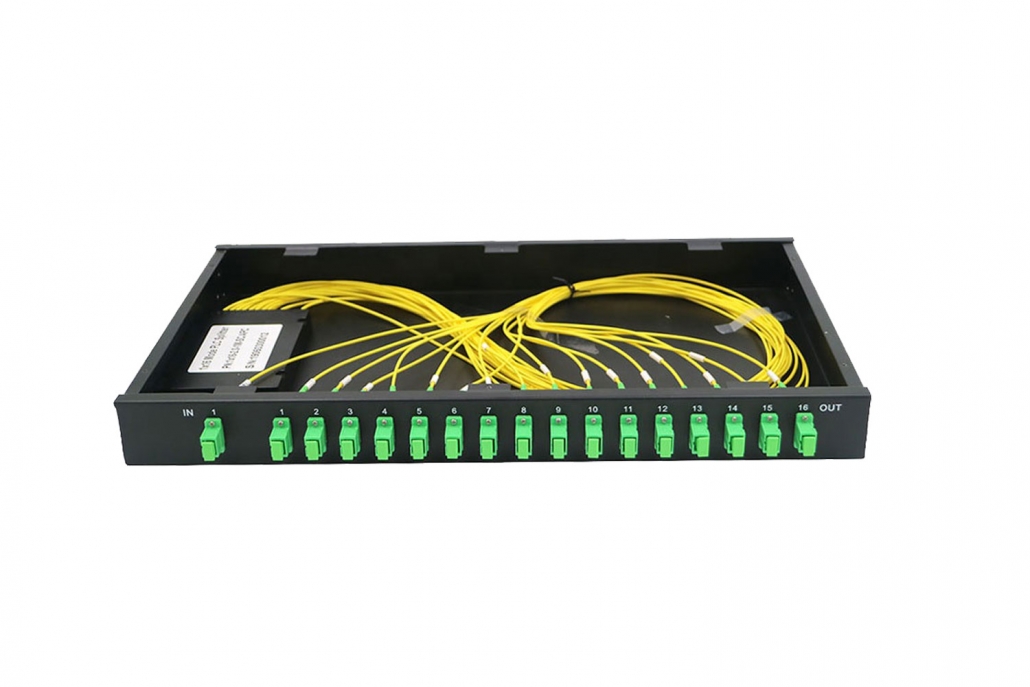

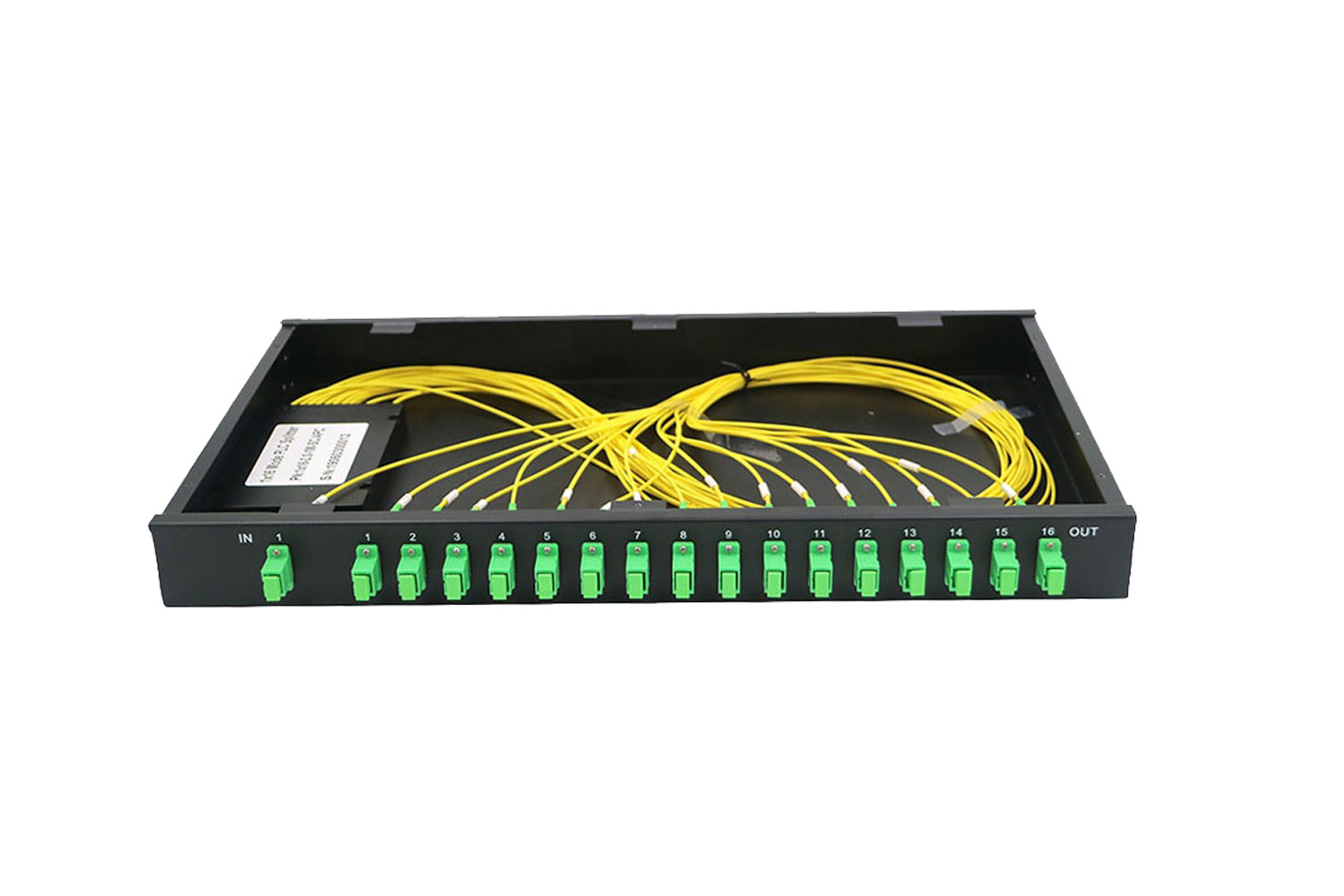

1*16 SC APC Rack Mount Type PLC Fiber Optic Splitters

Product Model

 SP-RP-1X16-SCA

Product Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Rack PLC splitters are different types including 1×4, 1×8, 1×16, 1×32 ,1×64 PLC Splitters and 2×4, 2×8, 2×16, 2×32 etc types. All with 1U 19″ rack mount enclosures. Our Rack mounted 1U PLC splitters meet the Telcordia standards and with very competitive prices. Buy from the direct manufacturer to save your money and time.Springoptic offer LC, SC, FC or ST adapters for choice. APC or UPC on customer request.

Features
  1. Low Insertion loss and Low PDL
  2. Good channel-to-channel uniformity
  3. Wide Operating Wavelength: From 1260nm to 1650nm
  4. Wide Operating Temperature: From -40℃ to 85℃
  5. High Reliability and Stability
  6. Stability Telecordia GR-1221 and GR-1209

Components through TLC-Certified, Conform to YD1117-2001

Specification
Type 1×2 1×4 1×8 1×16 1×32 1×64
Working Bandwidth (nm) 1260-1650
Insertion Loss (dB) Max w/o connectors 3.8 7.1 10.2 13.5 16.8 20.2
Insertion Loss (dB) Max with connectors 4.1 7.4 10.5 13.8 17.1 20.5
Wavelength Dependent
Loss (dB) Max.		 0.2 0.3 0.4 0.6 0.8 1
Return Loss (dB) Min.(APC) 55
Temperature Dependent
Loss(dB) Max		 0.5
Stability in Hot
Environment (dB/°C) Max		 1
Uniformity (dB) Max 0.6 0.6 0.8 1.1 1.5 2
Polarization Dependent
Loss (dB) Max		 0.2 0.2 0.2 0.3 0.3 0.3
Orientation (dB) Min 50
Power (mW) Max 300
Steel Tube Size(mm) 60*7*4 60*7*4 60*7*4 60*12*4 80*20*6 100*40*6
Optical Fiber SMF-28, G657A1, G657A2 or customized
Input / Output length 1meter standard or customized length
Cable Color White or customized
Cable Diameter 250um or 900um
Connector SC APC, SC UPC or without connector
Operating Temperature (℃) -40 to 85
Storage Temperature (℃) -40 to 85
Standard Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321
Application

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment

Download

16way SC APC rack mount PLC Splitter
