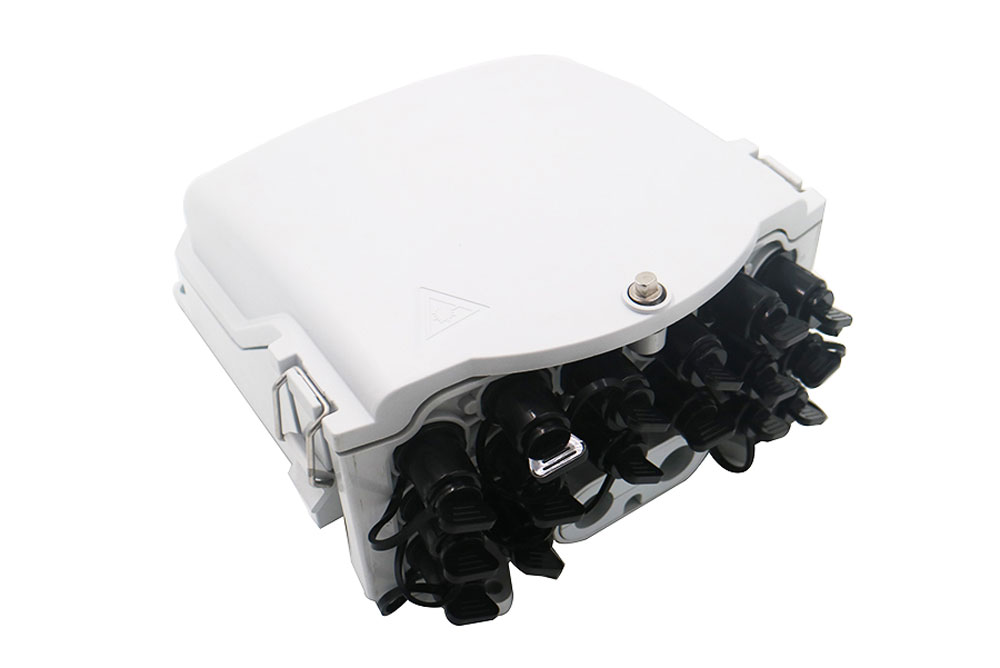

- Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

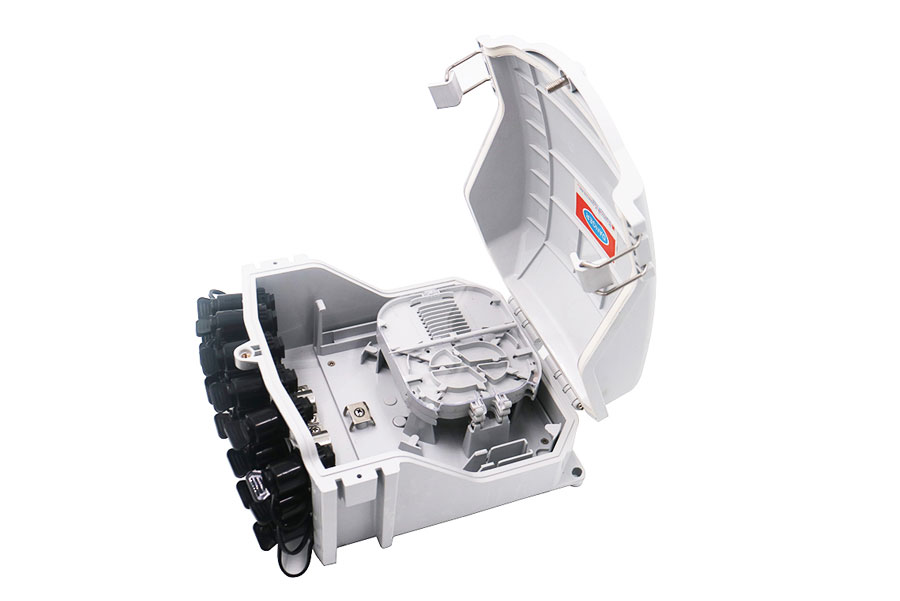

- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

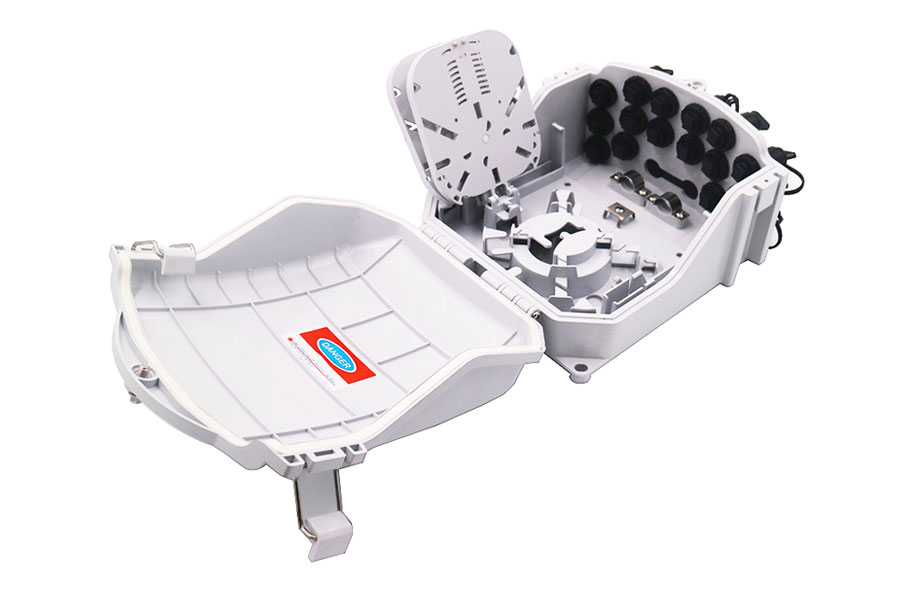

- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

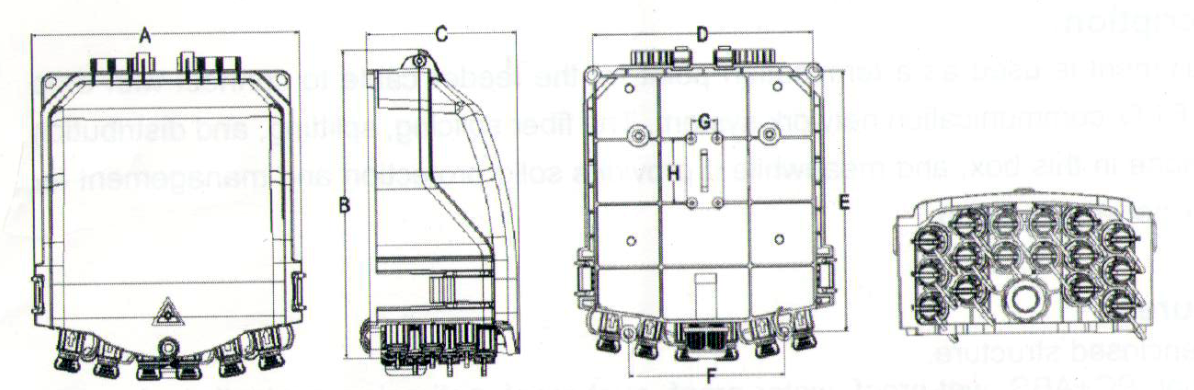

|Dimension (Pic 1) A*B*C(mm)||208*241*117mm|
|Max Capacity||16 ports SC|
|Input cable diameter(mm)||Max 18mm|
|Installation Size(Pic 2) (mm)||D*E*F||179*212*126|
Thunder-proof technical datasheet:
- The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V（DC）；IR≥2MΩ/500V
- The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
- Users’ Manual*1
- Accessories Bag * 1
- Pole Ring*1(Option)

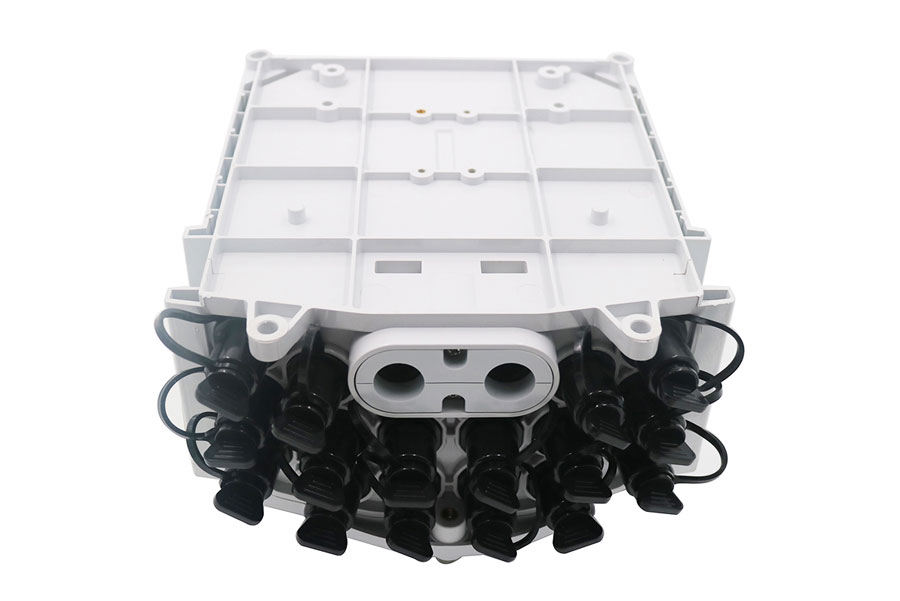

- Wall-mounted installation
Drill 3 holes into the wall based on the installation size，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten.
- Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole.
3. Fiber connector installation:

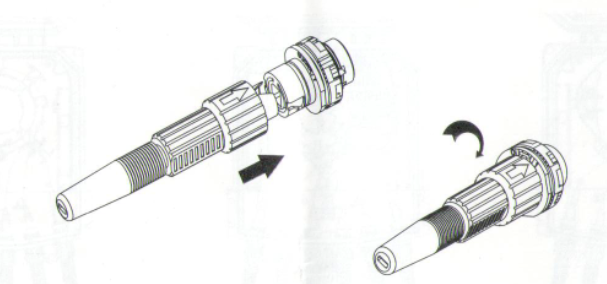

Rotate the arrow part of fiber connector counterclockwise and take out the dust cap
The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
