FTTx Network 16 Core Optical Fiber Termination/Distribution NAP Box

Product Model

SP-1604-16

Product Description

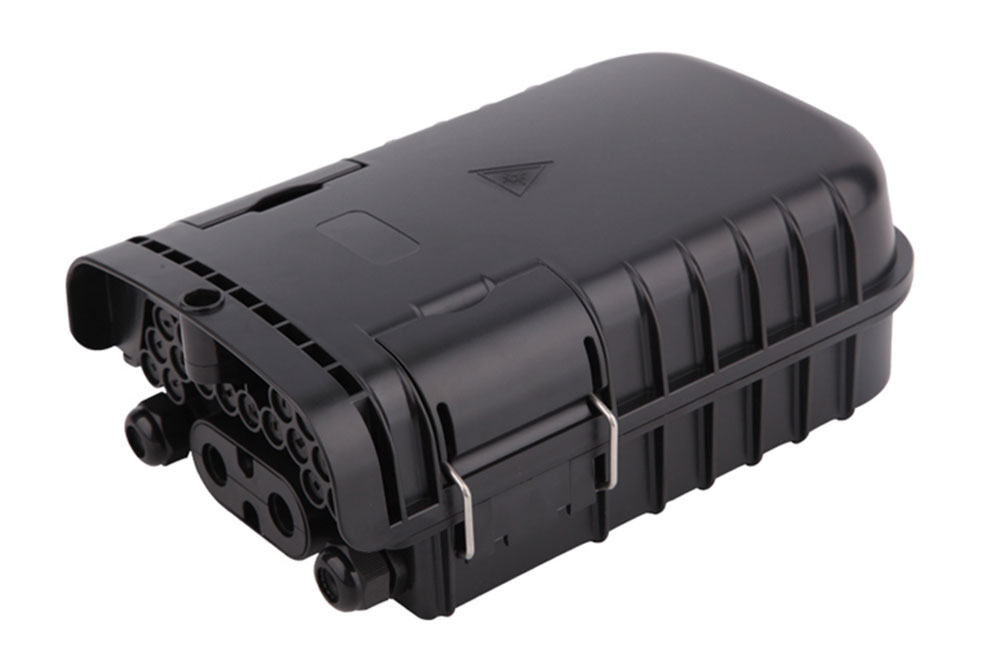

Spring SP-1604-16M fiber distribution NAP box is able to hold up to 16 subscribers and 96 splicing fiber. It is used as a splicing closure and a termination box for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

Features:

Water-proof design with IP-65 Protection Level.

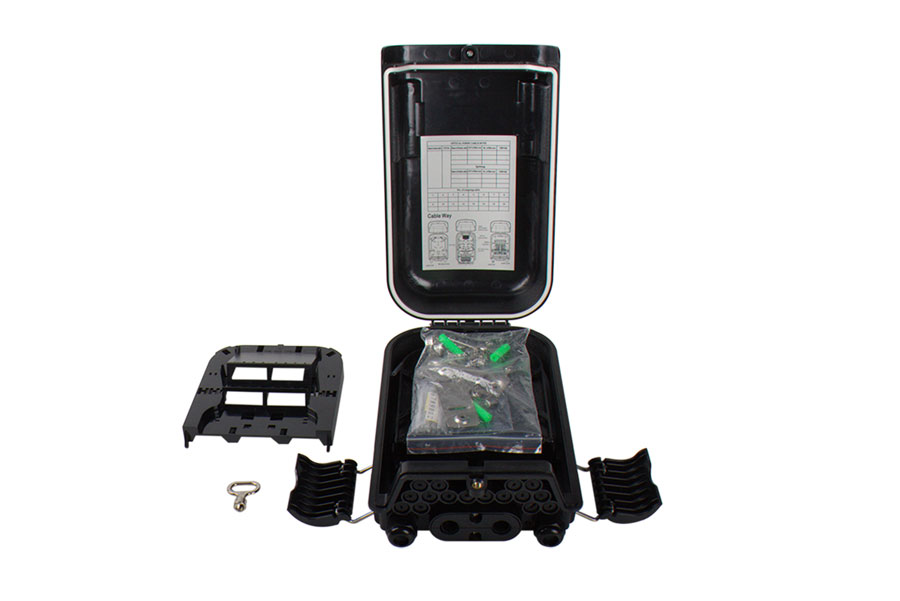

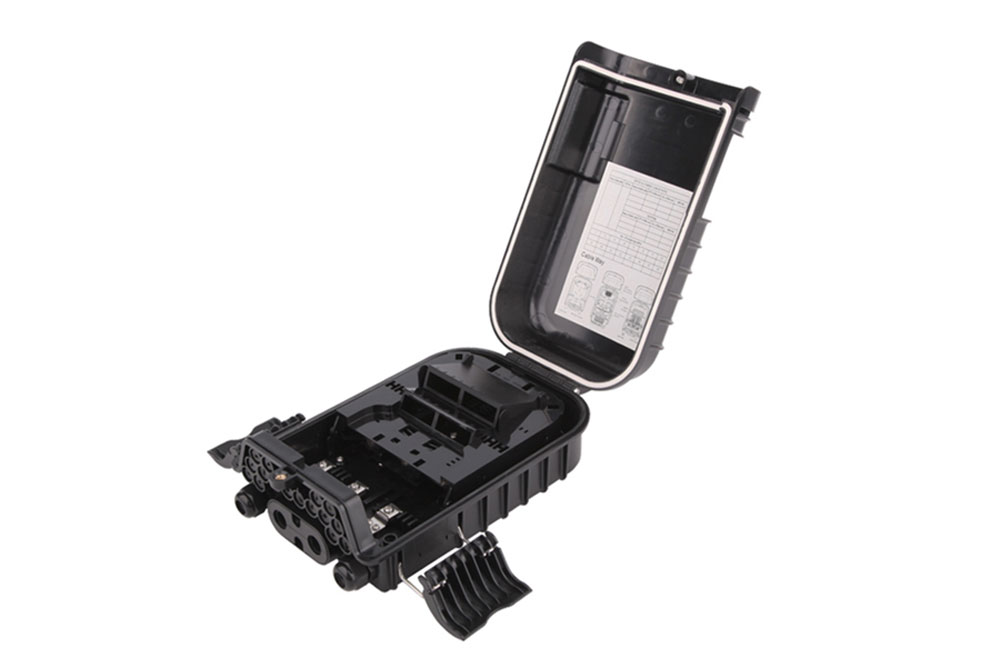

Integrated with flap-up splice cassette and adaptor holder
All stainless metal plate and anti-rusting bolts, nuts
Fiber bend radius control more than 40mm
Suitable for the fusion splicer or mechanical splice
2Pcs of 1*8 Splitter can be installed as an option

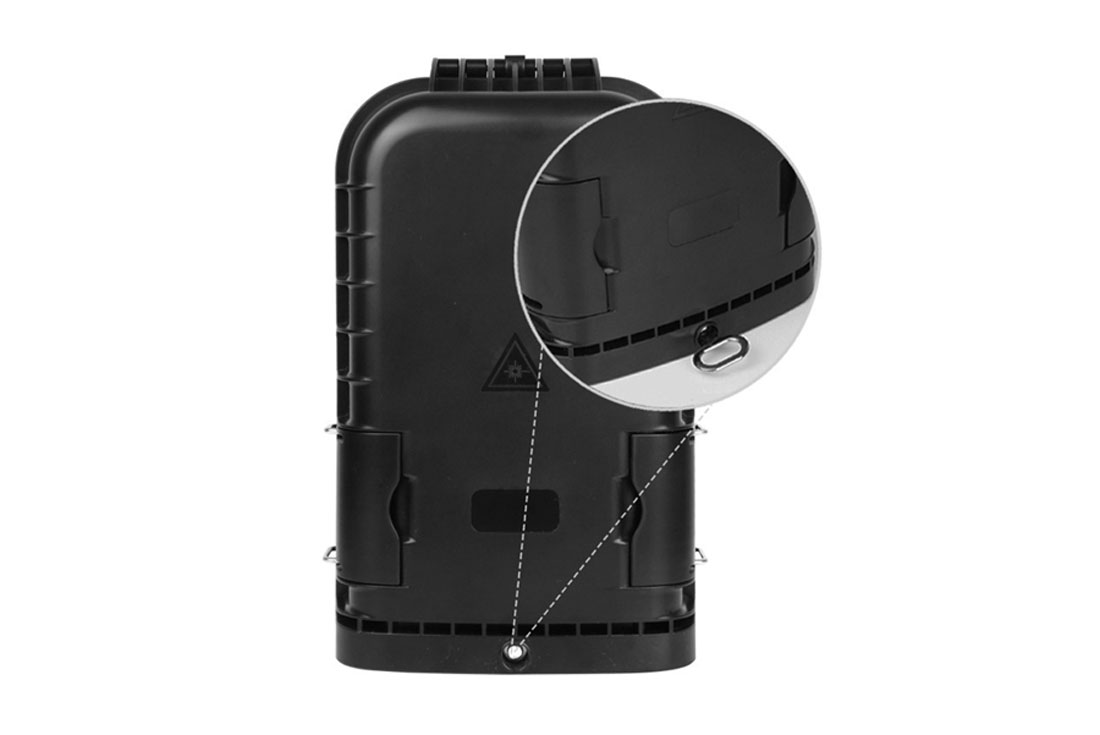

Mechanical sealing structure and mid-span cable entry.
16 ports cable entrance for drop cable
16 adapters for drop cable patching

Application

Application:

Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable

Specification

Specification:

Material

Size

Max Capacity

Nos of Adaptor

Wight

Color

ABS/PC

A*B*C(MM)

287*172*102

Splice 16 Fibers
