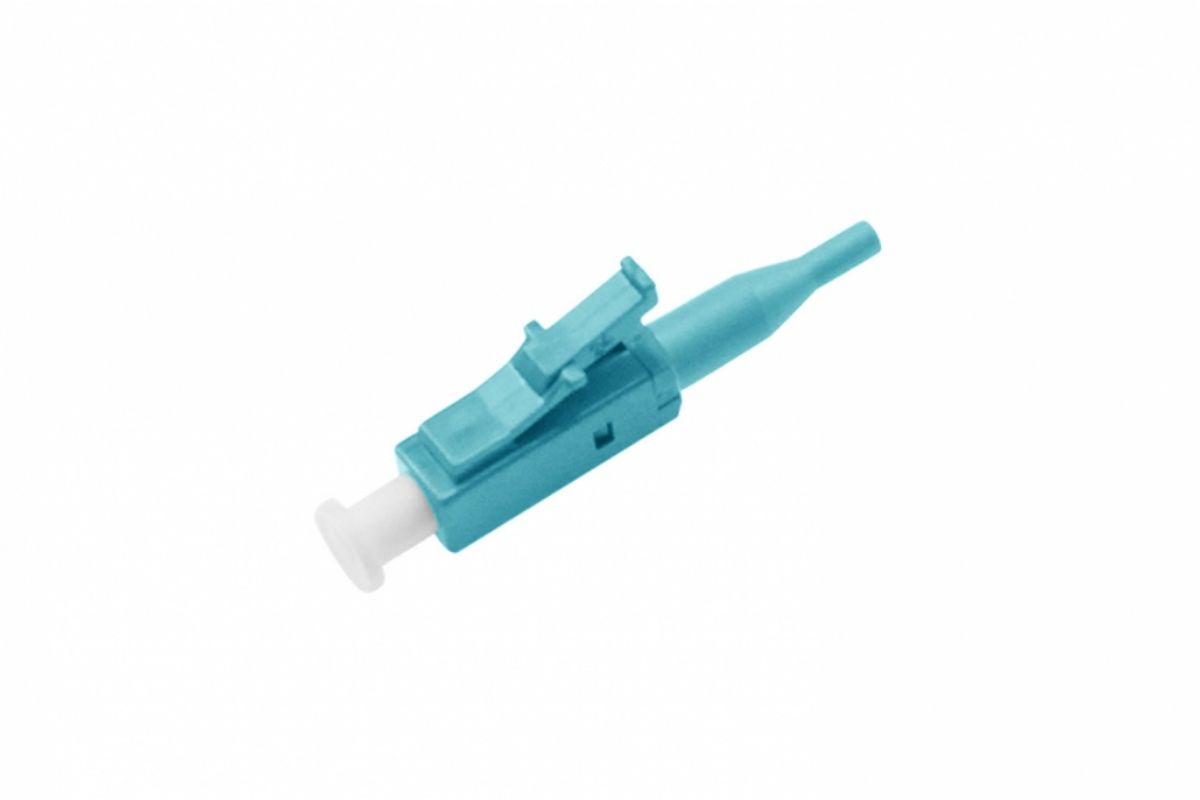

LC OM3 Fiber Optic Connector

Product Model

LC OM3 Connector

Product Description

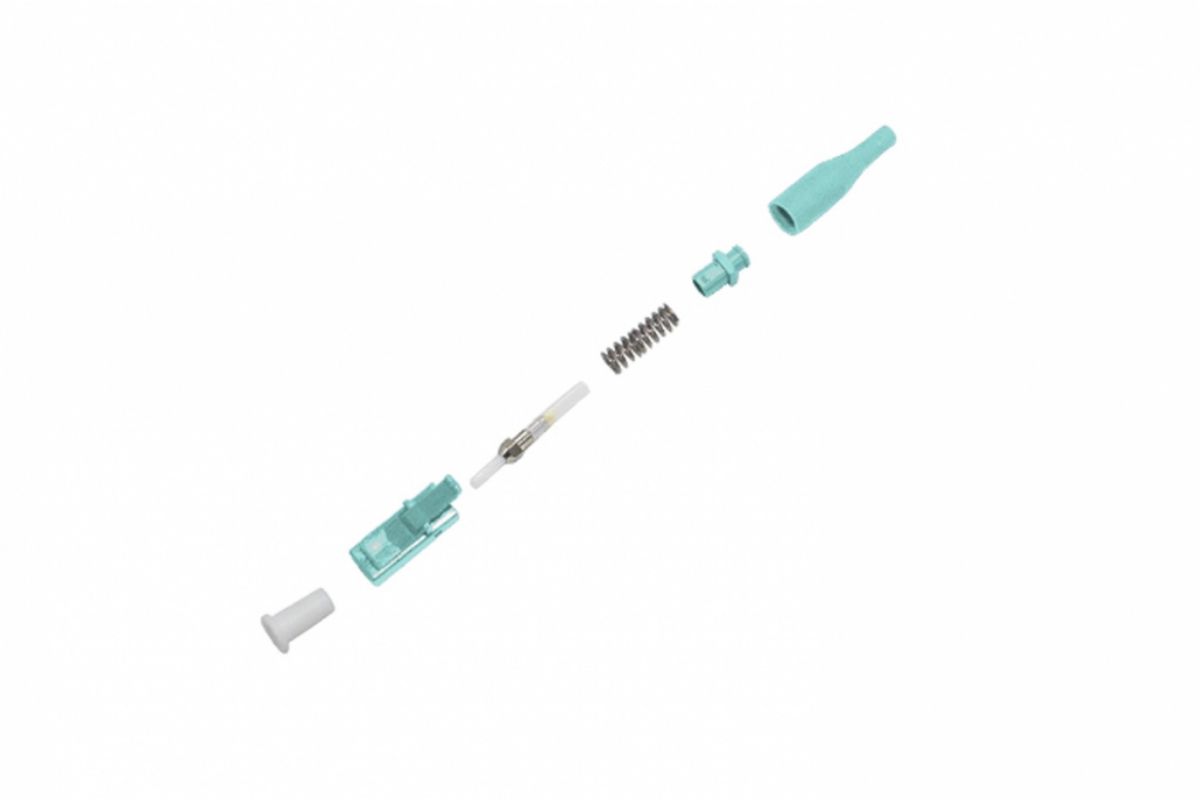

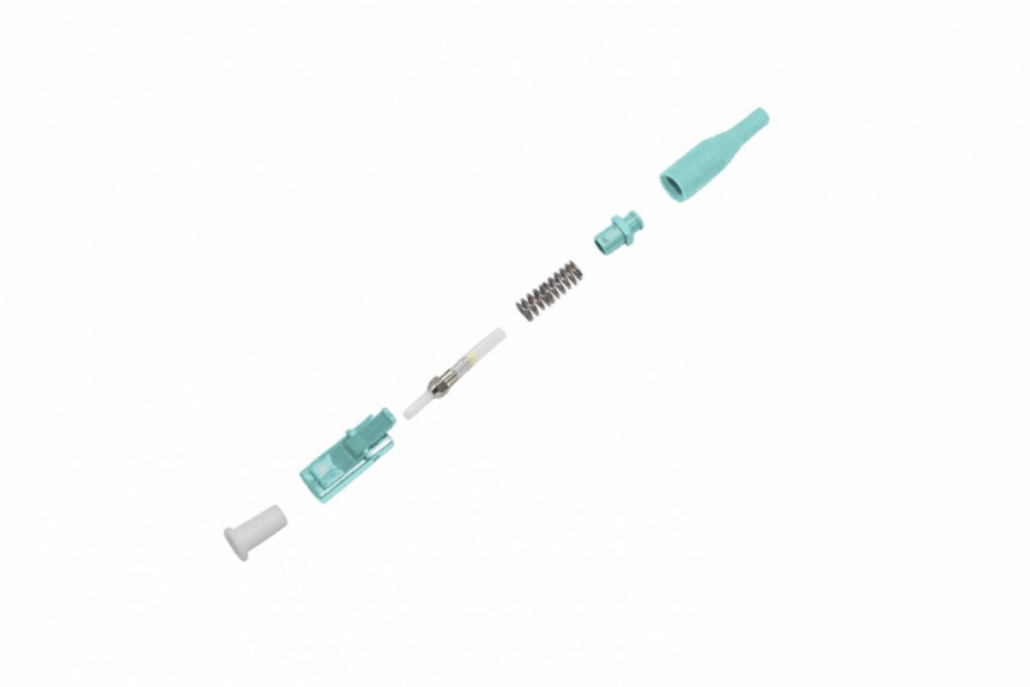

LC Fiber Optic Connector was the first small form factor connector on the market. The use of a high performance 1.25mm ferrule gives the connector extremely high performance characteristics. LC Fiber Optic connector is comprised of a Polymer body and a Ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. This connector is suitable for 0.9mm, 2 and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a Ceramic ferrule with polymer housing provides consistent long-term mechanical and optical performance. The LC has been designed to meet the need for a small optical fiber connector that uses half the space of the SC connector. It features a latched lever mechanism to provide secure ma-ting into the adaptor. The duplex version which is two simplex connectors with a clip, plugs into an adaptor with the same footprint as the SC connector.

Features

Features:

High quality ceramic components and Material
End-face geometry requirement complies to Telcordia GR-326-CORE
100% tested on optical performance (Insertion Loss & Return Loss)
Simplex, duplex and higher core densities
900 micron, 2mm, 3mm cable applications

Dimension

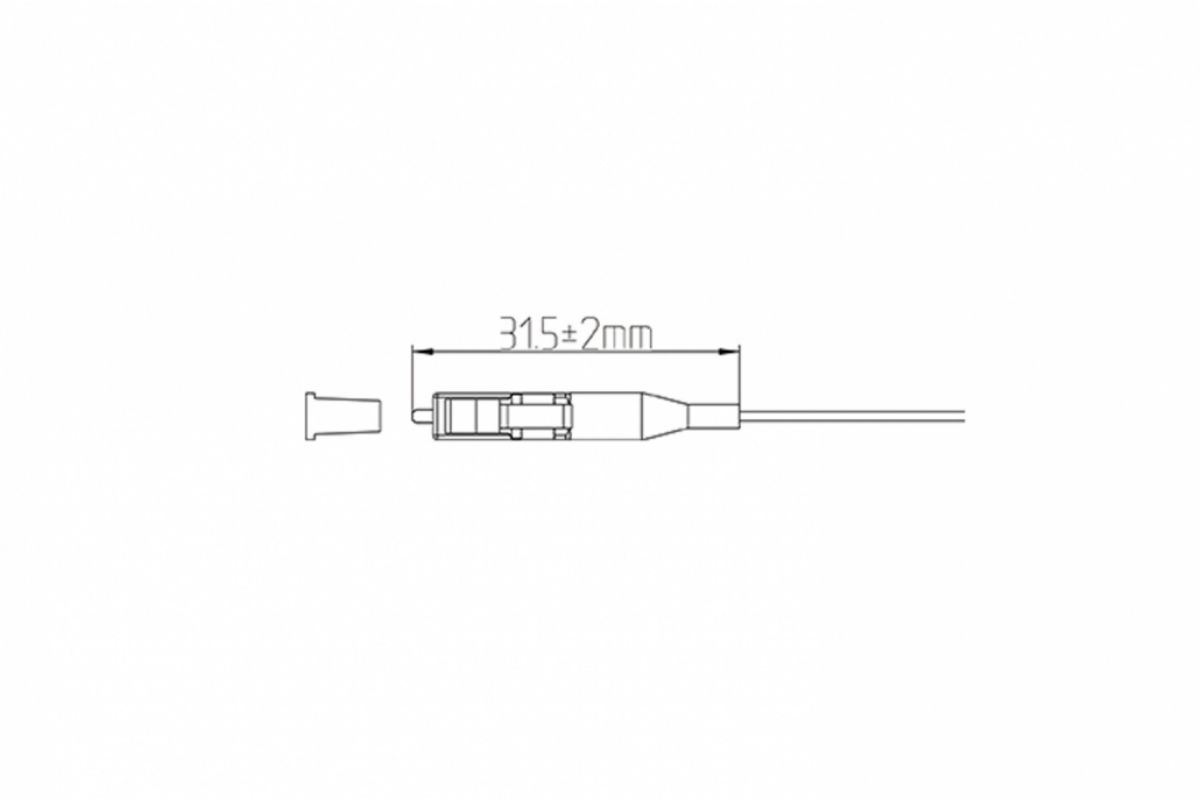

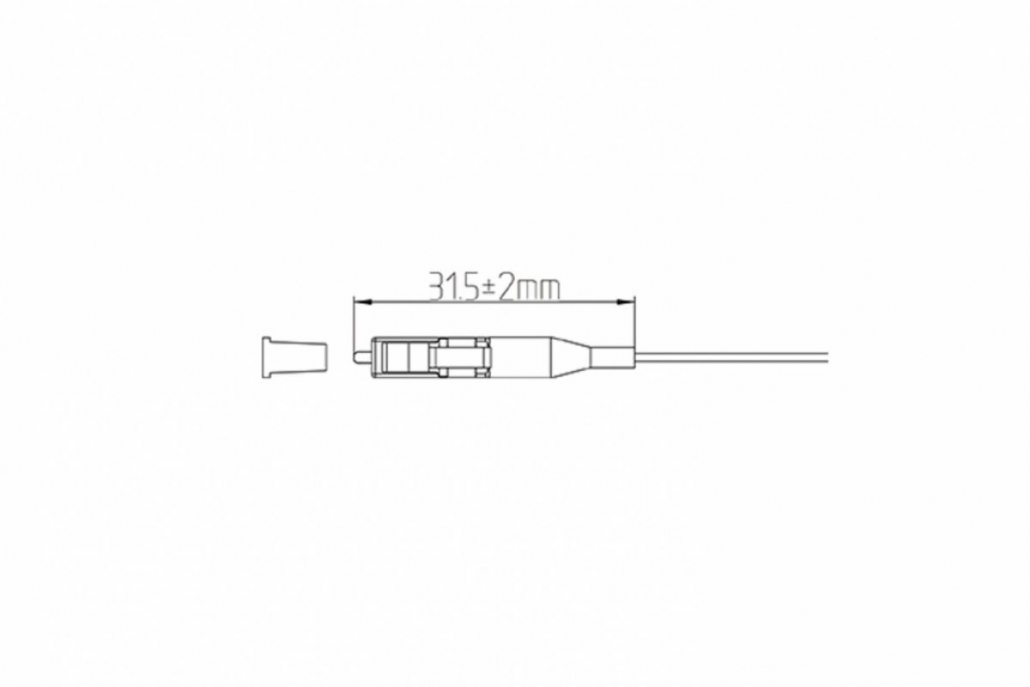

Product Dimension:

Accessory

parameter	LC Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
