FC/APC Fiber Optic Connectors

Product Model

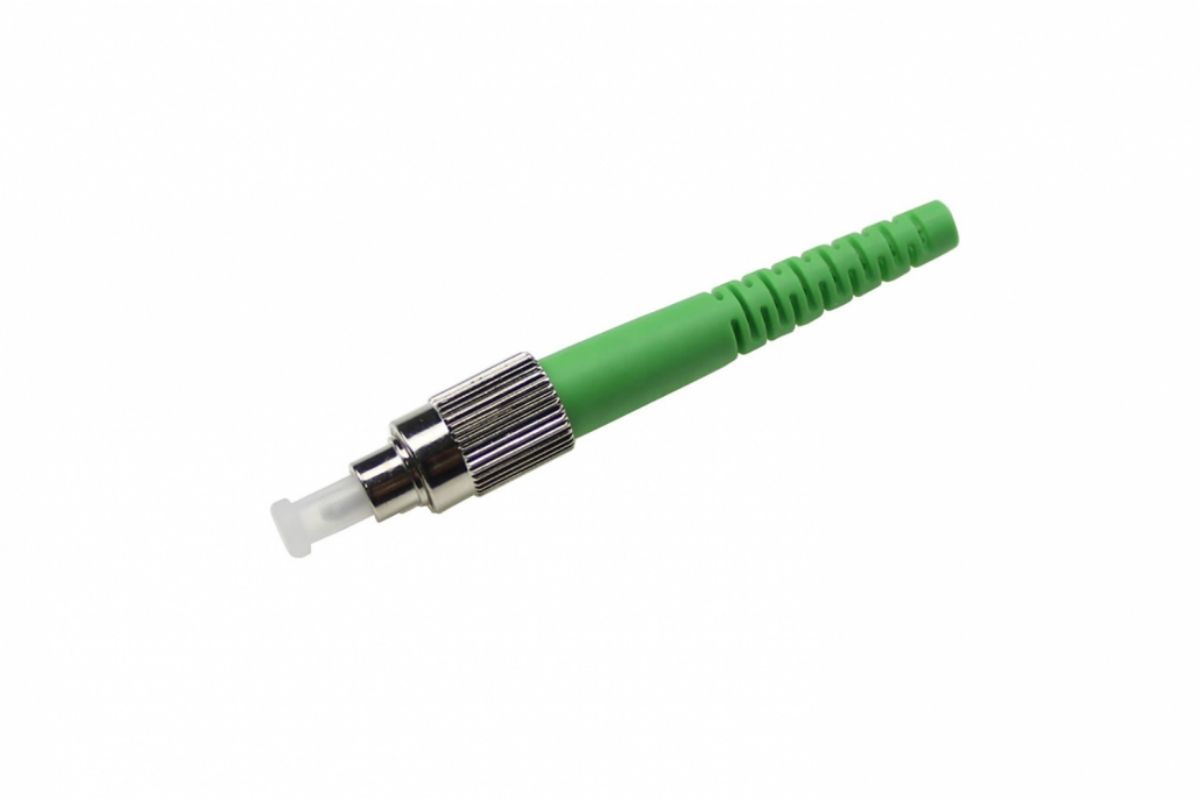

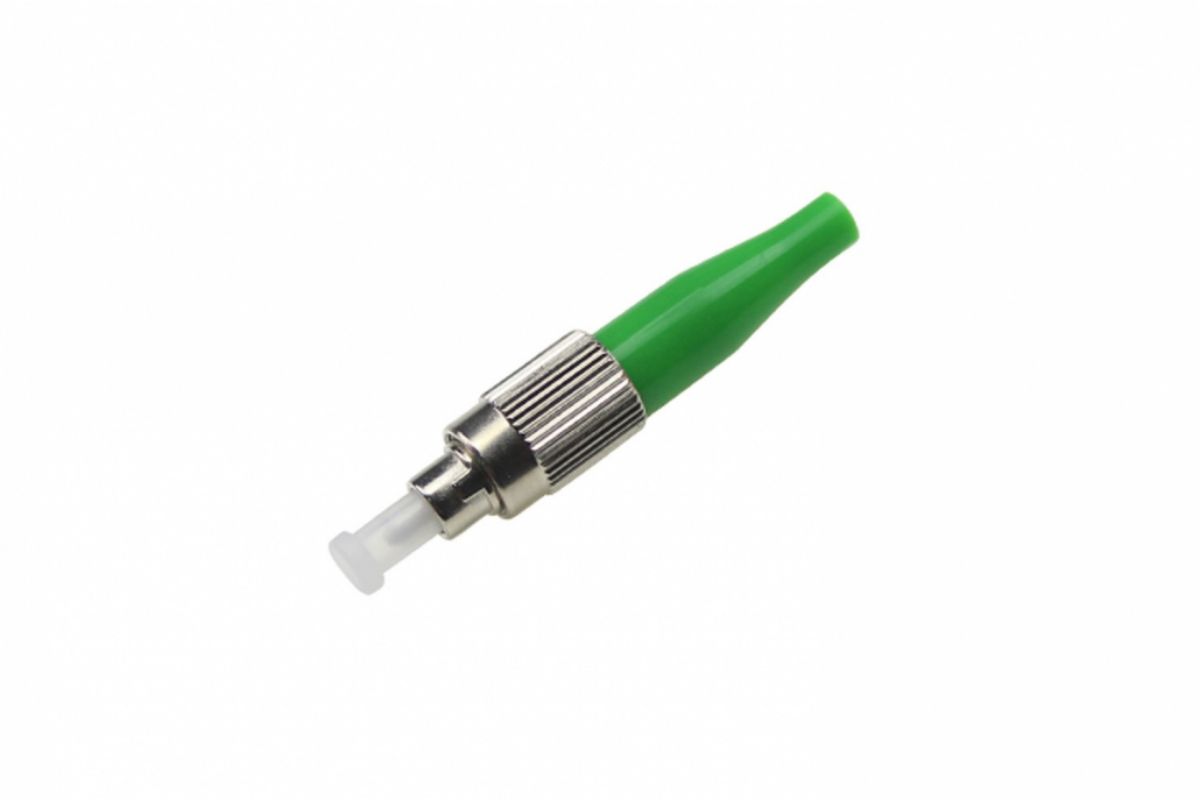

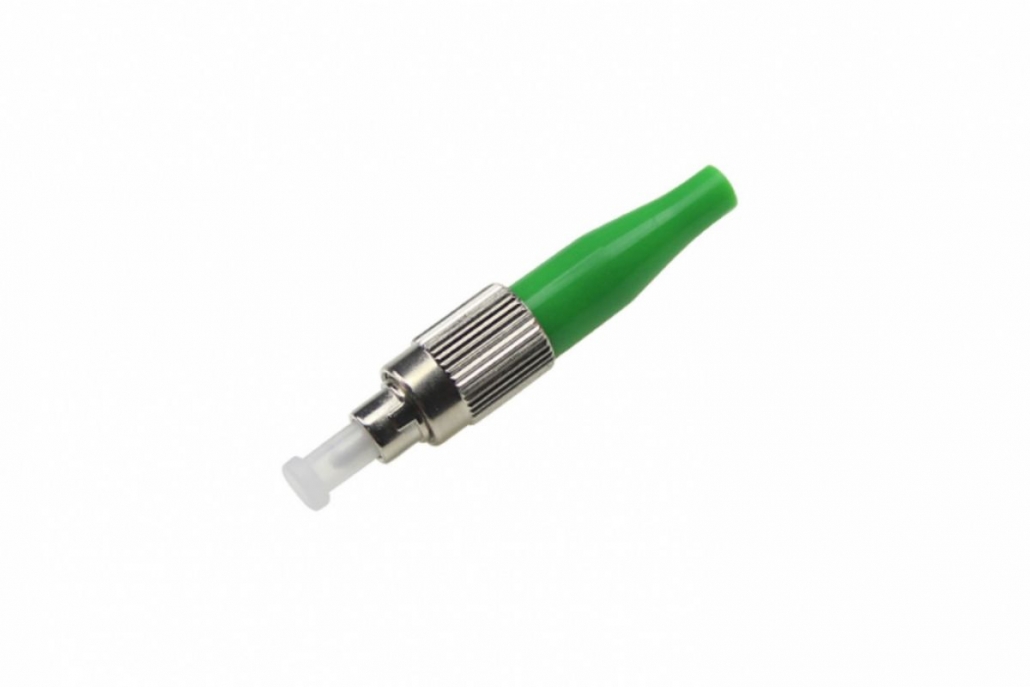

FC/APC Connector

Product Description

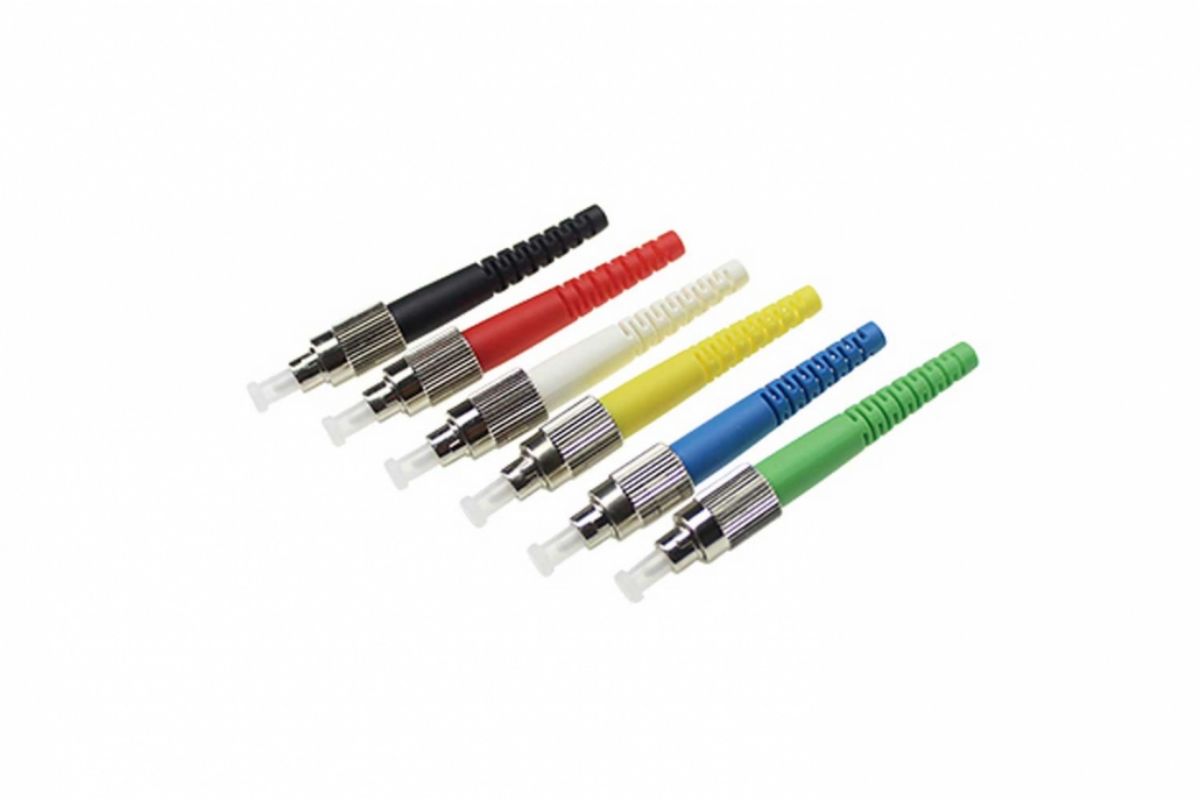

FC Fiber Optic Connector is comprised of a Nickel plated Brass body and a Ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. This connector has a screw thread ting into the adaptor to provide a secure connection and is suitable for 900um, 2-3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a Ceramic ferrule with precision Nickel plated Brass housing provides consistent long-term mechanical and optical performance. The FC connector is available in single mode UPC and APC versions as well as multimode.

Features:

  • High quality ceramic components and Material
  • End-face geometry requirement complies to Telcordia GR-326-CORE
  • 100% tested on optical performance (Insertion Loss & Return Loss)
  • Simplex, duplex and higher core densities
  • 900 micron, 2mm, 3mm cable applications
