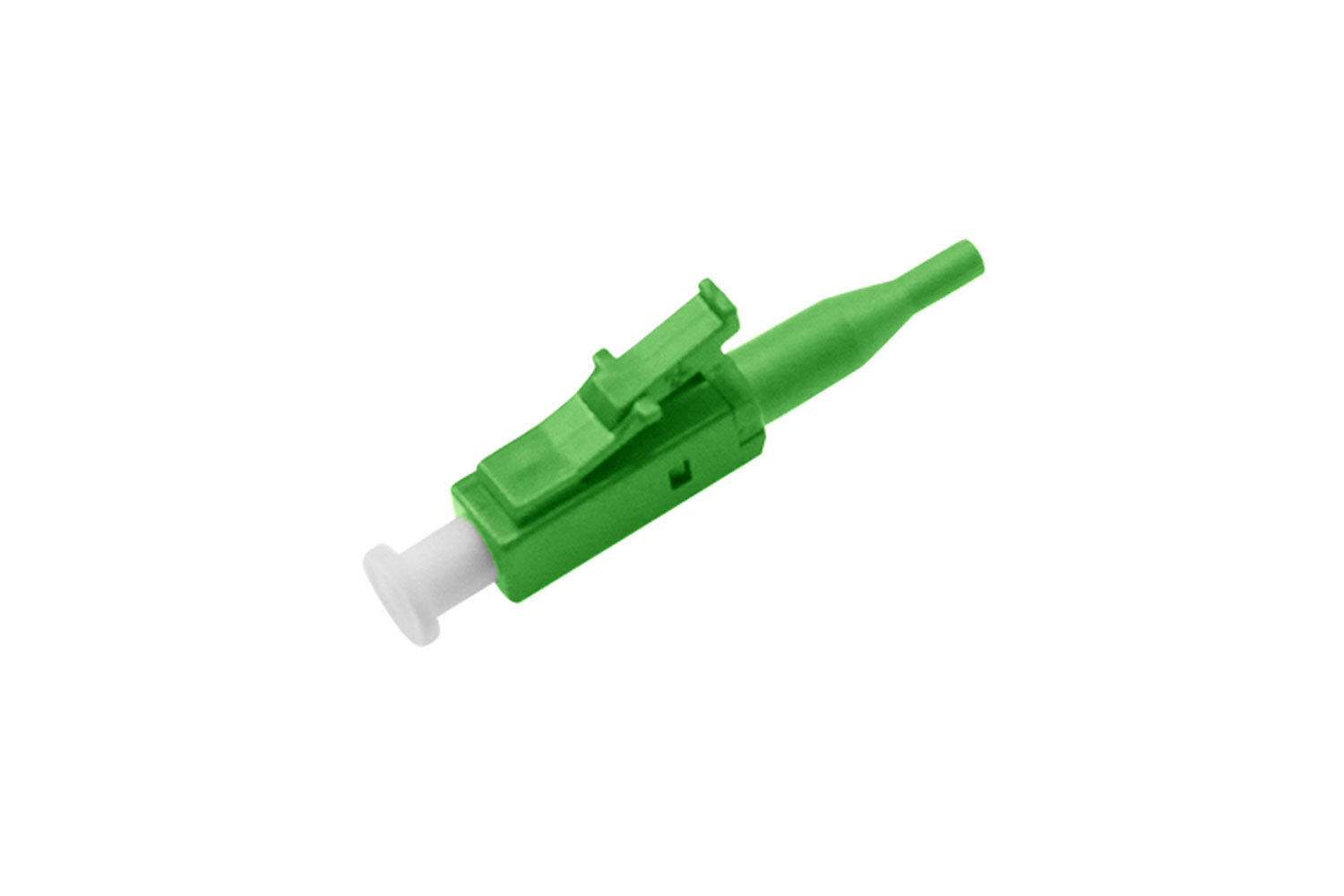

LC/APC Fiber Optic Connector

Product Model

LC/APC Connector

Product Description

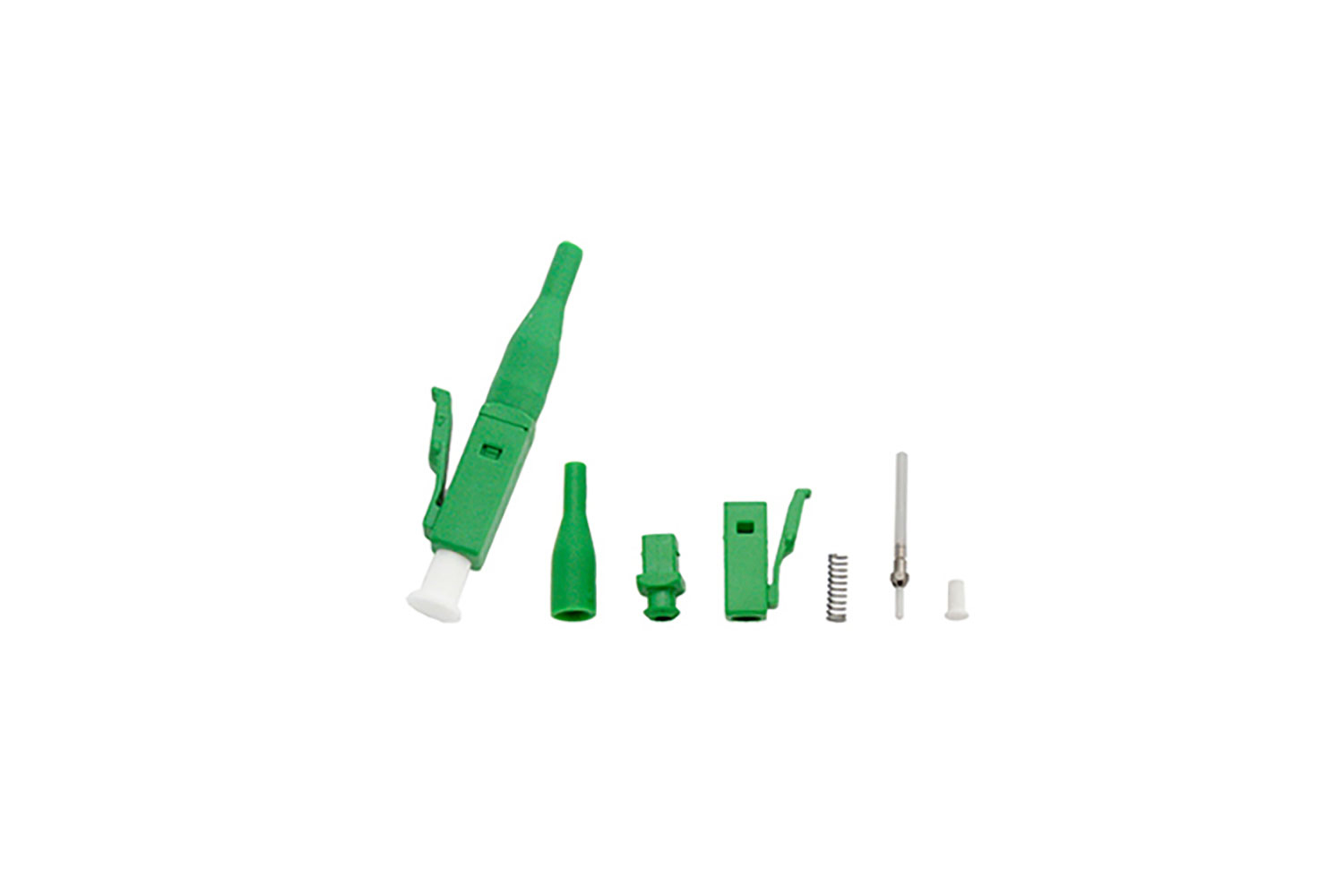

SC Fiber Optic Connector is a push pull type, gives an audible click when mates into its adaptor and can be tuned in 4 positions to provide the lowest insertion loss. It comprises of a body with ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for, 0.9mm and 2-3mm cables. The connector is precision made to demanding specifications. The combination of a ceramic ferrule with precision polymer housing pro-vides consistent long-term mechanical and optical performance.

Features

Features:

High quality ceramic components and Material
End-face geometry requirement complies to Telcordia GR-326-CORE
100% tested on optical performance (Insertion Loss & Return Loss)

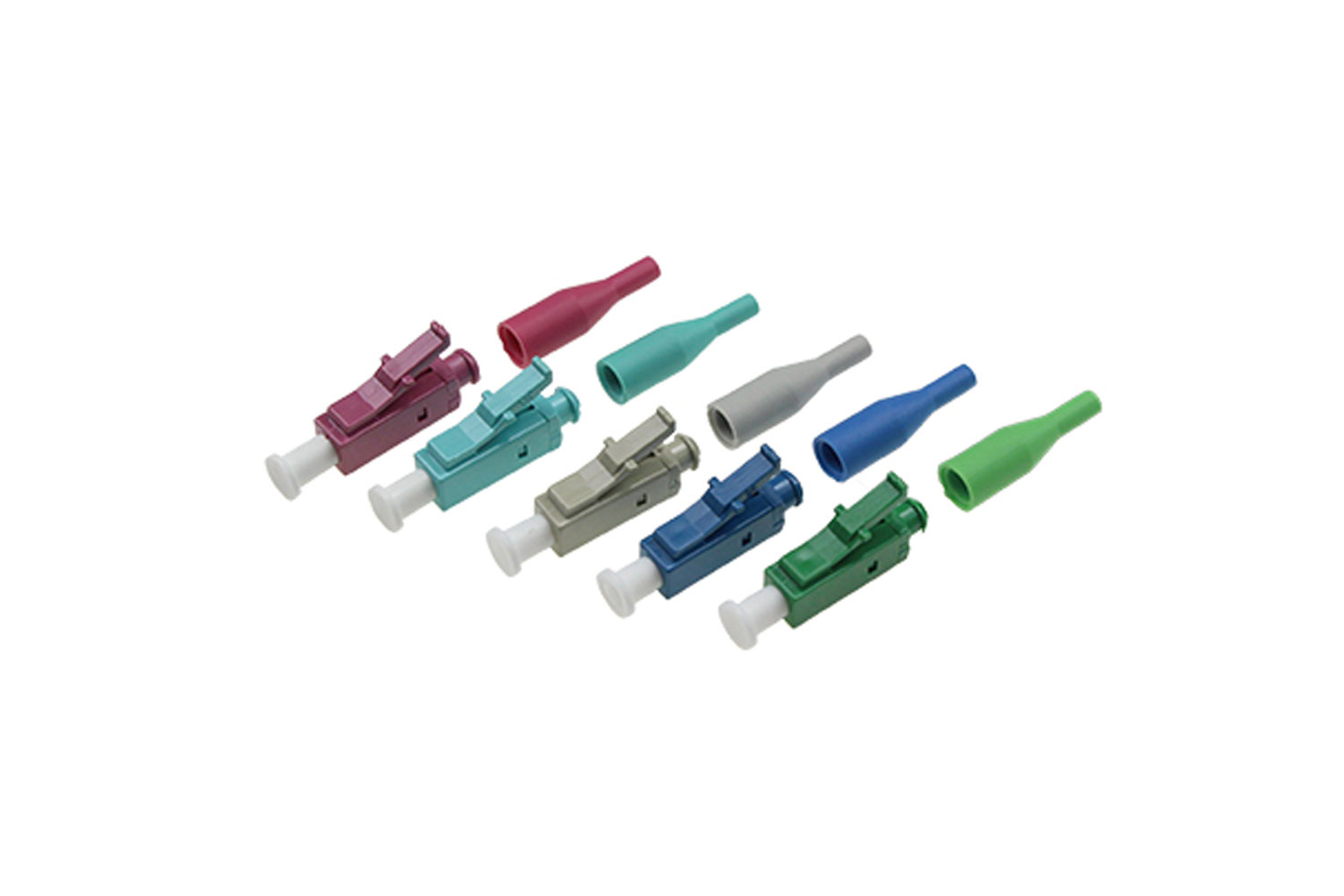

Simplex, duplex and higher core densities
900 micron, 2mm, 3mm cable applications

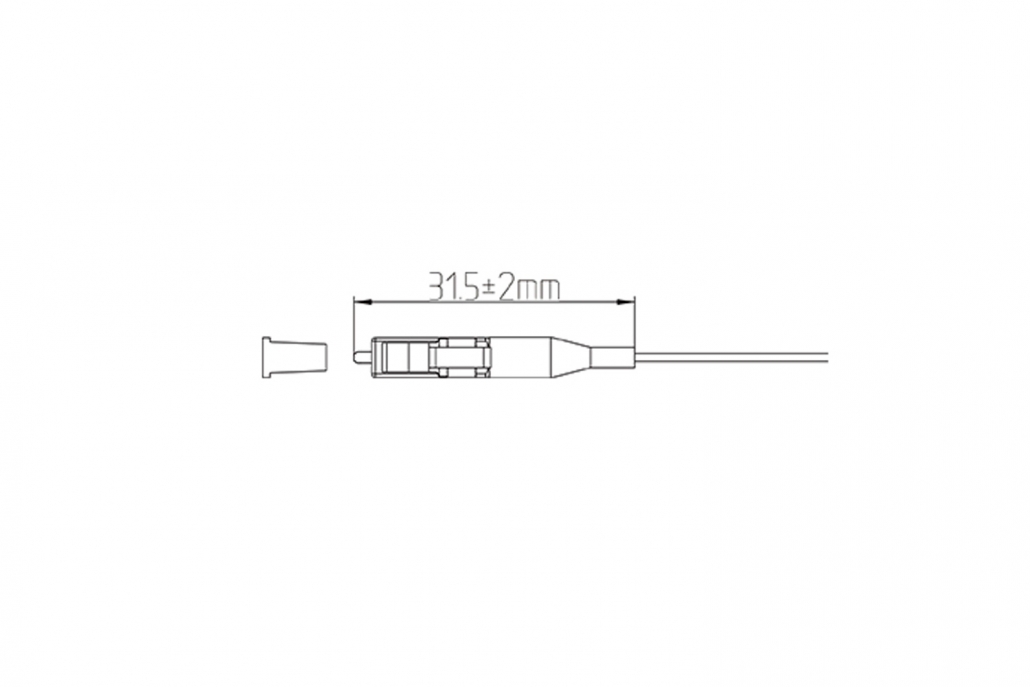

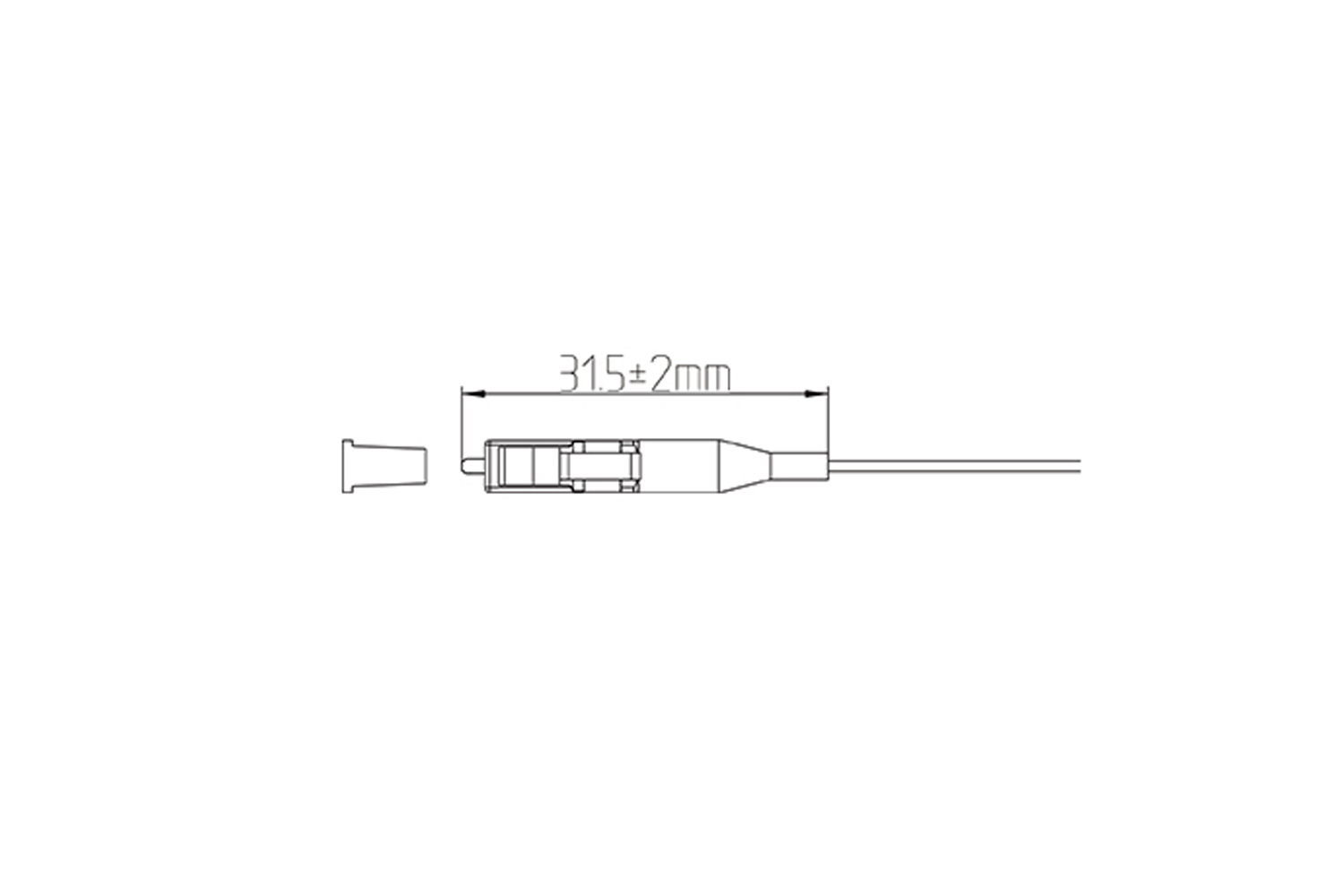

Dimension

Connector Ferrule	Ceramic
Alignment Sleeve	Ceramic
Connector Body	UL 94V-0 rated Thermoplastic to meet standard ﬂammability ratings
Crimp Insert/Crimp Tube	Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap	Nylon or PVC
Strain Relief Boot	Flame retardant (UL-Rated 94-V0) polymer
Connector Style	SC, FC, ST, LC, MTRJ,
Polish	PC, UPC, APC
Capillary Diameter Tolerance	126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode)
Ferrule Diameter	2.5 ± 0.001mm(FC,SC,ST),1.25± 0.001mm (LC)
